Small depth hydraulic drilling rig portable mine machine diamond drill rig

Product Overview

Description

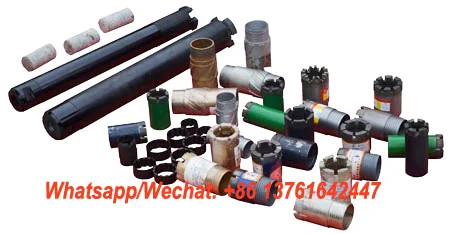

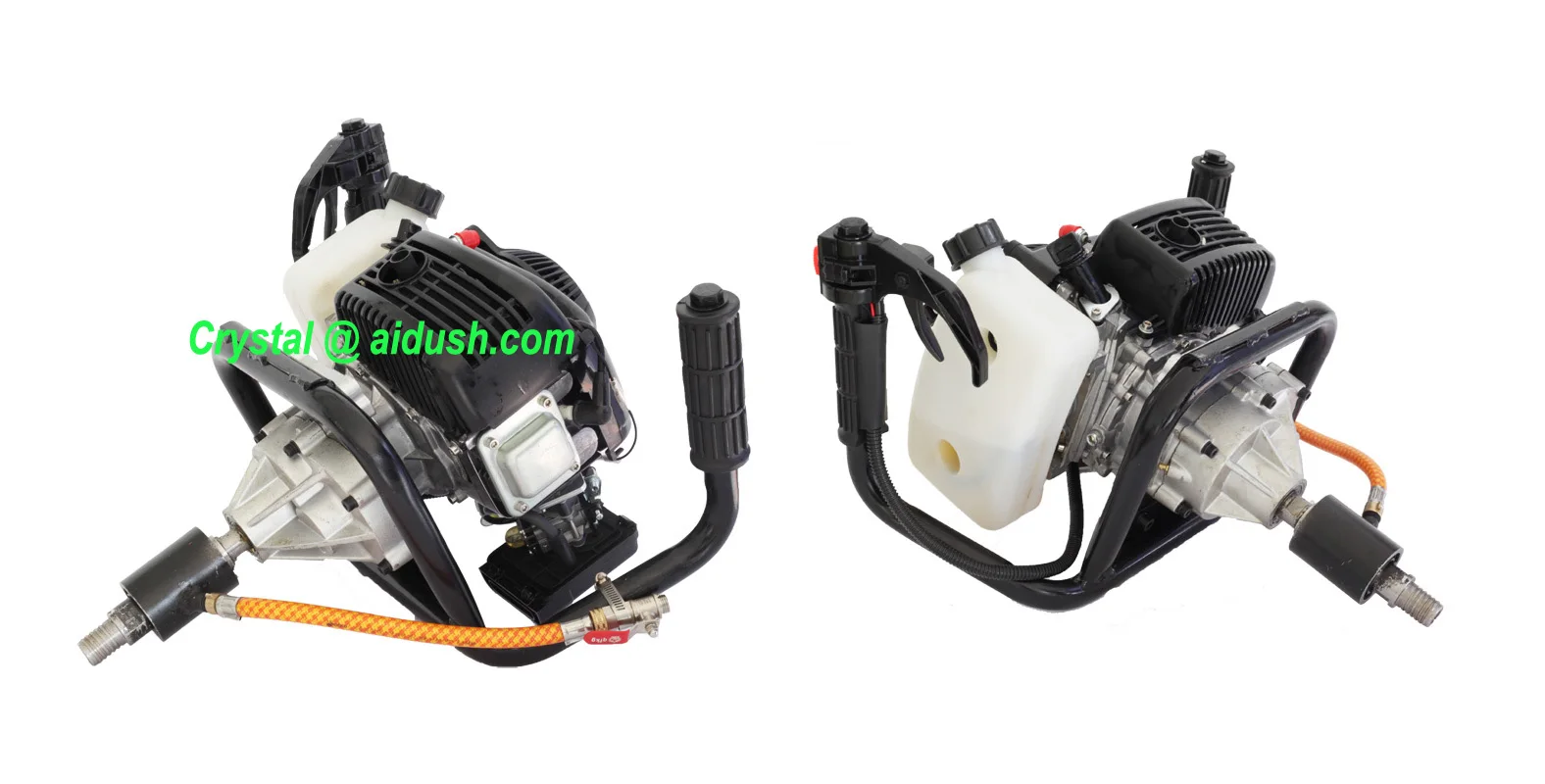

The backpack core drill is a nearly ideal tool for environmental and geotechnical field investigation because it can be used in otherwise difficult of access locations behind buildings, fences and walls, trees, escarpments and much else. The diamond core bits of the system are easily capable of advancing borings through a large array of subsurface materials including steel reinforced concrete, hard rock and some kinds of cemented gravels.



The drill has many field applications including precious and basic metals, academic, environmental, geotechnical investigation, construction, treasure hunting, fossil fuels, quarry stone, and well installation.







Main application:

It is an indispensable technology in precious and basic metals, academic, environmental, geotechnical investigation, construction, treasure hunting, fossil fuels, quarry stone, and well installation.



Technical parameter:

Fuel consumption: about 0.45L/hour

Core diameter: 20mm

Hole diameter: 20-46mm

Rotator speed: 1600r/min

 Hole depth: ≤23m

Power: 2.7HP (highest speed)
