LSXR Intake Manifold LS Engine 102mm Throttle Body SD102MMEL
Picture:
OE Number:
SD102MMEL 146102B
Product Fitment/Applications
Year
Make
Model
Trim
Engine
2015
Chevrolets
Camaro
SS Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2015
Chevrolets
Camaro
SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2015
Chevrolets
Camaro
Z/28 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2015
Chevrolets
Camaro
ZL1 Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2015
Chevrolets
Camaro
ZL1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2014
Chevrolets
Camaro
SS Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2014
Chevrolets
Camaro
SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2014
Chevrolets
Camaro
Z/28 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2014
Chevrolets
Camaro
ZL1 Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2014
Chevrolets
Camaro
ZL1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2013
Chevrolets
Camaro
SS Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2013
Chevrolets
Camaro
SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2013
Chevrolets
Camaro
ZL1 Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2013
Chevrolets
Camaro
ZL1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2013
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2013
Chevrolets
Corvette
ZR1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2012
Chevrolets
Camaro
1SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS DOHC Naturally Aspirated
2012
Chevrolets
Camaro
2SS Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS DOHC Naturally Aspirated
2012
Chevrolets
Camaro
2SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS DOHC Naturally Aspirated
2012
Chevrolets
Camaro
SS Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2012
Chevrolets
Camaro
SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2012
Chevrolets
Camaro
ZL1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2012
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2012
Chevrolets
Corvette
ZR1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2011
Chevrolets
Camaro
1SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS DOHC Naturally Aspirated
2011
Chevrolets
Camaro
2SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS DOHC Naturally Aspirated
2011
Chevrolets
Camaro
SS Convertible 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2011
Chevrolets
Camaro
SS Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2011
Chevrolets
Corvette
Z06 Carbon Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2011
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2011
Chevrolets
Corvette
ZR1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2010
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2010
Chevrolets
Corvette
ZR1 Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Supercharged
2009
Chevrolets
Corvette
Base Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2009
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2008
Chevrolets
Corvette
Base Coupe 2-Door
6.2L 6162CC 376Cu. In. V8 GAS OHV Naturally Aspirated
2008
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2007
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated
2006
Chevrolets
Corvette
Z06 Coupe 2-Door
7.0L 7011CC 427Cu. In. V8 GAS OHV Naturally Aspirated

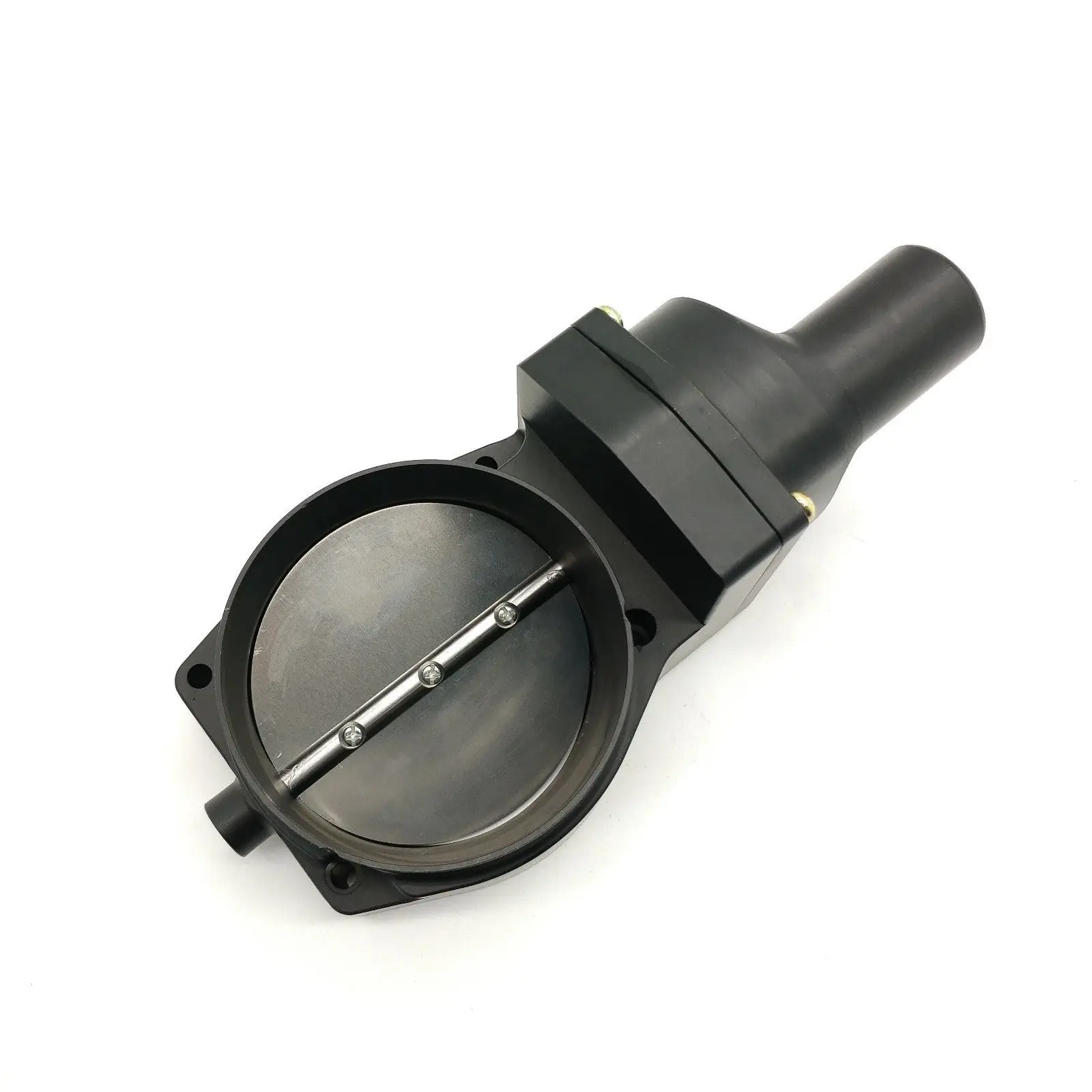

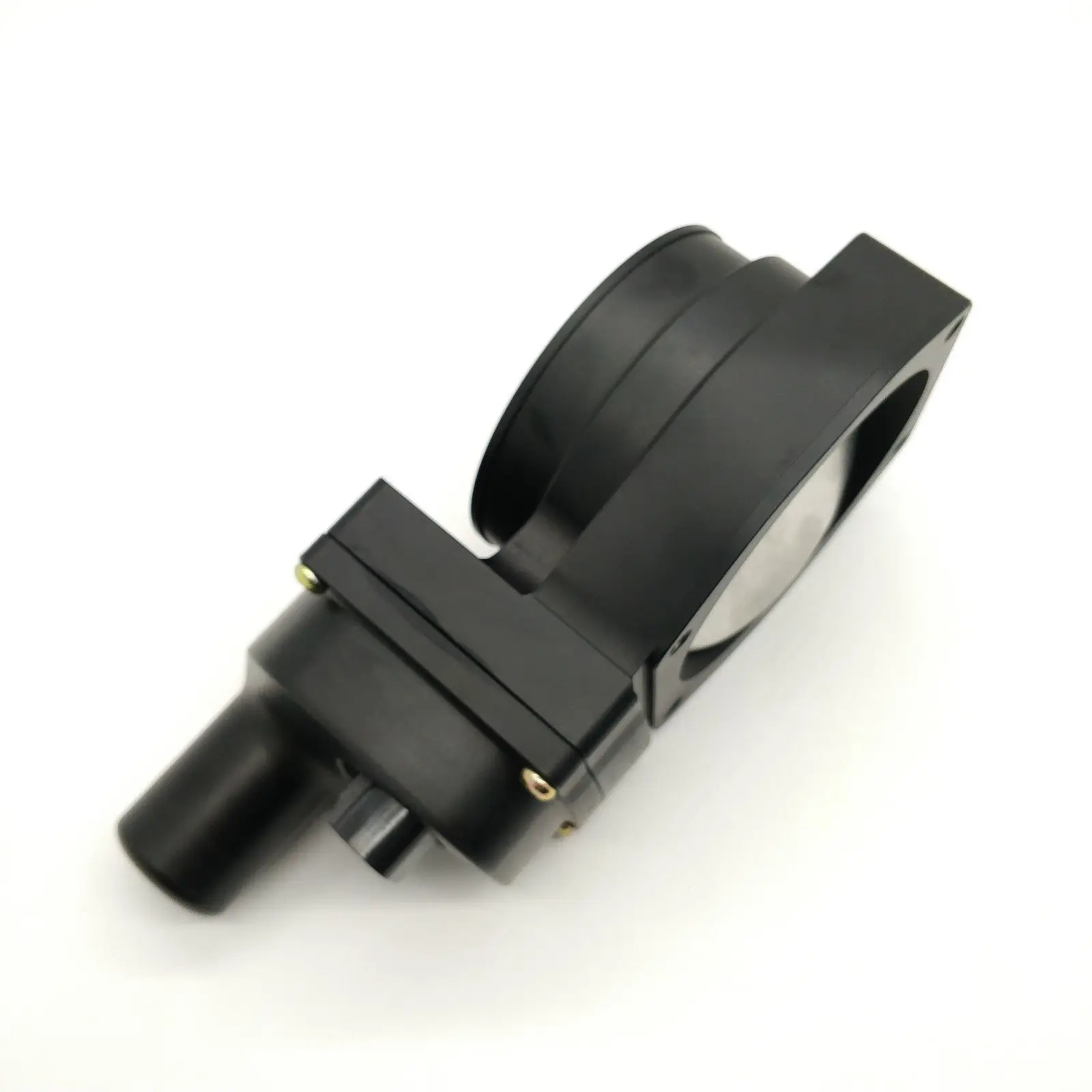

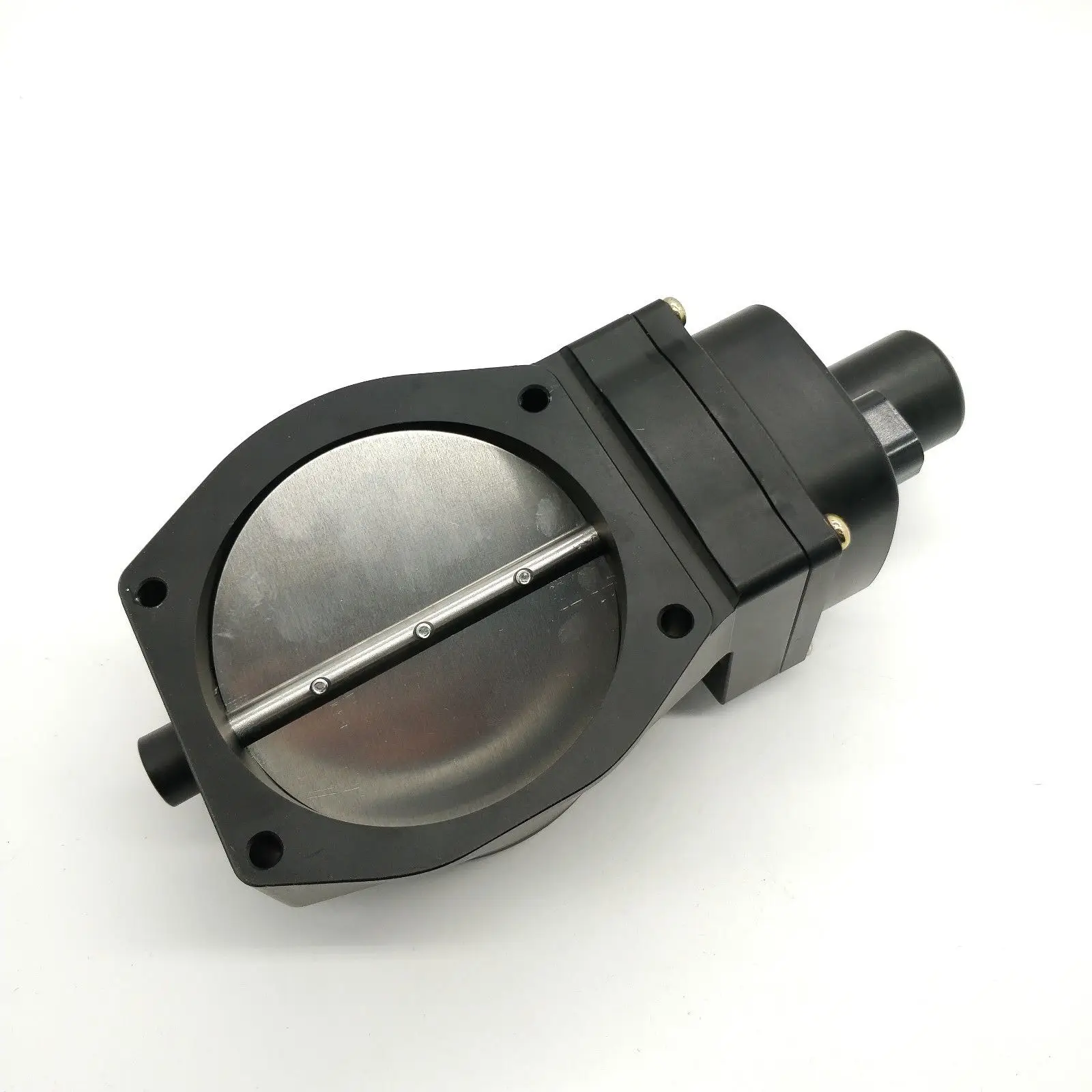

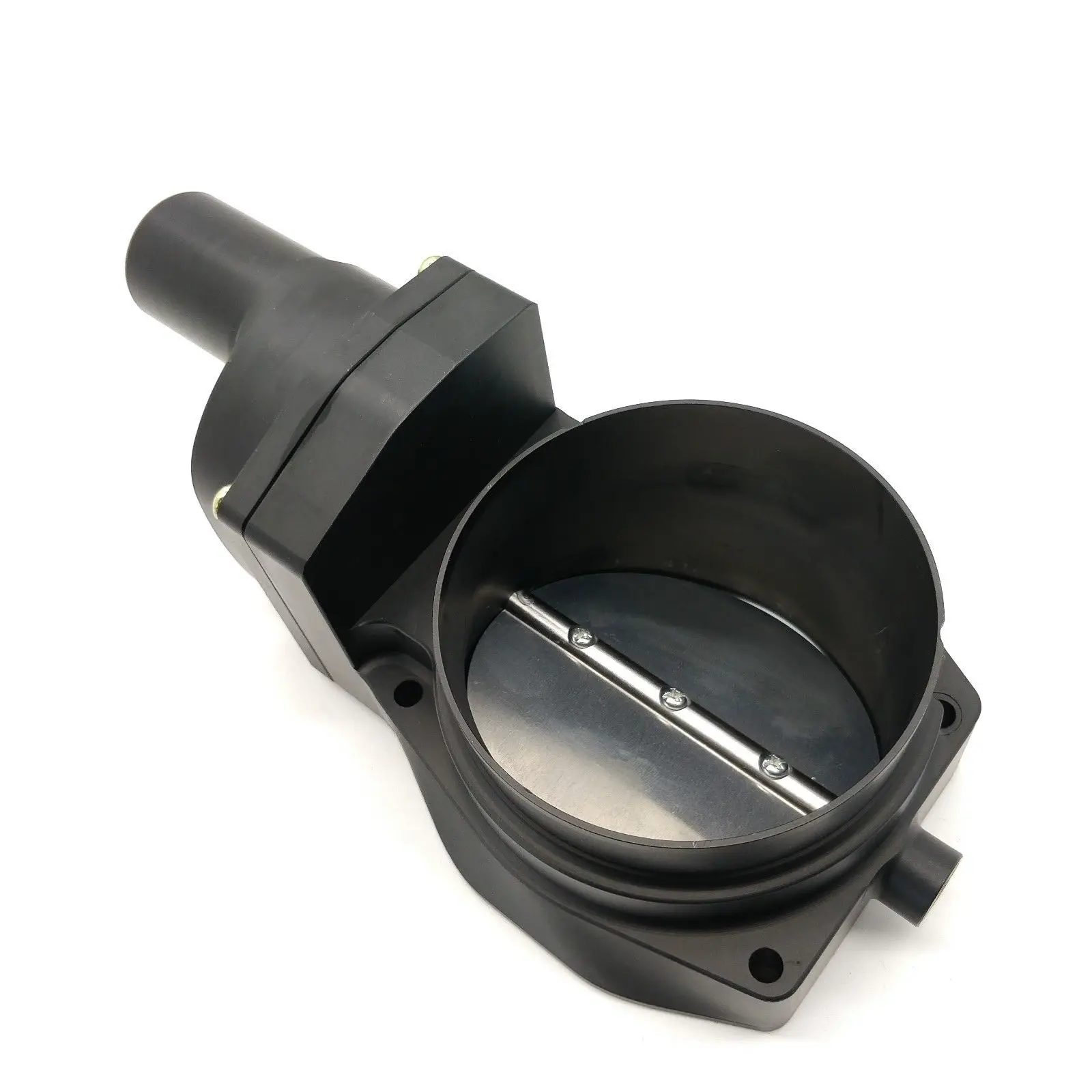

102mm Drive By Wire Throttle Body For GM LS Nick Williams LSXR Intake Manifold Design
Notes :
This throttle body will not fit the original intake manifold.
Designed for LSXr intake manifolds with drive-by-wire throttle bodies only. Tuning is required.
Throttle Body Finish: Black anodized
Throttle Body Material: Billet aluminum
Throttle Body Style: Multi-port injection, MPI
Bore Diameter (mm): 102.00mm
CNC precision machined billet throttle bodies made exclusively for Scoggin Dickey to meet the demands for increased airflow on the "drive-by-wire" LSX performance engines.
The 102mm throttle body requires an aftermarket intake to fit the larger diameter throttle blade.

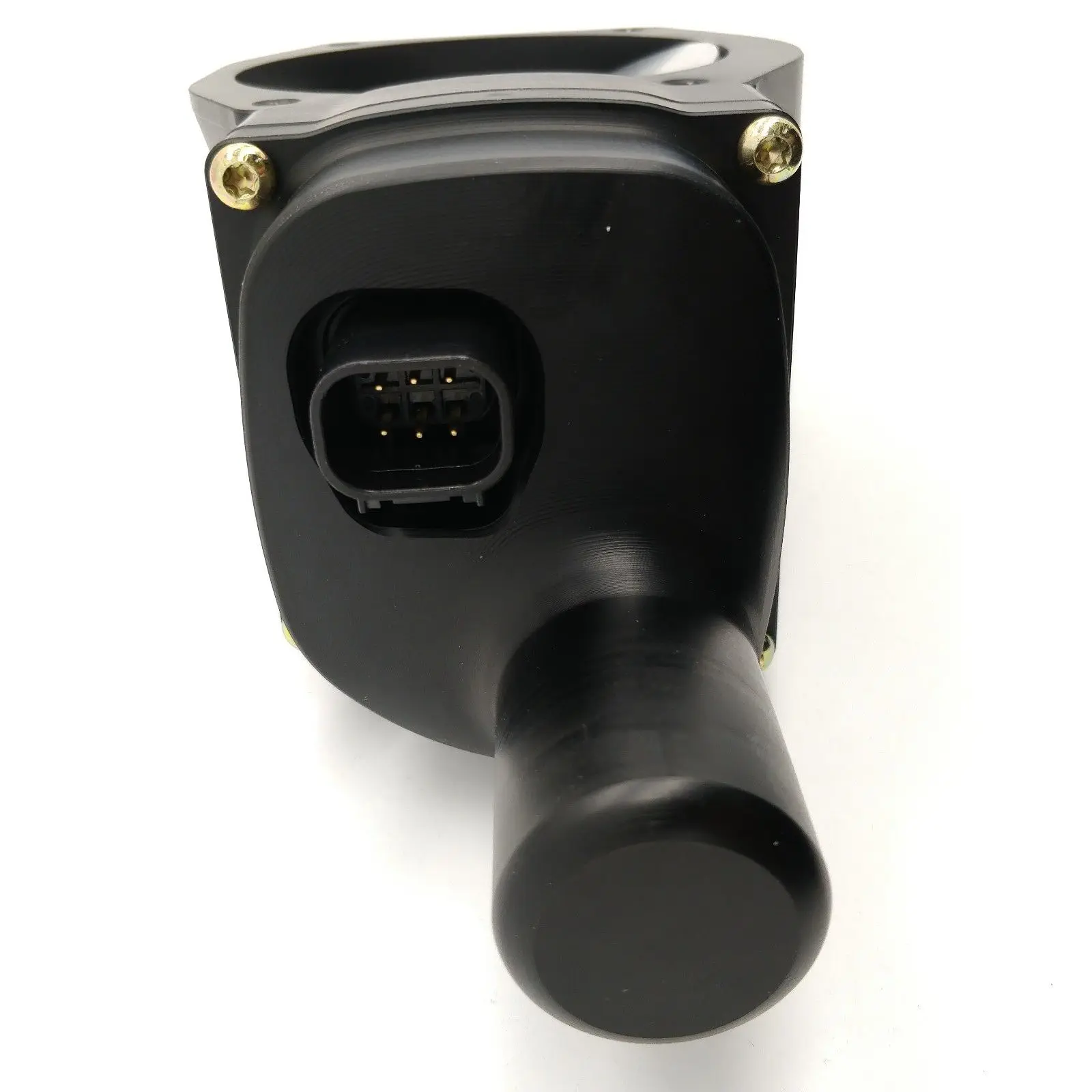

The 6-pin late model connector works with 2010 and newer Camaro (F-Body), 2005 and newer Corvette (Y-Body), and Chevy/GMC pickups 2007 and later with the 6-pin wiring harness.
Tuning is required.
This 102mm LS3/L92/LS7/LSXR (Electronic) Throttle Body, Will work on modified LS1/LS2/LS6 engines also.
This throttle body accepts the LS2/LS3 stock throttle body harness.
This is a great addition to the FAST LSXR 102mm Intake Manifold.
This throttle body has a 4.23" OD, so you'll want to use a 4.25" coupler.
**LS1 Vehicles require adapter harness. Harness allows the use of a LS2 throttle body on an LS1 vehicle.
*** This product is modified for higher boosted cars by a third party. And it will work on (modified):
2009-2015 CTS V (needs adapter if using stock upper pulley)
2012-2015 Camaro ZL1 (needs adapter if using stock upper pulley)
2010-2015 Camaro
2008-2011 Pontiac, G8 GT/GXP, (Needs to have the Power steering Pump relocated)
2005-2013 Corvette, C6/Z06
2005-2007 CTS-V, (LS2 Only)
2005-2011 Trailblazer SS
2005-2006 Pontiac GTO, (LS2 Only) and (Needs to have the Power steering Pump relocated)
