Widely used secondry crushing machine Hard stone iron ore rock crusher PYB 900 Cone crusher with best price
- Category: Crusher >>>
- Supplier: Henan,Baichy,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
1. We are factory and be able to give you the lowest price than market one;
2. Our products have been exported to over 80 countries and widely used in global mining and construction industry;
3. we have a professional after-sale service team to promptly and thoroughly solve your problems;
4. Provide free process design.
The professional stone crushing equipment includes Spring cone crusher,hydraulic cone crusher and symons cone crusher .They are suitable to crush all kinds of ores and rocks with medium hardness and above.
Advantage
1. simple structure and High efficiency low energy consumption
2. diversity crushing chamber types
3. special sales form and easy operation
4. overload protection and easy maintenance
Application:
Spring Cone Crusher breaks material by squeezing or compressing it between convex and concave shaped surfaces covered by manganese as the wear surface. Normally used as the secondary or tertiary crusher, the cone crusher has been developed to crush high or medium hardness material, such as iron ore ,copper ore, limestone, quartz, granite, and sand stones, etc.
Working principle
Cone crusher consist of frame, transmission device( countershaft, countershaft bushing, gear and pinion), main shaft, eccentric shaft, cone,mantle, bowl-shaped bearing, springs and hydraulic pressure station for adjusting discharge opening. (1) Transmission device: Countershaft assembly is supported by the bronze countershatf bushings, can be dismounted for convenience of maintence. And the gear and pinipn with high strengh and high precision are adopted to ensure the reliable operation of equipment. (2) Main shaft: Forged form hardened and tempered chrome molybdenum steel particularly large diameter to suit wear-resisting application. High quality copper socket liner can bear high crushing load, and allows the machine working under rigorous condition. (3) Cone and mantle plate, high manganese steel casting, hydraulic lock device is convenient and reliable. (4) Spring and hydraulic device: Convenient for adjusting the discharge size, can remove the foreign materials if non-crushable objects came into the crushing chamber.
| Model | Cone Dia.(mm) | Max. Feed Size(mm) | Adjusting Range of Output Size(mm) | Capacity(t/h) | Motor Power(kw) | Overall Dimension(mm) |
| PYB-600 | 600 | 65 | 12-25 | 15-25 | 30 | 2800×1300×1700 |
| PYD-600 | 600 | 35 | 3-15 | 5-23 | 30 | 2800×1300×1700 |
| PYB-900 | 900 | 115 | 15-50 | 50-90 | 55 | 3050×1640×2350 |
| PYZ-900 | 900 | 60 | 5-20 | 20-65 | 55 | |
| PYD-900 | 900 | 40 | 3-13 | 15-50 | 55 | |
| PYB-1200 | 1200 | 145 | 20-50 | 110-200 | 110 | 4152×2300×2980 |
| PYZ-1200 | 1200 | 100 | 8-25 | 50-150 | 110 | |
| PYD-1200 | 1200 | 50 | 3-15 | 18-105 | 110 | |
| PYB-1750 | 1750 | 215 | 25-60 | 280-480 | 155-160 | 4870×3800×4192 |
| PYZ-1750 | 1750 | 185 | 10-30 | 115-320 | 155-160 | |
| PYD-1750 | 1750 | 85 | 5-15 | 75-230 | 155-160 | |
| PYB-2200 | 2200 | 300 | 30-60 | 590-1000 | 260-280 | 7705×3430×4852 |
| PYZ-2200 | 2200 | 230 | 10-30 | 200-580 | 260-280 | |
| PYD-2200 | 2200 | 100 | 5-15 | 120-340 | 260-280 |
The raw material is high strength cast iron, with good mechanical property, as well as good ability of absorbing the energy of crusher's vibration. It's a great help to make the rotation of main shaft running steady, which can continuously stable the output of your crusher. The heat treatment of tempering is applied to release the internal stress. It's a great help to prevent the part's dimension change in the daily operation of your crusher. It obviously can prolong the life of your crusher. The final machining is carried by CNC machine to ensure each dimension tolerance, which helps to make your assembly easy and fast, to improve the efficiency of your production and maintenance.

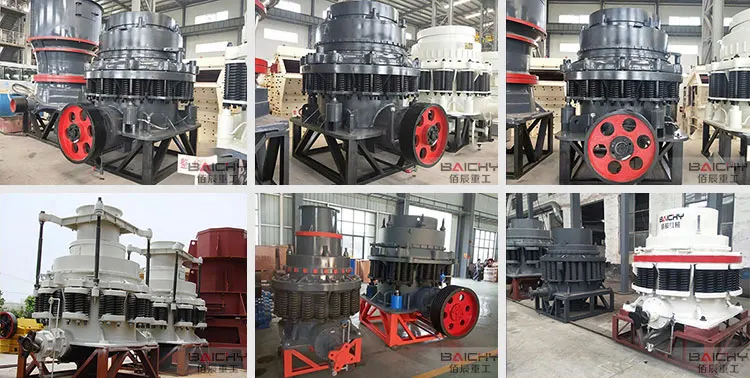

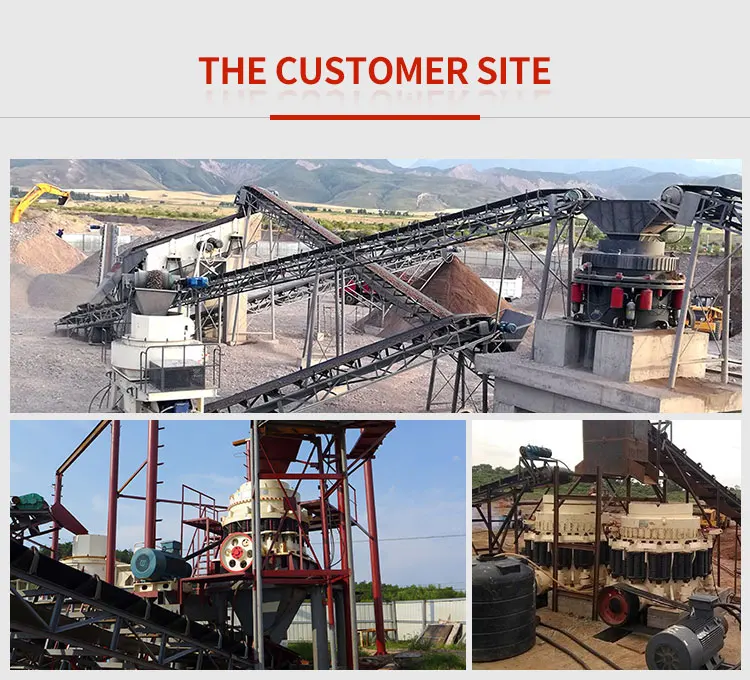

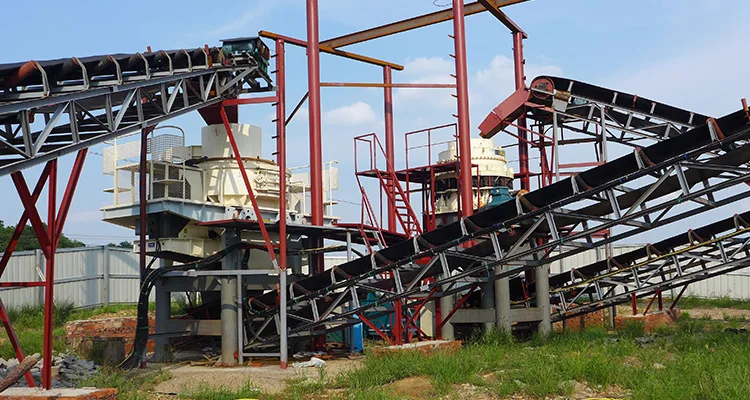

Pictures of cone crusher are displayed on site
It's applicable in crushing of various hardness ores or rocks. The crushers are grouped in 3 types, Coarse, medium, and fine types. The coarse type is used for medium crushing, medium for medium and fine crushing, fine for fine crushing
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
