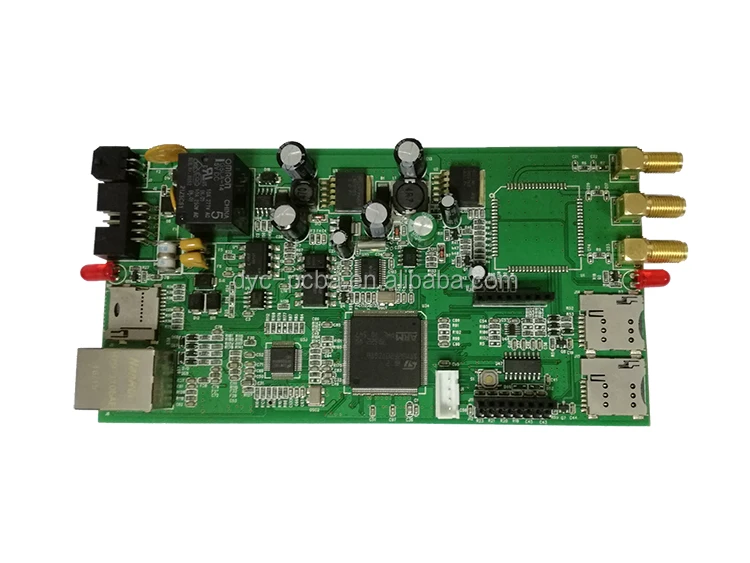

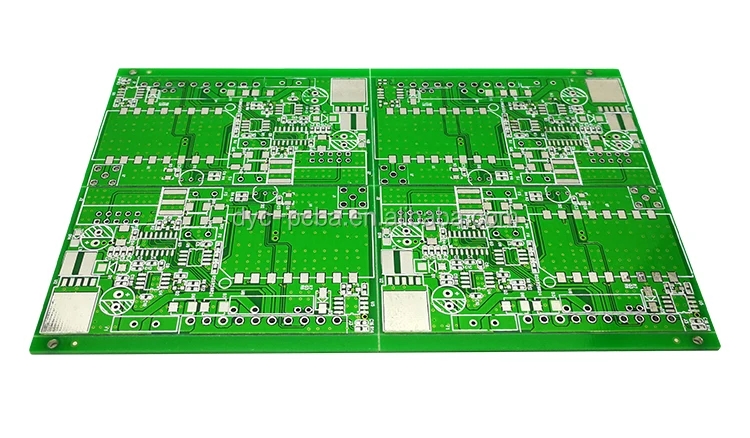

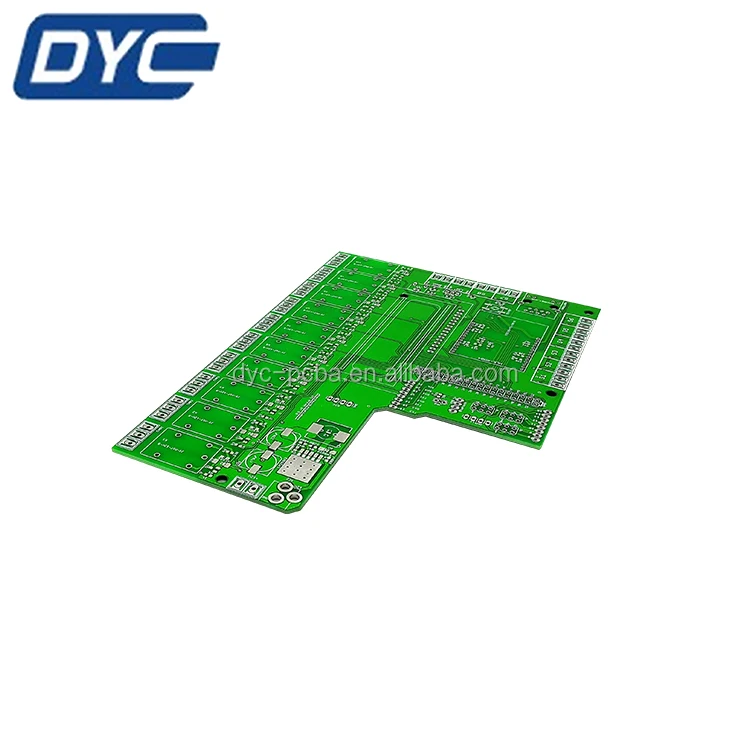

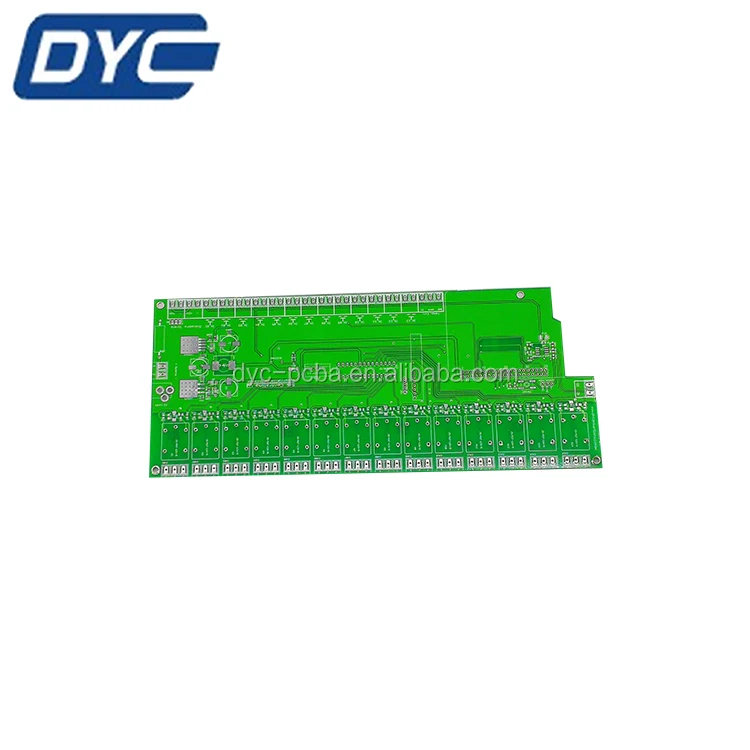

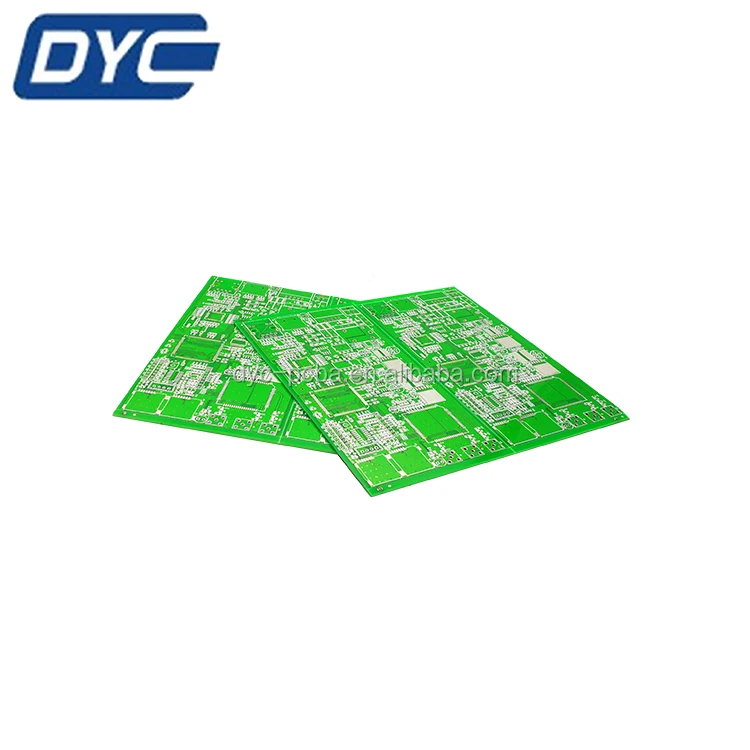

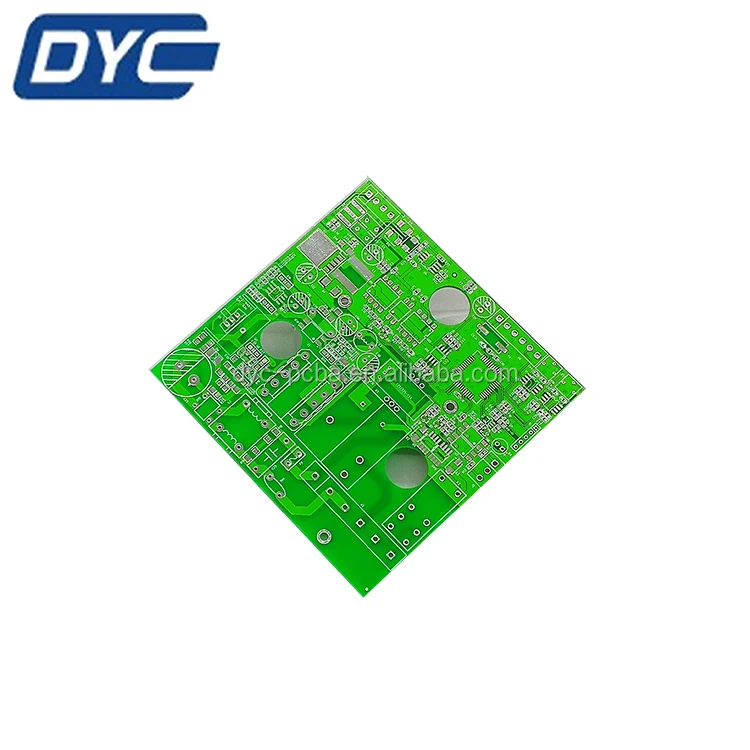

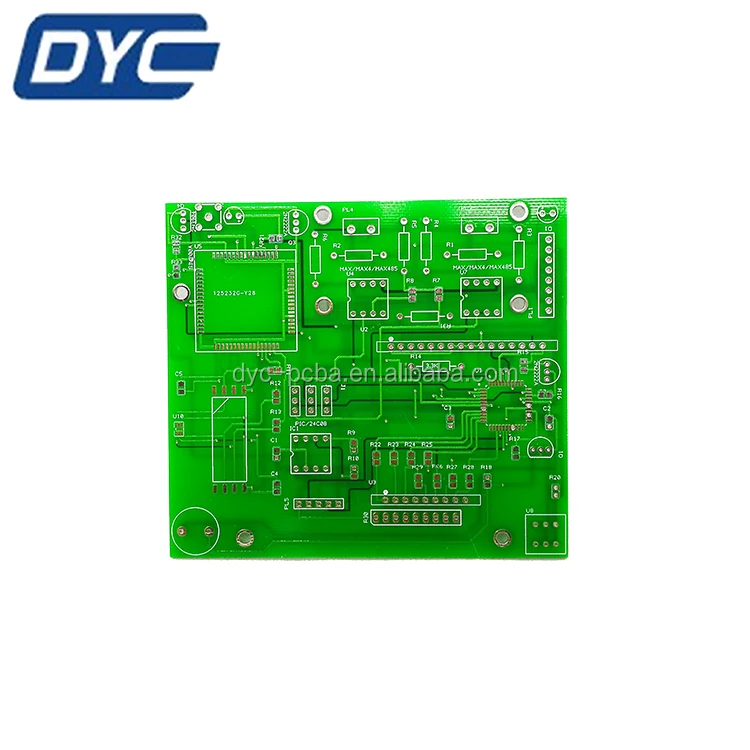

Up to 12 layers, blind and buried via, impedance, heavy copper, HDI.
YAMAHA YS12F series SMT
mounters
2 DIP lines
SMT/DIP
Auto solder paste screen printer
0201 component
In circuit test
Reflow ovens with 10 zones
0.25mm BGA
Function circuit test
Auto optical inspection
SMT 5 million spot daily
Burn in test
Wave soldering (lead-free)
DIP 1 million spot daily
Box Building
PCB assembly test room
English
Metric
1
Max. Panel Size
22" x 26"
550 x 650mm
2
Mechanical Drill
Min. Finished Holes Size
0.004"
0.10mm
Finished Holes Tolerance
PTH
±0.003"
±0.075mm
NPTH
±0.002"
±0.050mm
Press Fit
±0.002"
±0.050mm
Aspect Ratio
9:01
9:01
3
Laser Drill
Microvias diameter
0.004" - 0.006"
0.10 - 0.15mm
Aspect Ratio
1:01
1:01
4
Min. Line Width/Spacing
½oz / 18um
0.003" / 0.003"
0.075 / 0.075mm
1oz / 35um
0.006" / 0.006"
0.15 / 0.15mm
2oz / 70um
0.008" / 0.008"
0.20 / 0.20mm
3oz / 105um
0.010" / 0.010"
0.25 / 0.25mm
5
Registration
Solder Mask
±0.003"
±0.075mm
Layer to Layer
±0.0024"
±0.060mm
Copper Feature to Holes(Outer)
±0.003"
±0.075mm
Min. Plated Drills to Copper (inner)
2L - 8L
0.010"
0.25mm
10L -30L
0.012"
0.30mm
6
Board Outline
Edge to Edge Tolerance
±0.004"
±0.10mm
Holes to Edge Tolerance
±0.004"
±0.100mm
Min. Copper to Edge distance
Outer
0.010"
0.25mm
Inner
0.016"
0.40mm
7
Max. Copper Thickness
4oz
140μm
8
Max. Board Thickness
0.189"
4.80 mm
9
Min Board Thickness
2L
0.008"
0.20mm
4L
0.016"
0.40mm
6L -30L
0.020"
0.60mm
10
Min. Core Thickness
0.004"
0.10mm
11
Min. Soldermask Dam
0.004"
0.10mm
12
Controlled Impedance (Ohm)
±7% - 10%
±7% - 10%
Production Flow Chat
Why choose DYC?
1,24 hours online one-stop service
2,Quick response and delivery.
3,Strict quality management
4,Professional engineering and technical team
5,Electronic components from the original.
6,Long - term cooperative shipping company
7,Free samples
8,Excellent after-sales service
FAQ
Q1: How do you make sure the quality of the PCBs?
A1: Our PCBs are all 100% test including Flying Probe Test, E-test or AOI.
Q2: What is the lead time?
A2: Sample needs 2-4 working days, mass production needs 7-10 working days. It depends on the files and quantity.
Q3: Can I get the best price?
A3: Yes. To help customers control cost is what we are always trying to do. Our engineers will provide the best design to save PCB material.
Q4: What files should we provide for a customized order?
A4: If only need PCBs, the Gerber files are needed; If need PCBA, both Gerber files and BOM are needed;If need PCB design,all requirement details are needed.
Q5:Can I get a free sample?
A5:Yes, Welcome to experience our service and quality.you need make the payment at first,and we will return the sample cost when your next bulk order.
Any other questions please contact us directly.As a global supplier of PCB /PCBA,we will meet the needs of customers world wide,with professional technology and sincere spirit of service and reasonable price, delivery on time. We look forward to your visit and establish long-term cooperation.
