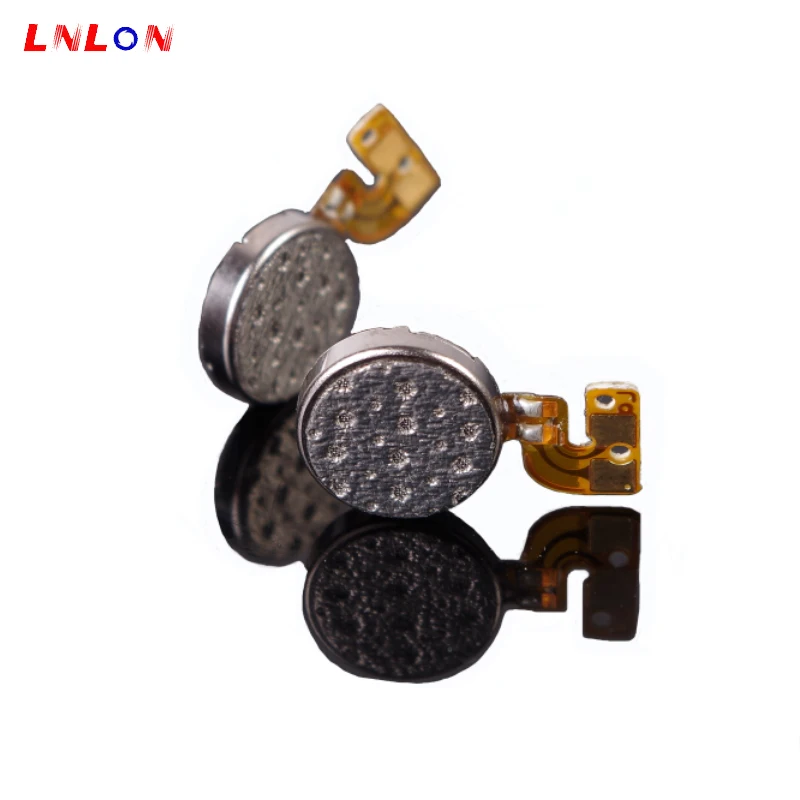

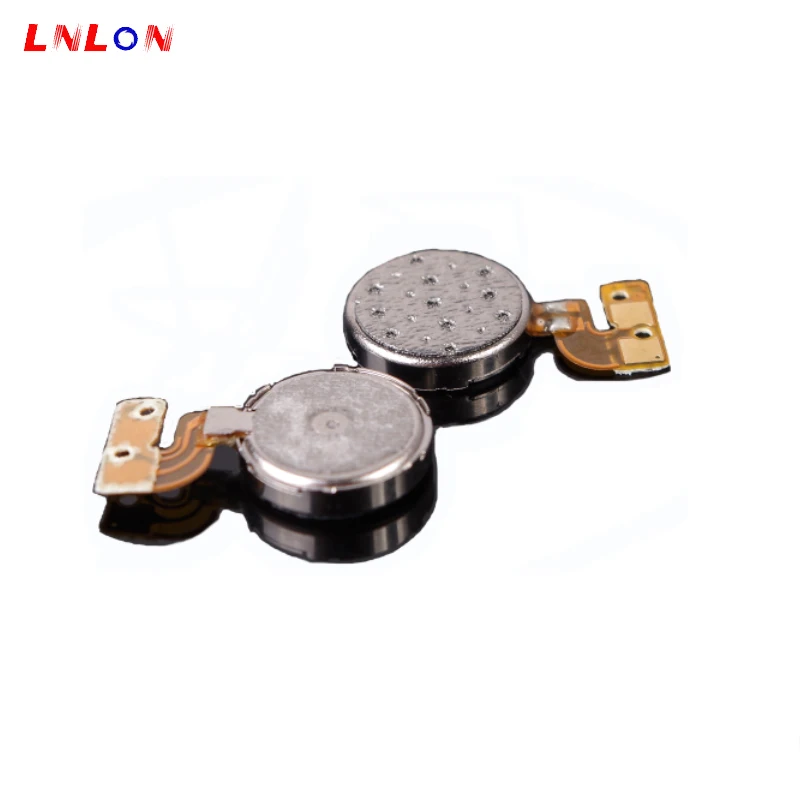

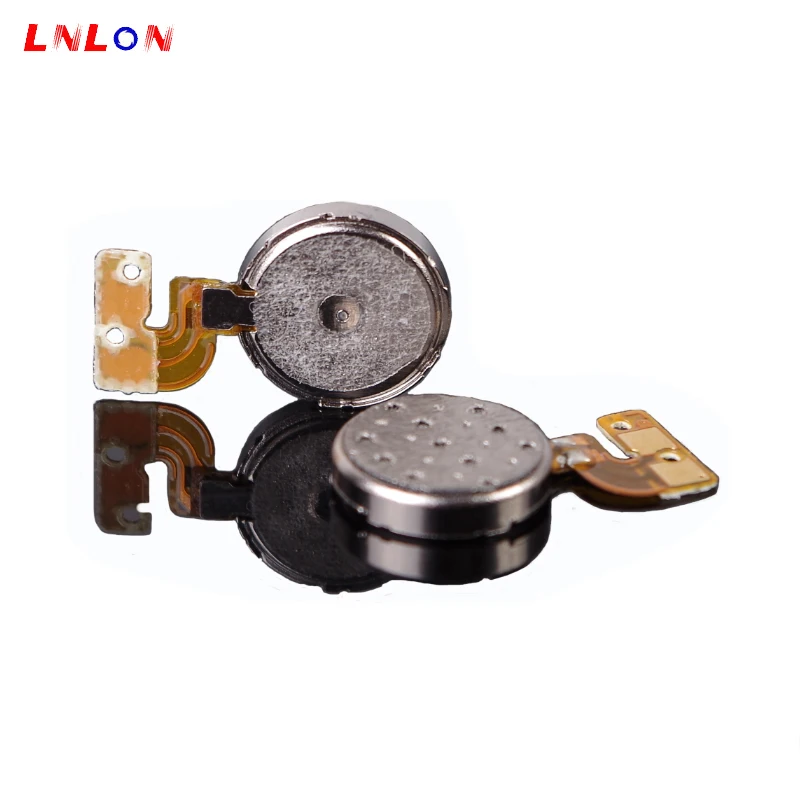

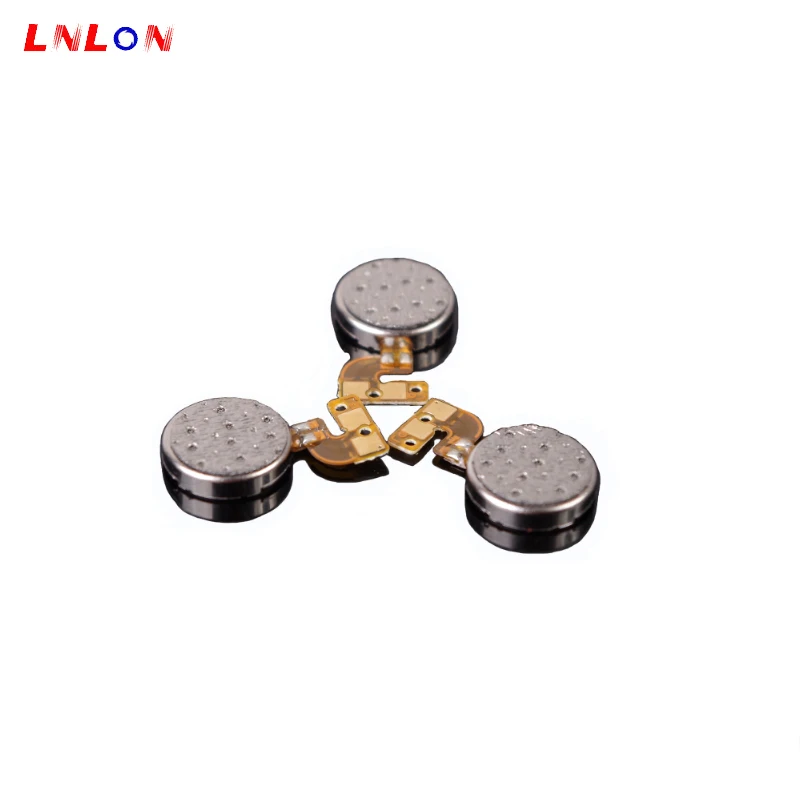

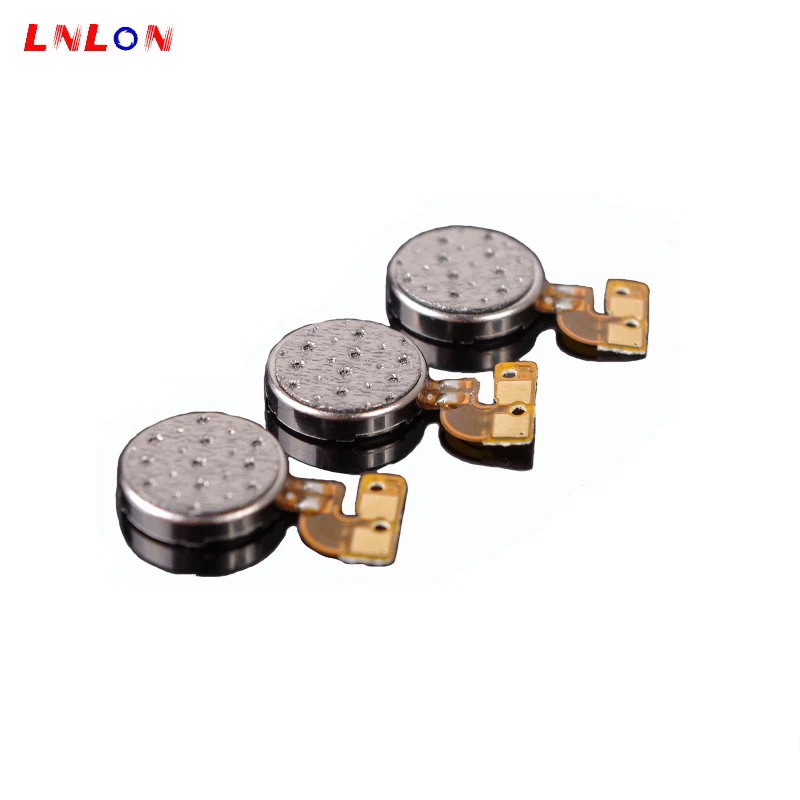

10mm 1020 3V Coin Type Vibration Motor , Electric Small Dc Mobile Phone Vibrating Motor
- Category: Vibration Motor >>>
- Supplier: Chongqing Linglong Electronic Co. Ltd.
Share on (60768241213):
Product Overview
Description
10mm 1020 3V Coin Type Vibration Motor , Electric Small Dc Mobile Phone Vibrating Motor
Basic parameter:
| model | 10G20F-070356001-0151 |
| size | Φ10*2.05mm |
| rated voltage | 3.0 V DC |
| operating voltage | 2.7~3.3V DC |
| starting voltage | 2.3V DC Max |
| rated current | 75 mA Max |
| rated speed | 13000±2500 rpm |
| life | 3.0V,2S on, 1S off,100,000 cycles |
| vibration | 1.2G Min |
| direction of rotation | clockwise |
| anti-pulling strength of wire | 5N(0.5kgf) Min |
| terminal resistance | phase contact 32Ω±15% |
| phase senrial 56Ω±15% | |
| phase parallel 16Ω±15% | |
| insulation resistance | 10MΩ Min |
| mechanical noise | 50db(A) Max 50 |
| operating enviroment | -20℃~60℃, 10~90%(RH),no condensation of moisture |
Outline drawing:
Application:
Certification:
ISO9001, ISO14001, GBT 28001,QC080000,RoHS
Company profile:
Industy-leading manufacturer for mini vibration motor in China
Incorporated in 2003
Gross investment of 150 million RMB
>1000 workers, 35000 square meters
Above 0.18 billion annual output
ISO&ROHS certificated
Mian Customer:Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...
Experimental Equipment
Inspection Equipment
Why Choose us?
Packaging & Shipping
1. Packaging: Carton
2. Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.
FAQ:
1. How can I get sample or place order?
To confirm the product specification at first, then we can send you datasheet and free samples for test. You can
send us order by anyway, email, skype, wechat, or phone.
2. Do you have MOQ?
We do not have MOQ limit, and accept small quanity order.
3. What is your terms for delivery and payment?
EXW, FOB, CFR, CPT for delivery; T/T, credit card or paypal for payment.
Any question or need, please contact us.
