Popular Top Quality 1604 Cob/Stn Low Power Character Lcd Display Module
- Category: >>>
- Supplier: Shenzhen Yabin Electronics Co. Ltd.
Share on (60768265616):
Product Overview
Description
Popular top quality 1604 cob/stn low power character lcd display module
Product Description
1. FUNCTIONS & FEATURES
| Product parameters | |
| Characters | 16×4 Lines |
| LCD Mode | STN |
| Controller IC | SPLC780D or Equivalent |
| Driving Method | 1/16 Duty; 1/5Bias |
| Viewing Angie | 6 O’clock direction |
| Interface | 6800 serial 8-Bit/4-Bit MPU |
| Backlight | LED |
| Operating Temperature Range | -20 to +60℃ |
| Storage Temperature Range | -30 to +70℃ |
| Module Size | 70.0L×58.0W×10.5(max)H mm |
| View Area | 61.8×25.2mm |
| Character Size | 2.95×4.75mm |
| Character Pitch | 3.55×5.35mm |

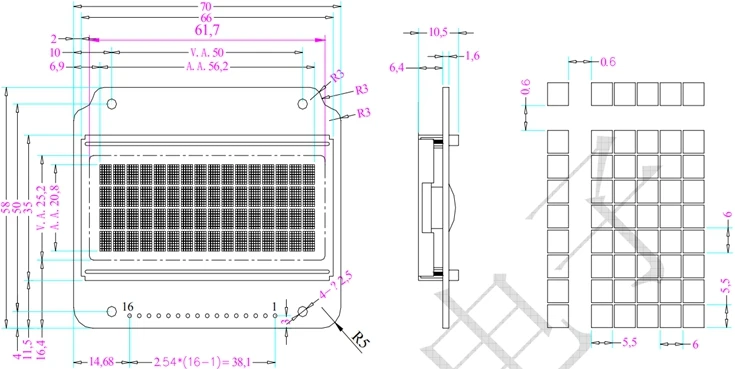

2.EXTERNAL DIMENSIONS

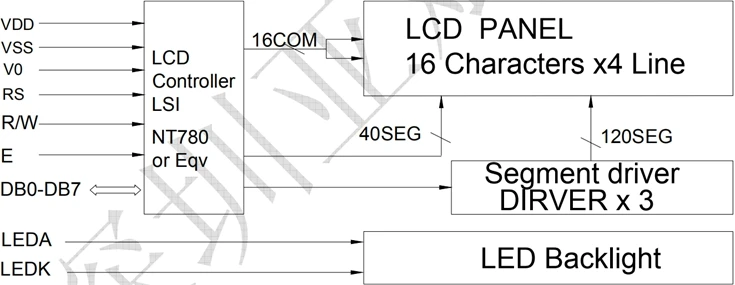

3.BLOCK DIAGRAM

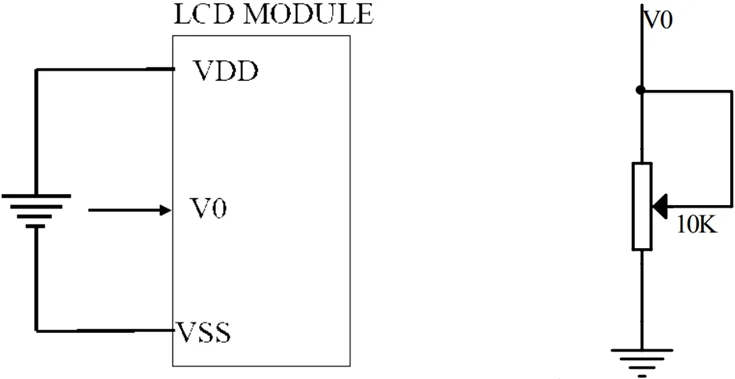

4. POWER SUPPLY

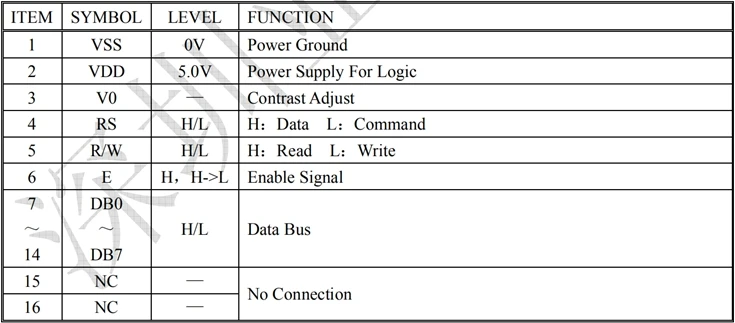

5. PIN DESCRIPTION

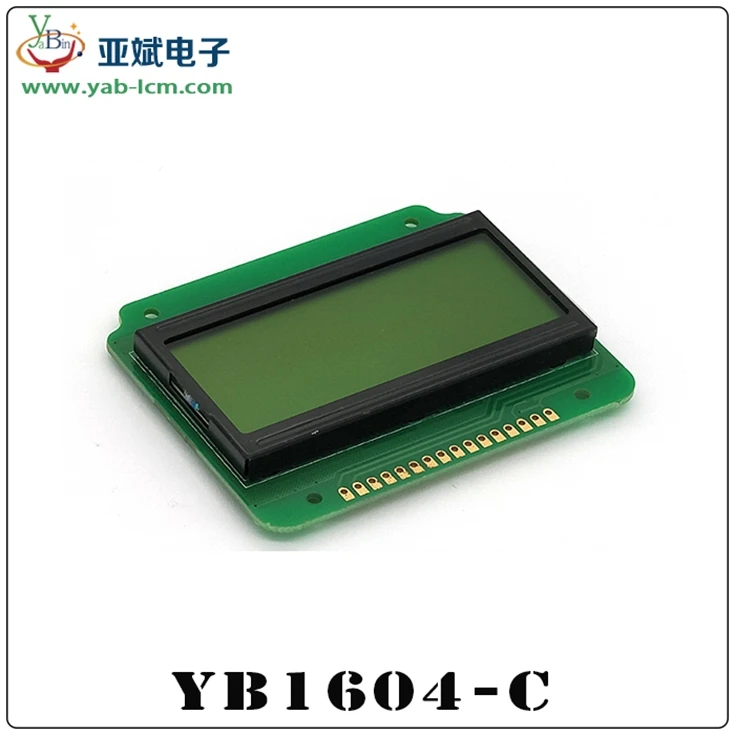

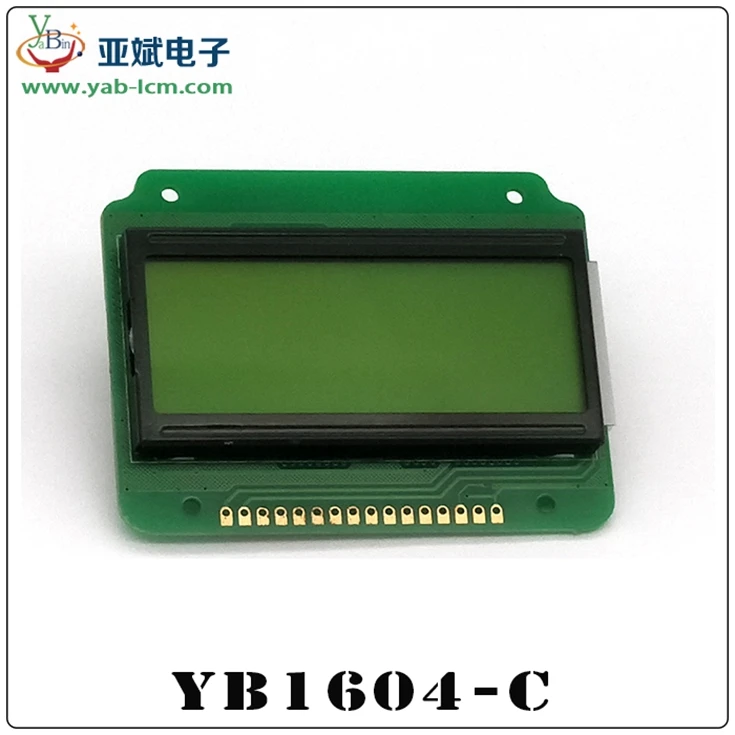

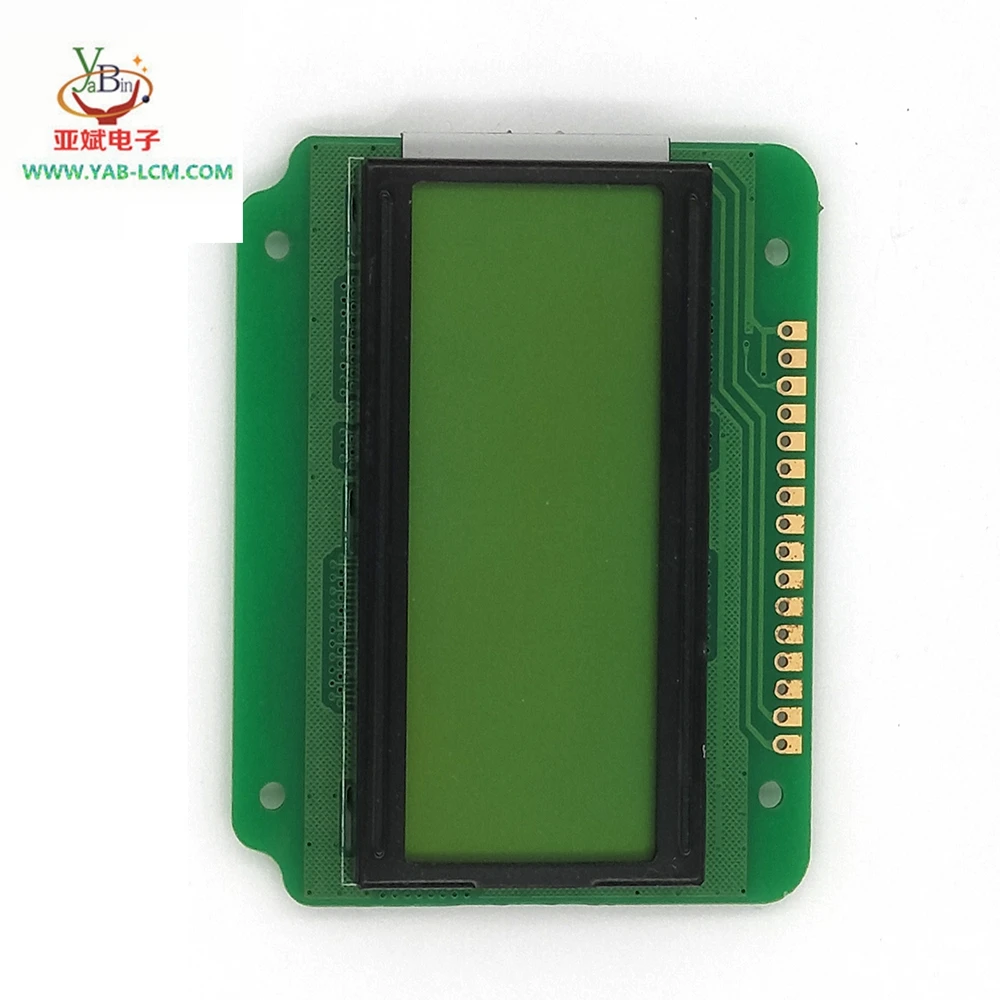

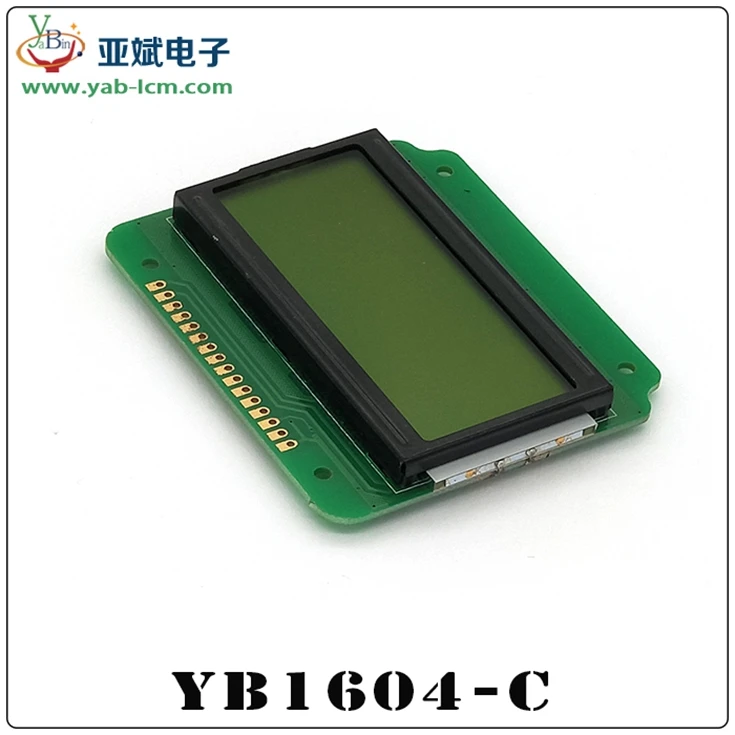

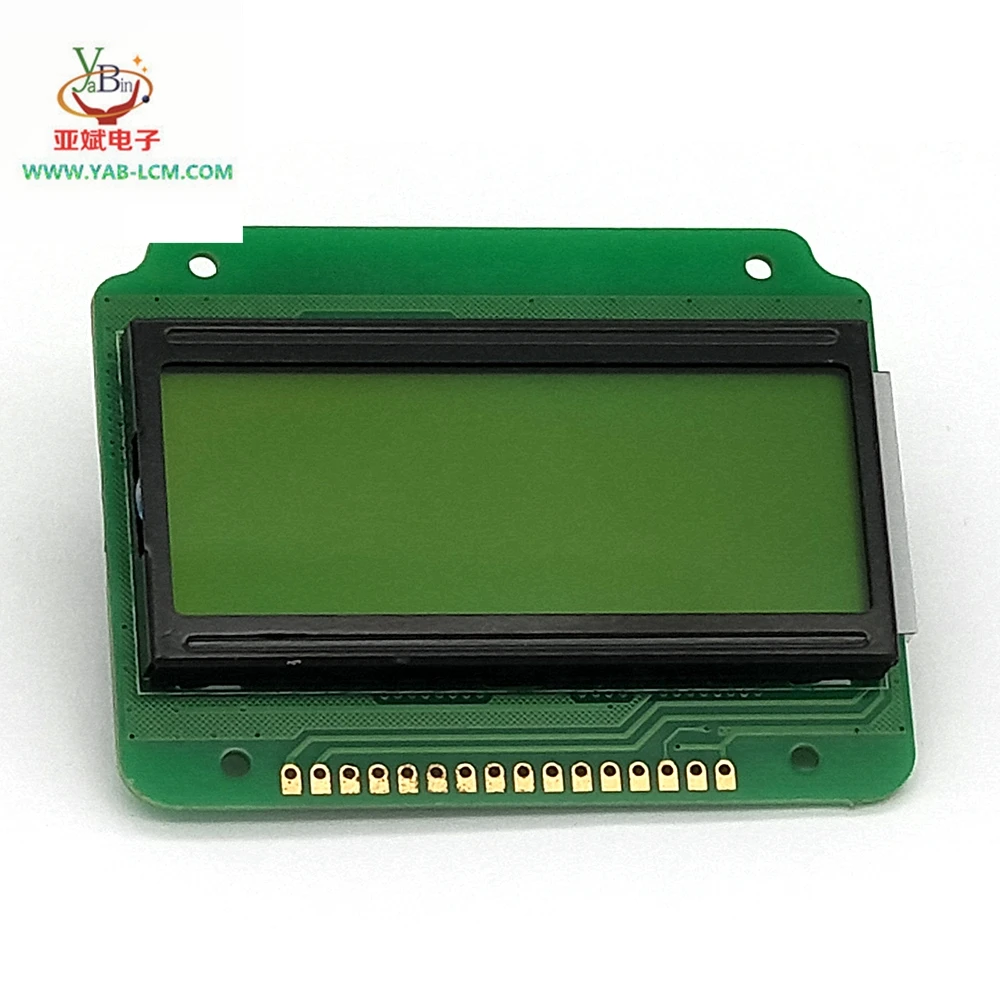

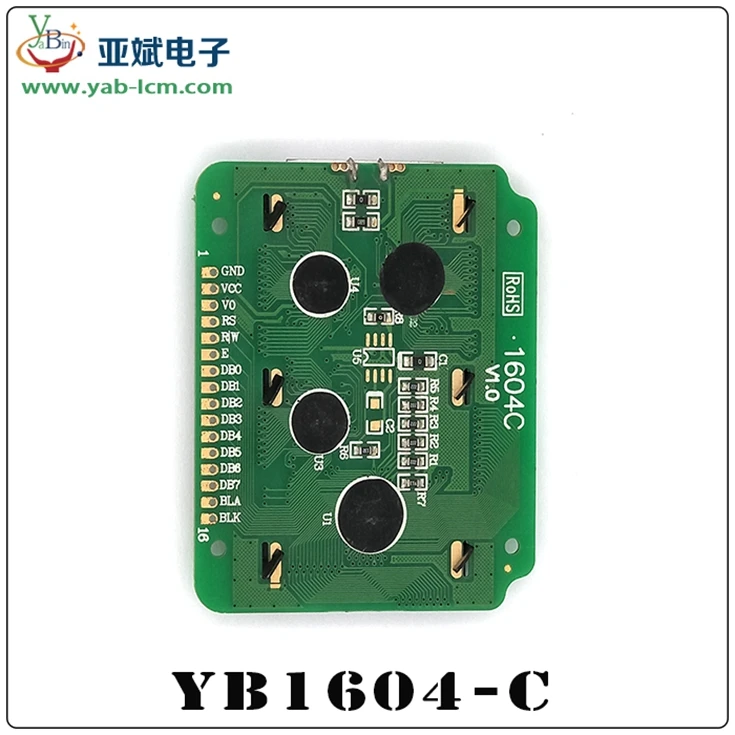

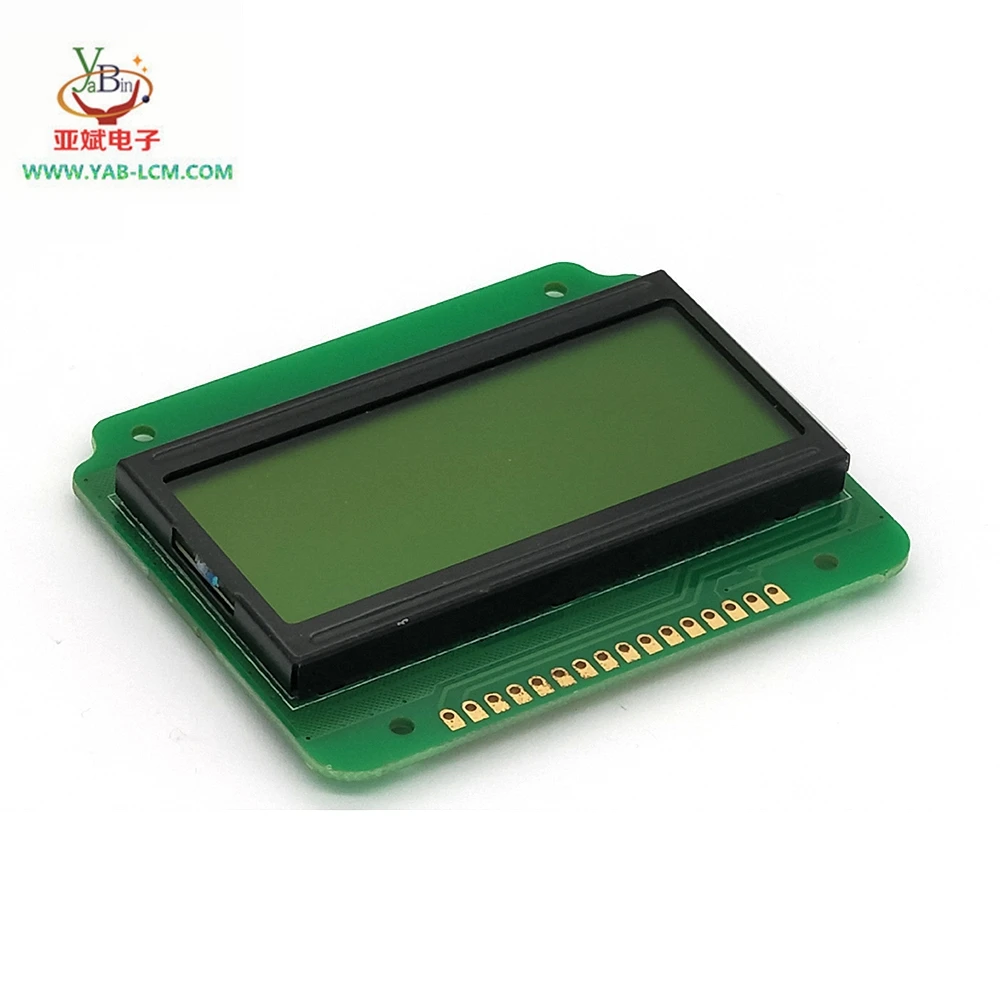

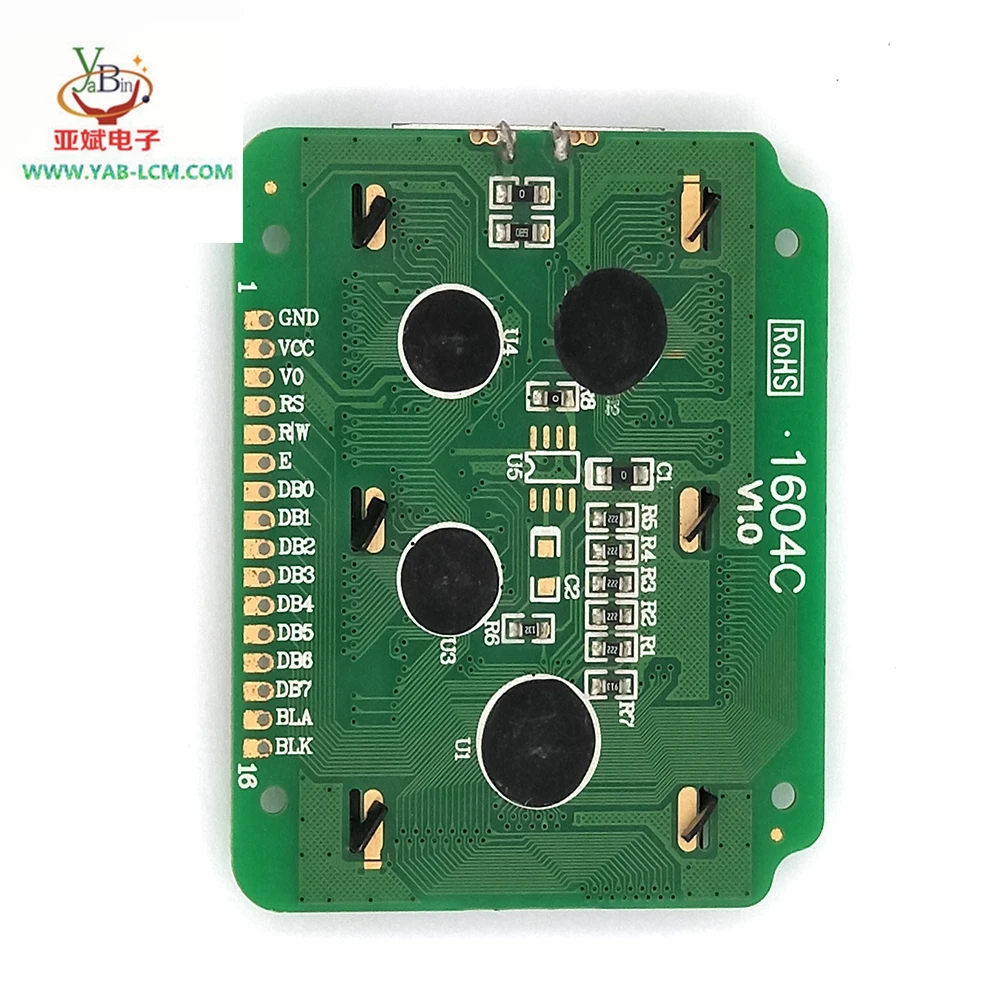

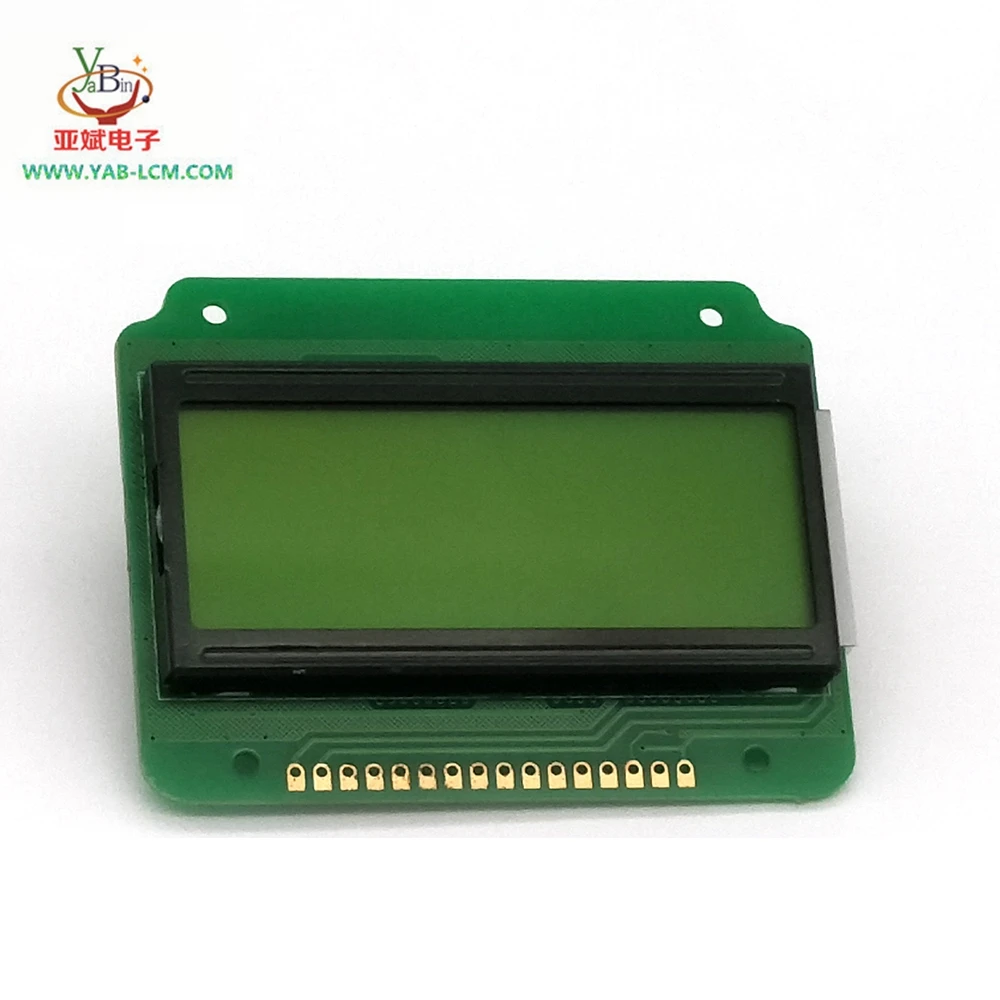

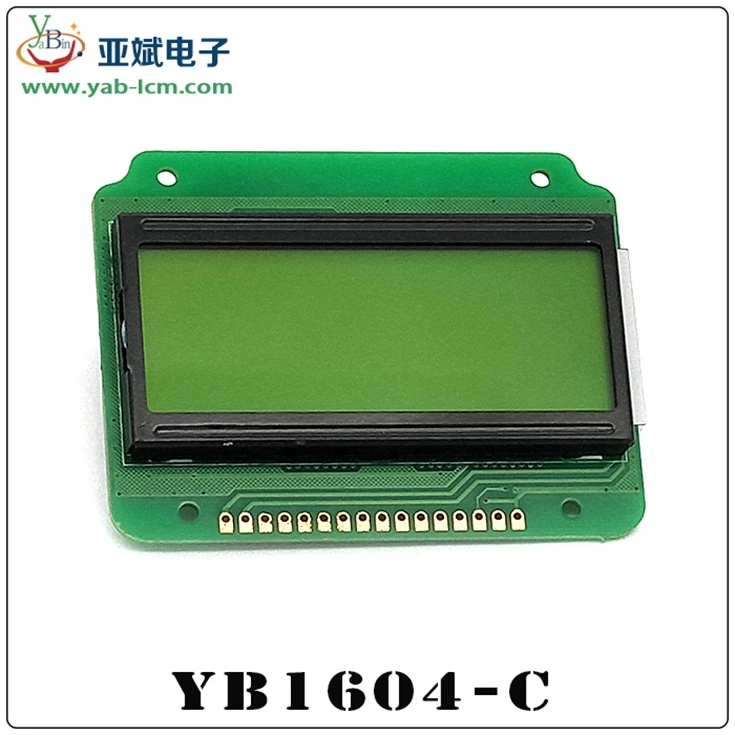

6.PRODUCT PICTURE
