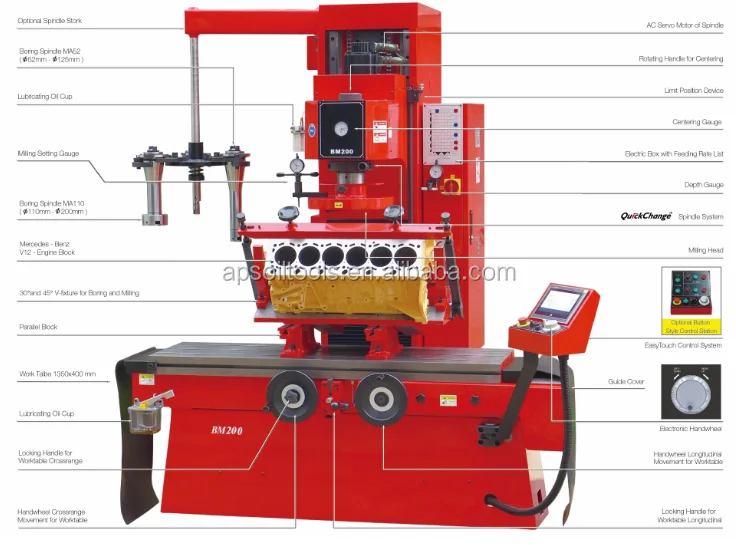

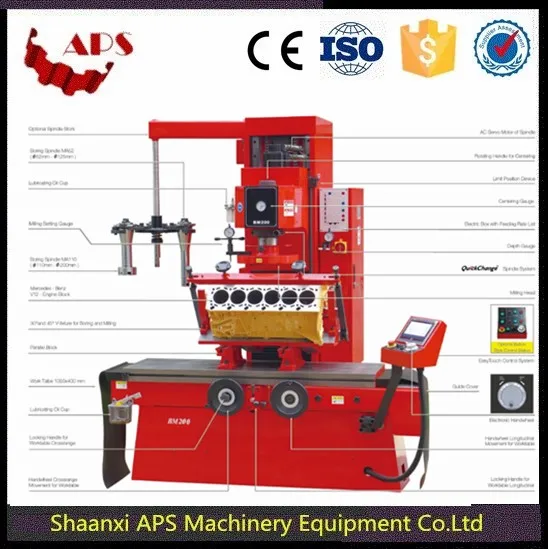

The Vertical Fine Boring – Milling Machine BM200 has combined all functions and simple performance of the traditional Cylinder Boring Machine with the easy-to-operate SJMC EasyTouch control system. Through the joint operation of the standard mechanical handwheel and the electronic handwheel, the boring of the cylinder body and the machining of the milling plane can be easily accomplished. With the excellent EasyTouch system, even a new hand can easily learn to operate the machine.
BM200 is especially suitable for precision work of engine refitted : boring , milling , stepped hole machining , groove machining ..... guarantee the high consistency of all processing
Feature:
1. spindle with boring cutter can directional start and stop for boring
2. Precise Zero set control of Z-Axis
3. Repetitive position precision of Z-Axis ≤ 0.005 mm
4. QuickChange - Spindle
5. Unilateral engagement of boring is 1.2 mm
6. Optional 3 axis DRO.
Feature:
1. EasyTouch operating system
The left and right movement of the table, the up and down of the spindle, as well as the rotation of the spindle, are all driven by a servo motor, which by combing with the specific EasyTouch system, achieves the accurate numerical control of three-axis movement on the whole machine.
2. Small size to output high torque
BM160 is in compact design, with its working area of 1.5 m2 less than those of the similar machines. However, with maximum operating torque of 120N.M, its small size shows powerful processing capability. Due to BM160 spindle driven by 4kW servo motor and equipped with heavy load belt transmission system, the spindle is capable of a constant powerful torque output 120N.M at 200 to 500 RPM, and it can even maintain a constant output 100N.M at the higher speed of 500 to 780 RPM. The high torque output at high speed ensures the high efficiency of BM200.
3. Precise and powerful spindle system
The deliberately designed spindle system with 3 spindles from small to large, you can hold one of which by one hand easily, plus the more artful quick change structure, contributes to the change of different spindle within 5 min by a person. Although the spindles are all exquisite, their cutting load capacities are strong. The penetration of a cutting tool at one side of MA52 and MA60 spindle can reach 1.5mm, with boring precision £ 0.005 mm.
4. Optional milling head MP300 is equipped with 8 cutters, and the milling feed at one time for facing is 1mm, so that no matter cast iron or aluminum part, the ideal surface roughness can be achieved. With flatness exceeding 0.013mm/300mm, its machining precision achieves the grounding effect and thus it can take the place of grounding with milling.
Main Specification
Model
BM200
B200
Control System
EasyTouch 3 Axis
Without
Boring Capacity
200 mm
Max. Boring Depth
350 mm
Max. Milling Area ( L×W )
300×920 mm
Without Milling
Spindle Speed
50 ~ 1000 rpm stepless
Spindle Feeding
10 ~ 900 mm / min(0.01 ~ 0.2 mm / r )
Rated Torque of Boring at 50-500 rpm
58 N.M
Rated Torque of Boring at 500-780 rpm
22 N.M.
Spindle Traverse
600 mm
Distance Between Spindle End Face and Work Table
0 ~ 700 mm
Distance between Spindle Axis and Carriage Vertical Plane
380 mm
Longitudinal Feeding of Work Table by Electric
30 ~ 1200 mm / min
Hand Movement
Longitudinal Quick Travel of Work Table by Electric
