Product Overview
Description
Onekin Group
www.wallpanel-supplier.com
Product Description
AAC precast concrete interior wall panel lightweight green fireproof building material China supplier
introductions
Onekin wall panel is a new type of precast wall. The main material is magnesium oxide, which is nature fireproof elements. The basic production is based on chemical reaction, between magnesium oxide and magnesium chloride. With high purity raw material, the reaction makes the raw material bonds with each other, while fly ash and plant fiber as reinforced materials. That makes Onekin wall panel very high strength.
common specification
standard size: 2800/2900*600mm; thickness: 75/90/100/120/150/200mm
remarks: length range: 2200~3600mm
the standard size is easy for 40HQ containers loading, Onekin also welcome customized size.

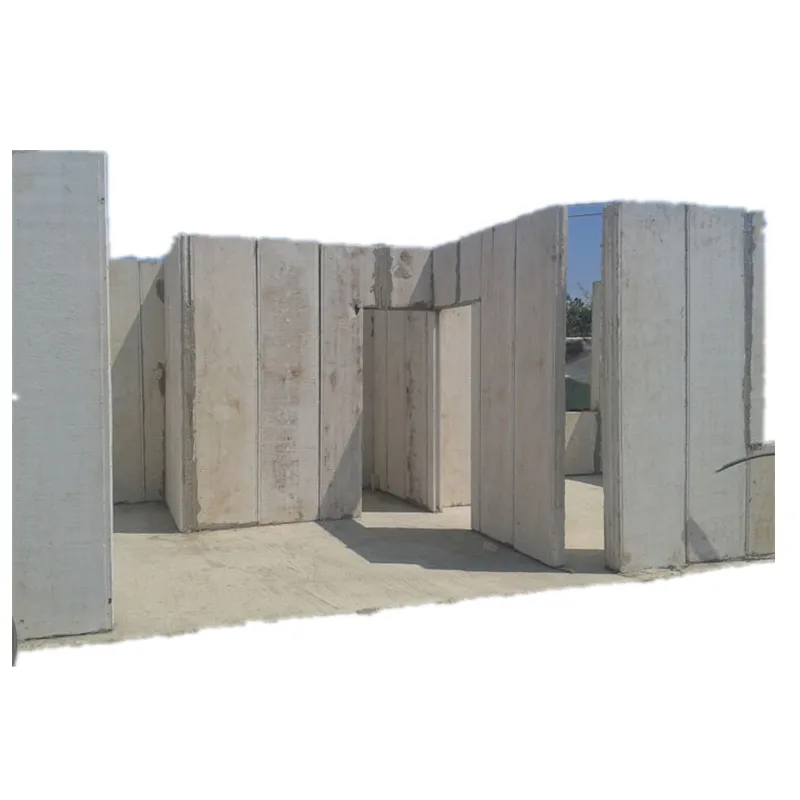

Onekin wall panel design

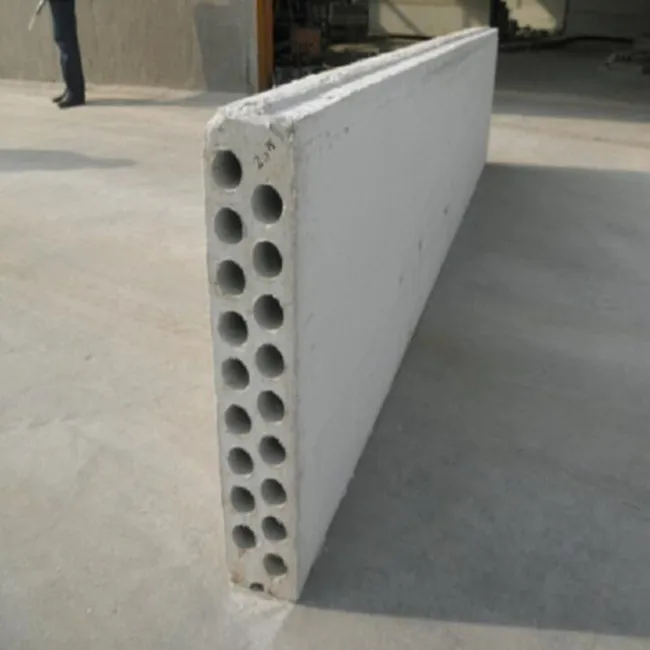

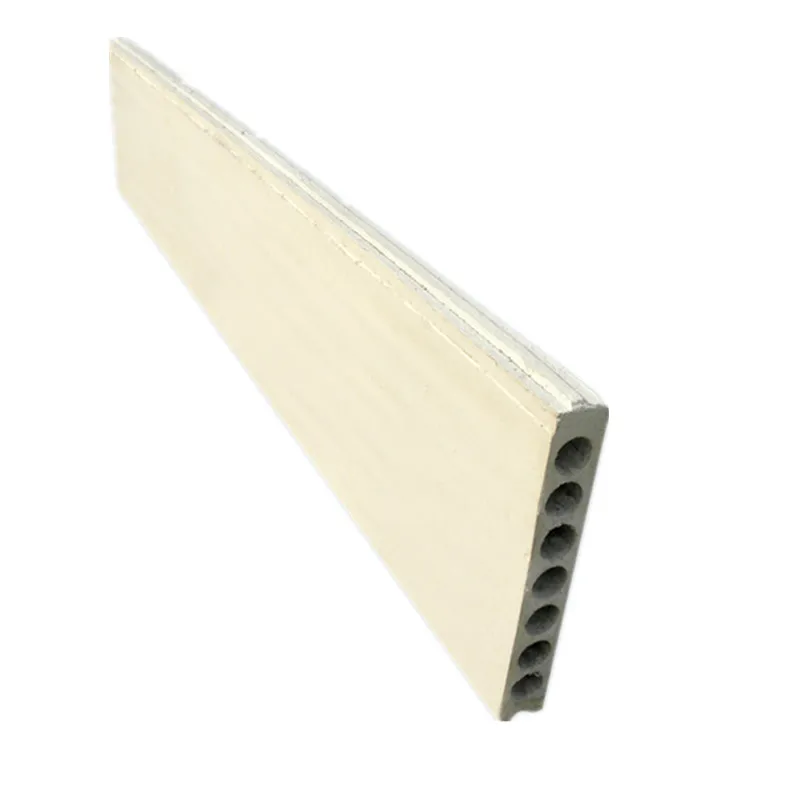

Onekin wall panel uses tongue and groove design, to make the panels connection much easier. Also, the middle of our panel use hollow core design, for easy pipe line & electrical line.
Application
AAC precast concrete interior wall panel lightweight green fireproof building material China supplier
applications
Onekin wall panel is new type of building wall materials, it can be used anywhere tradiction wall buildings are used, such as tradtitional brick, hollow block, precast concrete panel, AAC panel ect.

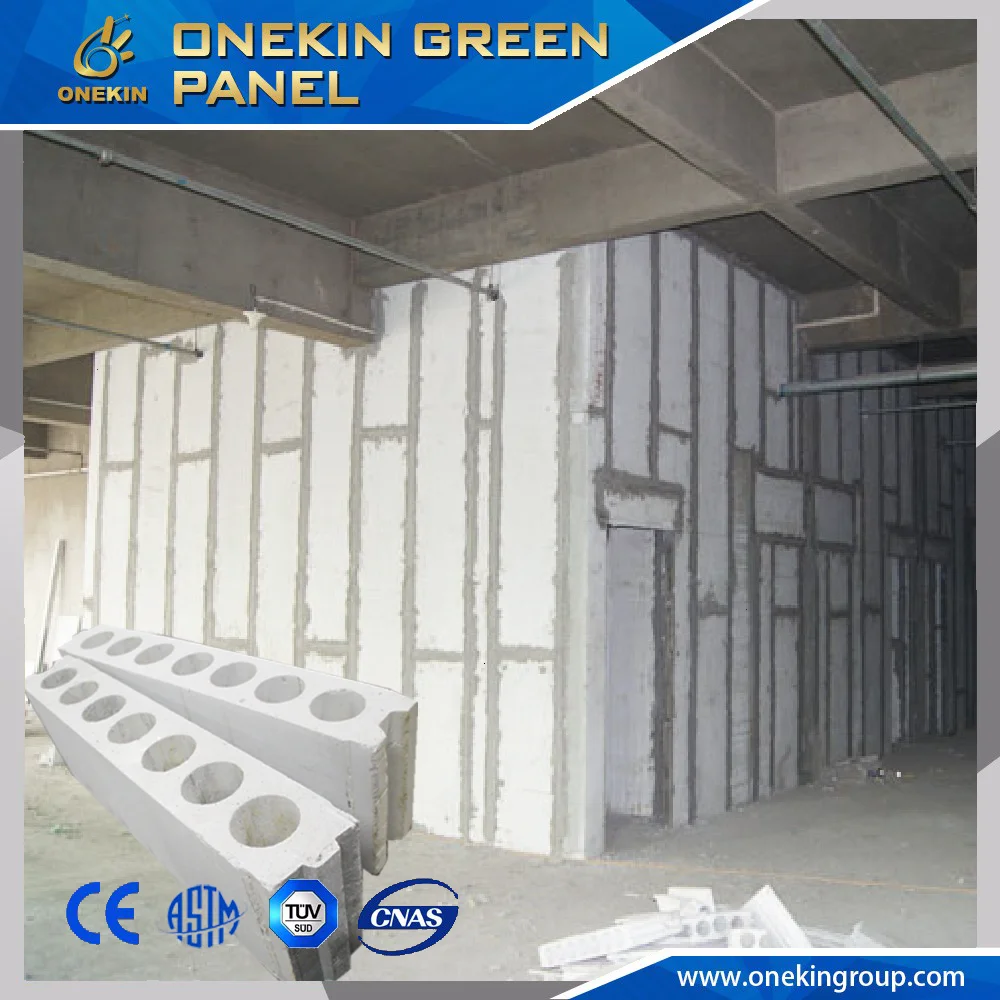

The basic application for Onekin wall panel is used as interior wall panel, exterior wall panel, partition wall panel.
Common building/project type is: residential buildings, shopping mall, office buildings, complex hotel, KTV, museum ect.
Due to Onekin panel excellent fireproof performance, it can be also used as passive fire protection wall, such as fire wall, kitchen wall.
Performance
AAC precast concrete interior wall panel lightweight green fireproof building material China supplier
performance
Onekin wall panel is used as alternatives/replacement for precast concrete panels and AAC panels. Why customers are keep choosing Onekin? Well, below lists some of the reasons.
Lightweight
Onekin wall panel is lightweight, with density 375~500 kgs/m3, much lighter compared other building materials such as precast concrete panels or AAC panels.
Easy installation
Onekin wall panel is easy cut and sawn and taped. According to our customers feedback and experience, one worker can install about 40~50 square meters in one day. While it is only 5~7 squre meters for traditional bricks. With this installation speed, can shorten the whole project time.
Cost saving
With Onekin panel's advantage, such as lightweight, it can save cost on transportation and whole building structure, and easy installation, it can save cost on manpower. Based on feedback by customers, using our panel can save cost about 10~30%, differ from manpower cost and local wall material cost.
Fireproof

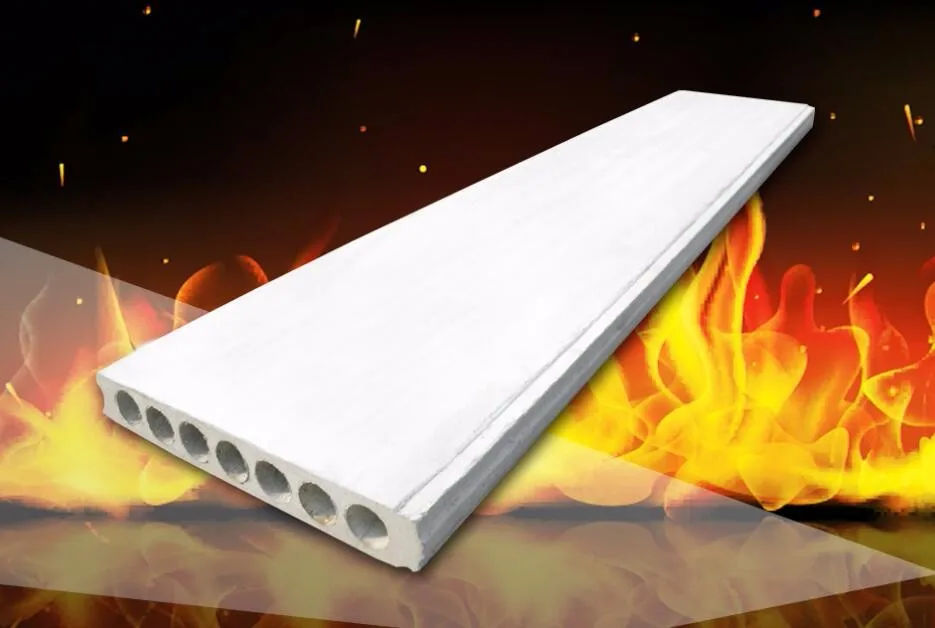

Since Onekin uses fireproof element as raw materials, it makes our panel firepoof grade A1, the highest fireproof grade. With fire rating time 4 hours, it is non-combustible at 800℃, no flames at 1200℃. So it can be used as passive fire protection panels, such as fire wall.

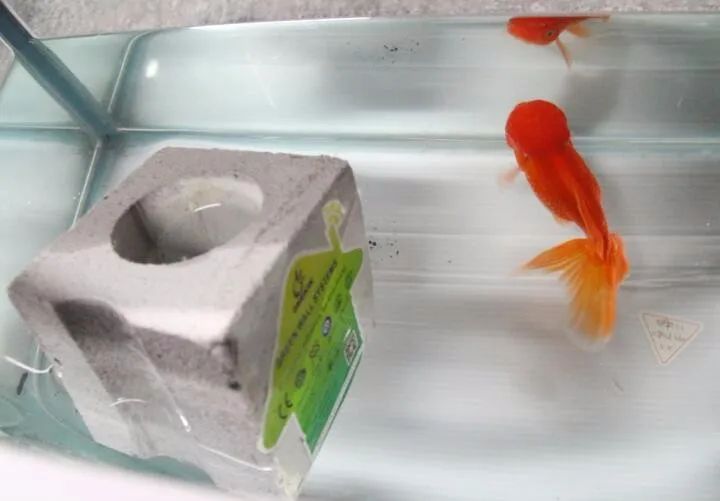

Environmental friendly
Onekin panel is totally made by chemical reaction, which is green and has no toxic element. Onekin guarantee that our panel is 100% asbestos free, customers can use it freely.
for more detailed performance, please contact our sales.

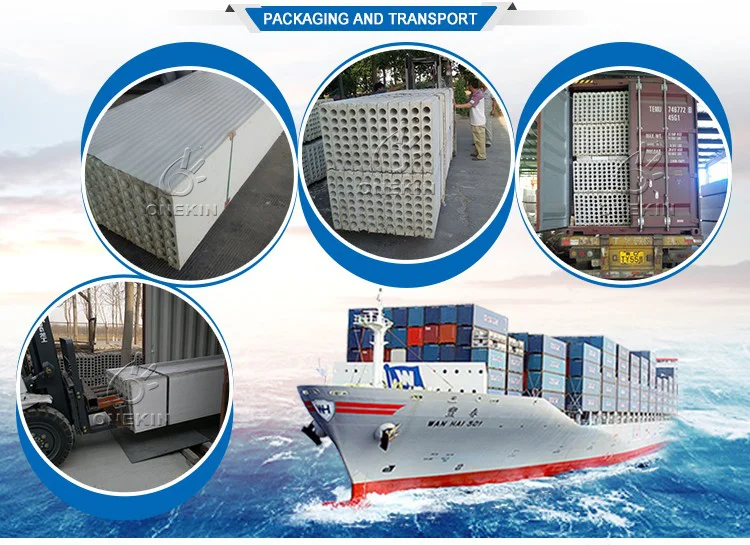

Packaging & Shipping
Onekin wall panel use pallet packing, to make sure easy loading & unloading. Also, with cargos loading directly from factory, it can save troubles such as rain day or snow weather.
| thickness(mm) | weight (kgs/sqm) | loading quantity(sqm) |
| 75 | 38 | 714 |
| 90 | 42 | 646.8 |
| 100 | 45 | 591.36 |
| 120 | 55 | 495.6 |
| 150 | 60 | 403.2 |
| 200 | 75 | 295.68 |
Our Services
Onekin provide full range service, start from raw material to projct finishing, Onekin is always there to see if any help may need from us. Commonly, our service can be list as below.
1 building design suggestions
normally, engineers now are designing the main building structure based on the tradition wall material performance and weight, It might coz waste. With our experience, Onekin can give reasonable suggestion for the building designes, can save cost largely.
2. installation guidance & training
Since Onekin panel is new wall materials, many people has no idea of how the installation goes. Onekin is very professional not only in our own product, but also the building structure and installation. We provide installation guidance, even give at site trainings if needed.
3. timely & proper feedback
When there's anything customers may need to know, Onekin is always here ready to help. Onekin feels so proud to help people.
project & certificat
AAC precast concrete interior wall panel lightweight green fireproof building material China supplier reference

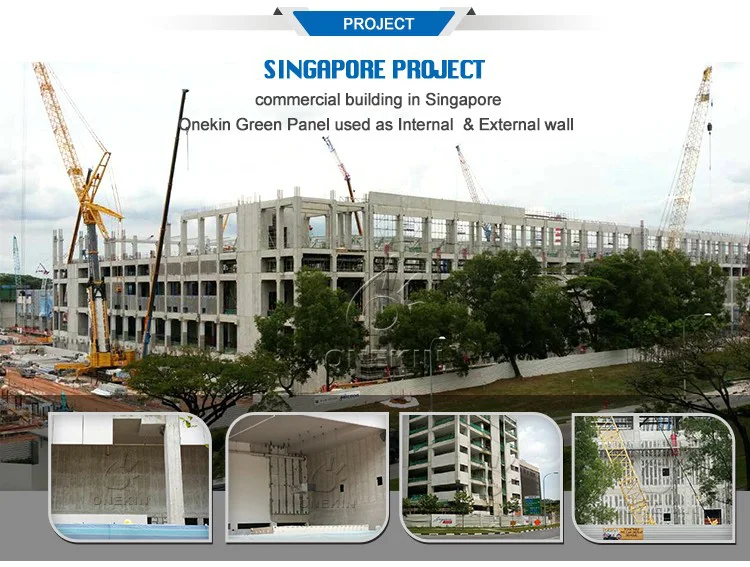

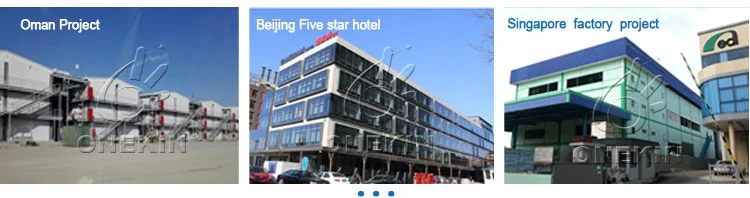

With years of efforts, Onekin has done many projects in Singapore, Vietnam, Oman, Saudi Arabia, Fiji, South Korea ect.
Onekin has also done many certificates such as ASTM, TUV to meet all kinds of requirement by different countries.
company introduction
Economical Solutions
for
Eco-living

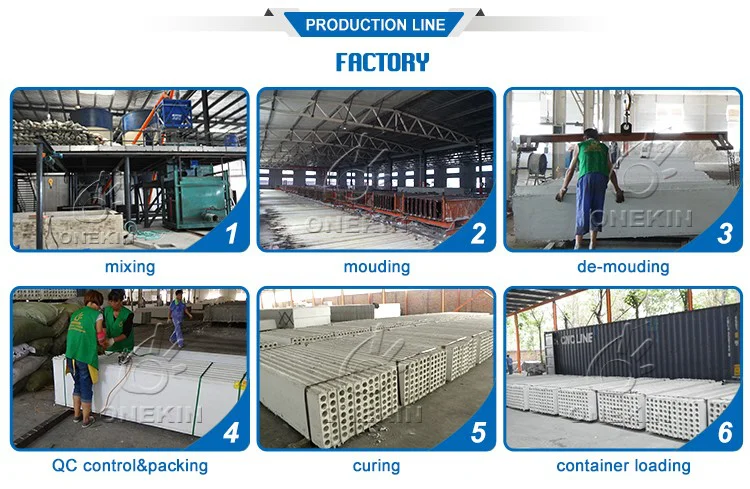

Factory
Onekin factory covers area around 25000 square meters, with 70 stes machines. Our output ability is 500,000 square meters per year, and the number is going up year by year. We do really hope with you, we can meet a higher standard of output ability.
Company
Onekin values people, because we believe what we are doing now is to create a new and comfortable living environment for human being. And it is our responsibility to make all people live peace and safe. After several years hard working, Onekin is proud to say that we have agent and branch company all over the world, and we are warmly welcome for more people to enjoy us. With people, we make win-win situaction together.
Onekin network
1. Ethopia branch company
2. French Guiana agent
3. Israel agent
4. Oman agent
Contact us
Click here to visite our site
www.wallpanel-supplier.com
