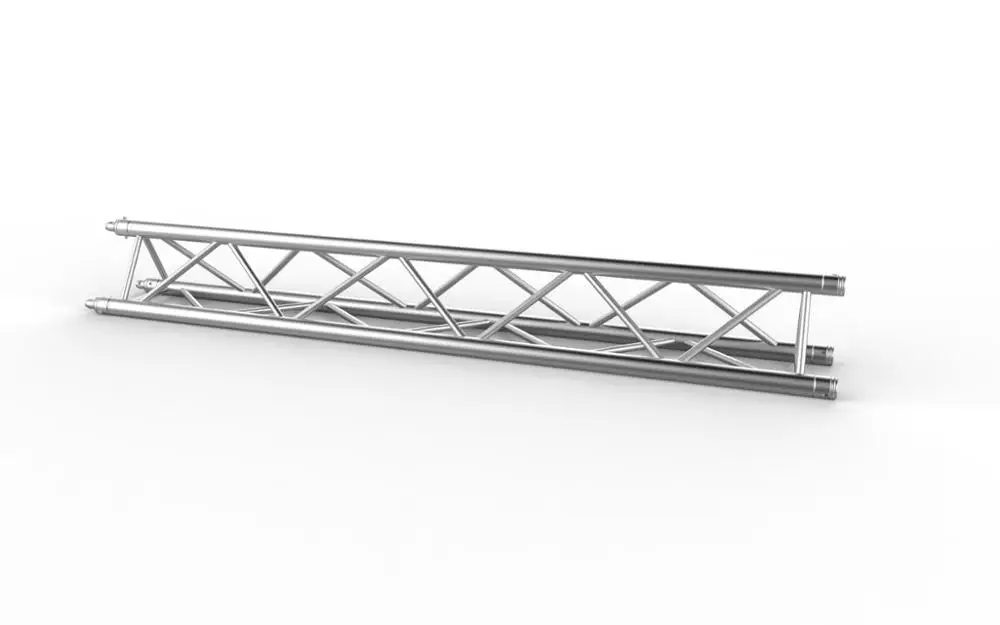

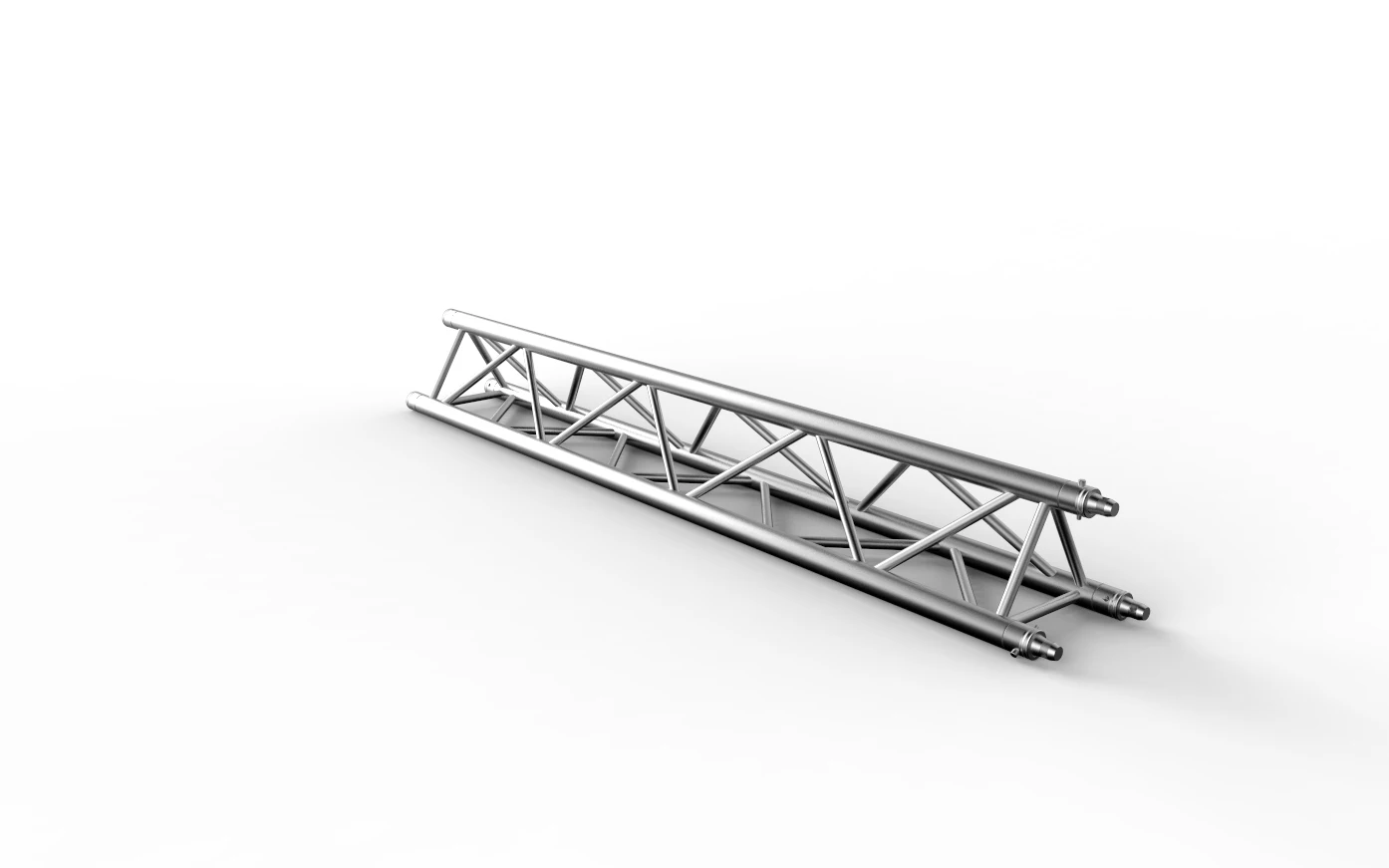

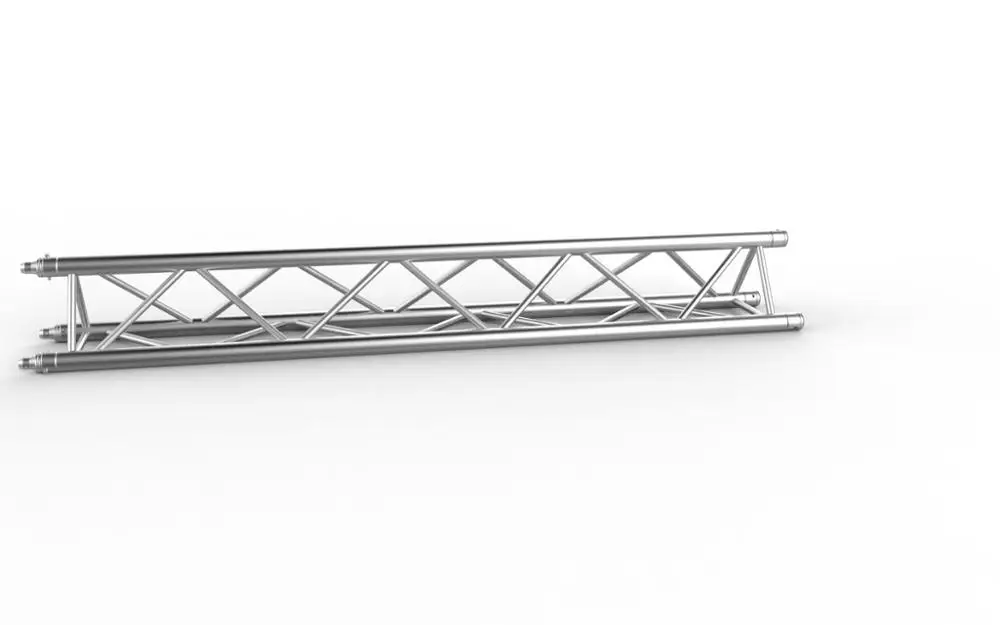

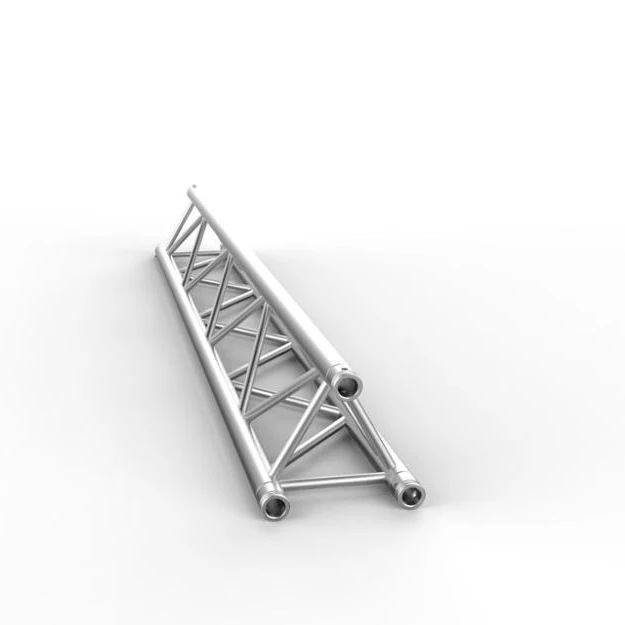

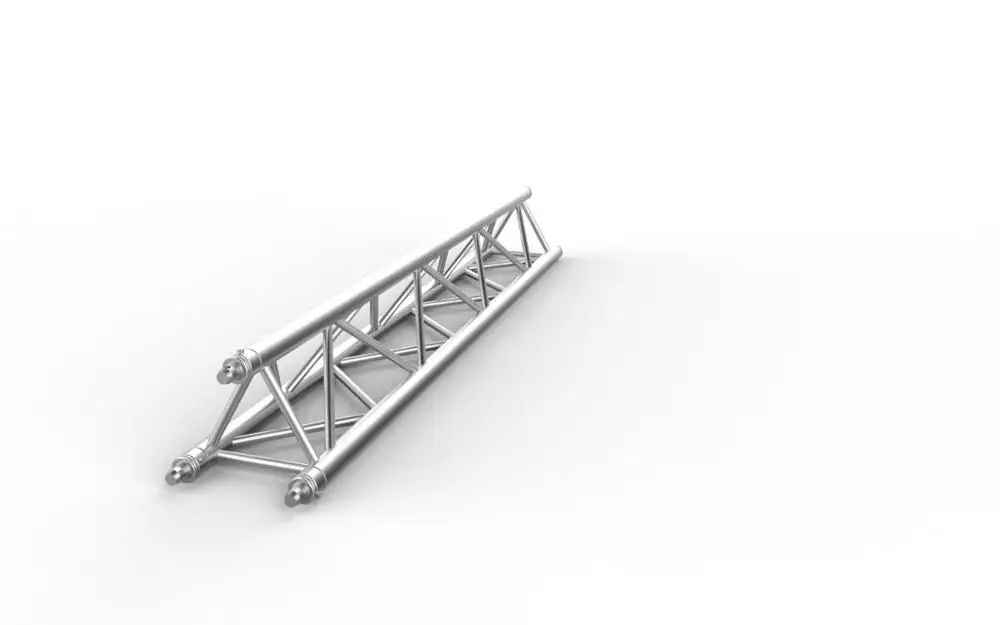

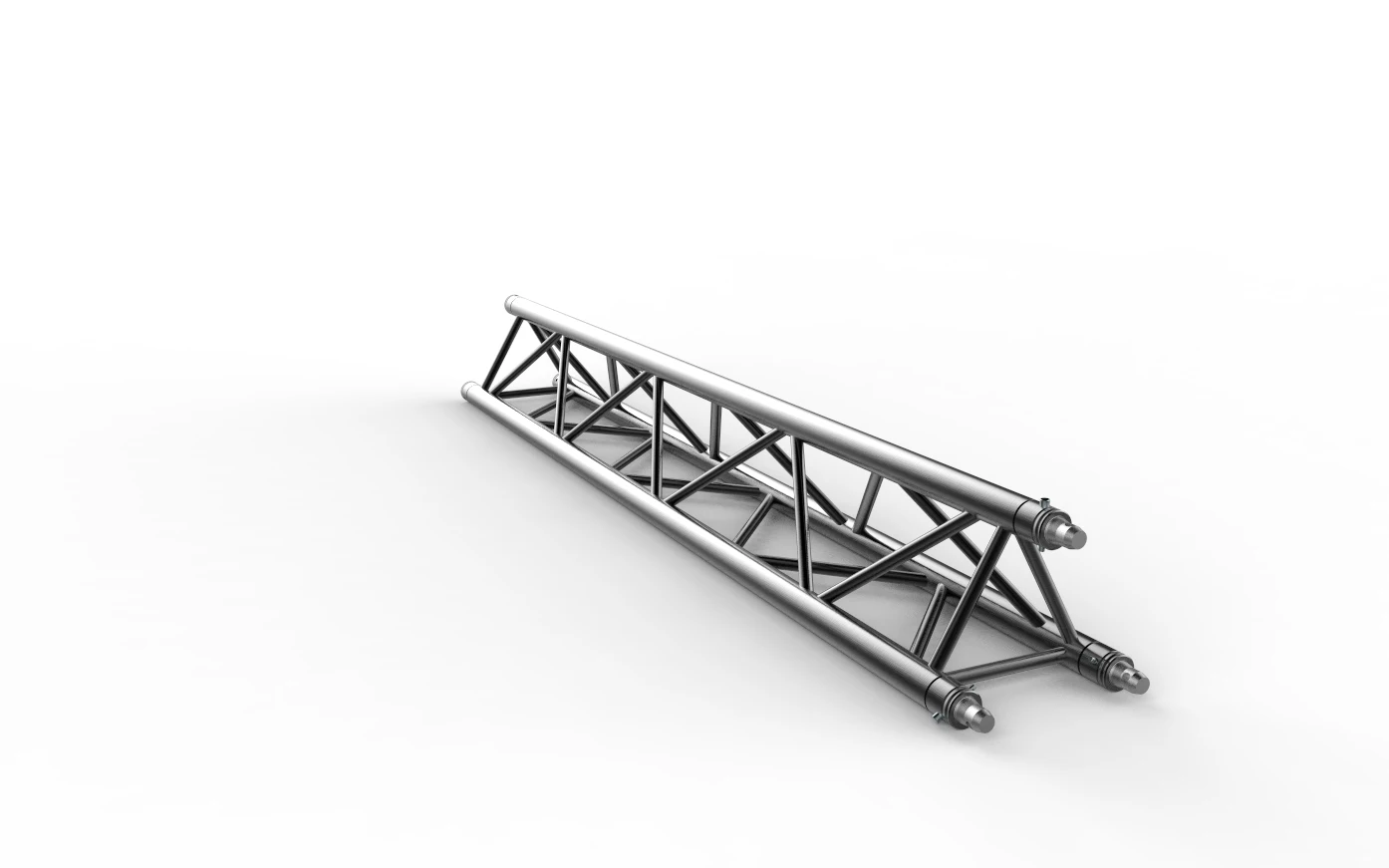

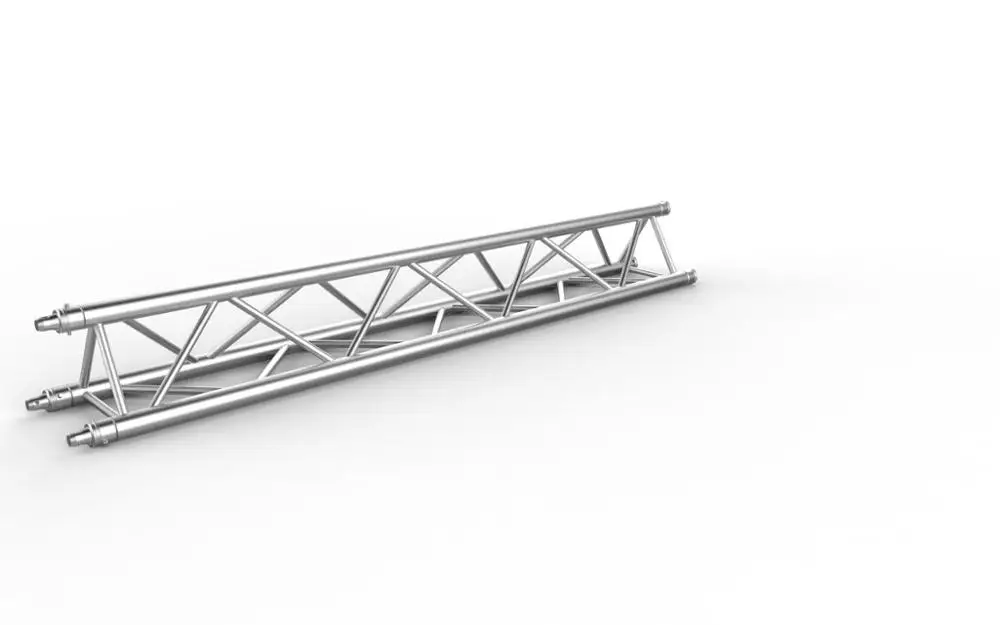

Hot Sale Triangle Stage Lighting Truss

Model: x-ft33
section size: Triangle 290mm.
main tube: Φ50x2mm ,
Snakebrace: Φ 20x2mm,
material: alu-6061 T6,
Max span 12m




Other normal truss SIZE
MAIN TUBLE
BRACE TUBLE
LENGTH
100X100MM
20X2MM
8X2MM
1-4M
200X200MM
30X2MM
12X2MM
1-4M
250X250MM
30X2MM
16X2MM
1-4M
300X300MM
50X2MM
25X2MM
1-4M
300X300MM
50X3MM
25X2MM
1-4M
350X350MM/ 400X400MM/ 450X450MM / 500X600MM
50X3MM
25X2MM
1-4M
520X7602MM/ 600X760MM / 600X1200MM
50X4MM
30X3MM
1-4M


Product Description

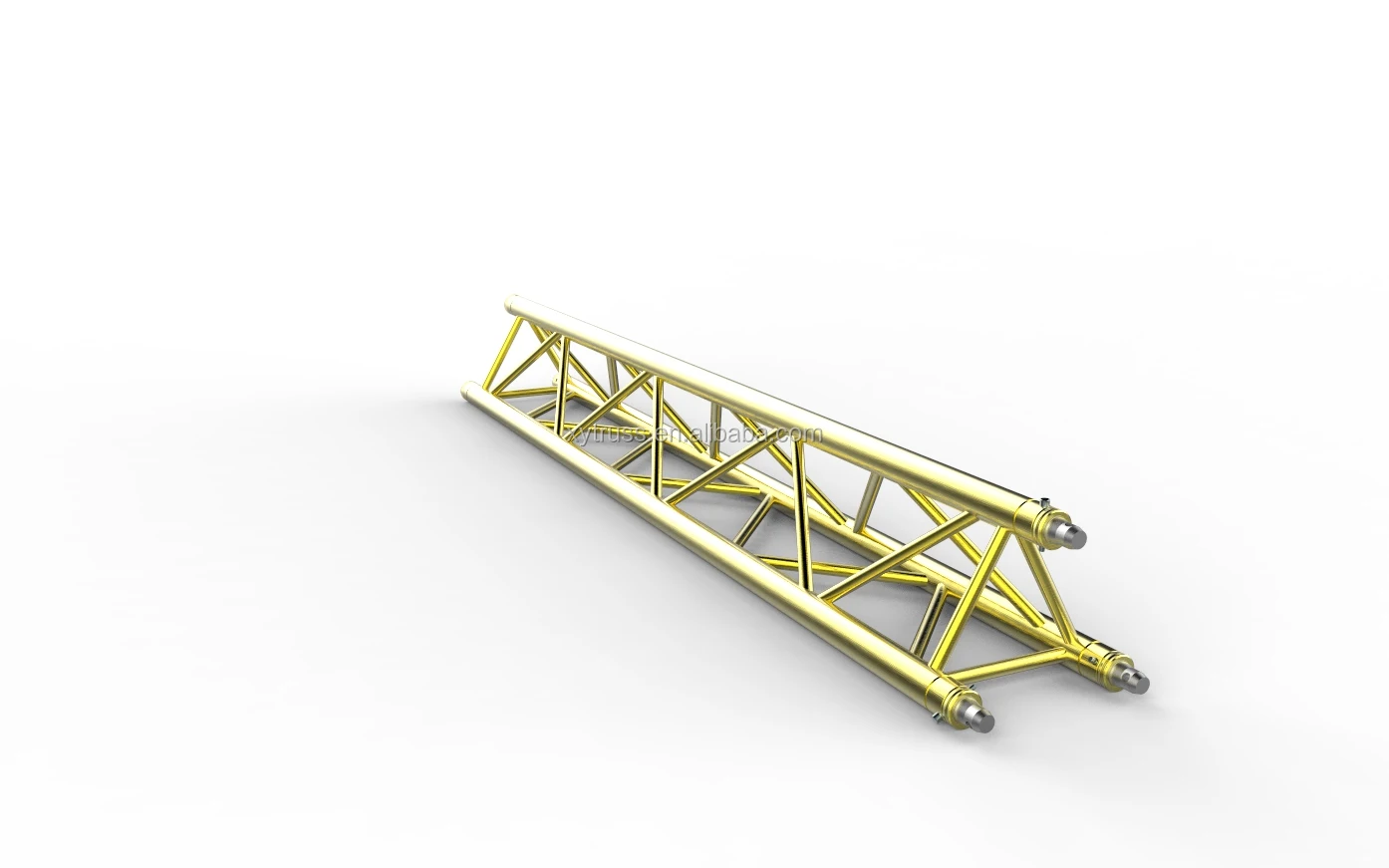

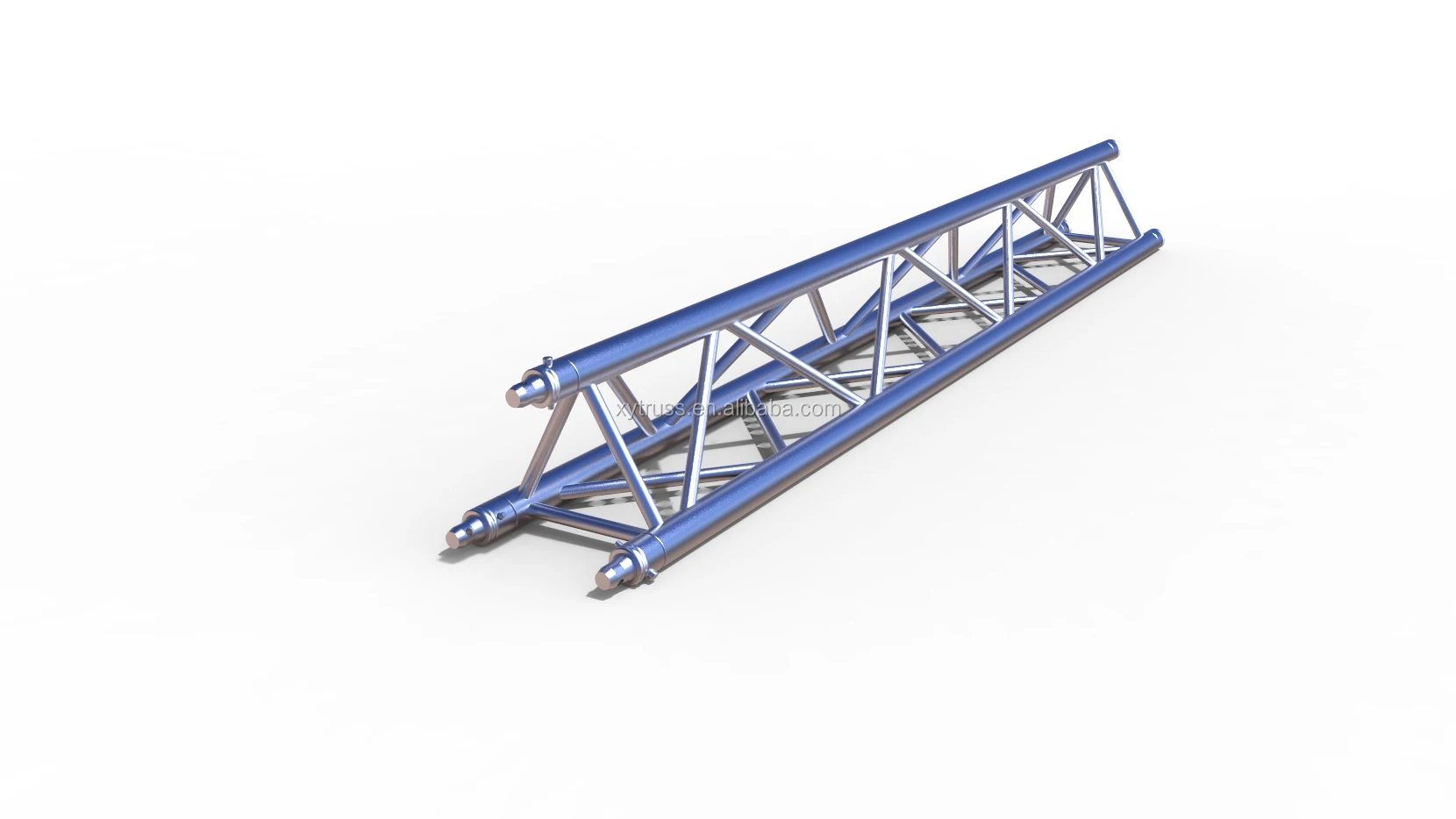

Surface treatment process.

This type of truss is often used in bars and for stage decoration, and can be painted and anodized. Anodizing does not shed paint for a long time, but the cost is high.






Our Production line, From 100mm Decorative aluminum truss to 1500mm heavy duty concert truss has been put into production. Not only that, Product line extends to the aluminum truss accessory products. Such as all kinds of stage, tower systems, lift stands are playing their role in all over the world.

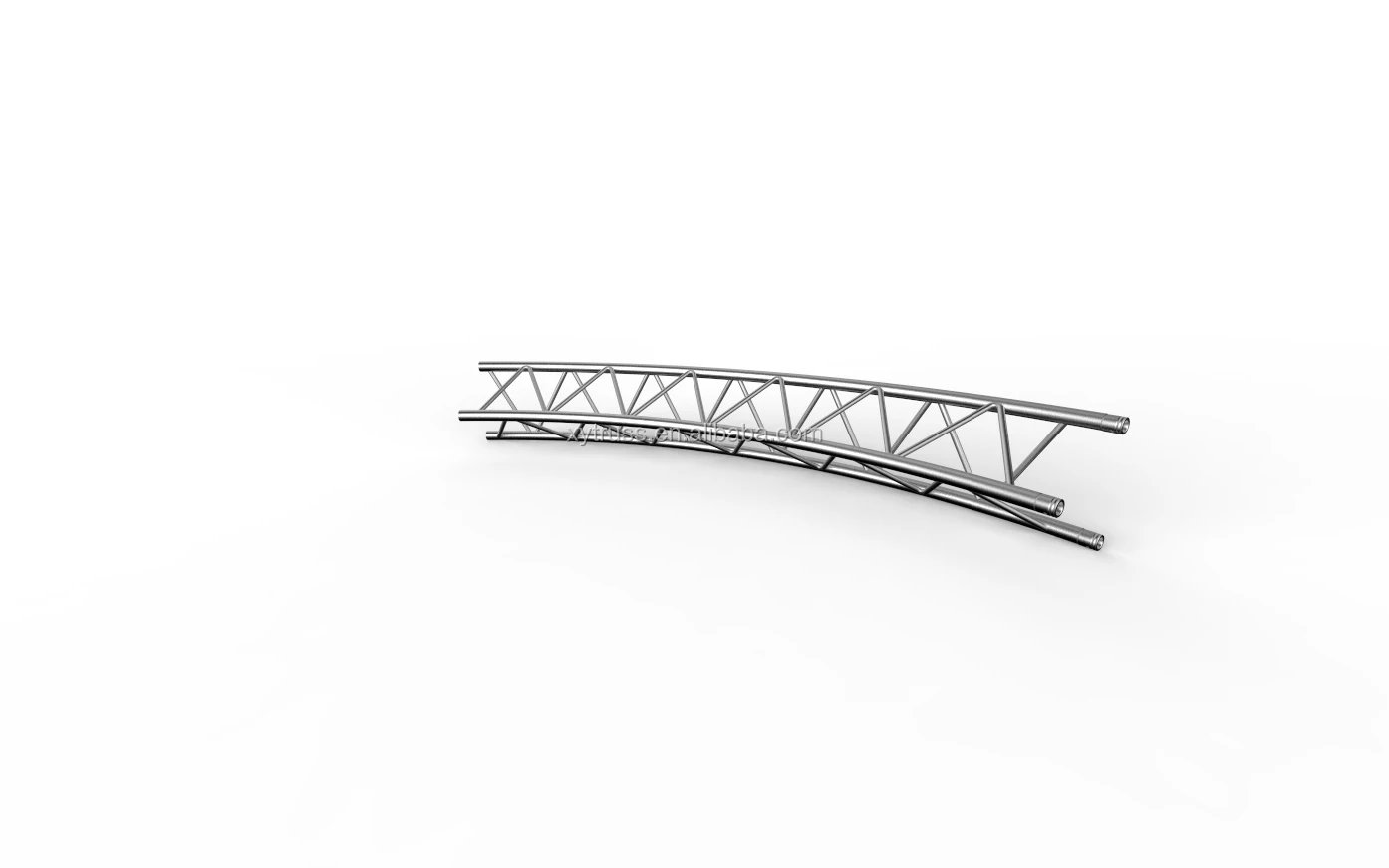

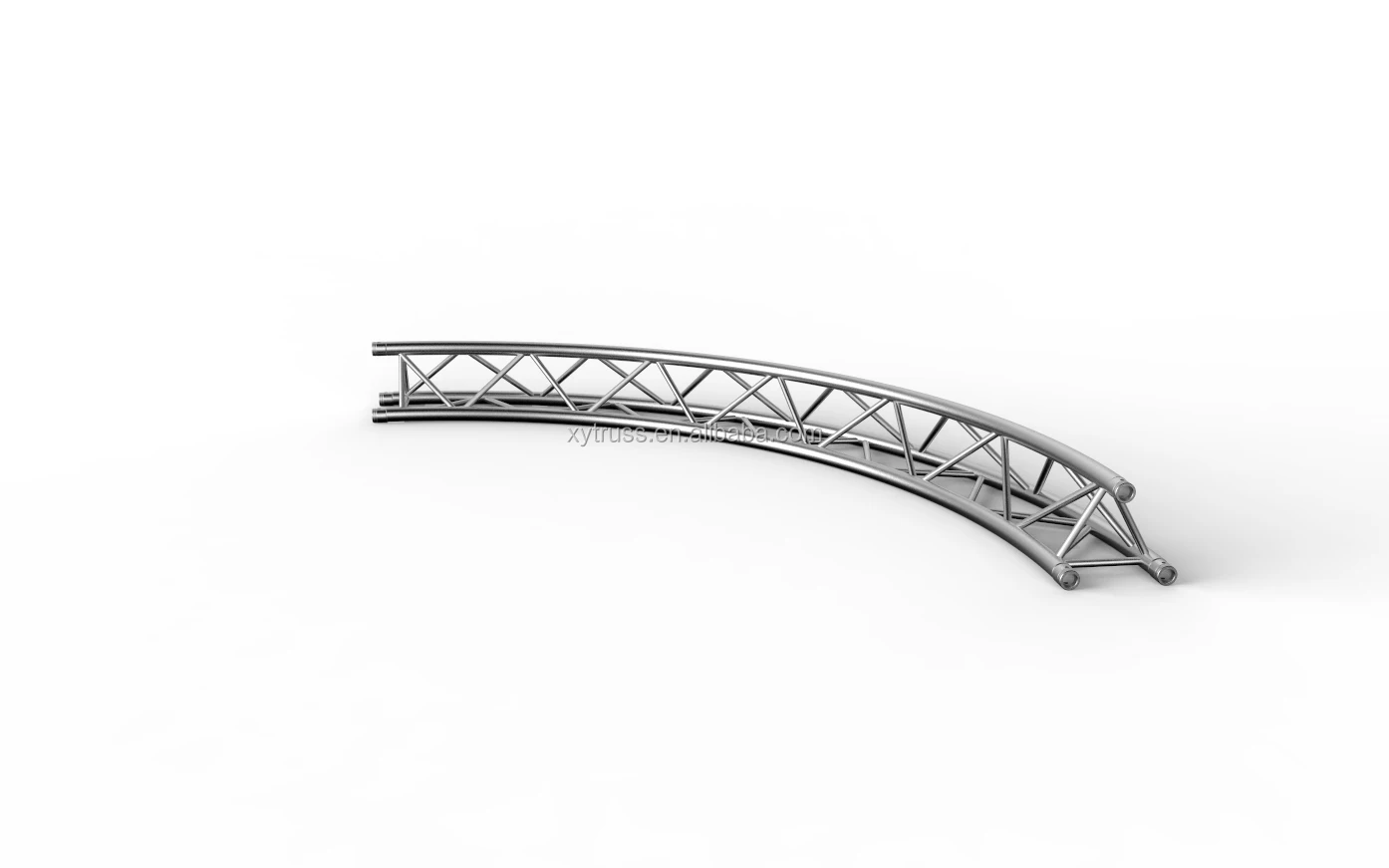

X-FT33-  Arc segment

Triangular trusses are also widely used in circular and curved structures, showing great results, beautiful, and loved by many customers




X-FT33  Arc segment

There are 3 types of cross-sections. This is point inside.



Circular structure created by a tripod truss



Minimum diameter 1.5M, maximum 30M


point outside

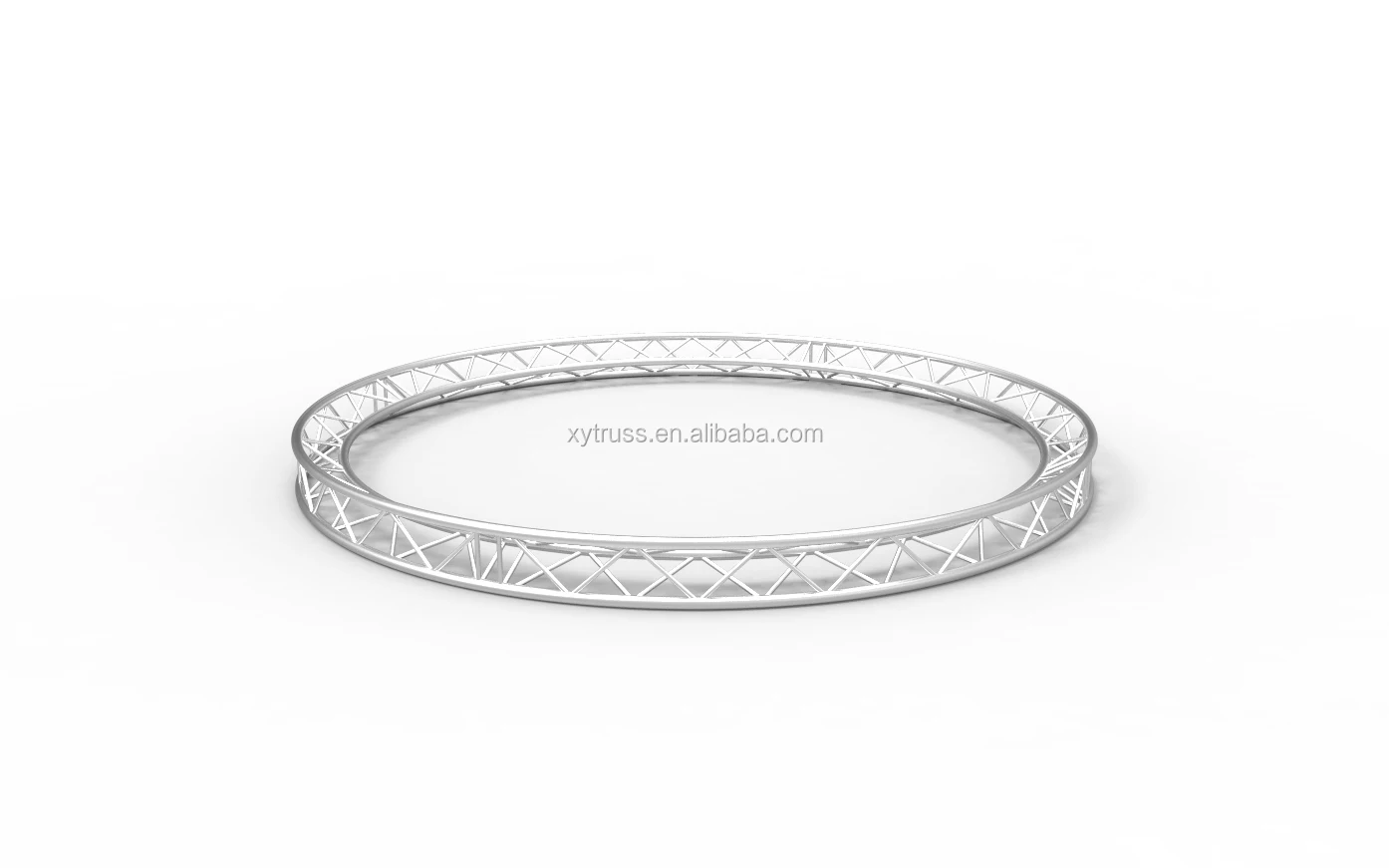

X-FT33 circular truss


point inside



Installation Process

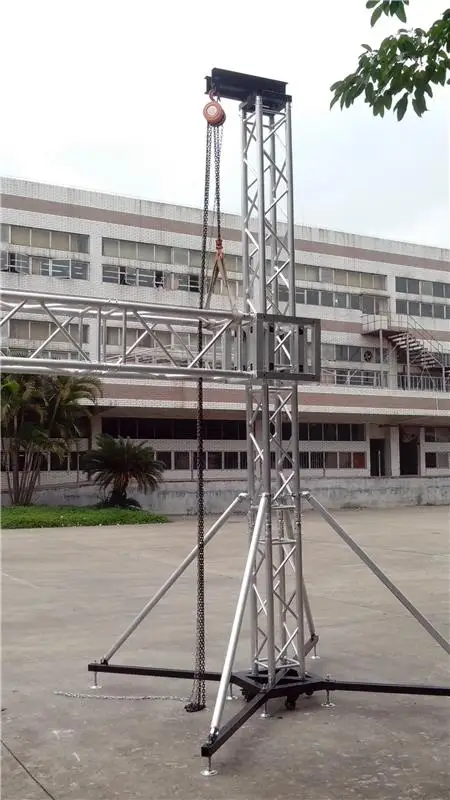

Truss lift system .


         Steel basement + Long outrigger.

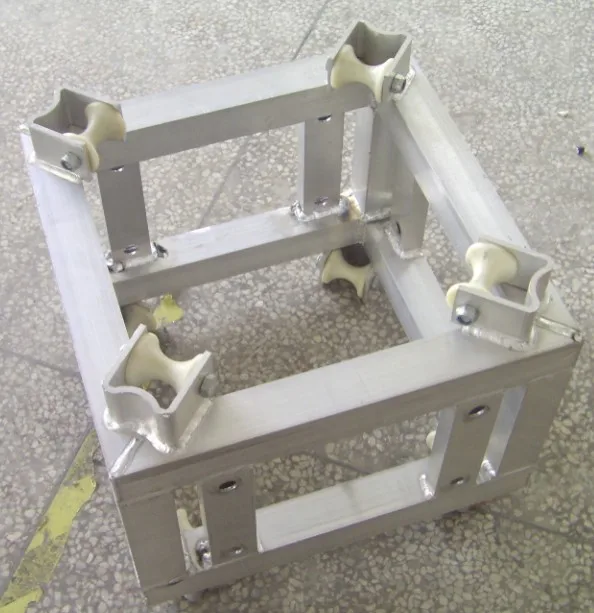

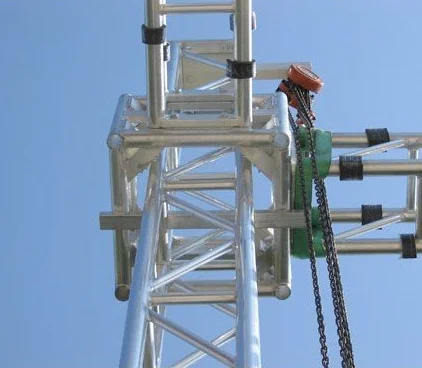

Sleeve block.


                         Steel top section.




Roof truss show.

This Roof truss is an arch roof system designed to cover Large Stage ,It`s attractive look is great for middle or large size events such as concerts,fashion and entertainment shows ,theatrical performances and many others.However,it`s design can allow big loads to be placed on the structrue.



12x2x6m arch tent.

Use 290x290mm spigot truss

Main tuble:50x2mm

Snakebrace:20x2mm

Max span:13m

14x12x7m canvos truss.

Use 350x350mm spigot truss
Main tuble:50x3mm
Snakebrace:25x2mm

Max span:16m.

16x12x8m 6pillars roof truss.

Use 400x400mm spigot truss
Main tuble:50x3mm
Snakebrace:25x2mm
Max span:16m.



Applications




X-LED-03.

LED screen frame truss.
6x5m ,use FT44 TRUSS,
load:2000kg

X-LED-05

LED screen frame truss.
6x5m ,use FT44 TRUSS,
load:2000kg

X-LED-07.

LED screen frame truss.
8x6m ,use FH34 TRUSS,
load:3000kg





8X8X6M ARCH ROOF TRUSS.


     Speaker truss.


      LINE ARRAY TRUSS.




Certifications




Company Information




FAQ


Q1. Can I have a sample order for truss or stage?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q3. Do you have any MOQ limit for truss or stage order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. DHL, UPS, FedEx or TNT  also optional. It usually takes 3-5 days by express.



Q5. How to proceed an order for truss or stage?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on truss or stage?

A: Yes. Please inform us formally before our production.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.



Q8: How to deal with the defective product?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
Secondly, during the guarantee period, we will send new product with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
