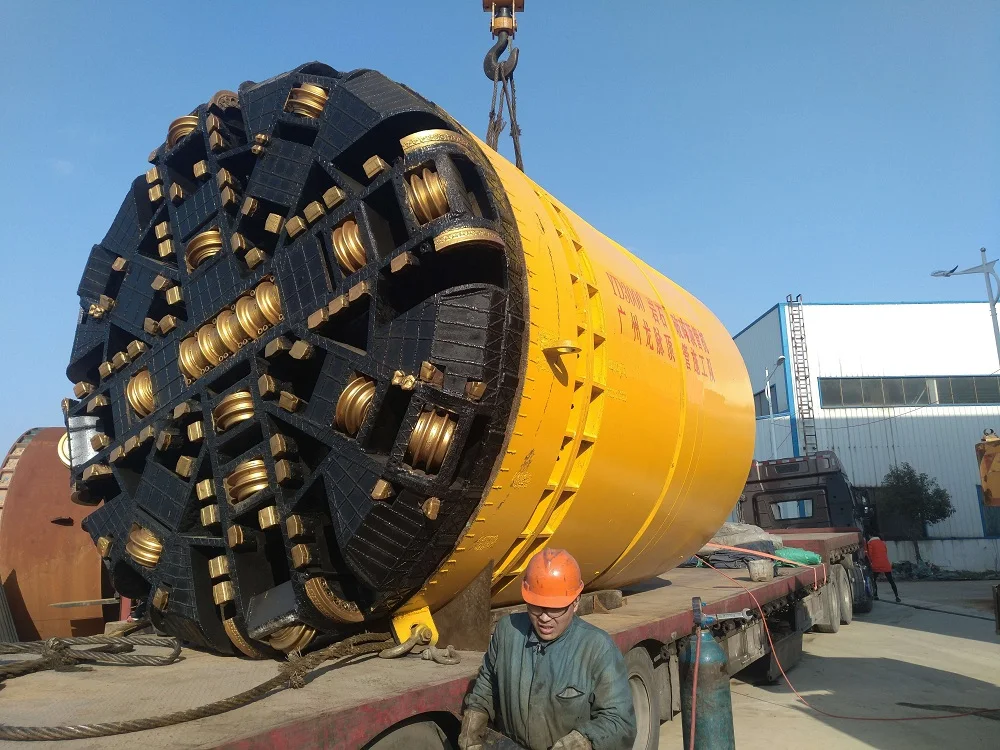

TBM Jacking Pipe Machine/Tunnel Boring Machine

Product Overview

Description

                                                             Jacking Pipe Machine

 Jacking Pipe Machine:NPD slurry balance jacking machine

Our factory specialized in producing all kinds of municipal engineering non-excavation equipment between 800-4500mm pipe jacking machine and rectangular pipe jacking machine.After years of development, now our factory covers an area of 200 acres, 180 employees, annual production value of 1.6billion, larger-scale processing equipment and reliable quality. Our products not oly very popular in domestic market but also have export to Thailand, Malaysia,Saudi, North Americans and so on.

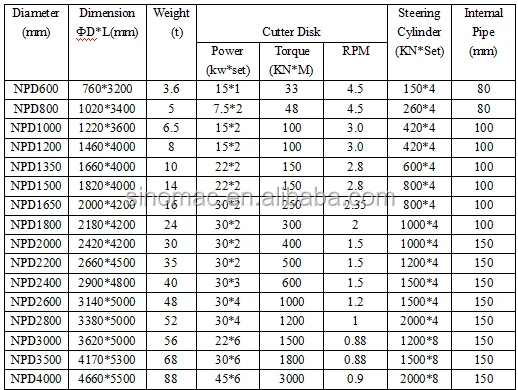

NPD Slurry Balance Tunnel Jacking Machine

Features:

1. Widely used in various soils as soft soil, clay, sand, gravel soil,hard soil, backfill soil etc.

2. Independent water injection and drainage system

3. The fastest speed:200mm per minute

4. High precision,up/down/left/right rotation operation, the max steering angle 5.5 degrees

5. Using the ground central control system, safe,intuitive and convenient

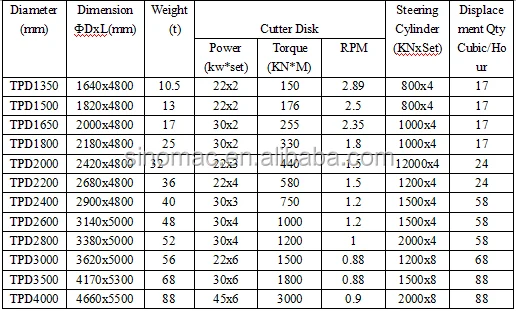

TPD Earth Pressure Balance Tunnel Jacking Machine

It is suitable for soft soil, hard soil, sand, pebble layer and variety of soil conditions. The soil can be improved through reasonable grouting and the control surface/ground settlement could be stable.Easy to handle soil transport and good working environment/safe and easy to operate. It is suitable for large and medium pipe jacking operations.

 Jacking Pipe Machine:TPD3000  earth pressure balance jacking machine

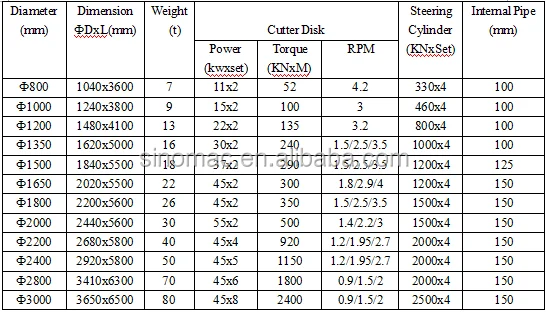

Long Distance Rock Micro-tunnel Jacking Machine

Feature:

1. when the cutter head is worn out, it can be replaced from the inside of the machine. Suitable for long-distance pipe jacking construction

2. Suitable for ordinary soil, boulders, bedrock and mixed soil.Rock hardness:5-20Mpa

3. Internal cone crusher can perform secondary crushing effectively

4. Ground computer control system

Boulders/Bedrock Tunnel Boring Machine

Feature:

1. Suitable for a variety of soil conditions, can be applied to all soils by repacking cutting disc.

2. High power, strong secondary crushing ability

3. The cutter wheel drive system adopts Italy planetary gear reducer, strong power, reliable quality

4. Using motor frequency conversion technology, cutter speed could adjustable

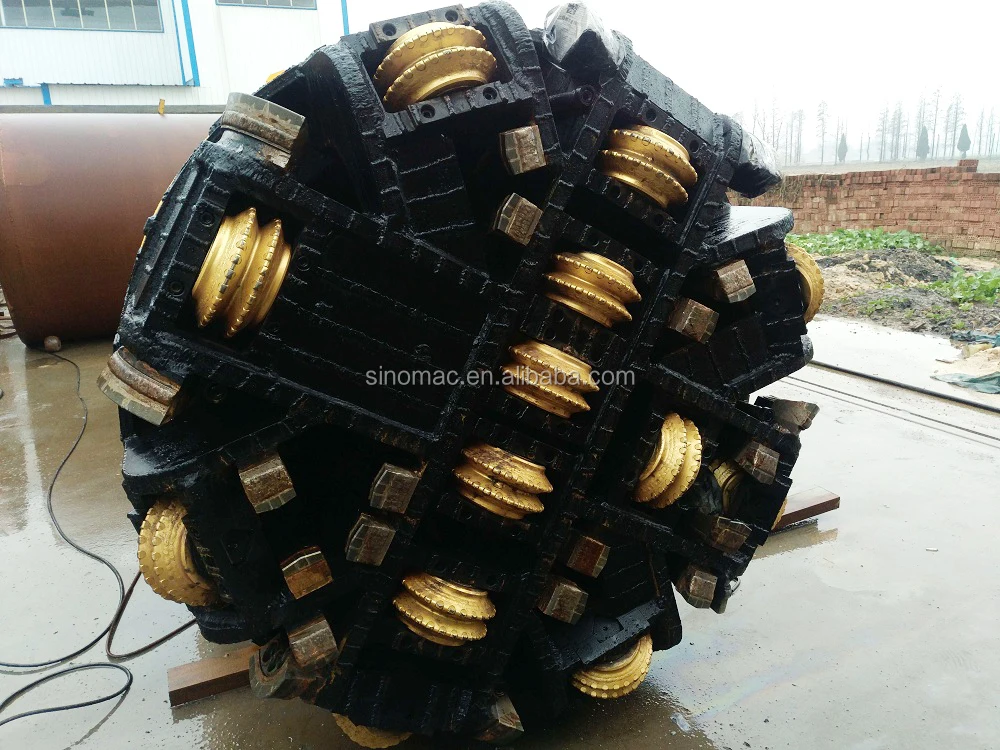

 Jacking Pipe Machine: rock jacking machine

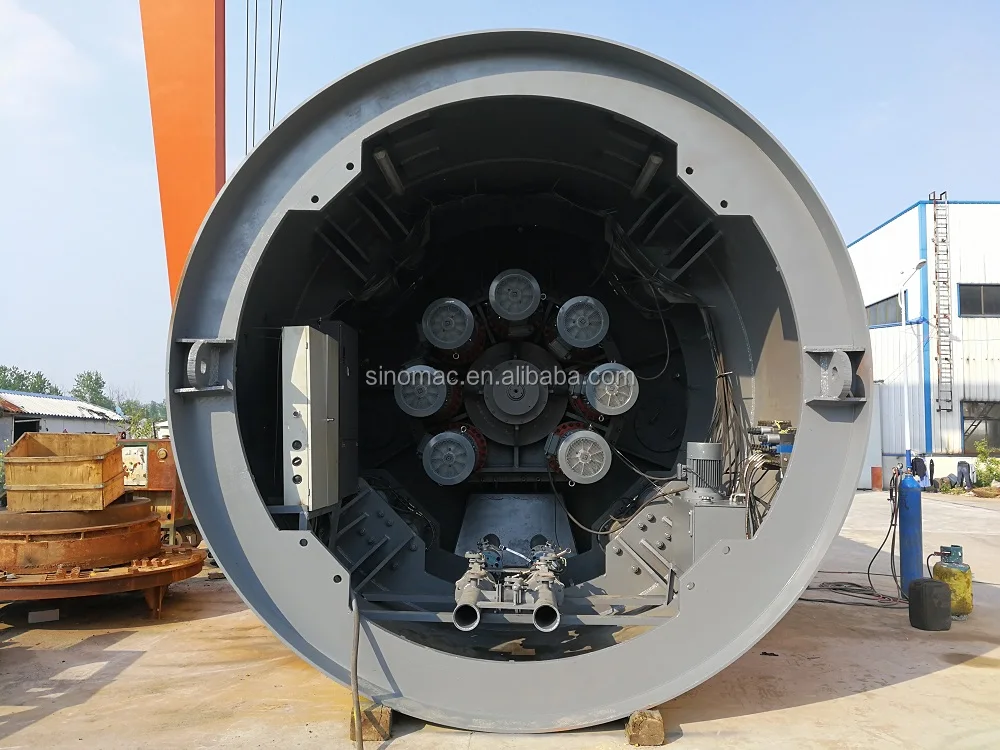

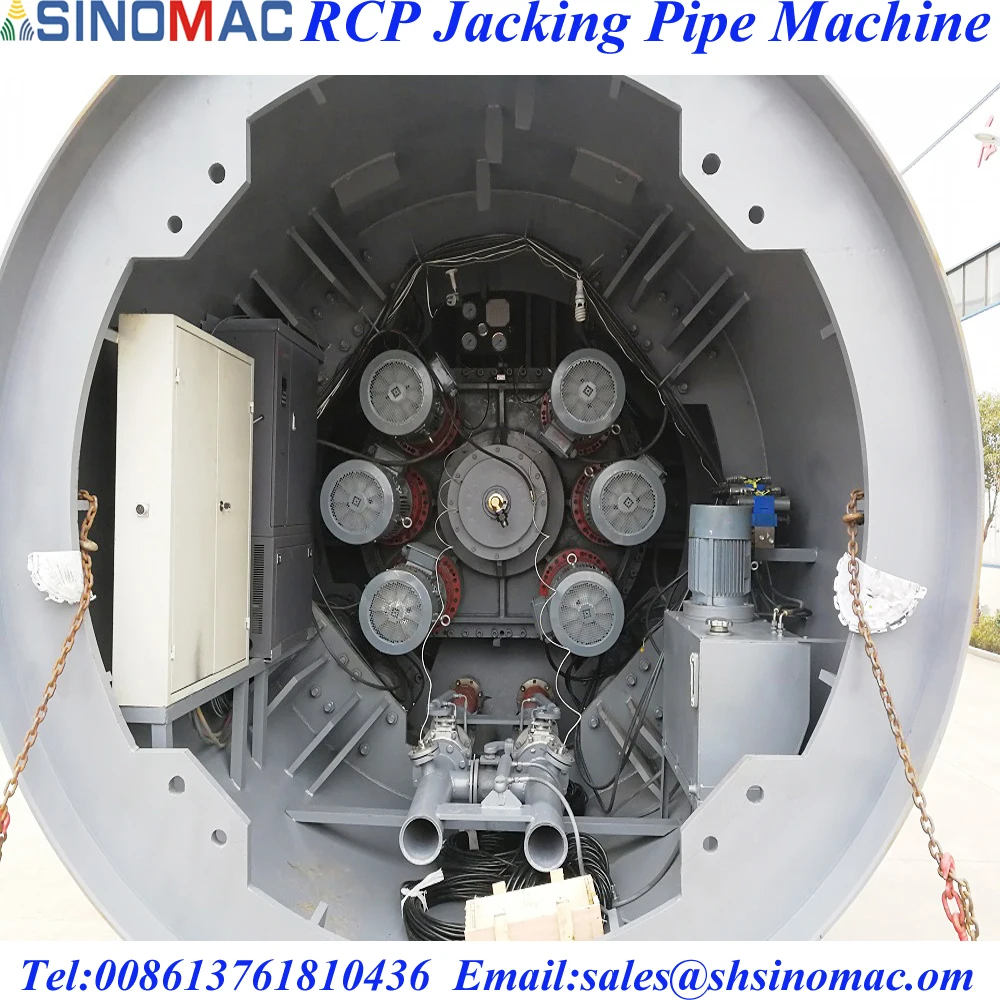

  Jacking Pipe Machine:0rock jacking machine inside

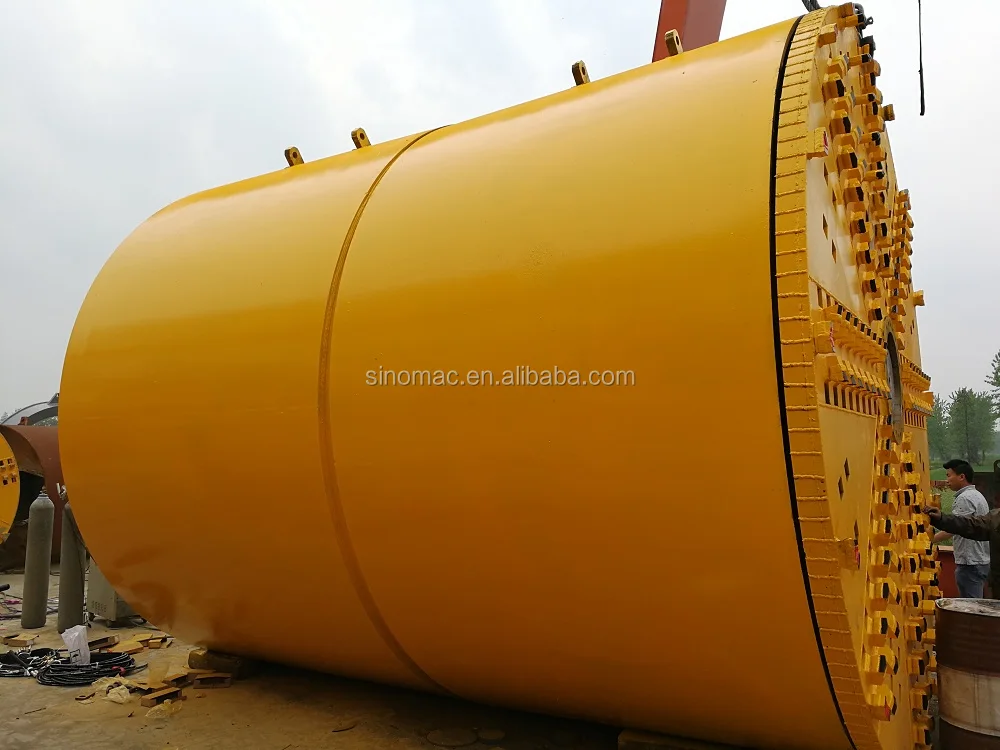

NPD3500 Slurry Balance Pipe Jacking Machine

Technical Features:

The power system of pipe jacking machine is driven by 6sets 37KW reducer units and the cutter head torque could reach 2300KN.M.



 Jacking Pipe Machine:NPD3500 slurry balancejacking machine

YD1400 Rock Pipe Jacking Machine

Technical Features:

The power system of pipe jacking machine is driven by 2sets 27KW reducer units and the cutter head torque could reach 300KN.M.



 Jacking Pipe Machine:YD1400 rock jacking machine

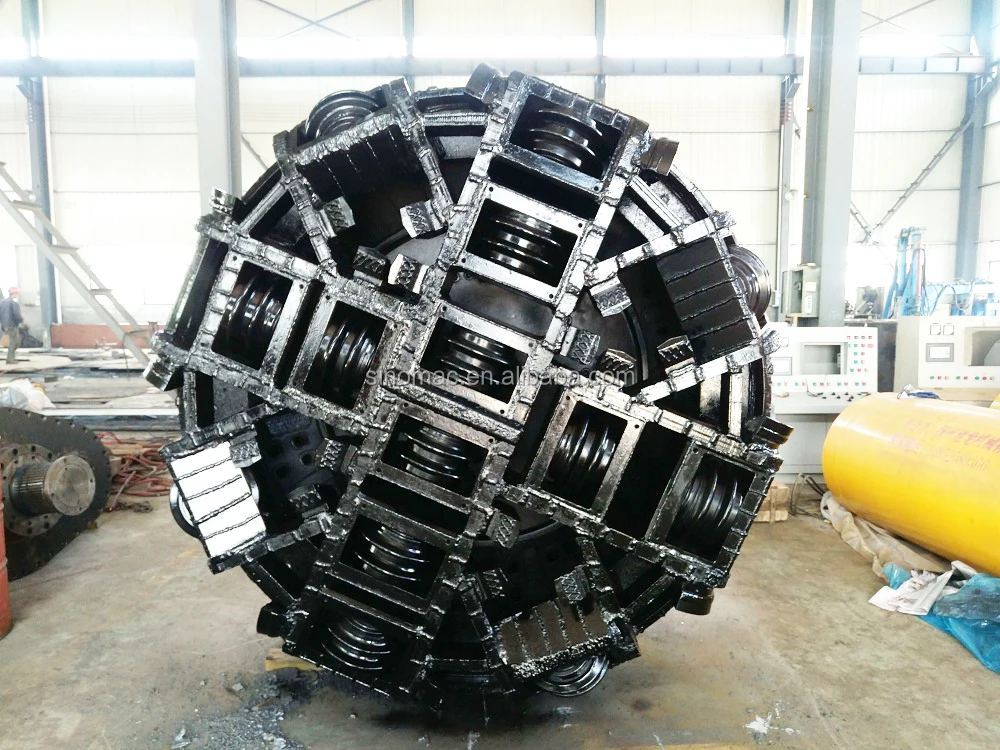

YD1800 Rock Pipe Jacking Machine

Technical Features:

The power system of pipe jacking machine is driven by 2sets 55KW reducer units and the cutter head torque could reach 860KN.M.



 Jacking Pipe Machine:YD1800 rock jacking machine

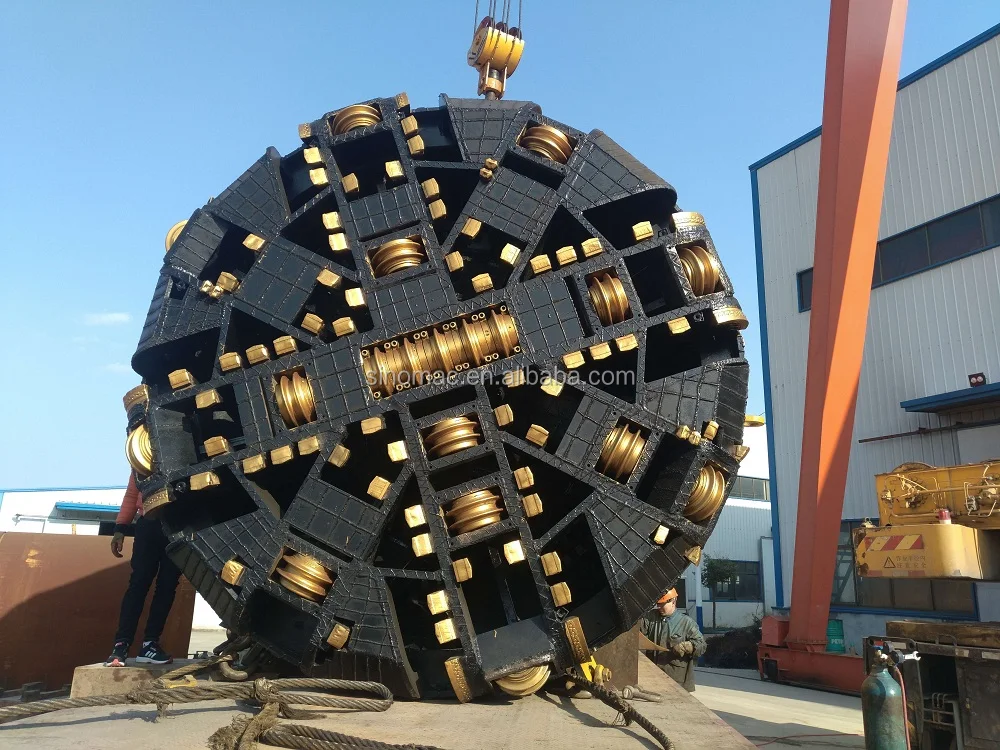

YD3000 Rock Pipe Jacking Machine

Technical Features:

The power system of pipe jacking machine is driven by 6sets 37KW reducer units and the cutter head torque could reach 1580KN.M.

 Jacking Pipe Machine:YD3000 rock jacking machine

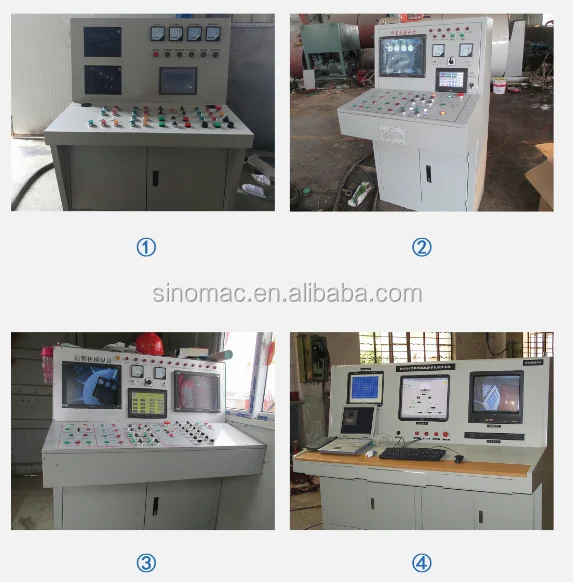

Jacking Pipe Machine:control table

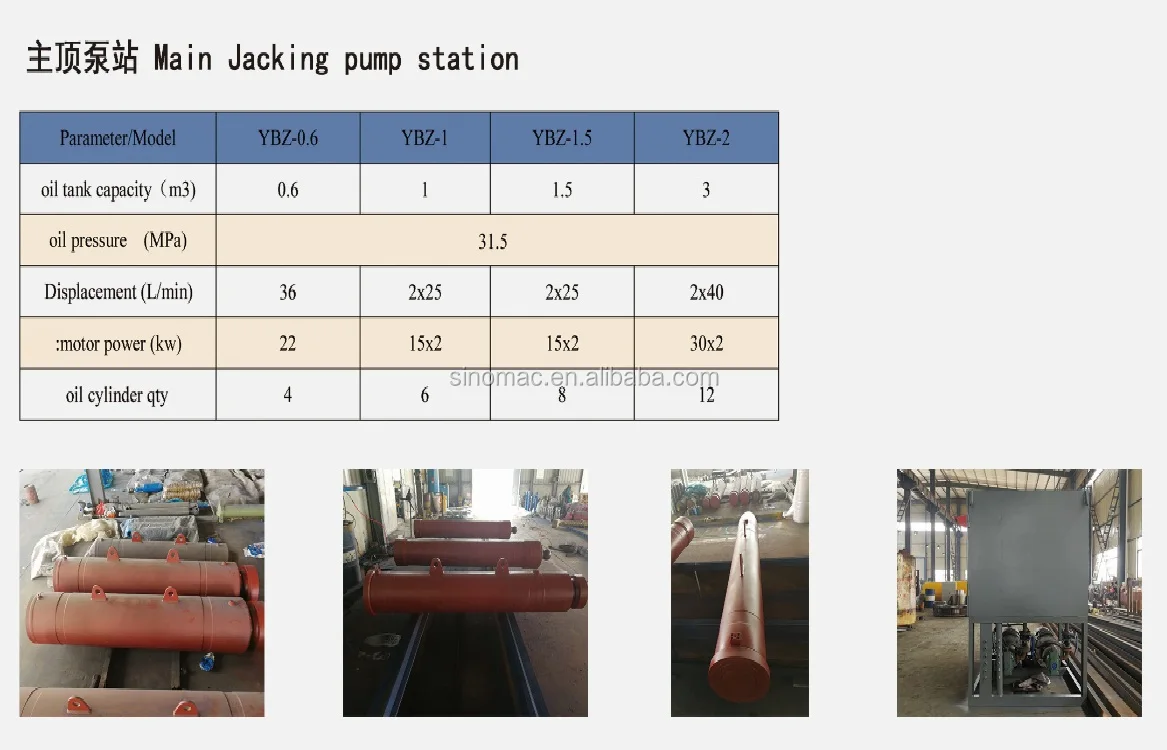

Jacking Pipe Machine:pump station

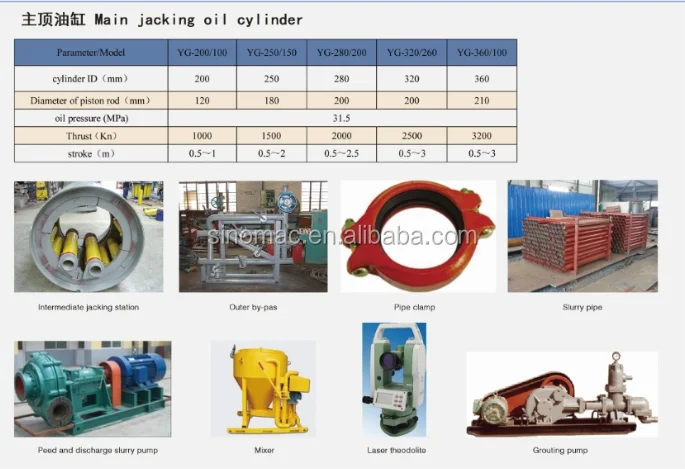

Jacking Pipe Machine:oil cylinder

Welcome to visit our factory and pipe jacking machine worksite. Thanks.
