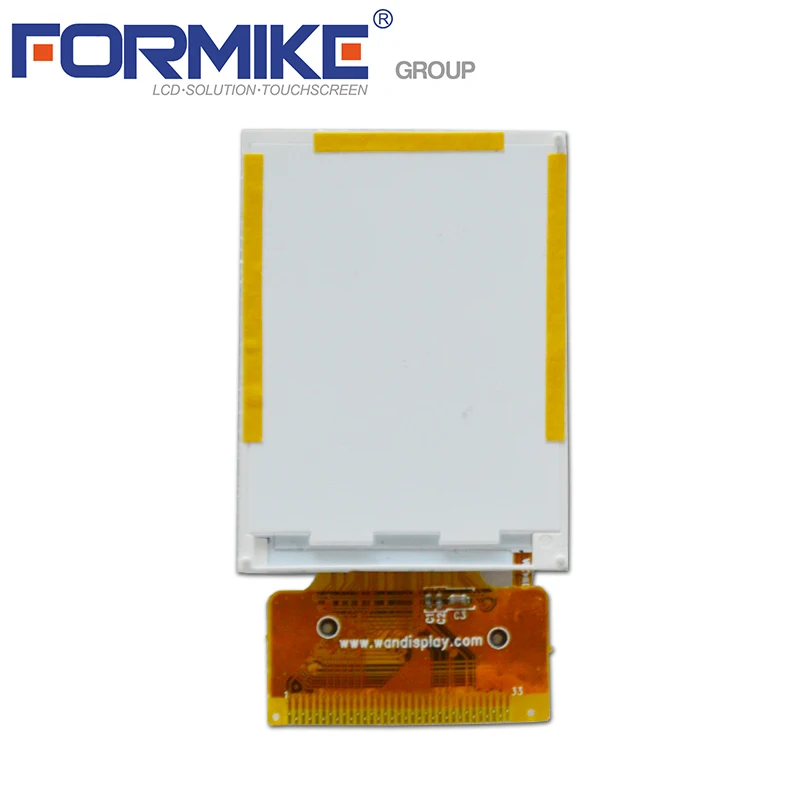

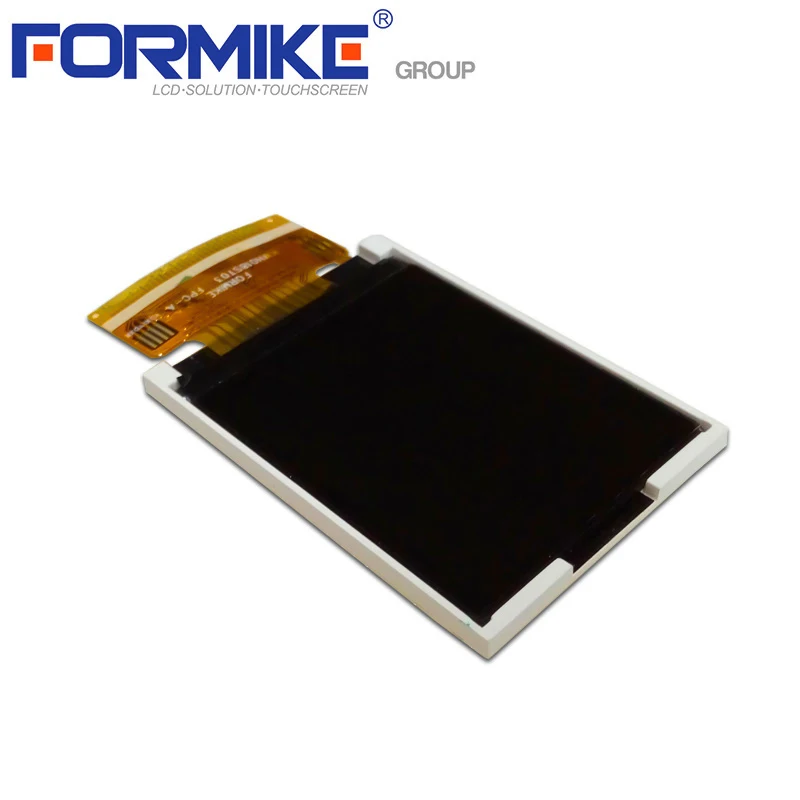

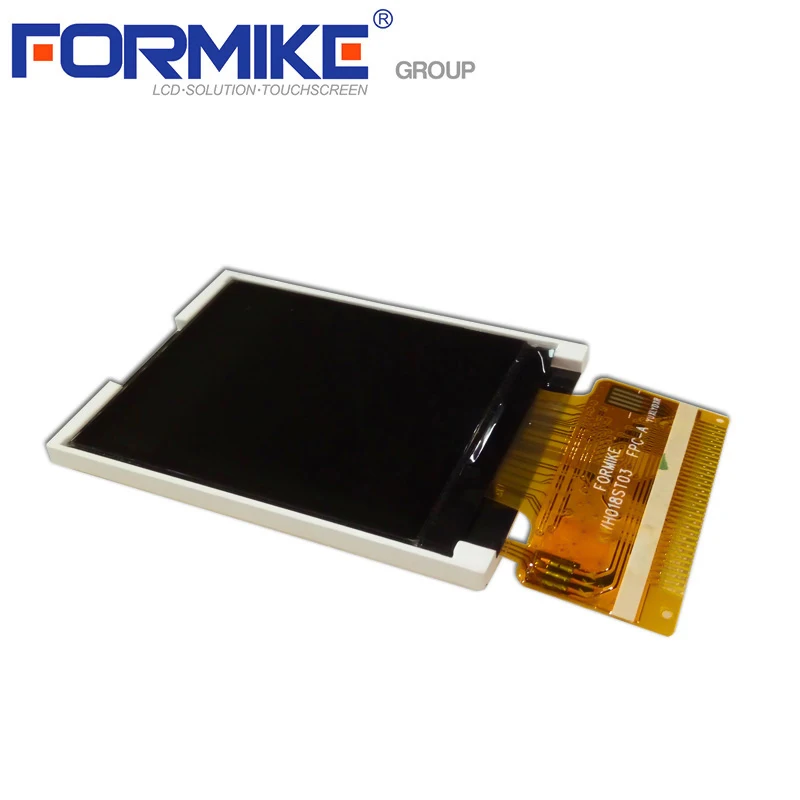

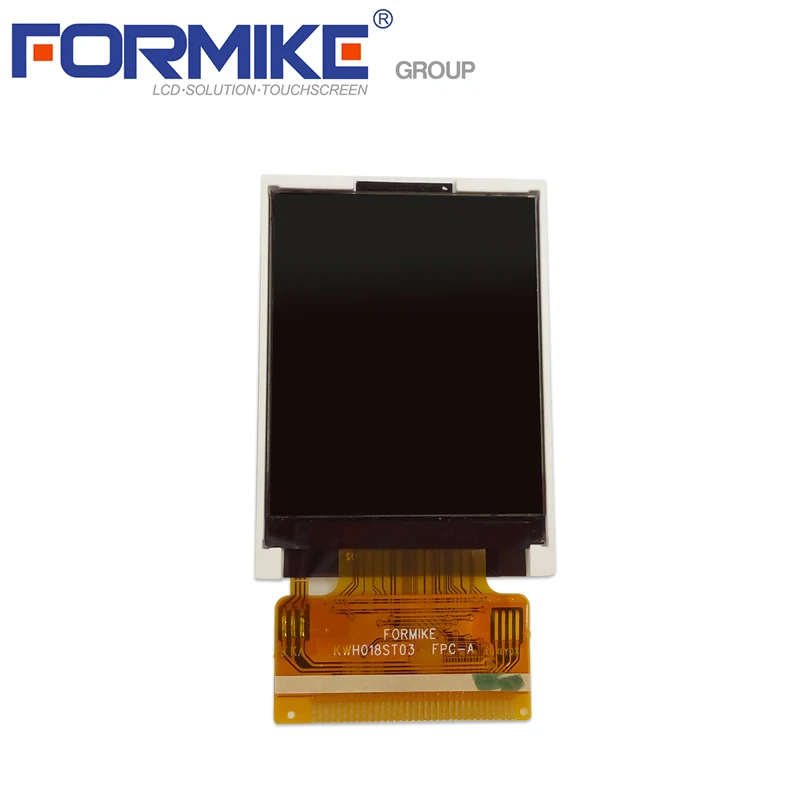

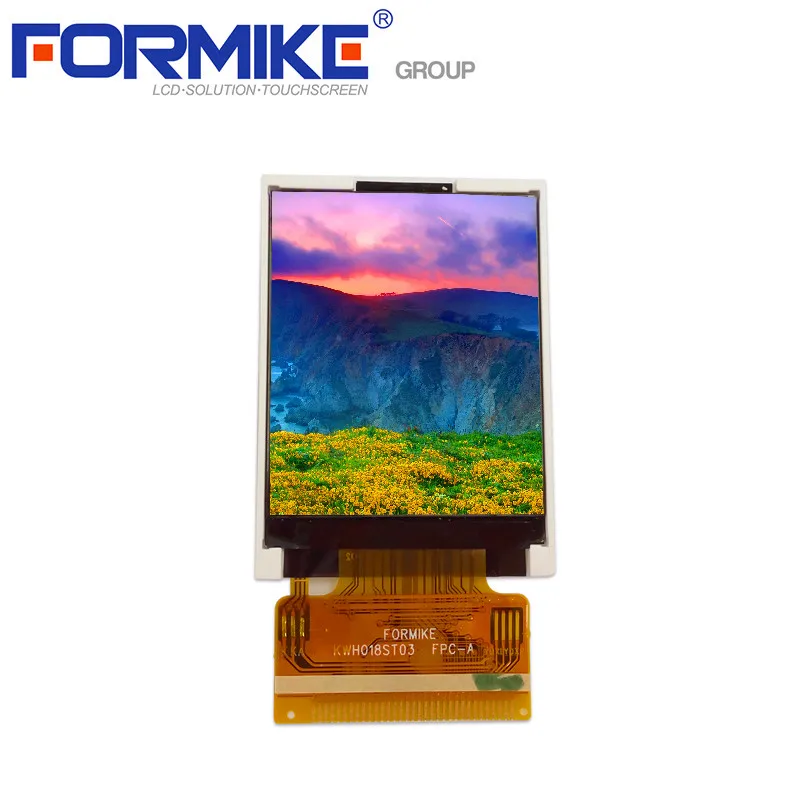

Small LCD 1.77 inch tft lcd 128x160 dots lcd display modules built in SPI/MPU interface white backlight
- Category: >>>
- Supplier: Formike Electronic Co. Ltd.
Share on (60768350178):
Product Overview
Description
Product Description
Item | 1.77 inch tft lcd 128x160 dots lcd display modules built in SPI/MPU interface white backlight |
Part Number | KWH018ST03-F01 |
LCD Resolution | 128*160 |
Display Module | Normally White, Transmissive |
Outline Dimension | 34.0 x 47.0 x 2.4mm |
Active Area(mm) | 28.03 x 35.04mm |
Viewing Direction | 70/50/70/70 |
LED Numbers | 4 white LEDs in parallel |
Interface | 8 BIT MCU/4W SPI/3W SPI |
FPC type | 33PIN Soldering |
Operating Temperature | -20~+70 C |
Storage Temperature | -30~+80°C |
Related Product
Workshop
Application range
The LCD products can be used for many kinds of field,such as:Telecommunication Devices;Consumer Products;Technical Equipment;Medical Equipment;Industrial Equipment;Home Appliance;Automotive;White Goods etc
Our Company
Formike Electronic Co., Ltd. is a high-tech enterprise engaged in the research, design and manufactures LCD solution since 1999, we integrated Display Solutions, products and services including Color & Mono TFT Display, Monochromic Display, Capacitive and Resistive touch screen, cover glass, LED backlight and their driver solutions, as well as Optical bonding technology for integrating complete solutions for our customers in ODM or standard types.
FORMIKE Strong Points | ||
Complete production line | Complete manufacturing process from ITO glass to the back-end, all are in-house | |
Fast response | Quickly realize your customized ideas, and have a sample ready in short time | |
Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client | |
Extensive range | Providing complete solution from Mono to Color, LCD module to Half-embedded, Optical bonding between display to cover glass as well as cover glass to touch screen, accessories for smart phone | |
Large production capacity | Operation capacity 2KK monthly | |
Quality guarantee | RoHS & REACH compliant | |
Management | ISO 9001:2008, ISO 14001:2004 | |
Exhibition Show
Our Service
1-Support
1) Provide TN/HTN/STN/FSTN/DFSTN/VA LCD panel in various modes
2) Character & Graphic LCD modules manufacture (COB, COG, TAB )
3) Color STN & TFT LCD module manufacture small 1.77 inch tft lcd display serial interface
4) Capacitive touch screen manufacture
5) Complete technical support from before to after sales service
2-Services
1-We will handle your inquiry within 24 hours.
2- If there is product quality issue caused by us within half a year, we shall arise to returning or refunding.
3-We will exhaust our ability to service you at any time
2) Character & Graphic LCD modules manufacture (COB, COG, TAB )
3) Color STN & TFT LCD module manufacture small 1.77 inch tft lcd display serial interface
4) Capacitive touch screen manufacture
5) Complete technical support from before to after sales service
2-Services
1-We will handle your inquiry within 24 hours.
2- If there is product quality issue caused by us within half a year, we shall arise to returning or refunding.
3-We will exhaust our ability to service you at any time
FAQ
1. Are you a manufacturer or a trader?
Answer: We are manufacturer producing LCD products over 18years.
2. What's the total area and number of FTE's employed by Formike?
Answer: Total area of production site is around 40,000m2; Over 600 personnel in various LCD/LCM Divisions.
3. What's the MOQ? 1.77 inch tft lcd 128x160 dots lcd display modules built in SPI/MPU interface white backlight
Answer: For standard model,no strict limits;For customized model,MOQ depends on LCD size
4. What's the lead time of your LCD product?
Answer: For standard models, we always have stock or 3~5weeks;5~6 for customized model
5. What's the payment term?
Answer: Normally, we accept T/T in advance, better payment term is negotible depend on customers' credit.
6. What's the price term?
Answer: Normally, we make EXW HongKong, other price term is negotiable.
