lead acid battery positive plate and negative plate
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. Ltd.
Share on (60768384341):
Product Overview
Description
Related Products
Product Description
Standards :
Absorbent glass mat technology, Recognized by UL & CE ABS container.
Absorbent glass mat technology, Recognized by UL & CE ABS container.
General Features :
1.Grid refining technology and the thicker
2.plates are used to extend the battery standby
3.life and reduce the plate grid corrosion speed
4.Using oxygen recombination technology：maintenance-free
5.Unique vent valve design: control water losing,prevent air and spark going inside
1.Grid refining technology and the thicker
2.plates are used to extend the battery standby
3.life and reduce the plate grid corrosion speed
4.Using oxygen recombination technology：maintenance-free
5.Unique vent valve design: control water losing,prevent air and spark going inside
Specification

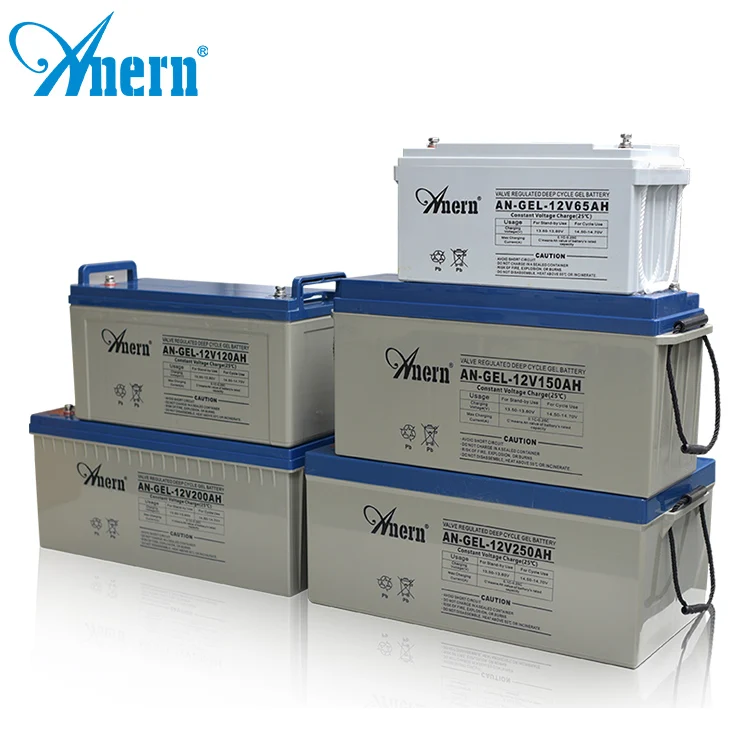

Item No. | AN-GEL-100AH | AN-GEL-150AH | AN-GEL-200AH | AN-GEL-250AH |
Capacity(AH) | 100 | 150 | 200 | 250 |
Voltage(V) | 12 | 12 | 12 | 12 |
Size(mm) | 330*171*214 | 484*171*240 | 522*238*221 | 521*269*220 |
Weight(KG) ±4% | 26.20kg | 38.04kg | 57.30kg | 65.60kg |
100AH Deep cycle GEL battery specification:
Nominal Voltage | 12 V | ||
Capacity(25℃) | 10HR(10.8V) | 100 Ah | |
5HR(10.5V) | 87.5Ah | ||
1HR(9.60V) | 62Ah | ||

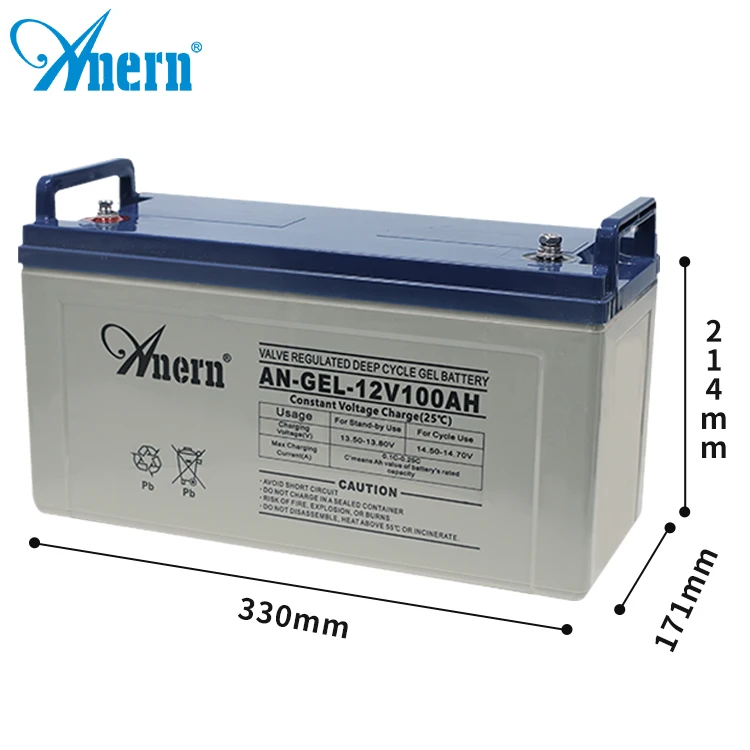

Dimension | Length | 330±2mm (13.0inch) | |
Width | 171±2mm (6.73inch) | ||
Height | 214±2mm (8.19inch) | ||
Total Height | F5: 220±2mm (8.66inch) | ||
T9: 224±2mm (8.81inch) | |||
Approx. Weight | 26.2kg±4% | ||
Terminal type | F5/T9 | ||
Internal resistance(Fully charged, 25℃) | Approx. 5.8mΩ | ||
Capacity affected by temperature (10HR) | 40℃ | 102% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-discharge(25℃) | 3 month | Remaining Capacity: 91% | |
6 month | Remaining Capacity: 82% | ||
12 month | Remaining Capacity: 65% | ||
Nominal operating temperature | 25℃±3℃(77℉±5℉) | ||
Operating temperature range | Discharge | -15℃～50℃(5℉～122℉) | |
Charge | -10℃～50℃(14℉～122℉) | ||
Storage | -20℃～50℃(-4℉～122℉) | ||
Float charging voltage(25℃) | 13.50 to 13.80VTemperature compensation:-18mV/℃ | ||
Cyclic charging voltage(25℃) | 14.40 to 14.70VTemperature compensation:-30mV/℃ | ||
Maximum charging current | 30A | ||
Terminal material | Copper | ||
Maximum discharge current | 1000A(5 sec.) | ||
Designed floating life(20℃) | 12 years | ||
