GMP ULPA 24x24 Inch HEPA Filter Gel type Mini pleat Filter H13 U16
- Category: >>>
- Supplier: Guangzhou Klc Cleantech Co. Ltd.
Share on (60768398459):
Product Overview
Description

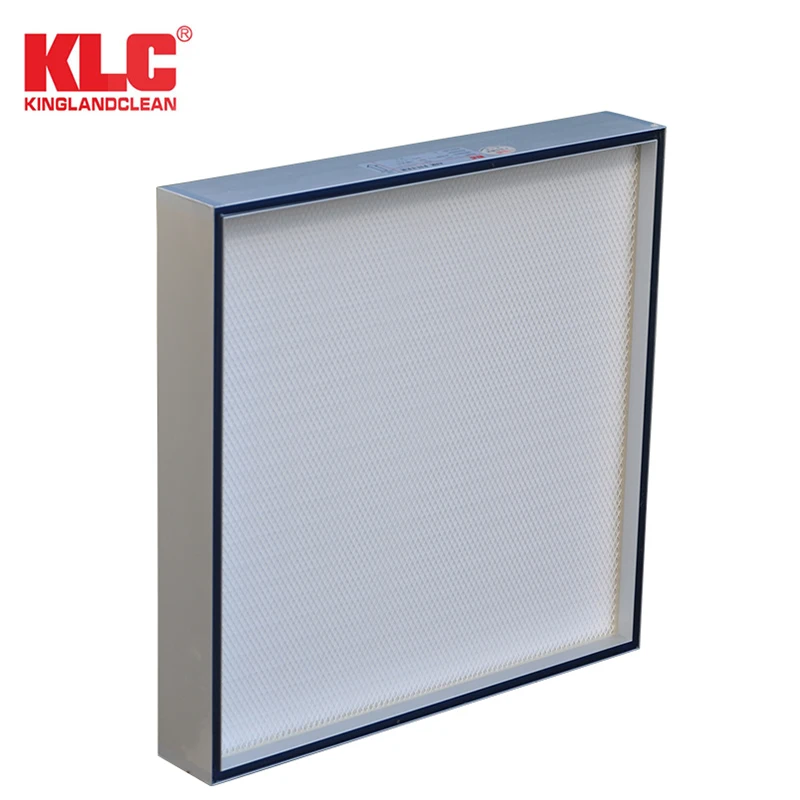

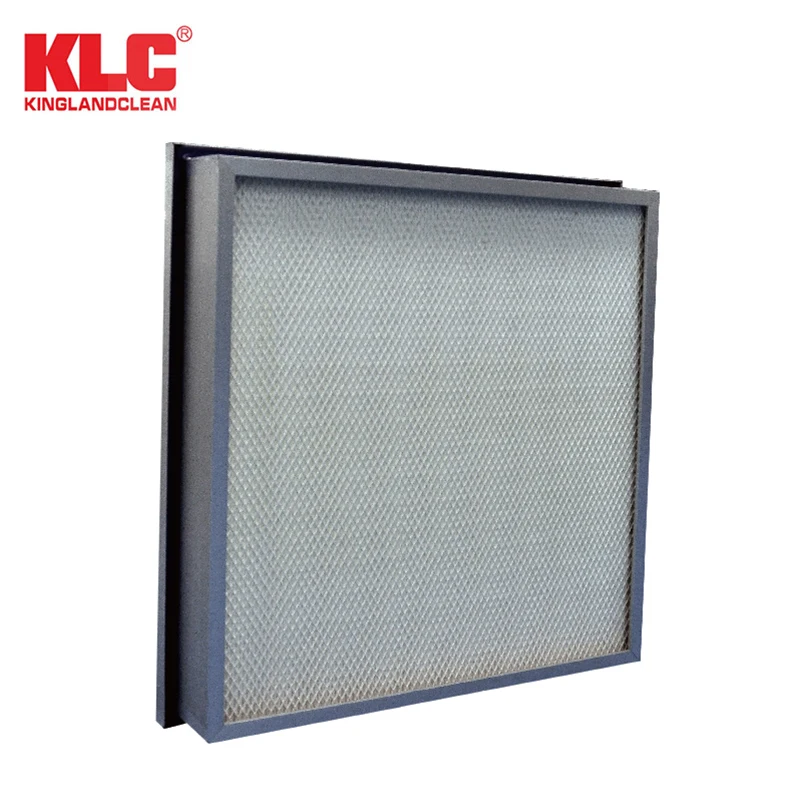

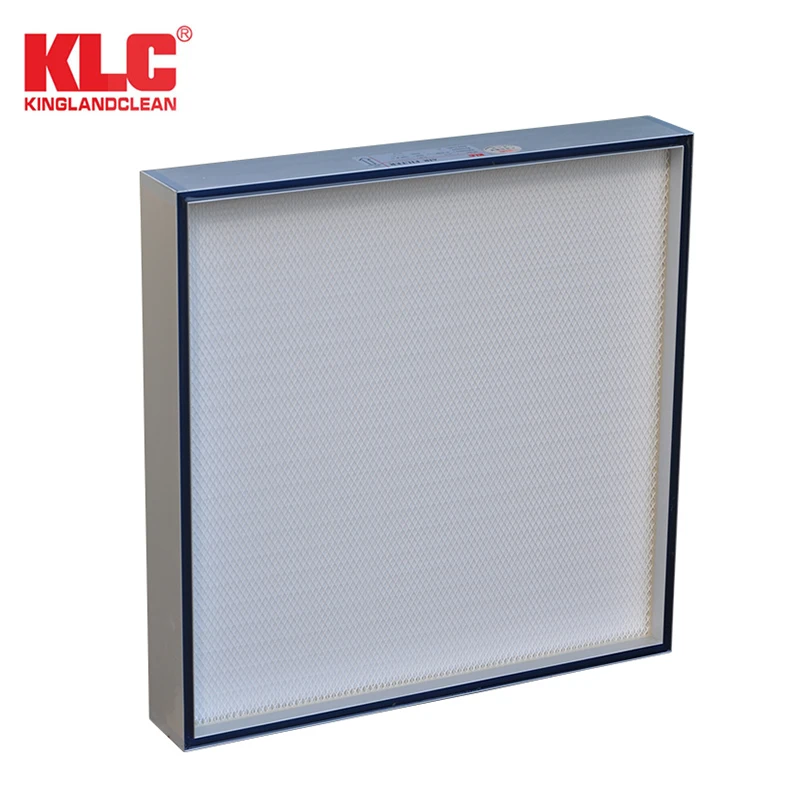

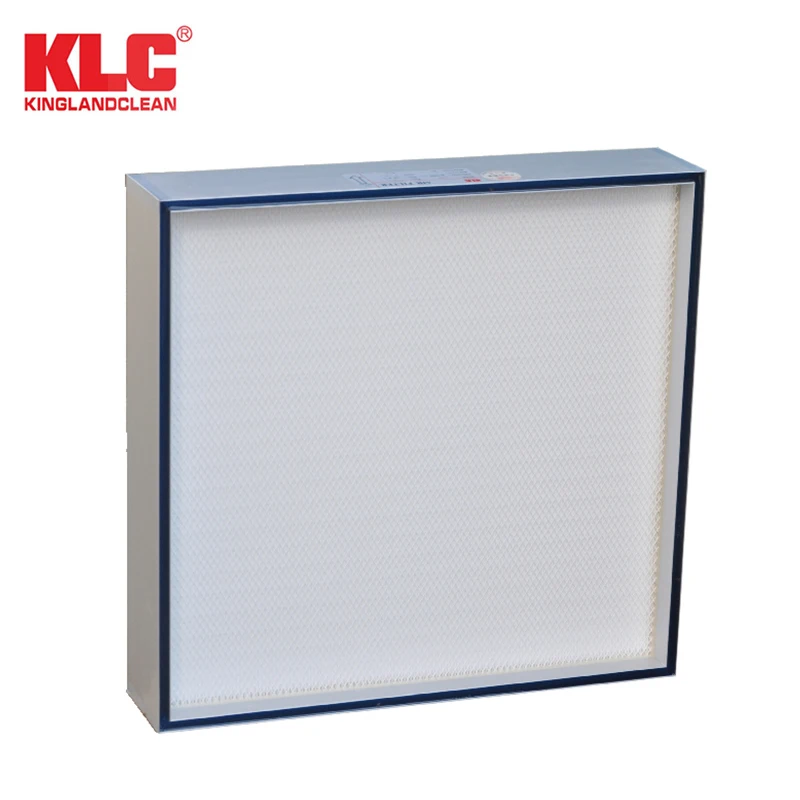

HVAC 24x24 Inch HEPA Filter Gel-type Mini-pleat Filter
Product Description
Material And Operation Conditions
Media | American HV micron glass fiber |
Sealant | Pu Polyurethane |
Frame | Aluminum/galvanized frame/stainless steel/plastic |
Separator | EVA hot melt bead |
Gasket | Endless Gasket,EVA,Neoprene |
Efficiency | 99.9995%~99.99995% at 0.12μm |
Max.Temperature | 70°C |
Max.Humidity | 100% |
Optional aluminum depth | 46~150mm |
Optional plastic frame (endless gasket at one side) | 43mm |
Product Information
1. Adopted imports of the United States HV filter which has high temperature, efficiency and low resistance, large dust capacity;
2. The frame is anodized aluminum, and out of the wind with a spray of metal pretective net at air inlet side to protect the filter not to damaged;
3. Unique seamless sealing technology, good elasticity, no defomation, and not easily leak.
Material And Operation Conditions
Efficiency: H13 / H14 / U15 / U16 / U17
Media: Micro glass fiber
Frame: Extruded aluminum
Sealant: Pu two-component polyurethane glue
Gasket: Gel jelly glue
Separator: Hot melt bead
Optional thickness: 69 / 81 / 90 / 93 / 104 / 117mm
Max Temperature: 70℃
Max Humidity: 100%
Product feature
Good appearance and space saving
Large media area
Light weight, convenient installation and replacement
Low resistance and long life-span

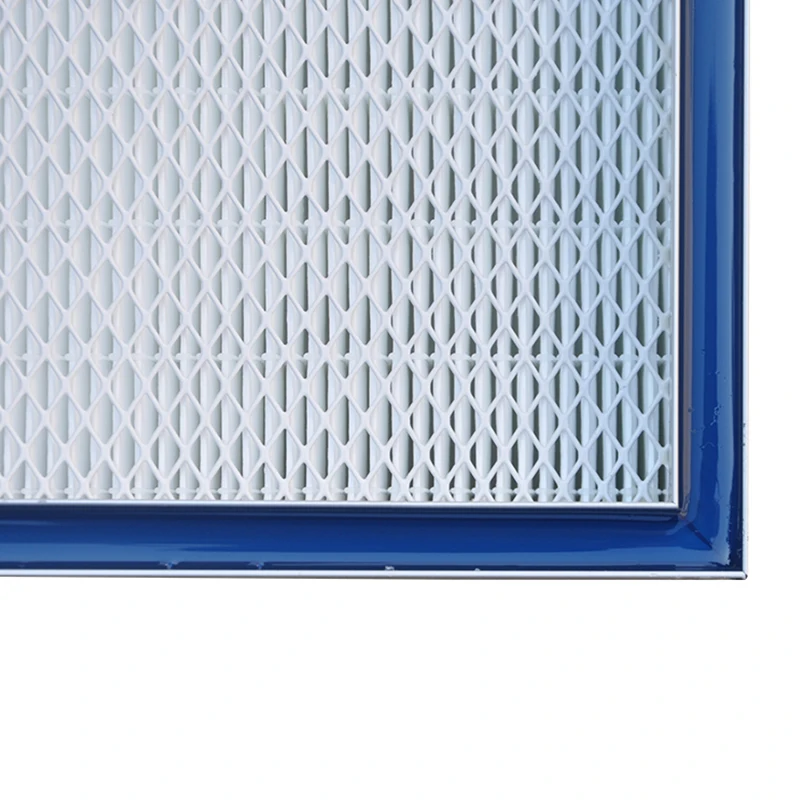

It injects permanent blue gel into flange for protecting environment and sealing reliably
100% factory inspection
The best partner of knife-edge frame
Specification
Model NO. | Actual Size | Air Flow (m³/h) | Media Area | Velocity (m/s) | Efficiency |
K69-001 | 346*346*69 | 300 | 2.80 | 0.75 | H14,U15 |
K69-003 | 636*636*69 | 1000 | 10.00 | 0.75 | H14,U15 |
K69-006 | 636*1246*69 | 2000 | 19.68 | 0.75 | H14,U15 |
K69-009 | 636*636*90 | 1500 | 15.77 | 1.12 | H14,U15 |
K69-011 | 596*1196*90 | 2500 | 27.80 | 1.04 | H14,U15 |
K69-012 | 636*1246*90 | 3000 | 31.04 | 1.12 | H14,U15 |
K69-013 | 320*320*95 | 350 | 3.19 | 0.95 | H14,U15 |
K69-014 | 484*484*95 | 700 | 7.24 | 0.83 | H14,U15 |
K69-015 | 610*610*95 | 1100 | 11.45 | 0.82 | H14,U15 |
K69-016 | 610*1220*95 | 2200 | 22.55 | 0.82 | H14,U15 |
Filter Related

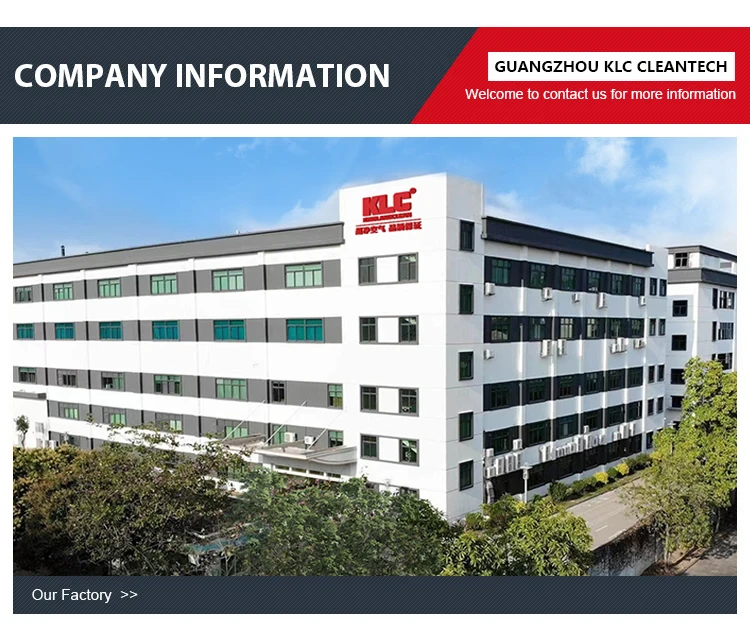

Company Information
Guangzhou KLC Cleantech Co., Ltd was established in 1994, is a professional engaged in the research, development, sale and service of air filters, air purification equipment and cleanroom solutions. Located in Guangzhou China, enjoying convenient transportation and beautiful environment, KLC factory covers an area of 13500 square meters and has more than 160 employees.
Owning the advanced production processing and highly automotive machine lines for air purification equipment, equipped a dust-free production workshop for air filters, KLC is always capable of meeting production requirements of large projects.
1. Q: Are you manufacturer or trader?Where are your factory located?
A: We are manufacturer with professional designers and engineers. Our factory is located in Guangzhou city.
2. Q: How long is your warranty? Can we extend?
A: 12 months after installation and commissioning. Warranty can be extended with extra charge.
3. Q: Do you have professional engineer team fordesign and installation?
A: Yes, we have engineer team for ODM and OEM services
4. Q: What documents will you provide?
A: Yes, we have engineer team for ODM and OEM services
4. Q: What documents will you provide?
A: Usually we will provide DQ, IQ, PQ, OQ, FAT, SAT, operation manual, maintenance instruction, layout drawing etc.
