high heat output metal fiber infrared gas burner

Product Overview

Description

high output metal fiber infrared gas burner





What are the advantages of our products?

Advantages:

1.Security: Use the "full-blown air supply" method to achieve the safety of gas and air distribution. The flameout protection device can protect the safety of the burner and maximize the prevention of accidents.

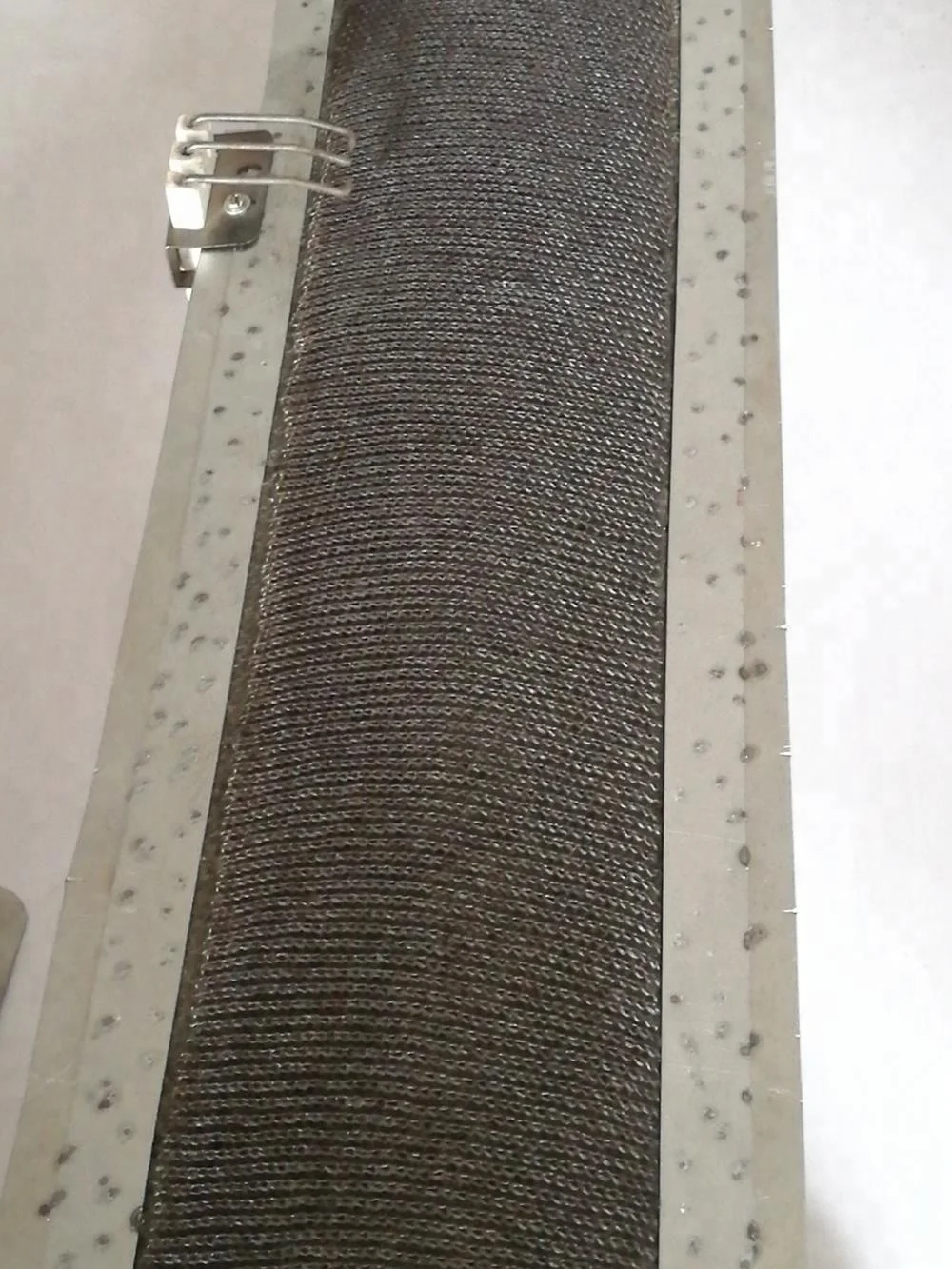

2.Efficient: The metal fibers on the surface of the burner can ensure that the radiated wavelength is within the user's requirements, and the best heating effect has been achieved.
3.Energy-saving: Manually add air to help burn, so as to achieve the maximum heat output with the lowest energy consumption.
4.Environmental protection: The COX and NOx emissions of the complete system are lower than the international related industry standards.

5.Wide range of applications:You can choose to use natural gas, liquefied gas, artificial gas and many other gases.

6.Beautiful, sturdy and durable:All stainless steel shells and full metal mesh regenerators are more robust, beautiful, and durable.





What is the introduction of our products?

Metal fiber infrared burners are mainly used in the field of industrial heating, such as pre-baking for textile printing and dyeing, stentering, asphalt pavement heating and repair.

The metal fiber infrared burner can be set according to customer requirements without the combustion use surface area affecting, it can be easily installed in industrial oven.



Metal fiber infrared burners have the following advantages:

  With ignition operation and temperature monitoring system.

  Can be heated and cooled in 2 seconds.

  Not affected by splashes or gas quality change.



What is the parameter of our products?

Burner size: 998 x 180 x 80mm

Burner weight: 5 kg/set

Liquefied gas consumption: 2.5-3.5 kg/hour

Single power: 34~49 kw/hour;29240-42140 Kcal/h

Gas pressure: ≥ 3.5 kPa

Air Inlet pressure: 4.5~5.0 kPa

Pipe diameter: gas pipeline DN15,

Gas regulation method: flow regulation, or pressure regulation (pressure regulator)

Ignition method: electronic pulse ignition

Control method: temperature-controlled meter + thermocouple + simple electronic button control



Burning condition

      -----Natural gas or liquefied gas.



 2.Can you accept  1 or 2 sample order?



      -----Yes.

 3.How many can you supply in one month?



      -----About 1000pcs.

4.Which payment way can you accept?



      ------Paypal, T/T, Credit card, Westen union,Ali pay...
