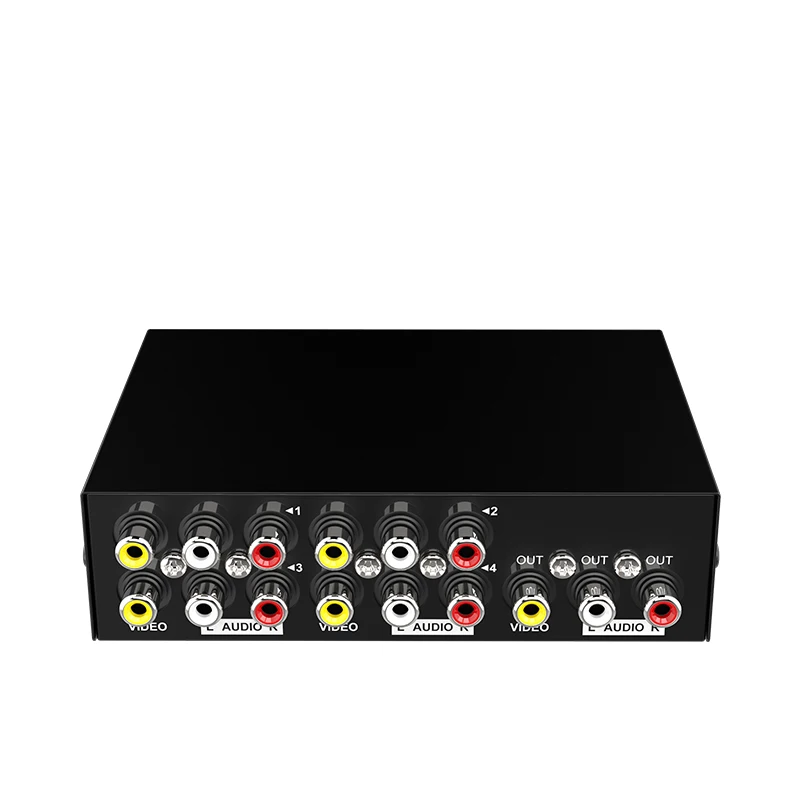

RCA Switch 4 in 1 out, MT VIKI 1920x1080 4x1 RCA Switcher

Product Overview

Description



Product description

     The 4 port av switch high quality component audio&video switch is perfect for TV enthusiasts who want to add more inputs to their high-definition display. Use MT-2431 to effortlessly connect a DVD player and set-top box or satellite receiver to your TV or projector.

     It is switch by push button easily, allowing you to enjoy multimedia switching from the comfort of your seat. MT-2431 AV switch supports high-end digital video devices such as DVD players and recorders, set-top boxes, satellite receivers, and more.

Features:

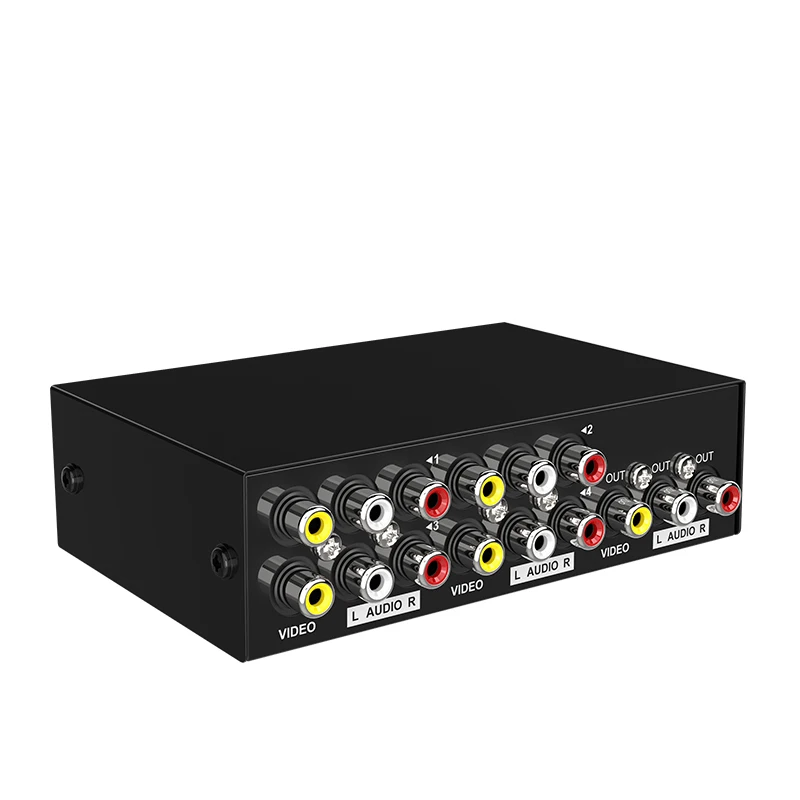

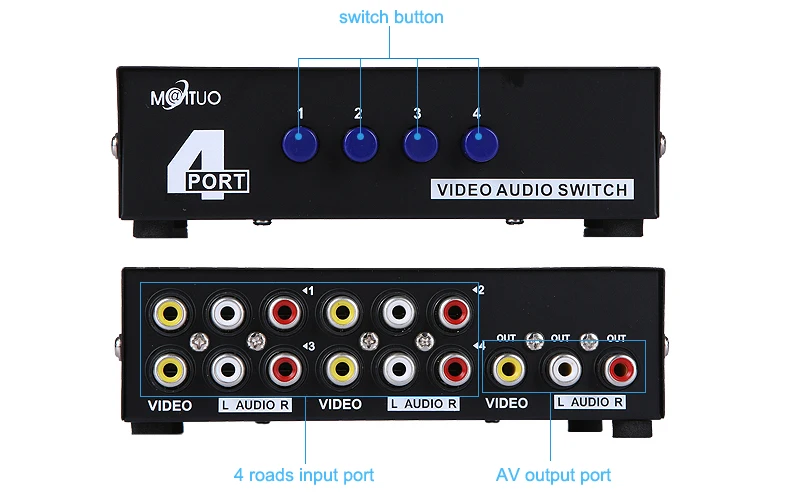

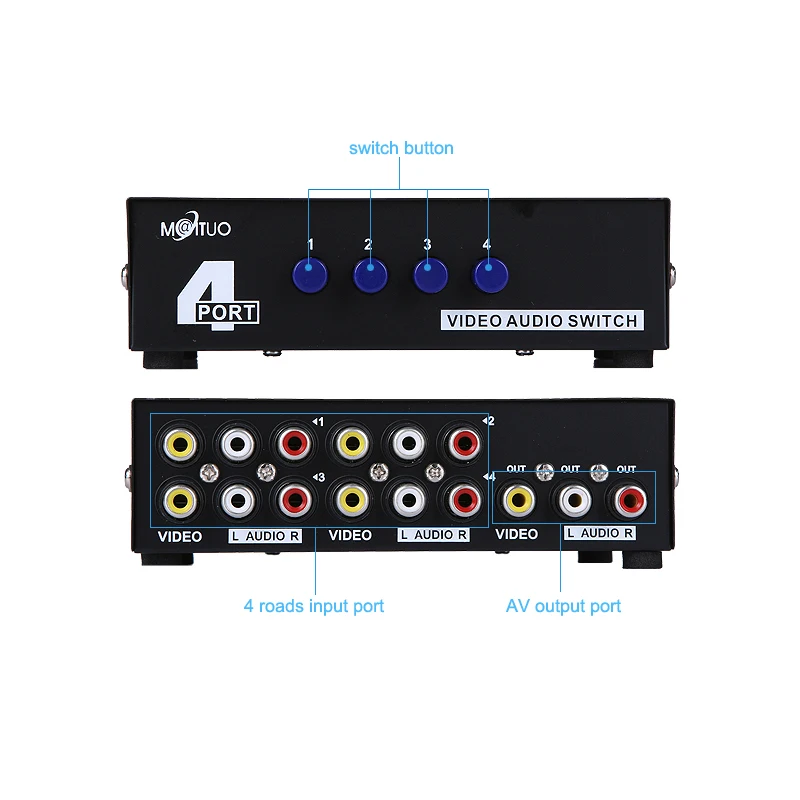

• 4 Ports input (Left and Right Channels) and 1 Port output (Left and Right Channels)


• 4 way AV RCA Audio Video Switcher Selector for XBOX DVD PS2 PS3 Wii Cable Box to TV

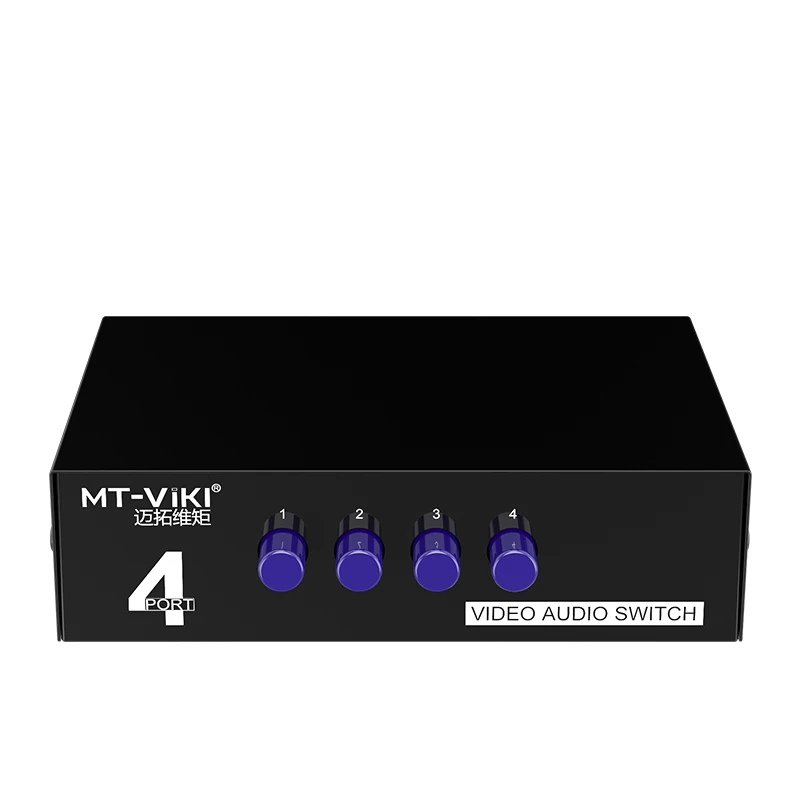

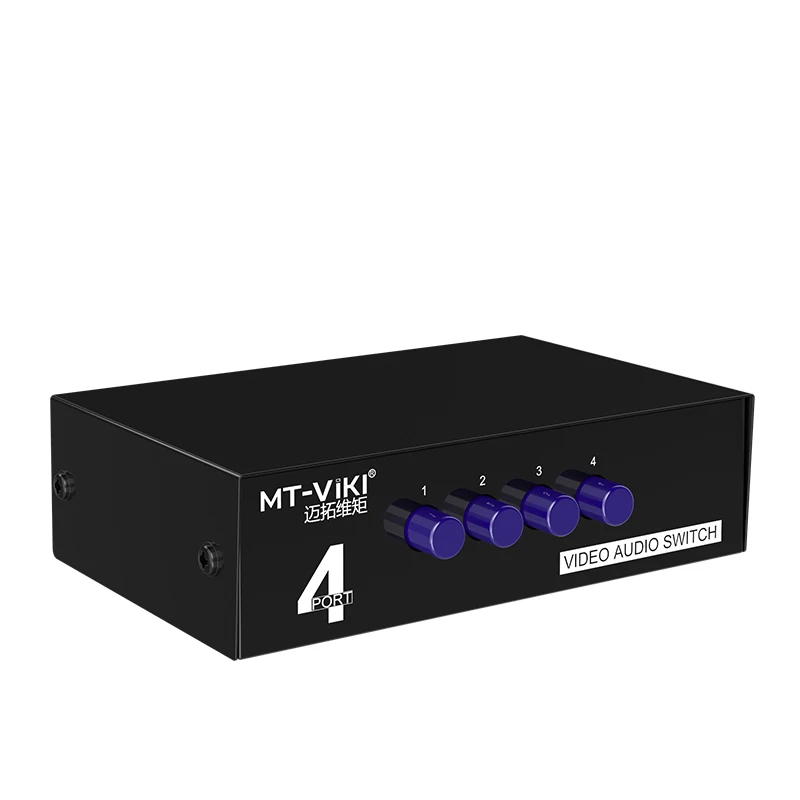

• Simple push-button switching


• Metal enclosure, excellent stability and longevity


• Easy installation and operation. No extra power supply and software drive needed.


• 1 year warranty



Specifications:

Function		4 port
Viedo	Input level resistance	VS0.8-1.0Vp-p/75Ω
	Output level resistance	VS0.8-1.0Vp-p/75Ω
	Support	50Hz-5.5MHz
	Input Connector	4
	Output Connector	1
Audio	Input level resistance	2V(RMS)/47KΩ
	Output level resistance	2V(RMS)/1KΩ
	Support	10Hz-20KHz,0dB
	Input Connector	4(L+R)
	Output Connector	1(L+R)
