Low Noise 140N Output Torque Long Life Garage Gate Motor automatic rolling Door Operator

Share on (60768428201):


Price:

Quantity:


Product Overview

Description


rolling series






Main Features





1) German technology, big torque, long life, high efficiency and low power consumption

2) The tin bronze worm gear box, no wear, stability and lower noise

3) Heat resistance grade F, actioin time fast, high frequency of use

4) Independent R&D high-speed door frequency control system

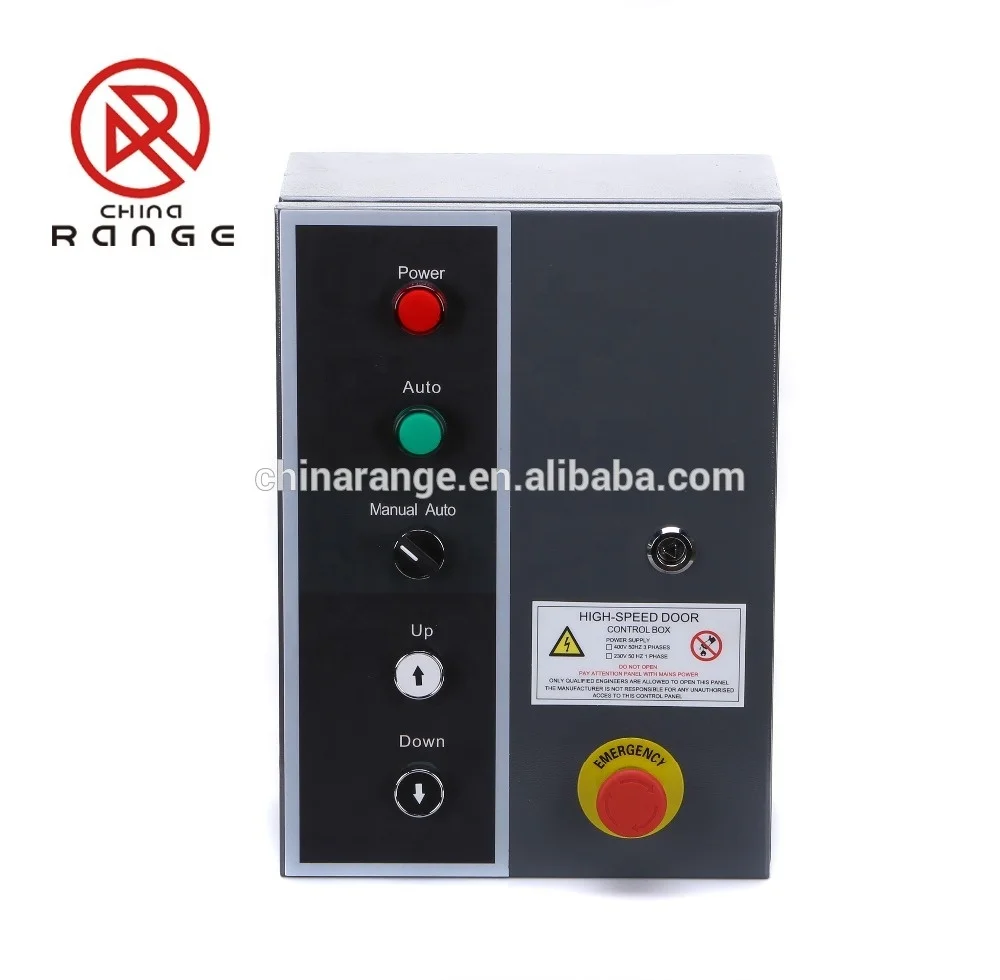

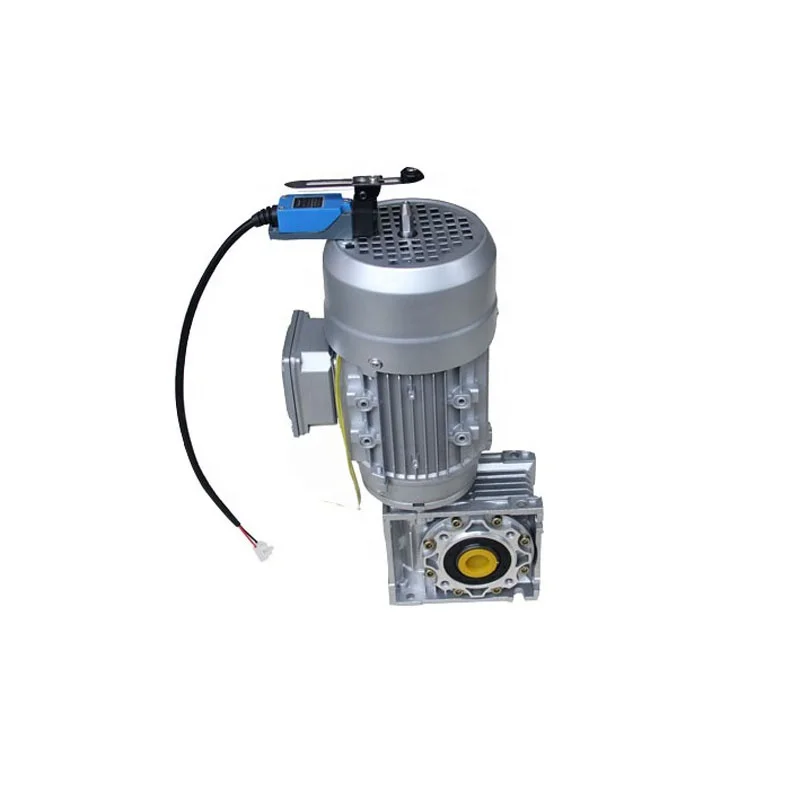

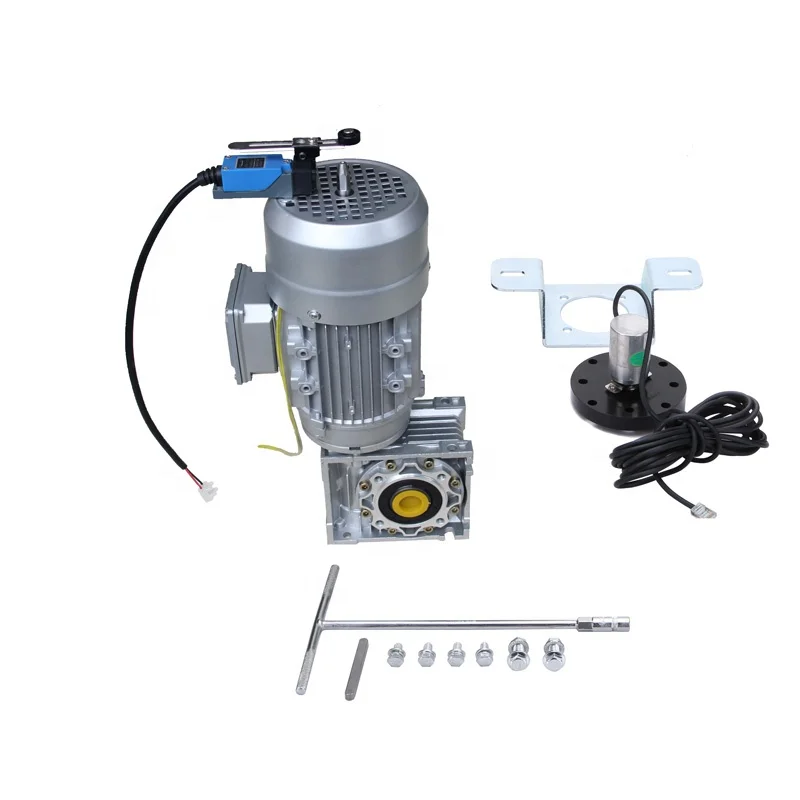

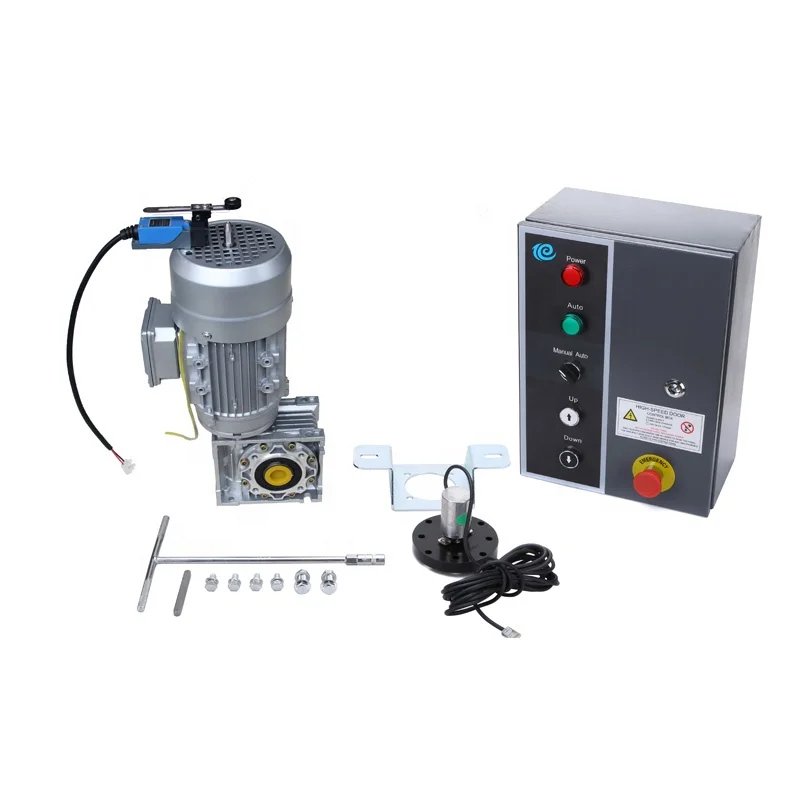

5) Standard configuration: 1 motor, 1 built-in control board, 1 absolute value encoder, 1 T-type release bar





6) Optional accessories: Photocell, alarm lamp, safety air switch, loop detector, 1.5m release bar





Specifications

















































Model



HSD1500S



Speed



2800rpm



Standard Reduction Ratio



20:1



Max. Door Moving Speed



2M/Sec



Max. Door Surface



50M2



Max. Output Torque



140N



Absolute Encoder



64 cycles



Release Method



Hand Crank



Motor Power



1500W



Power Supply



AC380V±10%, 3.7A, 2.2KW
