Silica sand vibrating washing drying screening machine

Product Overview

Description

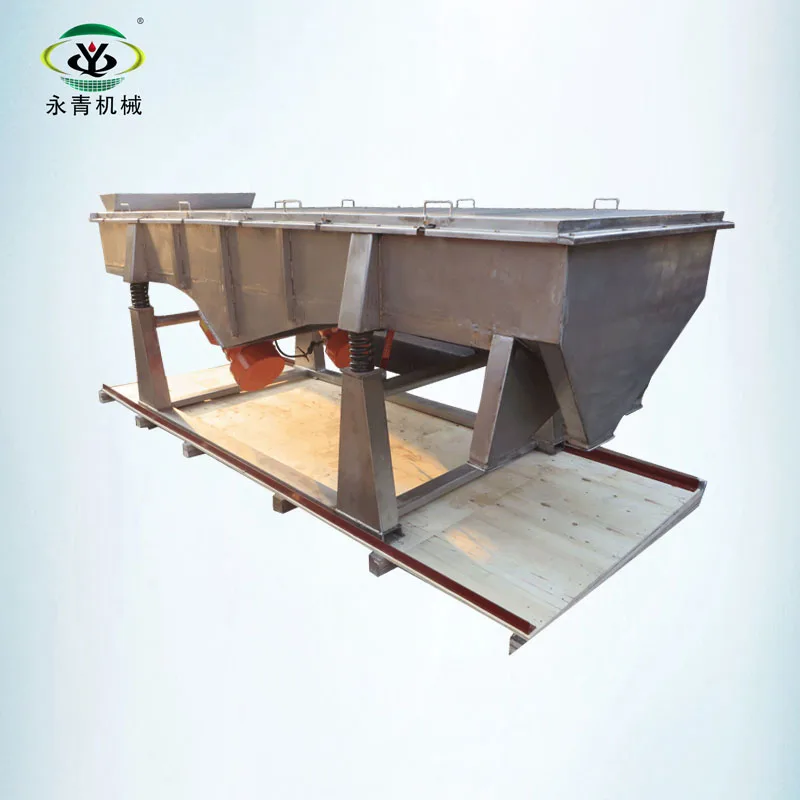

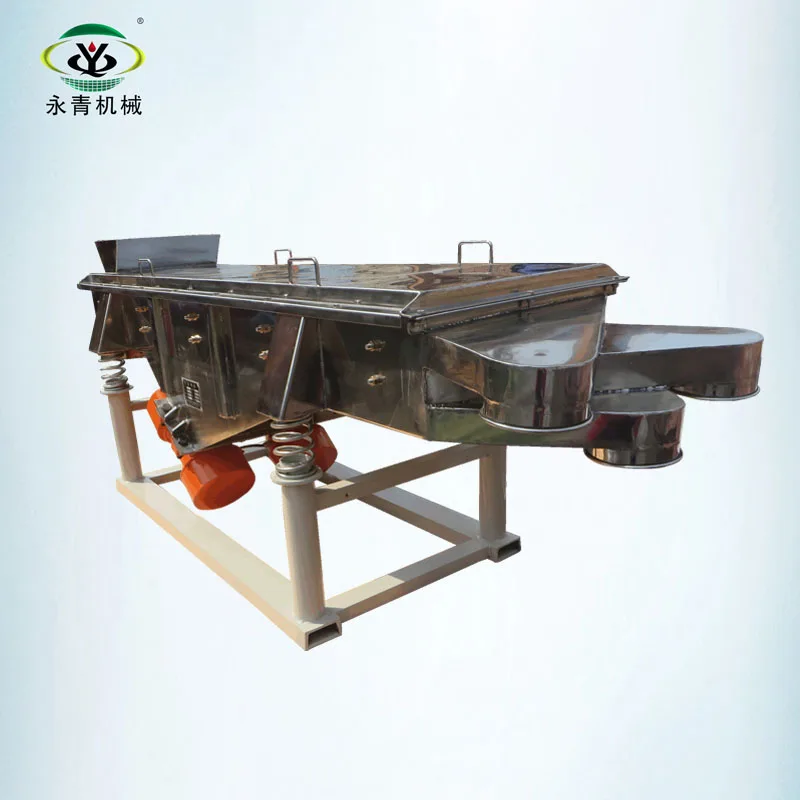

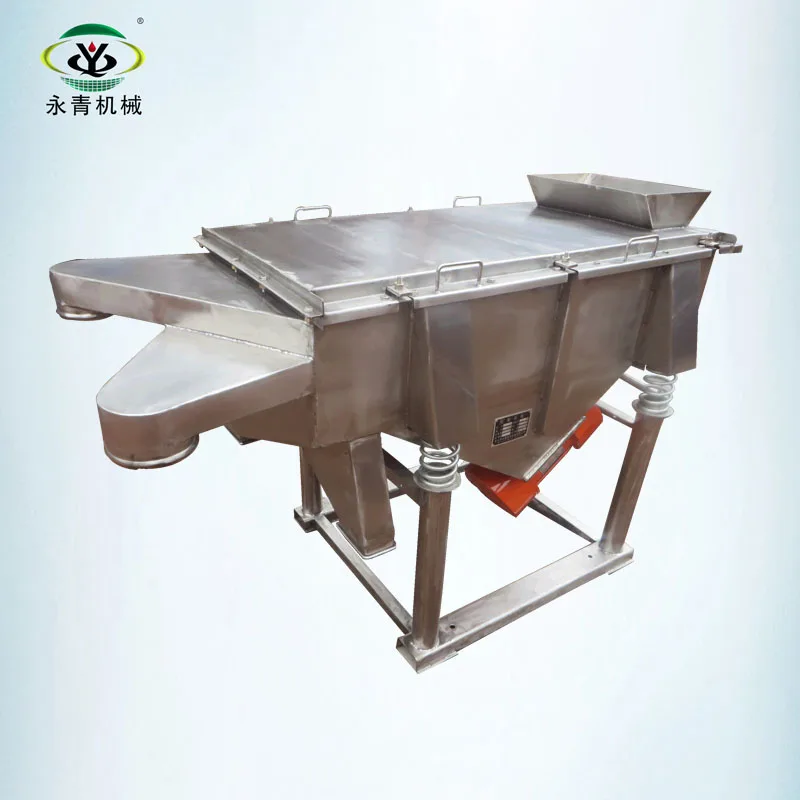

Silica sand vibrating washing drying screening machine



1. DZSF Model linear vibration screen (Horizontal vibrating sieve, rectangular vibration sifter)

is suitable for screening all of dry material (from 0.074mm to 20 mm) or mesh size (2-600 mesh)
2. The linear vibrating screen machine supports 6 layers at most. But 3 layers is highly recommended.
3. The vibrating sifter dimension size and voltage customization are both supported.
4. The largest screening area can reach 2000mm*6000mm.
5. The vibrating sieve motors is mounted below screening box.
6. In general,  for linear vibrating screening machine, its inclined angle is 0~10°.
7. The linear vibrating sifter machine has 4 different material available. That is, stainless steel 304 or 316 or touching part SUS 304 or carbon steel Q235A.

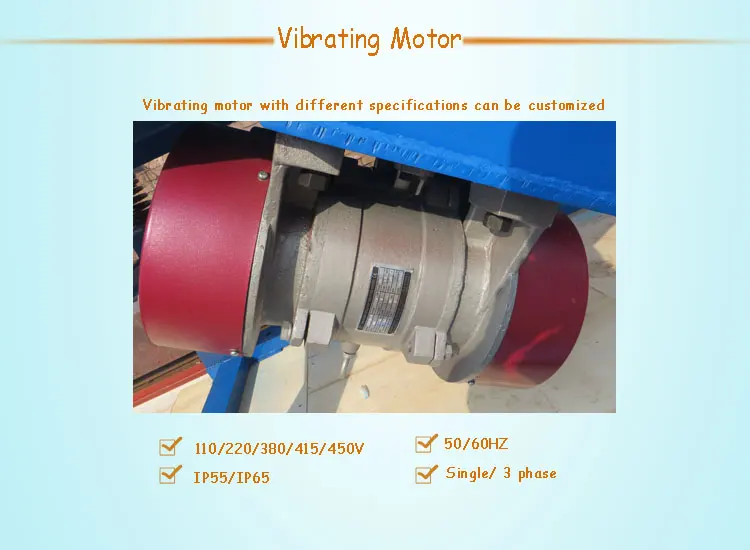

8. The vibrating motor voltage is supported to be customized.  220/240/380/415/450V are all available. 50 or 60HZ. Signle phase or 3 phase.

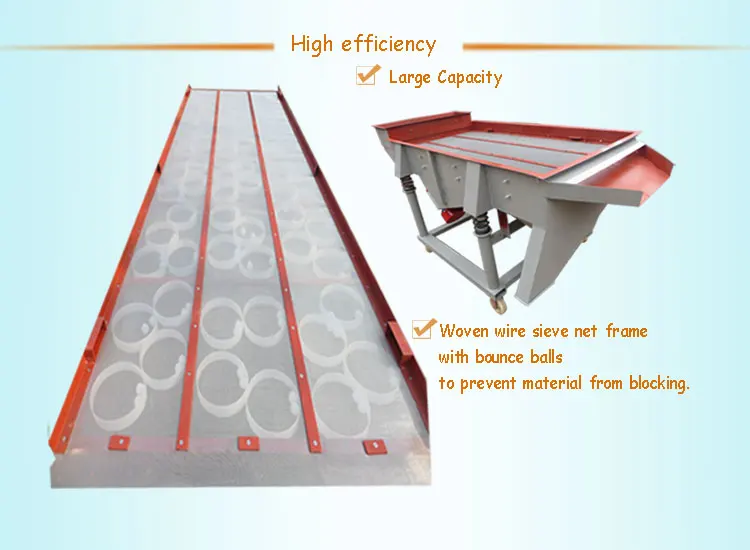

9. With large sieving capacity, small volume, high screening efficiency, high frequency, easily changed screen and good safe performance.

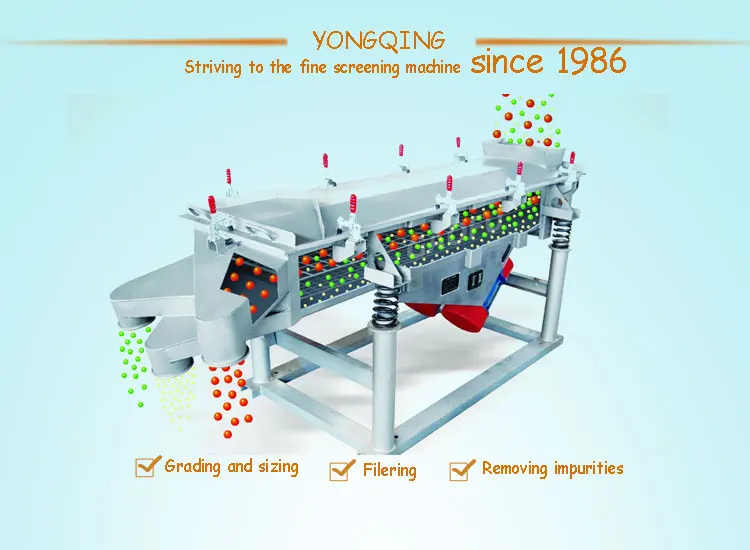

10. The rectangular vibrating screening machine is widely used for screening, grading and filtering, separating, classifying and sieving of powders, pellets, granule.
11. The square vibrating screen machine is mostly used in Food, Chemical, Construction, Paper-making,  Metallurgy and mining, Abrasive and ceramic industry etc.

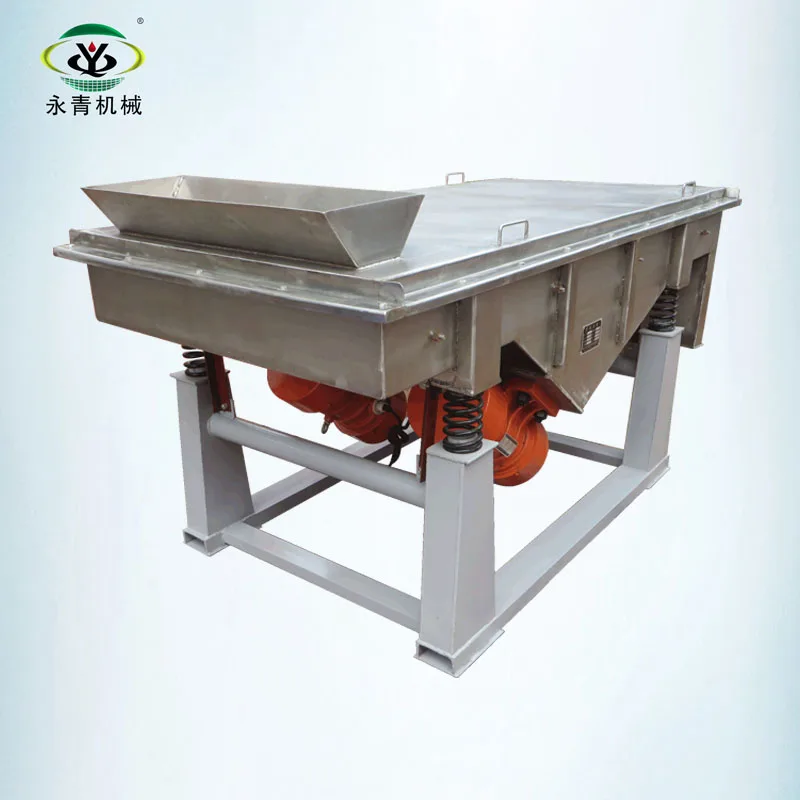

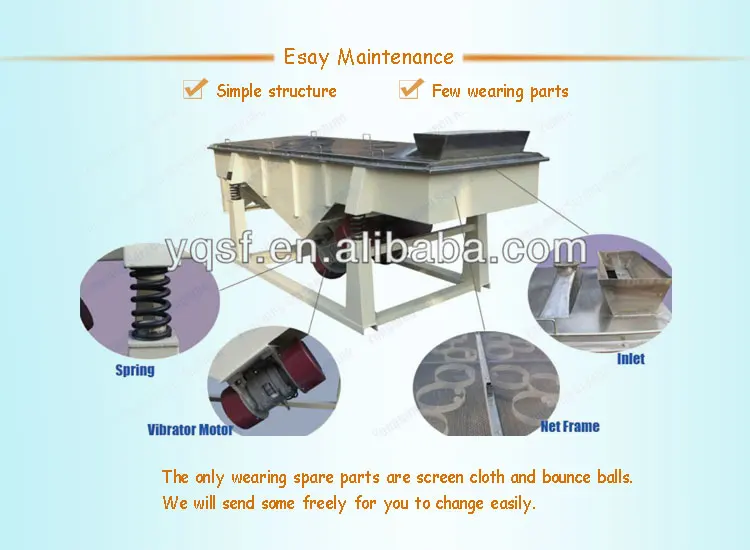

12. The vibrating sieving machine is composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cover.

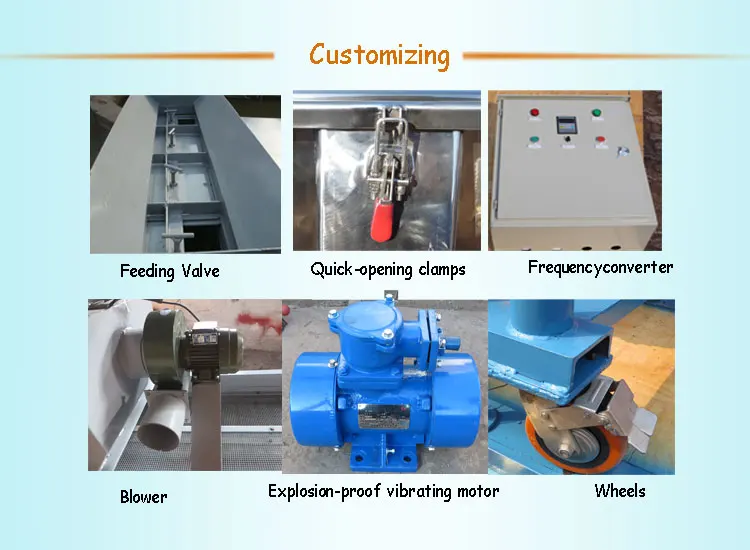

13. Additional parts can be installed for better usage such as mobile running wheels, inspecation hole, noise-proof basement, special feeding hole and capacity-controlling device.



Model	Screening area  (mm)	Layer	Mesh size (mm)	Capacity  (t/h)	RPM	Double amplitude  (mm)	Power  (kw)	Dimension (mm)
DZSF520	500×2000	1	2-200	0.05-5	960	6-7	2×0.4	2140×808×848
DZSF520		2		0.05-5	960	6-7	2×0.4	2199×808×878
DZSF520		3		0.03-5	960	4-6	2×0.4	2256×808×938
DZSF525	500×2500	1		0.06-8	960	5-7	2×0.4	2642×808×848
DZSF525		2		0.06-8	960	4-6	2×0.4	2699×808×878
DZSF525		3		0.06-8	960	6-8	2×0.75	2750×808×938
DZSF525		4		0.1-15	960	5-7	2×0.4	2813×808×1000
DZSF525		5		0.08-15	960	5-7	2×0.4	2883×808×1060
DZSF525		6		0.07-15	960	6-8	2×0.75	2953×808×1120
DZSF1020	1000×2000	1		0.12-20	960	6-8	2×0.75	2152×1320×900
DZSF1020		2		0.11-20	960	5-7	2×0.75	2219×1320×960
DZSF1020		3	2-200	0.10-2	960	5-7	2×0.75	2286×1320×1030
DZSF1020		4		0.07-15	960	4-8	2×0.75	2353×1320×1100
DZSF1020		5		0.07-15	960	4-8	2×1.5	2420×1320×1160
DZSF1020		6		0.07-15	960	4-8	2×1.5	2487×1320×1220
DZSF1025	1000×2500	1		0.1-15	960	5-7	2×0.4	2203×1320×900
DZSF1025		2		0.08-15	960	5-7	2×0.4	2269×1320×960
DZSF1025		3		0.07-15	960	6-8	2×0.75	2336×1320×1030
DZSF830	800×3000	1 2 3		0.1-20	960	6-8	2×0.75	3080×1098×1120
				0.1-20	960	6-8	2×0.75	3140×1098×1180
				0.1-20	960	6-8	2×1.5	3200×1098×1240

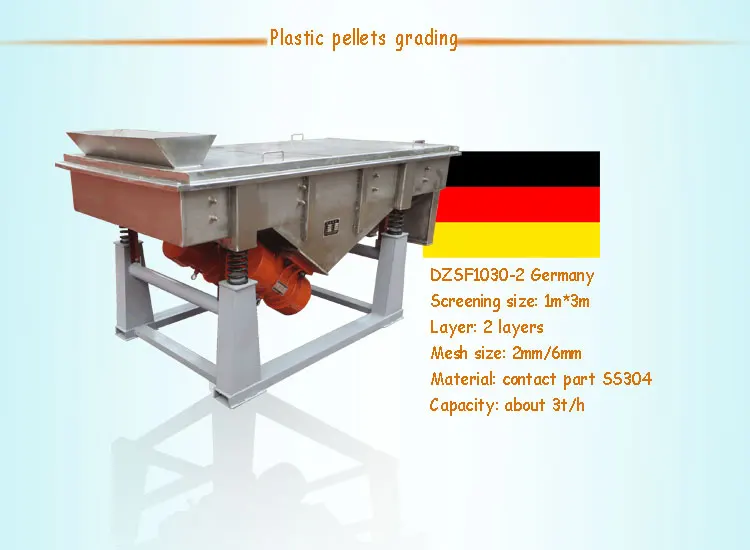

DZSF1030	1000×3000	1		0.1-20	960	6-8	2×0.75	3152×1340×1120
DZSF1030		2		0.1-20	960	6-8	2×1.5	3219×1340×1120
DZSF1030		3		0.1-20	960	6-8	2×1.5	3286×1340×1120
DZSF1224	1200×2400	1		0.1-23	960	6-8	2×0.75	2480×1520×1100
DZSF1224		2		0.1-23	960	6-8	2×0.75	2540×1520×1160
DZSF1224		3		0.1-23	960	6-8	2×1.5	2600×1520×1220
