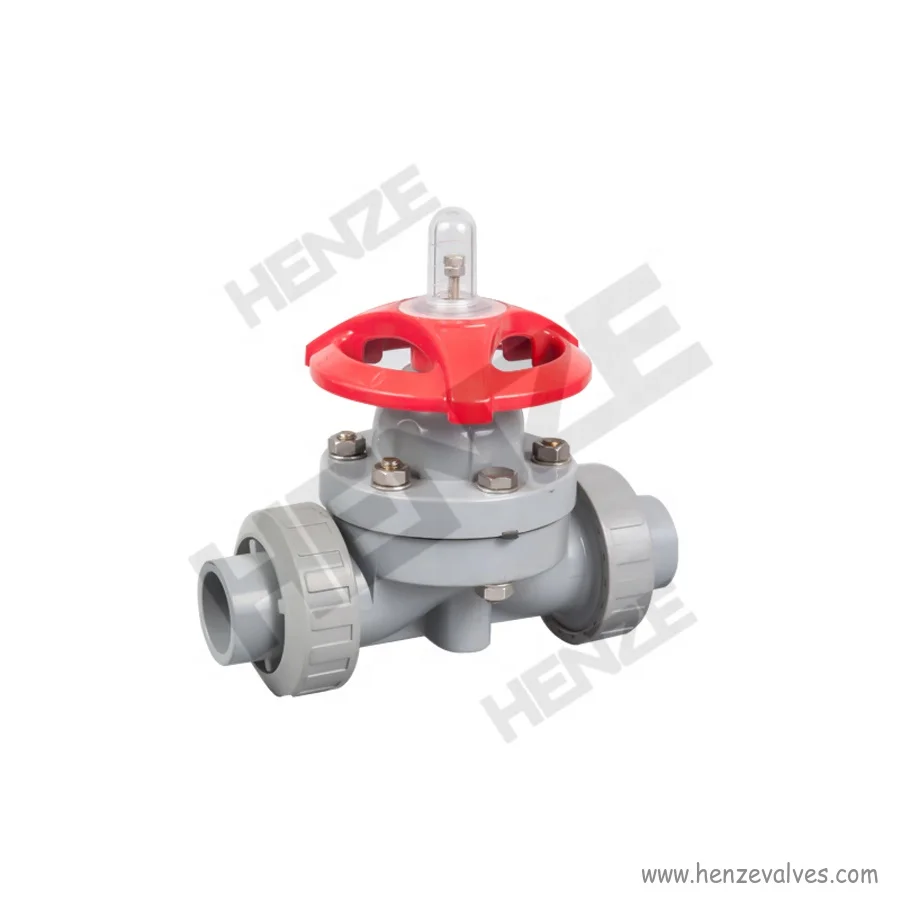

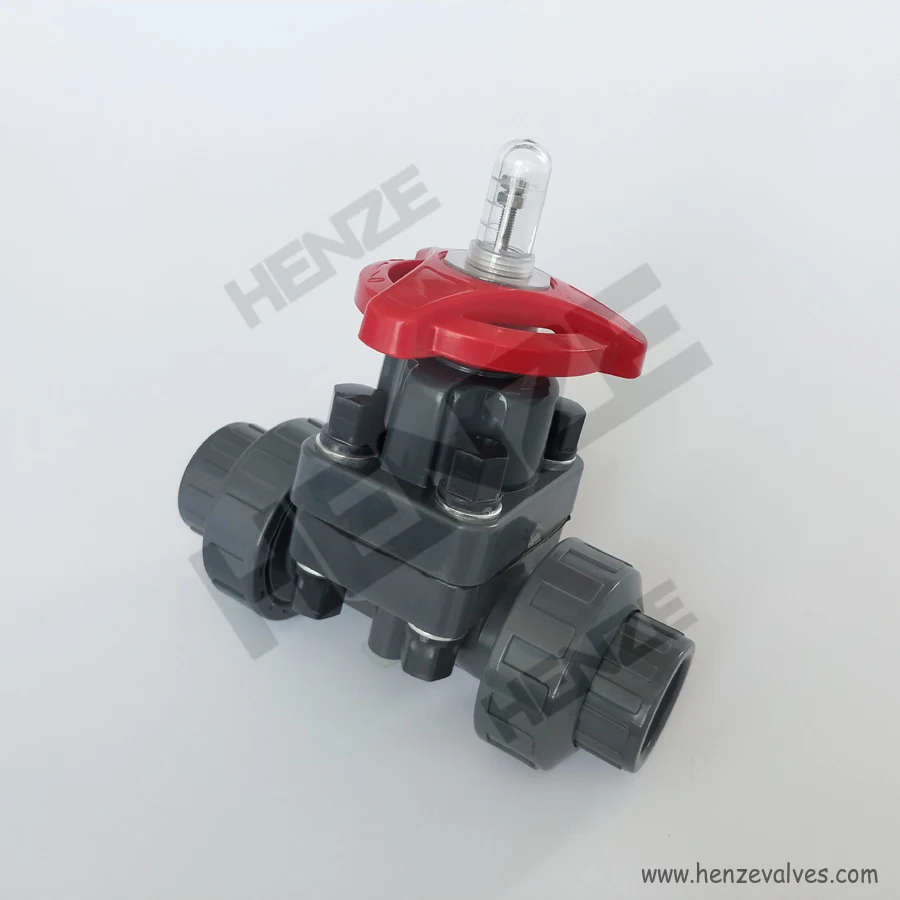

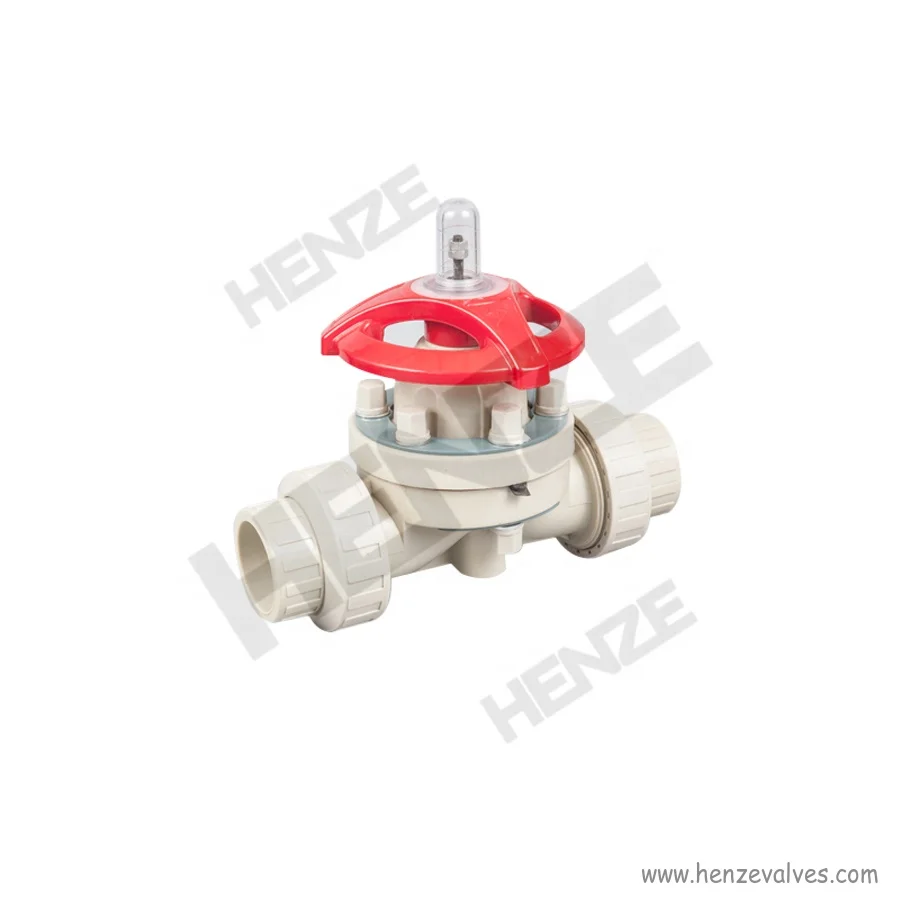

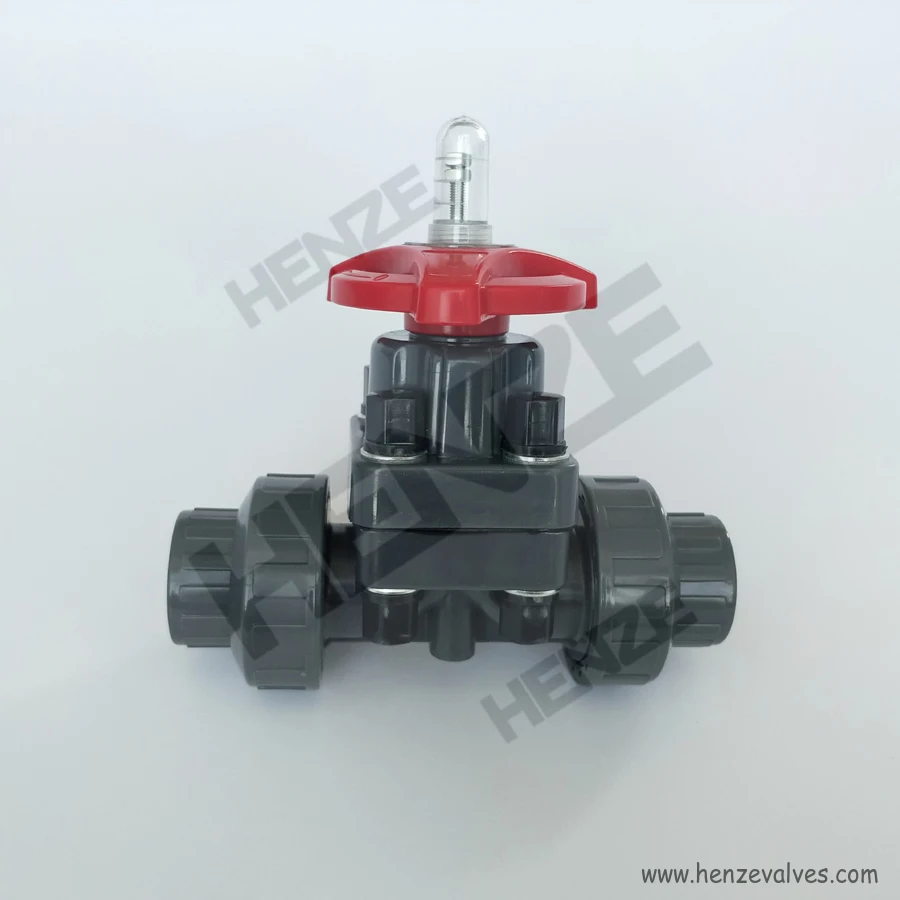

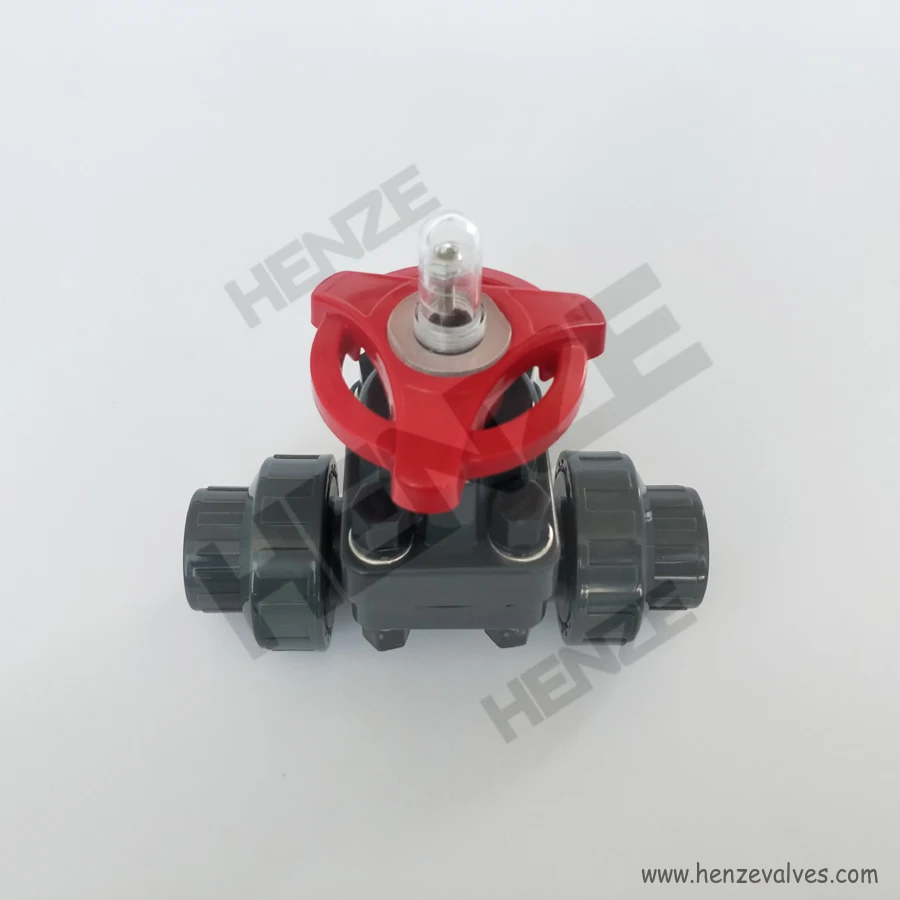

Plastic UPVC, CPVC, PPH, PVDF, FRPP Threaded Diaphragm Valve
- Category: >>>
- Supplier: Henze Valves Corporation
Share on (60768447748):
Product Overview
Description
Technical Parameters
Technical Parameters & Characteristics
| Product Description | Plastic Threaded Diaphragm Valve |
| Nominal Diameter | 1/2"~4"(DN15~DN100) |
| Operating Temperature | -10 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN6, PN10, PN16 or lower |
| Main Materials | CPVC, UPVC, PVDF, PPH, FRPP |
| Gasket Materials | EPDM, IIR |
| Diaphragm | FEP, PFA, PTFE |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | Male NPT, Female NPT, Male BSP, Femal BSP |
| Ends Standard | ASME B1.20.1, ISO STD |
| Test standard | ISO5208 |
| Operation method | Handwheel, Pneumatic and Electric |
| Application | Metallurgical, Chemical, Water Management, Pharmaceutical, Photovoltaic, Food Industry |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | Small Operating Torque |
| Other Features 3 | Weir Type, A Type |
| Other Features 4 | Bare Shaft With Top Mounting Flange |
| Other Features 5 | Stock is available |
| Other Features 6 | Compact and Portable |
Workshop Show
Workshop Show
Equipments
Production Equipments
Machining
Machining
Finished Products
Finished Products
Packing & Shipping
Packing & Shipping
Service
Service
