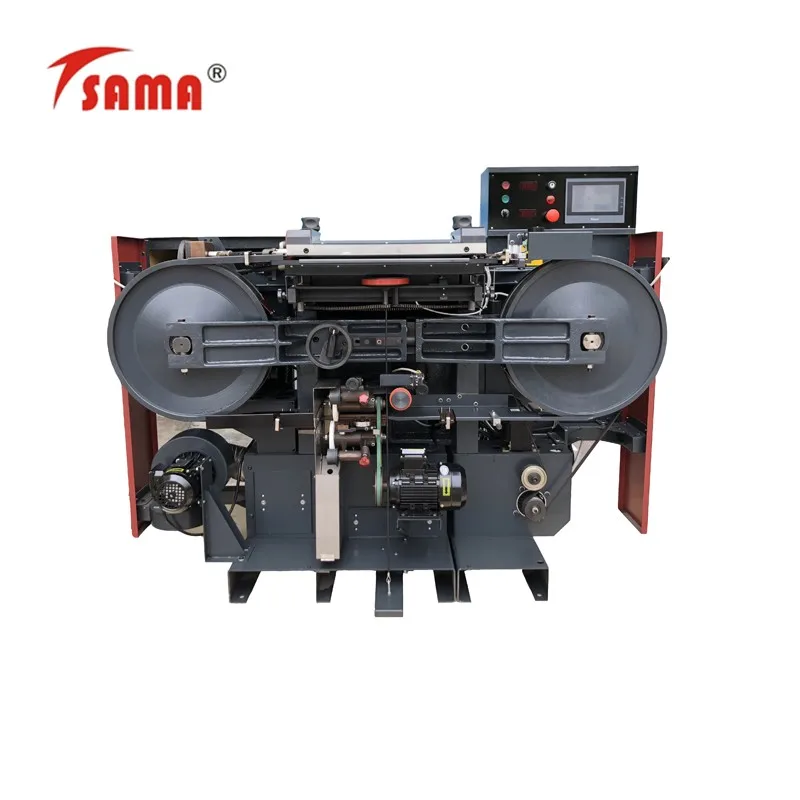

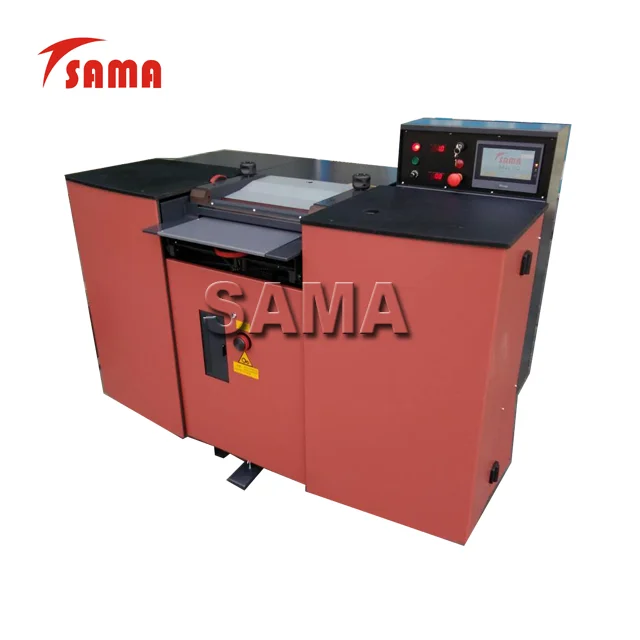

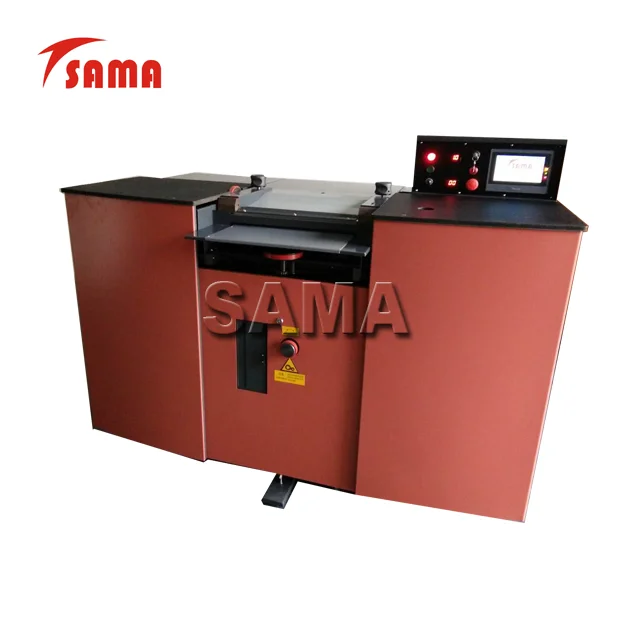

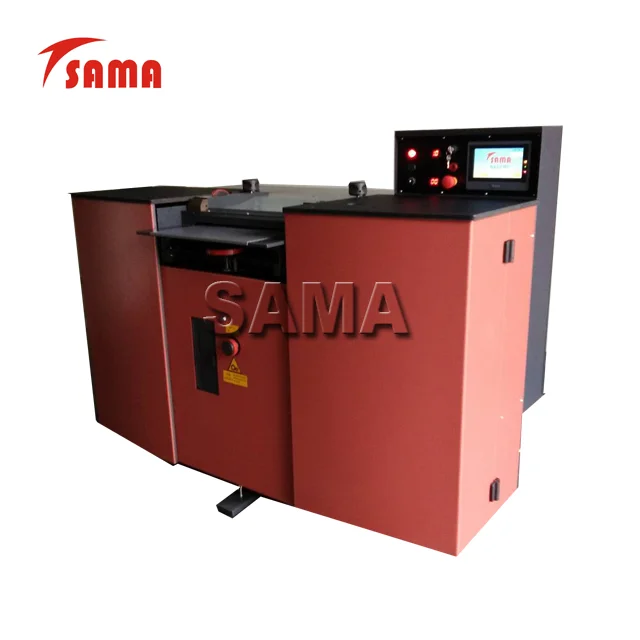

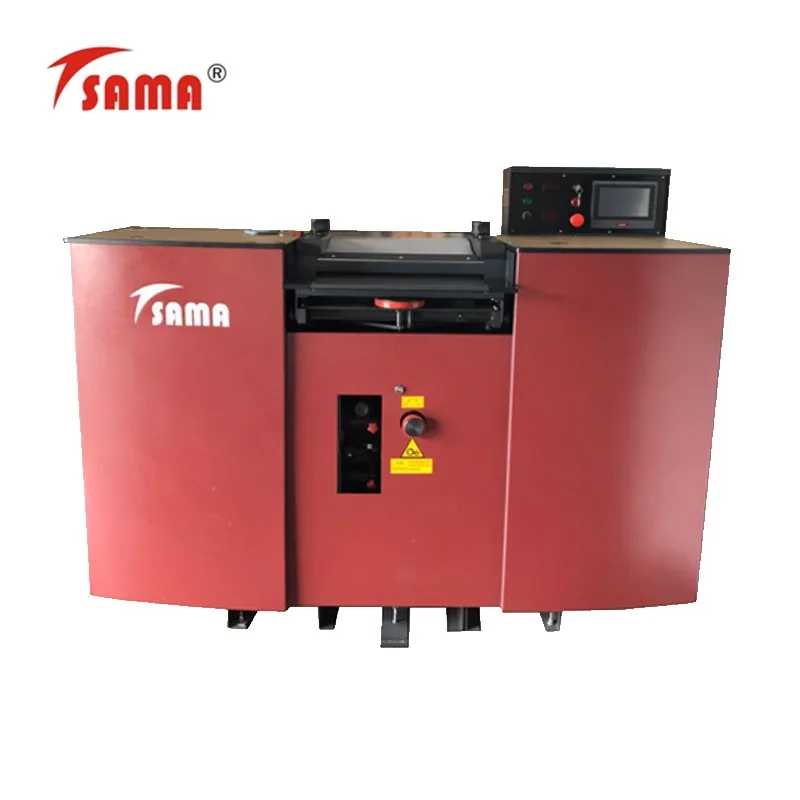

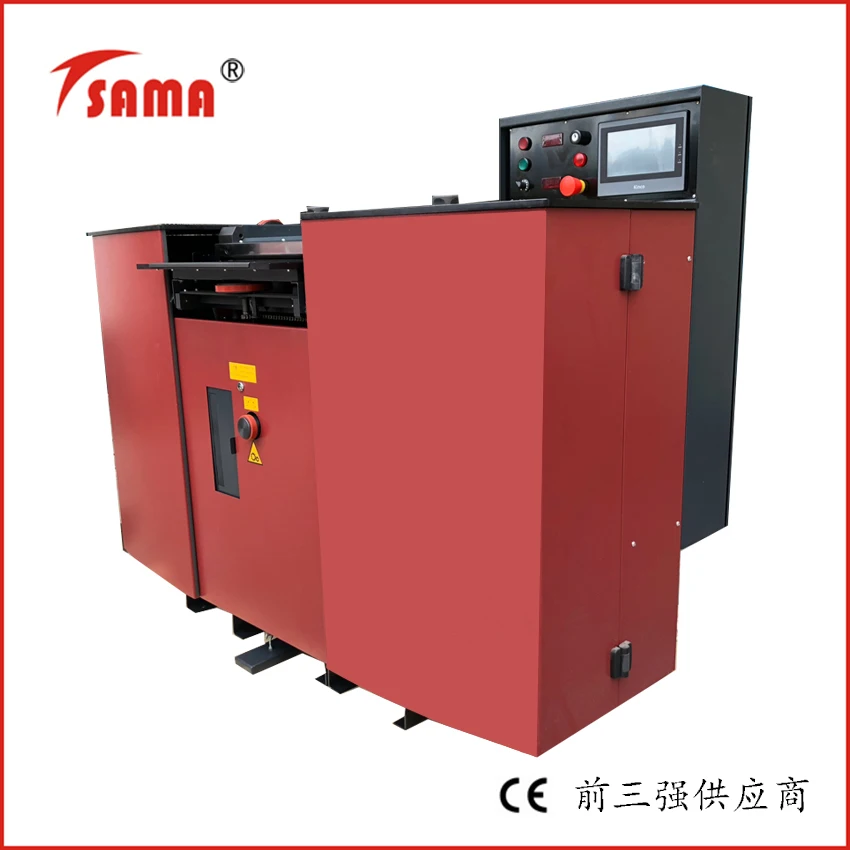

S420RC Economical Leather Splitting Machine Price
- Category: >>>
- Supplier: Dongguan Sama Machinery Co. Ltd.
Share on (60768474043):
Product Overview
Description
Product Description
Product Application
Machines which equalize the thickness of the leather, for the shoe upper parts, removing material from the flesh side. The machines can also carry out skiving edge through the use of geometry templates. Generally the range working width is including from 400 to 600 mm.
The latest Features

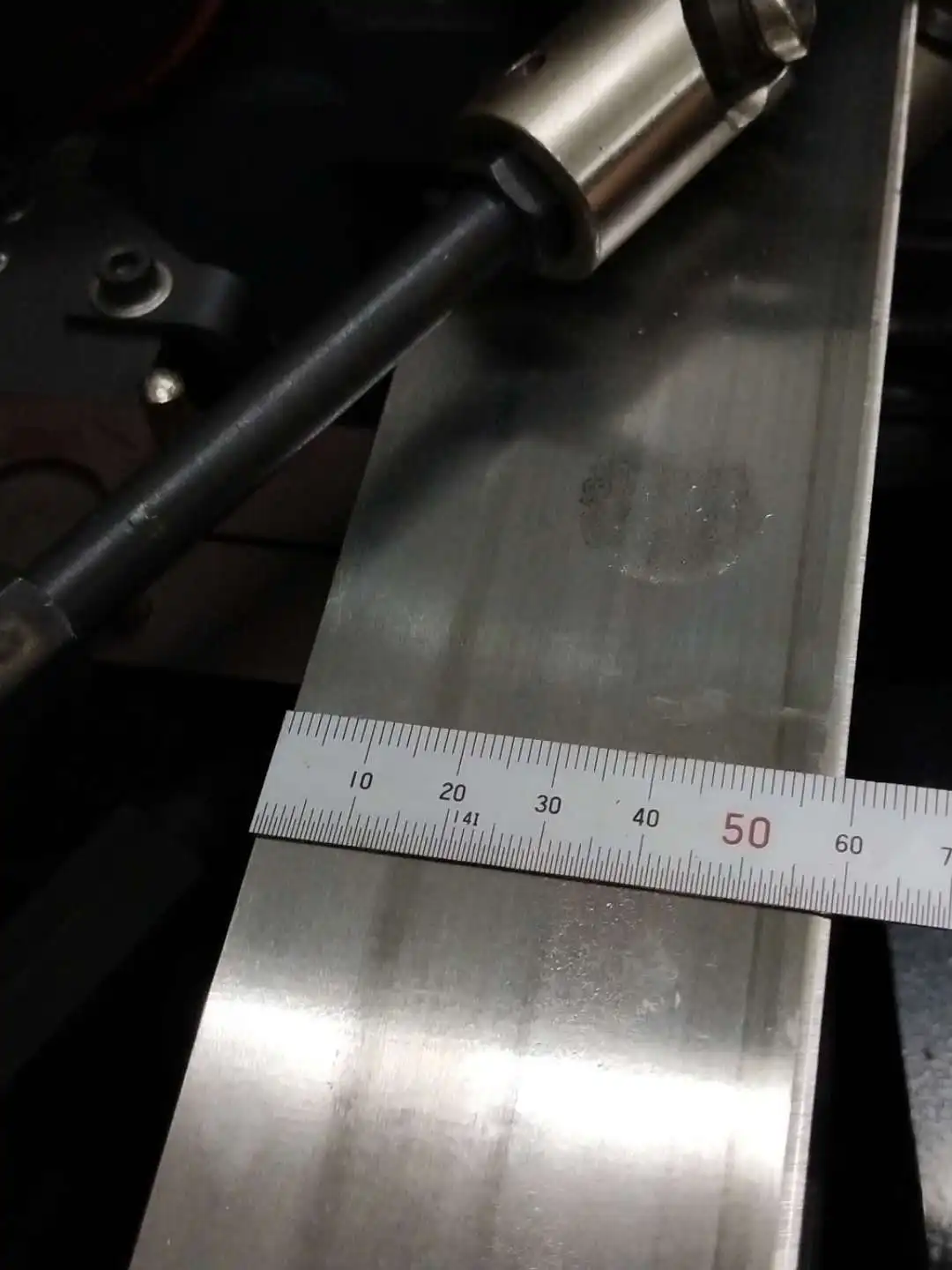

Knife bandwidth 60mm, longer life, more stable machine;
Clamping device adopts honeycomb design, more easy to heat dissipation, suitable for use in tropical areas;
Split thickness and feed speed are digital display, more convenient and intuitive;
There are more than and 10 pictures showing machine failure, alarm and prompt, more convenient operation and troubleshooting;
Additional counting function, always grasp the output;
The newly designed special dust collestor makes the dust cleaner effect better.
| Technical partameter | |
| Model | S420RC+ |
| Feeding speed | Stepless speed change |
| Fault display | Touch screen |
| Indicator & Information | Touch screen |
| Working pressure | Mechanics |
| Installation power | 3.6kw |
| Working Width | 420mm |
| Max.splitting thickness | 8mm |
| Min.splitting thickness | 0.5mm with top feed roll |
| 0.1mm with top bar | |
| Knife dimensions | 3750×60×0.8mm |
| Machine size(L×W×H) | 1700×1100×1290mm |
| Package size(L×W×H) | 1750×1150×1440mm |
| N.W. | 740KG |
| G.W. | 790KG |

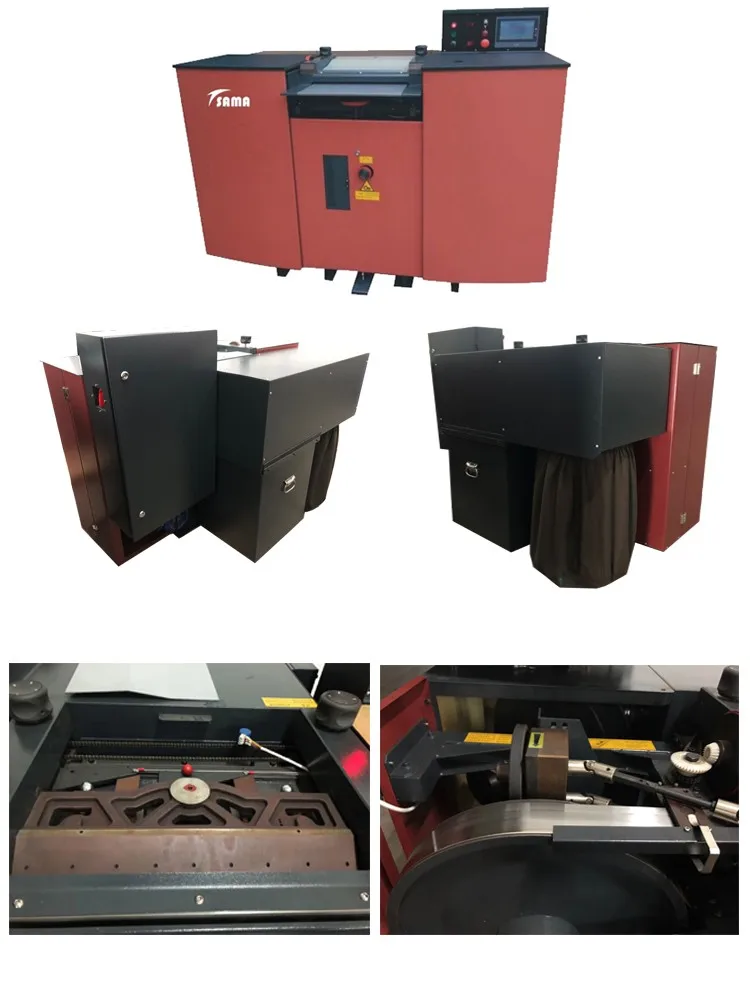

Detailed Images
Machine Parts

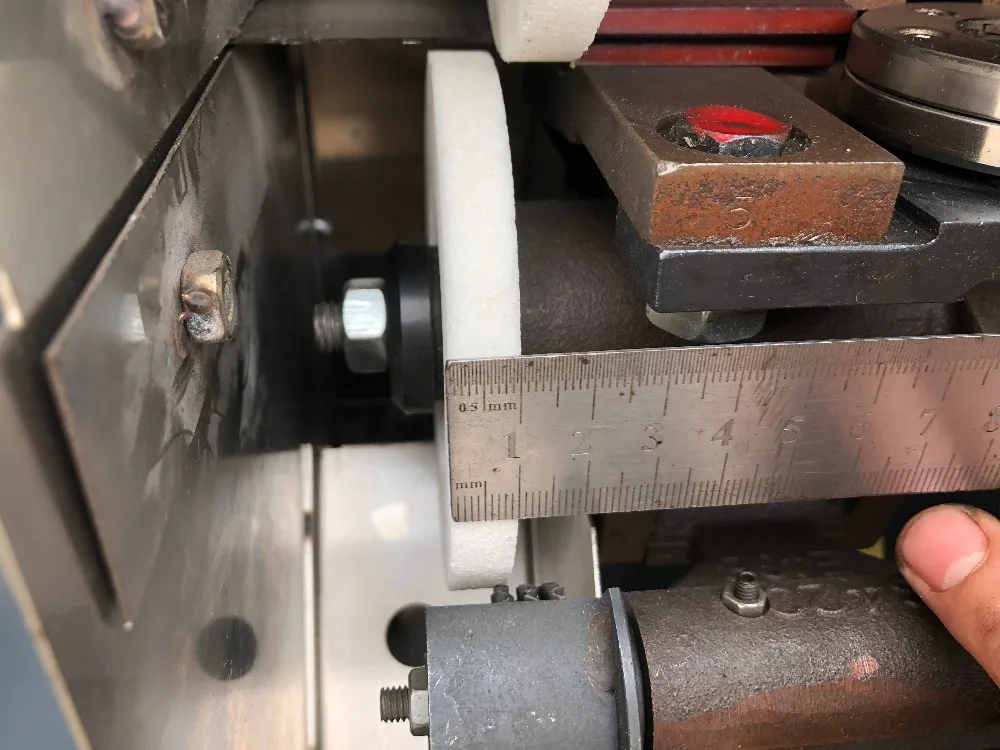

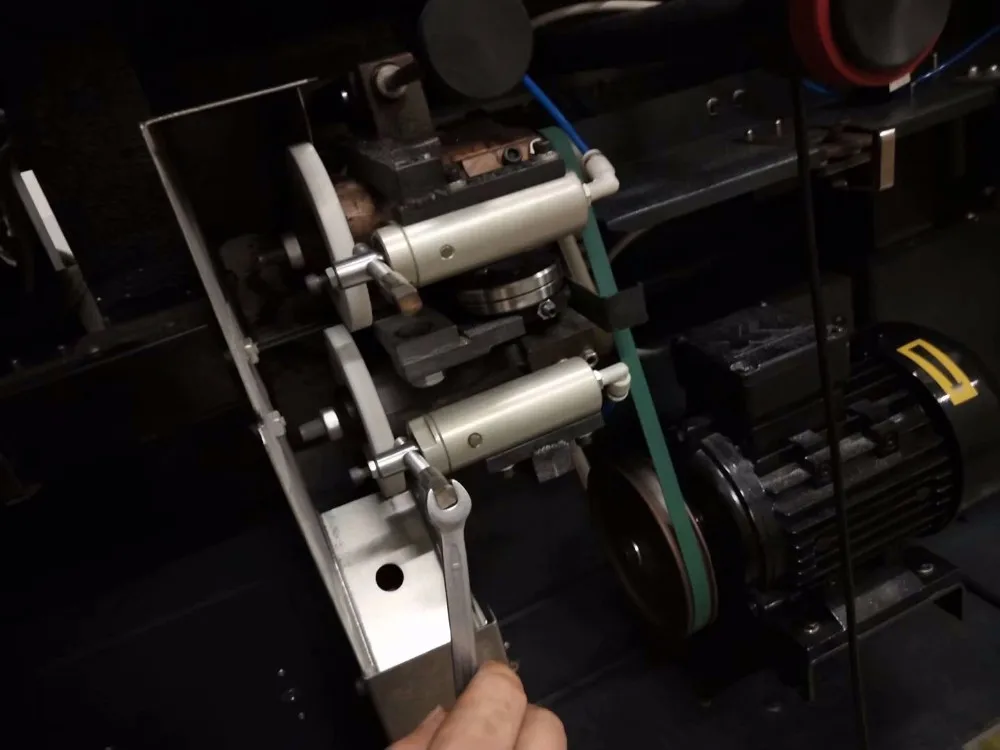

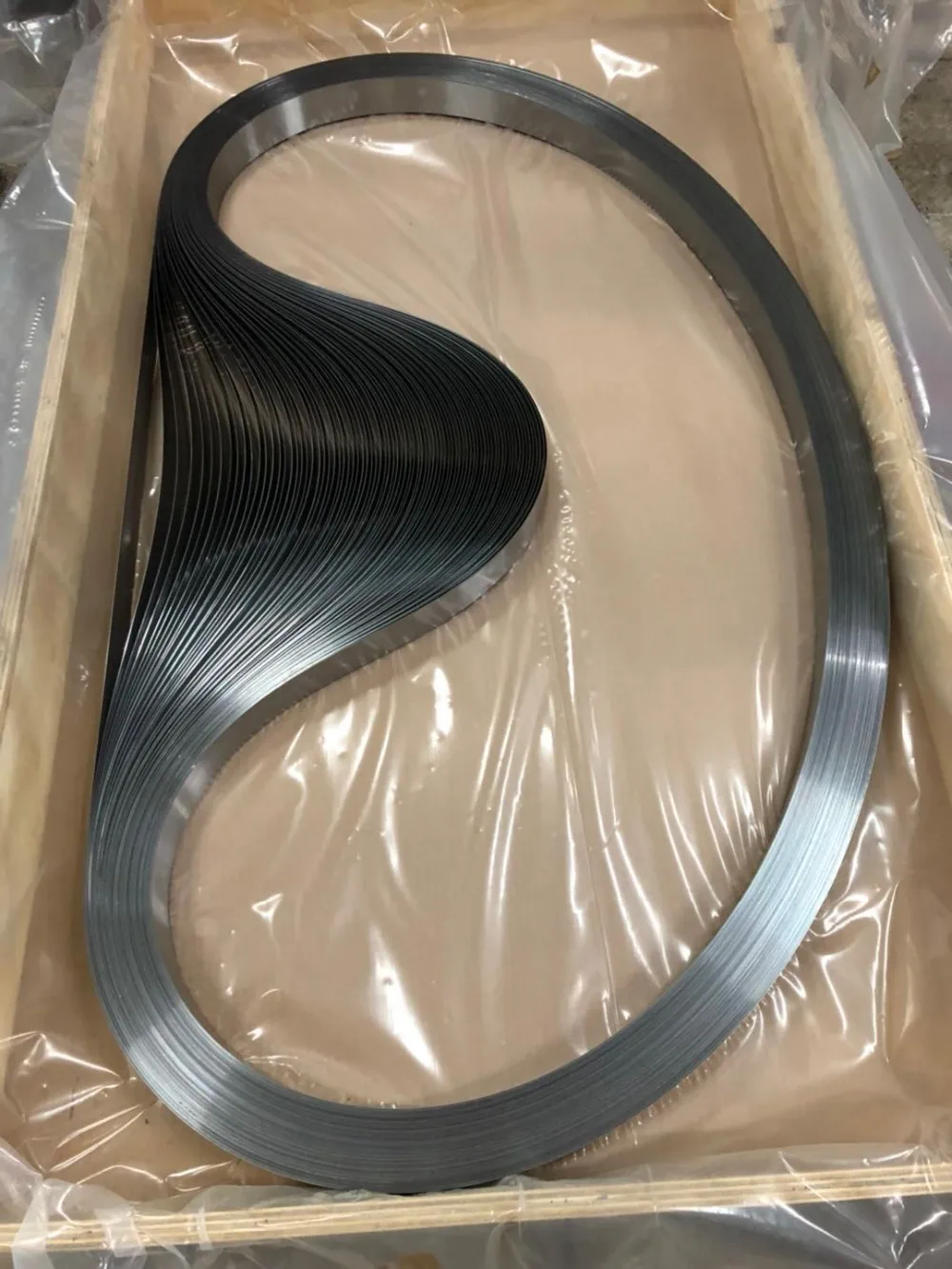

Name: Splitting Band Knives
Brand: LAMEBO
Original: Italy
The knives are ground on both surfaces to guarantee a uniform thickness, machined on the edges to guarantee maximum straightness when used and pre-beveled to reduce the time taken to start operation once they are mounted on the splitting machine.
Main Features
Name: Flying Wheel
Brand: SAMA
Original: China
The outsize flying wheel makes the operation of band knife more steady and exact. The mechanical parts always lubricate.
Packing & Delivery
| Item | Name of machine or parts | Specification | Amount |
| 1 | S420RC+ Splitting Machine | set | 1 |
| 2 | The machine tools | set | 1 |
| 3 | Band knife lubes | pc | 1 |
| 4 | Thickness gauge | pc | 1 |
| 5 | Granding knife sharpening belt | pc | 1 |
| 6 | Wool Felt | pc | 1 |
| 7 | Fuse wire | pc | 3 |
| 8 | Instruction Manual | pc | 1 |
| Packaging | |
| Size | 1750(L) * 1150 (W) * 1440 (D)mm |
| Weight | 790kg |
| Packaging Details | The normal package is plywood box(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Our Company
DONGGUAN SAMA MACHINERY CO., LTD
Operating in the splitting machine sector since 2005, today SAMA is the China market leader. Our brand "SAMA" is worldwide recognized being synonymous with highest quality, technological innovation, guaranteed performances and customer care.
Thanks clients for attention and support to our SAMA Brand. We will become credible splitting machine maker site-oriented technical skills and as there is all solution in site.
Manufacturer

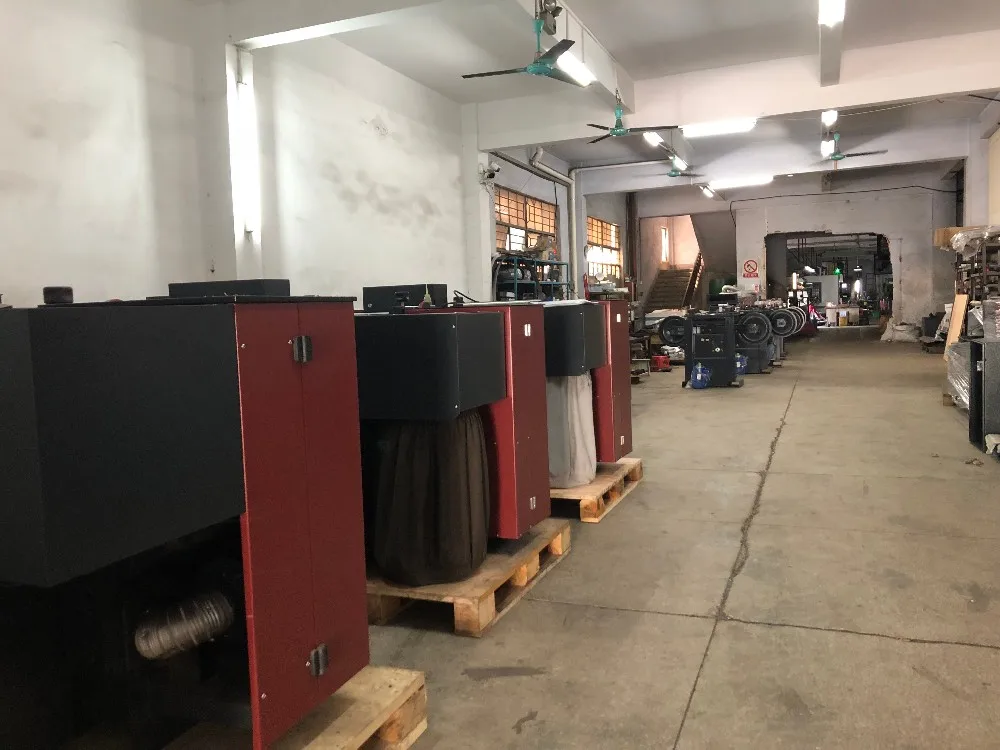

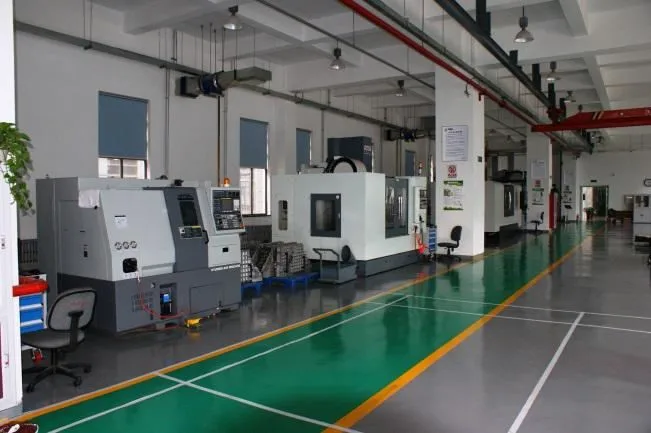

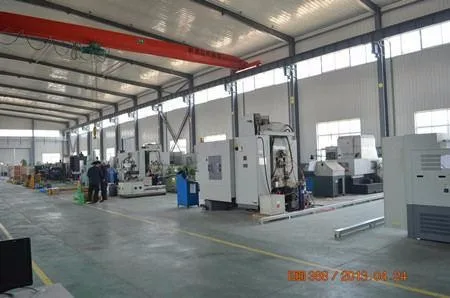

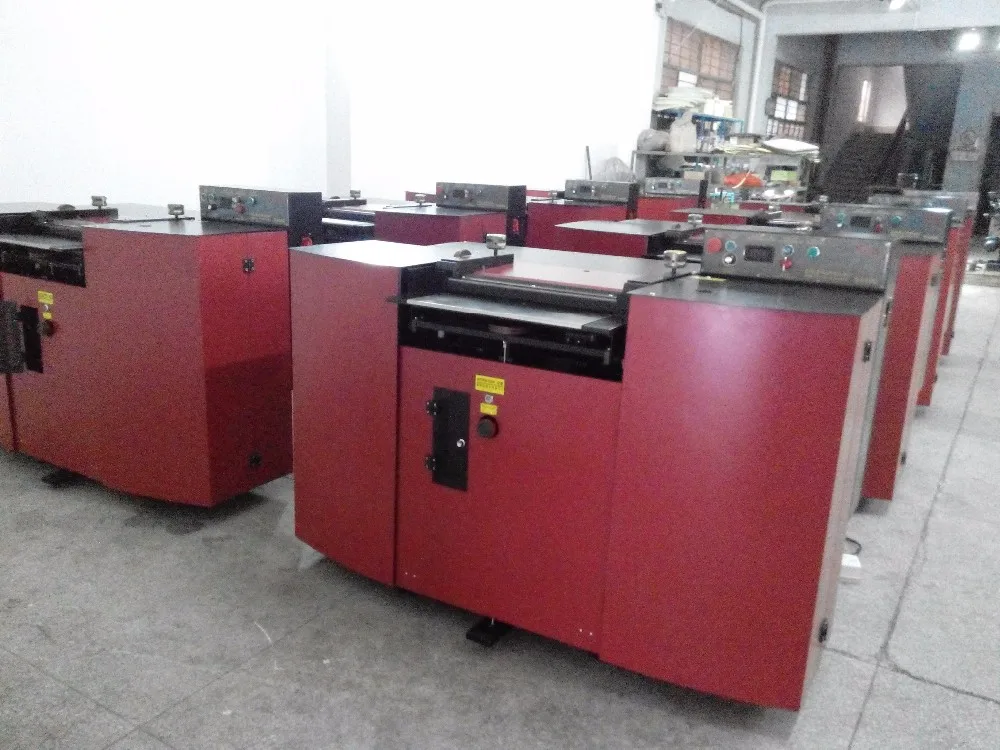

Workshop
Showroom
Our Service
3. View our Factory.
4. Strictly manufacture the machine, according to relevant technical standards.
5. Take run test, according to relevant equipment test run regulations.
6. Strictly check up the machine, before delivery
7. Delivery on time.After-Sales Service
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.3. View our Factory.
4. Strictly manufacture the machine, according to relevant technical standards.
5. Take run test, according to relevant equipment test run regulations.
6. Strictly check up the machine, before delivery
7. Delivery on time.
After-Sales Service
1. 12 months warranty period
2. Within one year free warranty, any fault caused by nonartificial reason, any quality problems such as design, manufacture, or procedure occurs, SAMAshall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, SAMAwill send maintenance technician to provide visiting service after checking with the customer and charge for a favorable price.
4.SAMAwill provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
5. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality -assurance and operation guarantee mechanism.
FAQ
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
3. Which export port you use?
Any China port, commonly we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.
4. How about the payment terms and delivery time ?
Payment terms for machines: 100% T/T/ Western Union/Cash in advance.
(we will shoot total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The machine takes about 15-30 days,we will delivery goods on time.
5. Is your goods has CE certificate ?
Yes, all our goods has CE certificate. All machines are high quality goods.
6. What is your nature of your company: dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.
