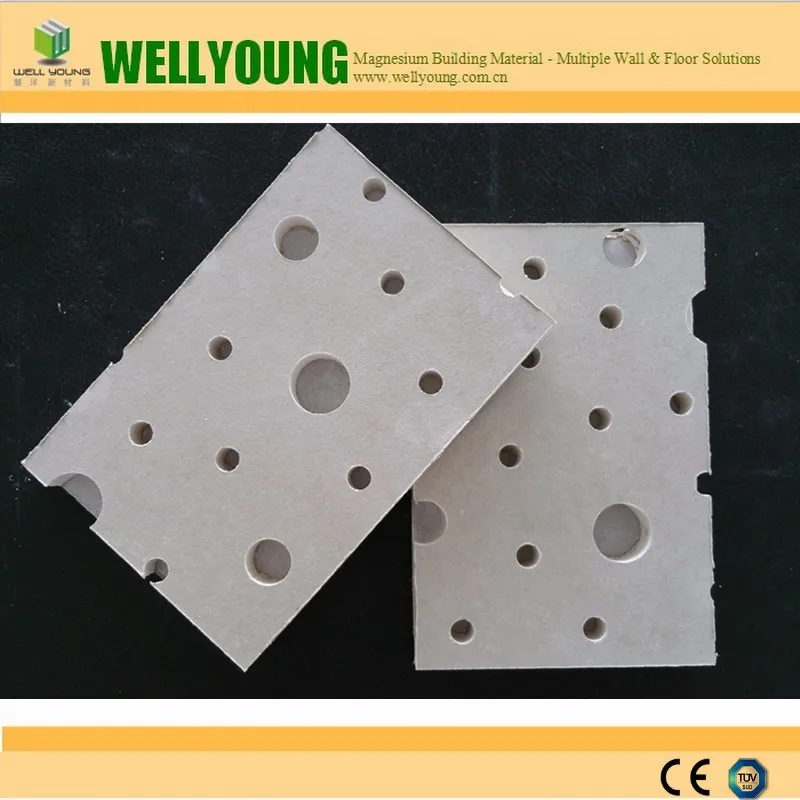

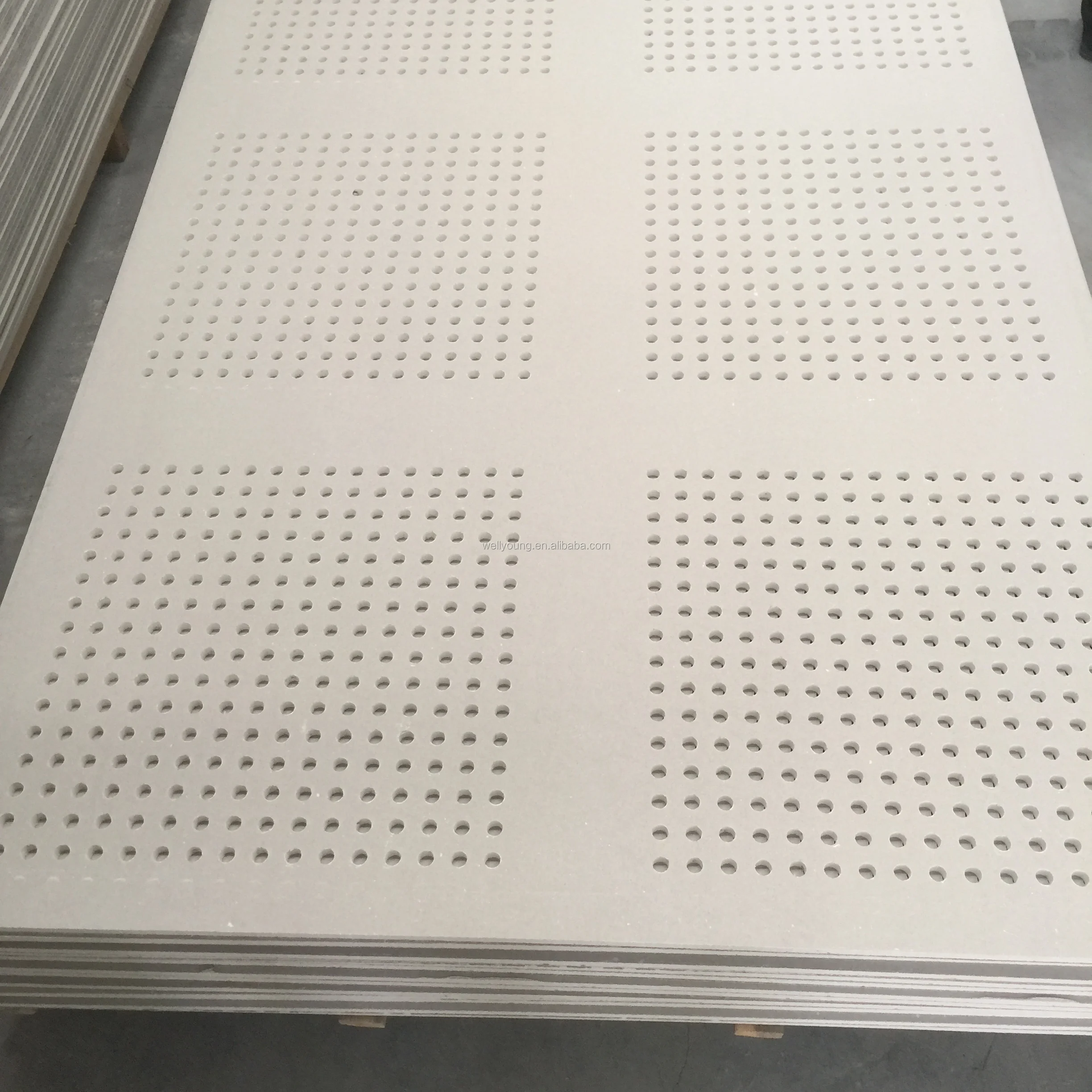

WELLYOUNG Acoustic Board is a perforated 12mm gypsum board with air-cleaning effect including black or white acoustical EU standard Ahlstrom non-woven fabric on the back(special color when ordering).

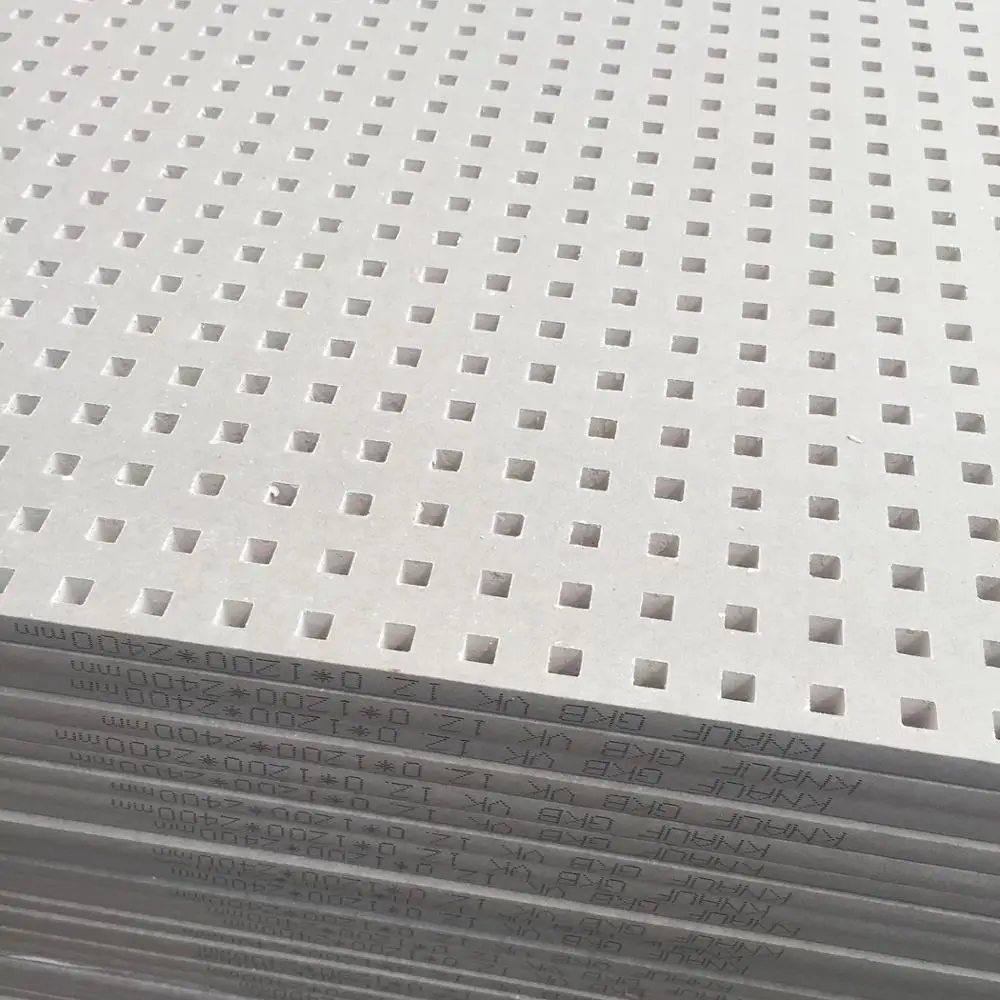

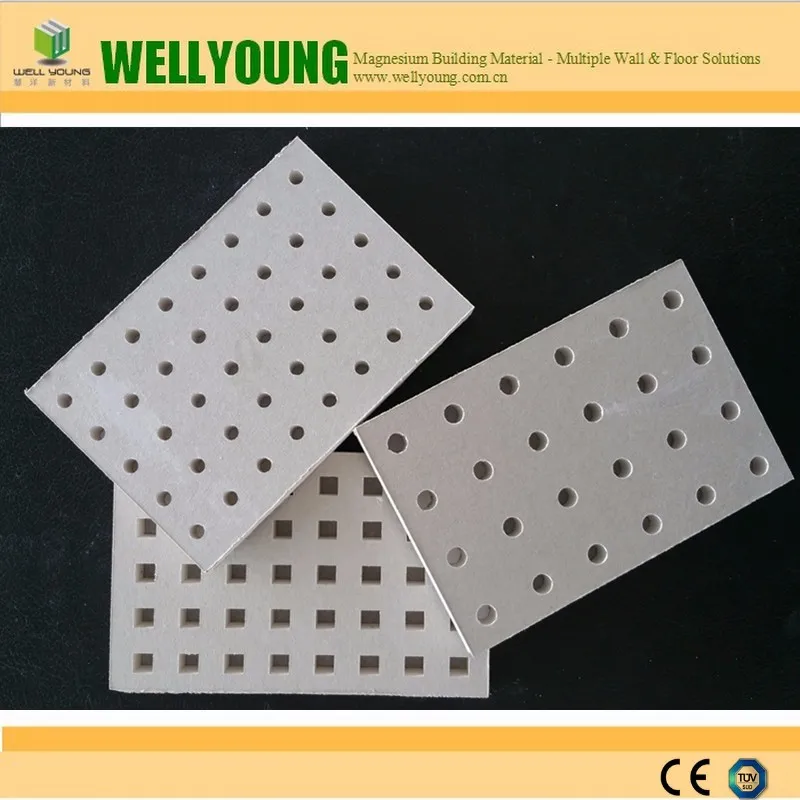

WELLYOUNG Perforated gypsum board
Core material
high grade glass fiber reinforced gypsum board
perforation

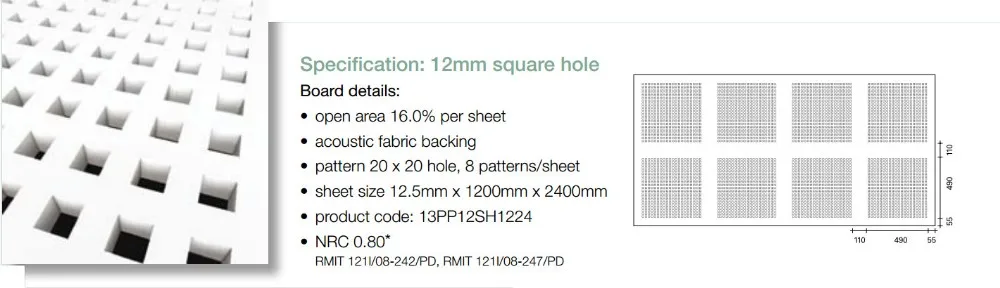

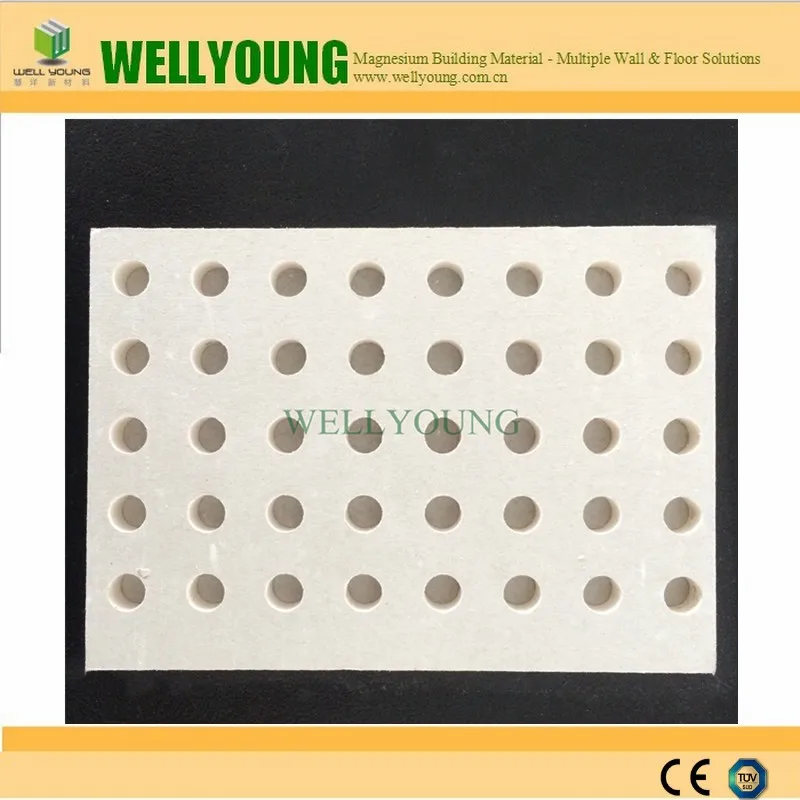

Micro hole 3/8.33R Square hole 10/20Q 12/25Q Circle hole 6/25(18)R 8/25R 12/25R Cross hold 8/12/50R Long Round hole 4*14LR Irregular hole (pop hole) 8/15/20R More design can be customized according to you requirements.
Surface finish

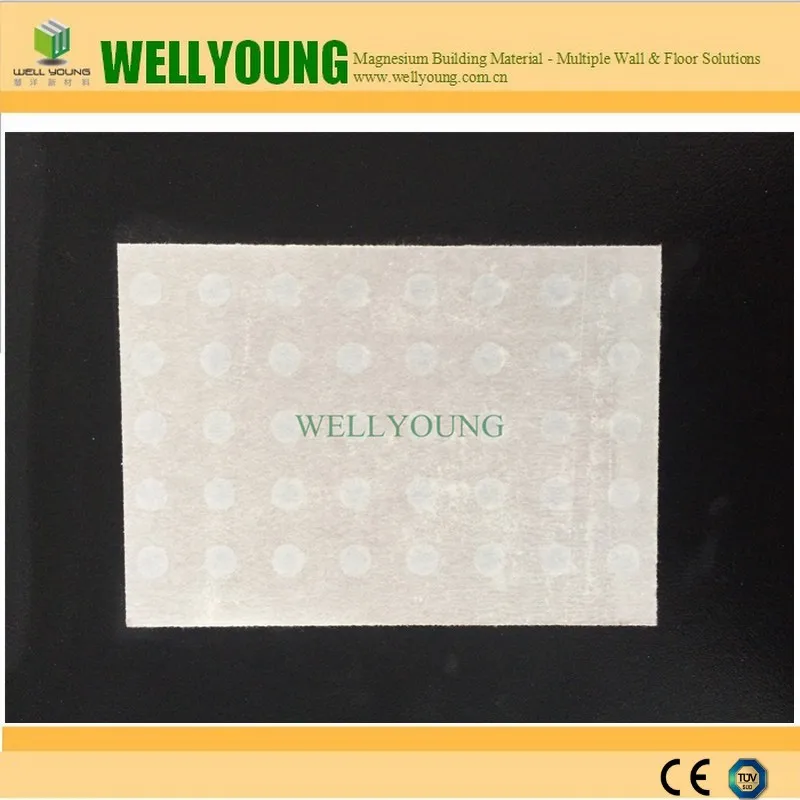

Front:white thick paper covering, 160G/SQM Back:High quality EU standard Ahlstrom non-woven fabric
Thickness
12mm
Dentisy
9.4kg/m2
Patterms
H8-L4W2
Edge
Tegular
Perforation rate
8.8%-14.2%
Color
White
NRC
0.70
Size
1200*2400mm
RH
70
Main Features
Acoustic perforated gypsum board Light weight in unit acreage High edge rigidity Strong nail pull resistance Smooth,paintable surface NO visible joints and grid Sustainable,fully recyclable material Installs on any standard drywall suspension system Green environmental protection material

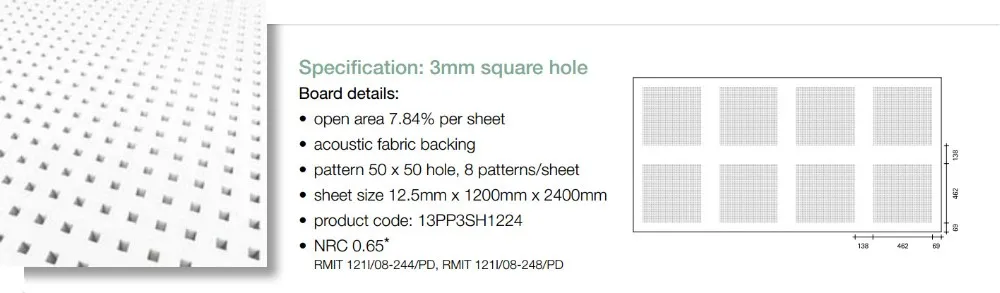

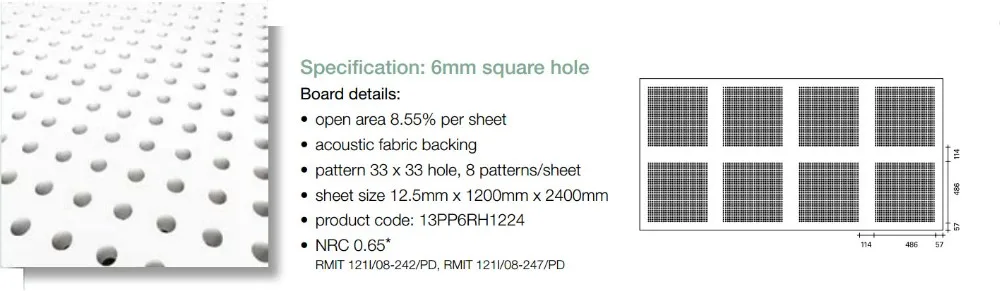

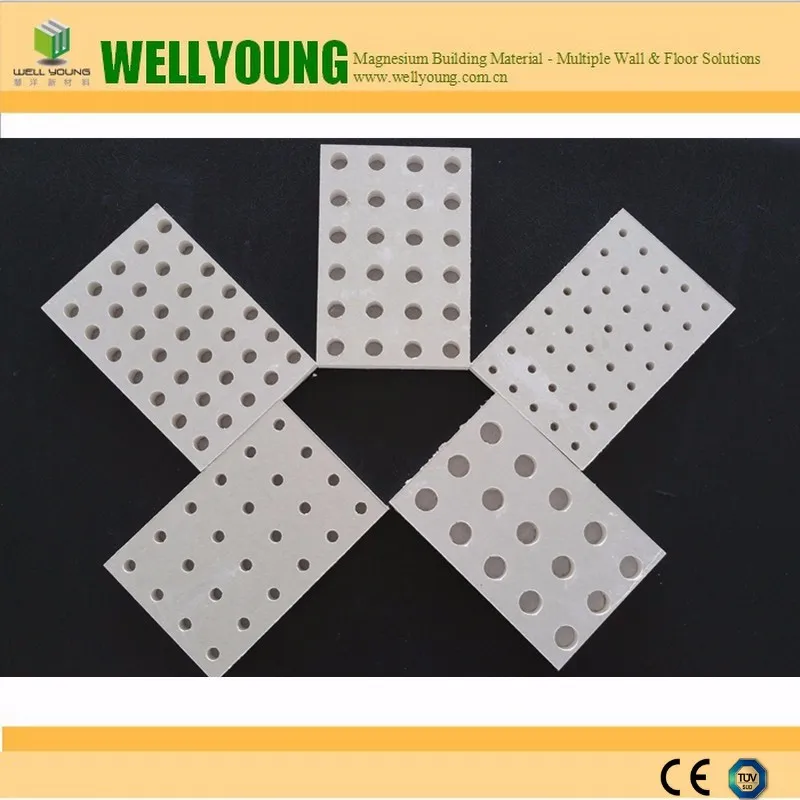

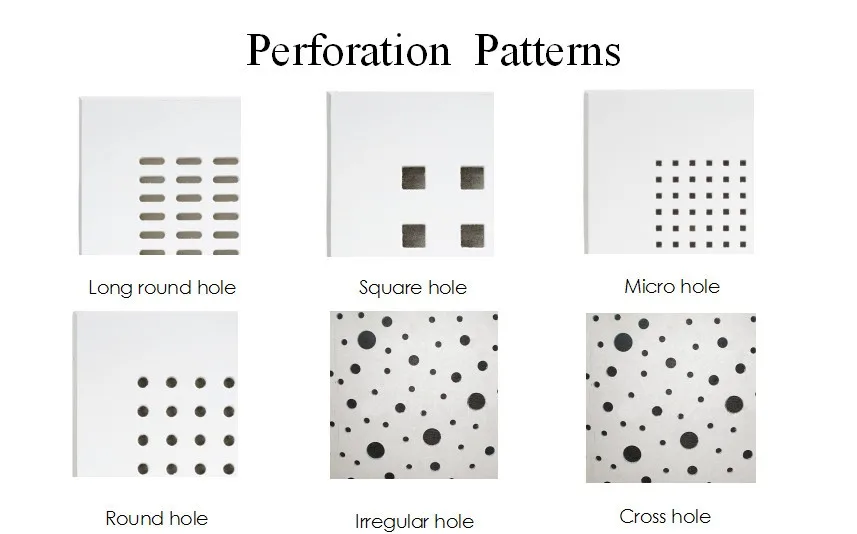

Perforation Patterns

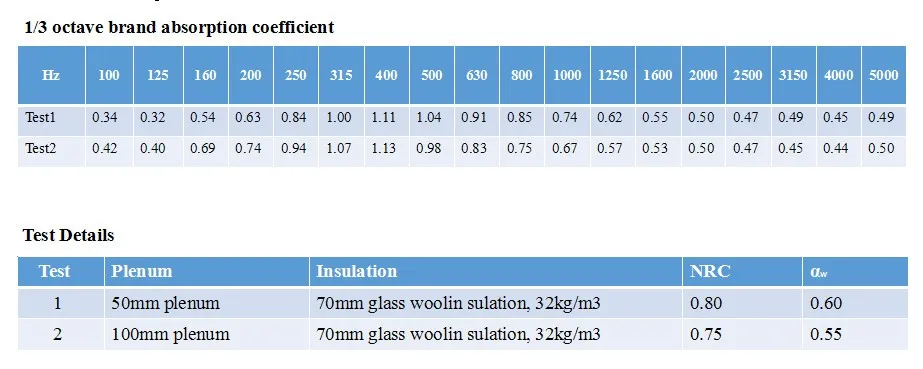

Absorption Data

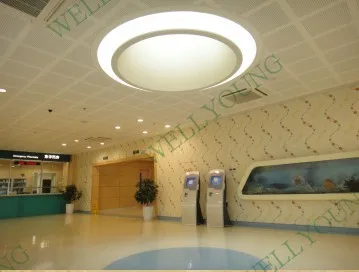

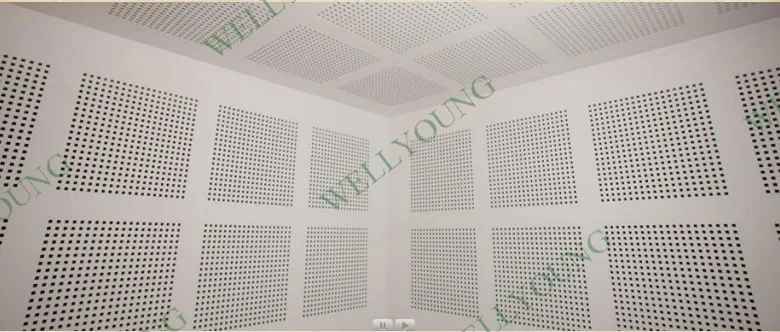

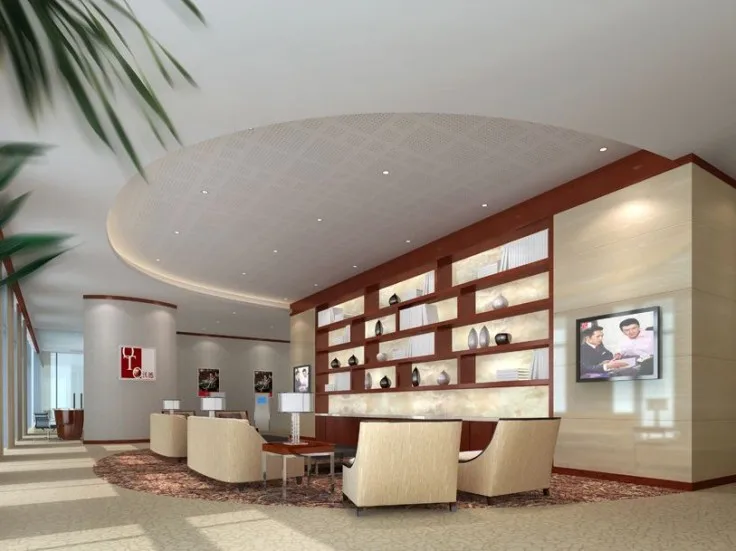

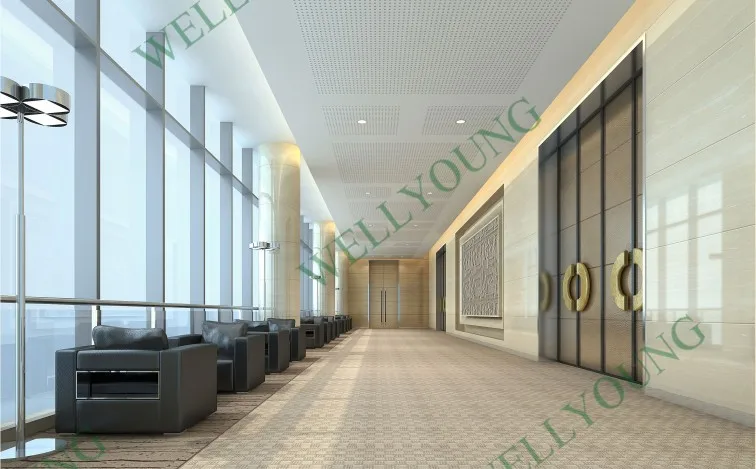

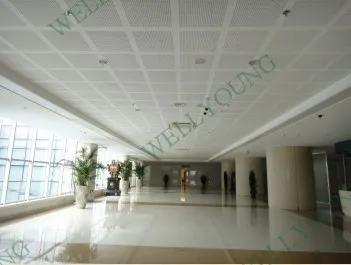

Application

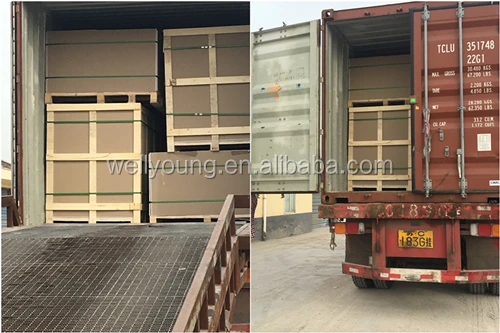

Packing & Delivery
Service
Unmatched expertise gained over two decades of experience
Sustainable and environmentally friendly materials
Excellent indoor comfort for building occupants
Extensive range of technical and design solutions for both ceiling and walls.
