PVC China Tenet Card Vending Machine/Mifare Card Dispenser

Product Overview

Description

PVC China Tenet Card Vending Machine/Mifare Card Dispenser



Estelle Zhou       Skype:live:2355271221

                               whatsapp:+8613510326491





Card Dispenser-TCD 180M



Technical Parameters

- Operating voltage: 24V DC(max current 2A, static current 0.1A)
- Operating temperature: -20°C to 85°C
- Operating humidity: 30-90% (comparatively)
- Use condition: install in bin
- Card available: width: +/-0.5mm Length: 85+/-0.5mm Thickness: 0.3-2.5mm (adjustable)
- Card material: Paper or Polyester card
- Net weight of card dispenser: 2.0kg (including the briquette)
- Time of issuing: max0.5s



Main Features

1)Industrial design, adjust to high temperature and other bad environments;
2)Simulated manpower friction card issuers, better adaptability to various deformed cards;
3)Watchdog of hardware and embedded operating system to ensure properly running;
4)Pre-dispense function accelerate dispensing speed;
5)Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
6)Automatic buzzer alarm when no cards, fewer cards or failure.

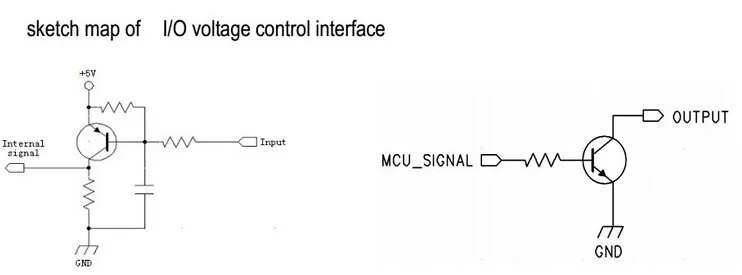

7)Provide both RS232 and I/O voltage control interface;
8)Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
9)Stacker capacity is 150pc, optional extra hopper could add by 120pc each.

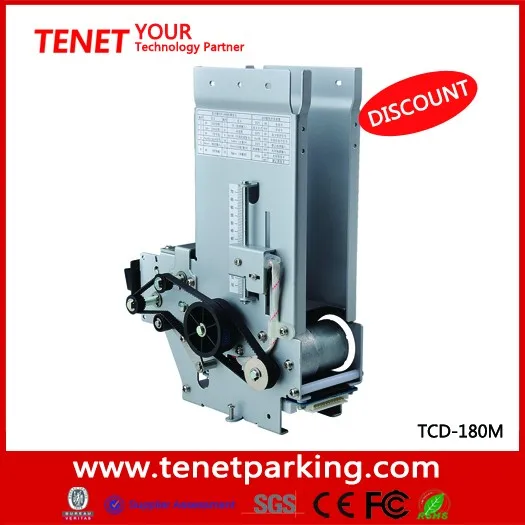

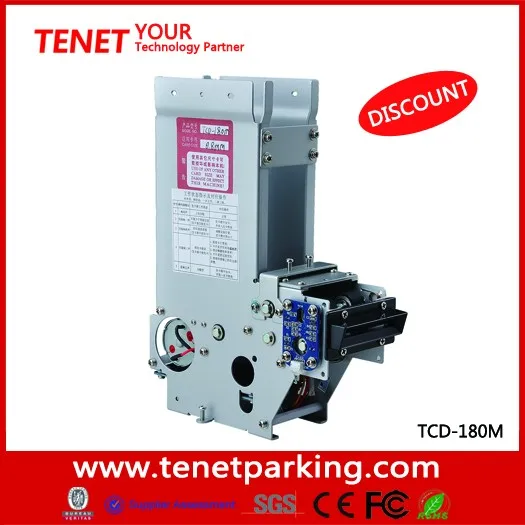

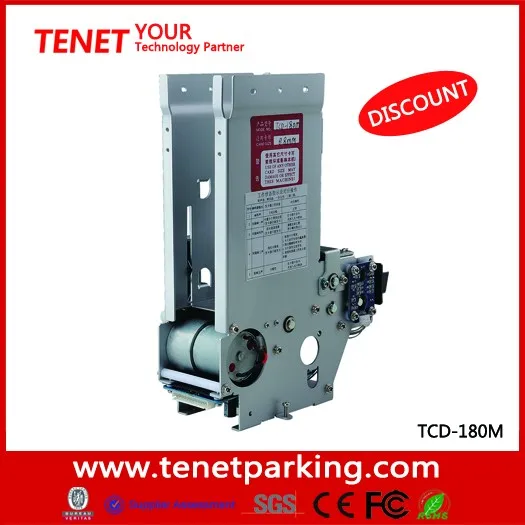

TCD-180 Card Dispenser Pictures:
