8.5HP low temperature piston type semi hermetic cylinder refrigeration compressor
- Category: >>>
- Supplier: Taixing Jingchuang Penguin Refrigeration Equipment Factory (general Partnership)
Share on (60768594167):
Product Overview
Description

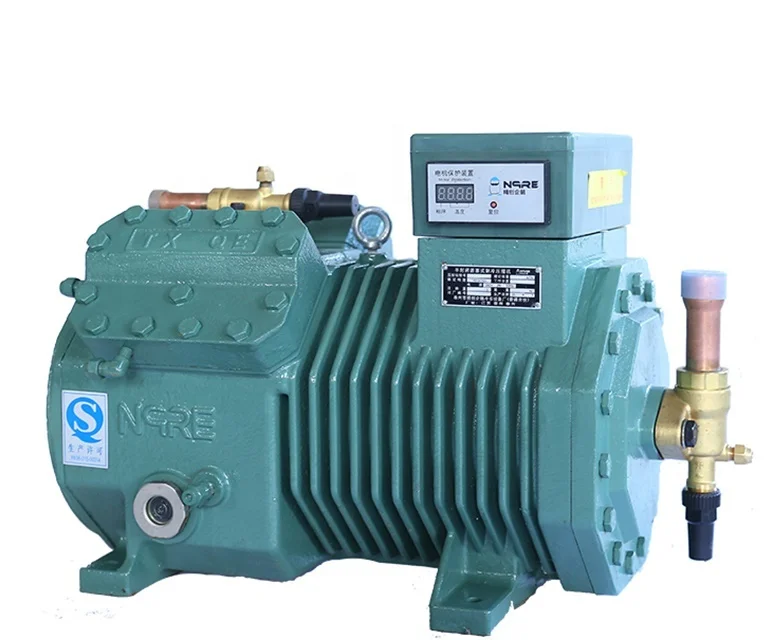

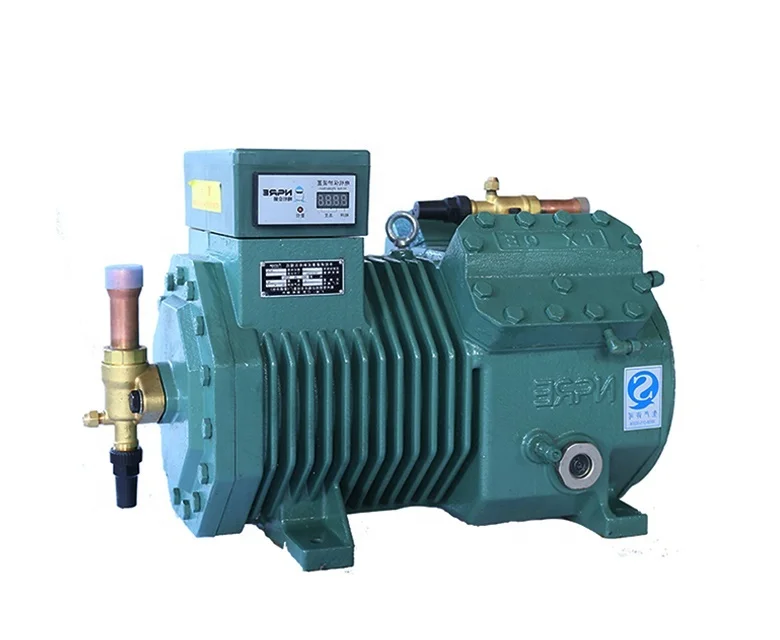

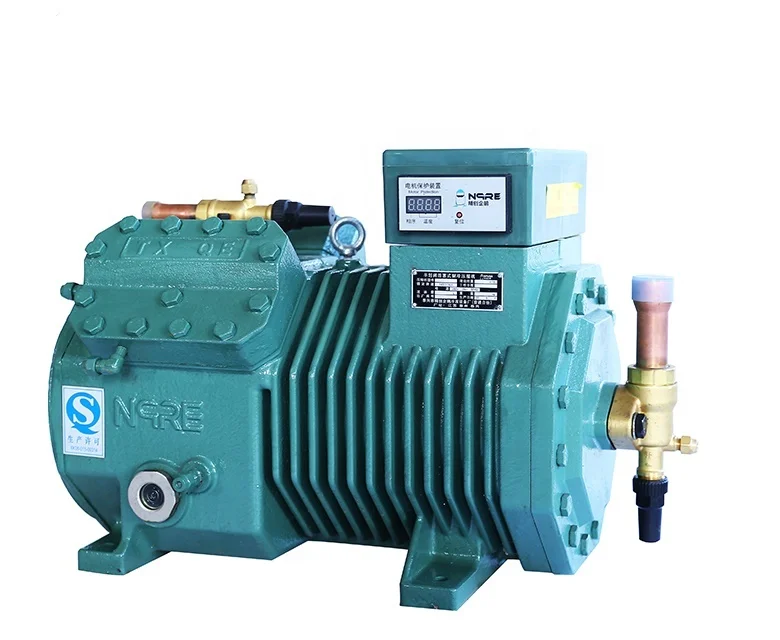

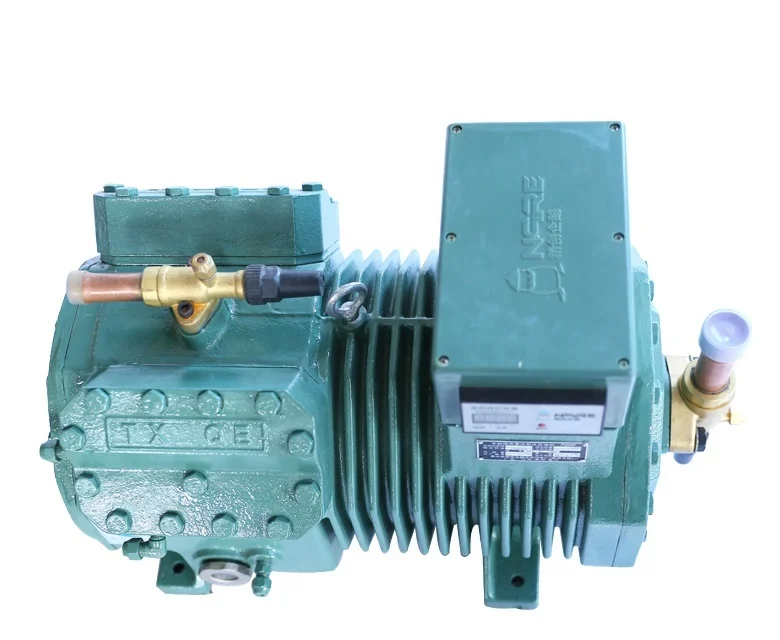

8.5HP low temperature piston type semi hermetic cylinder refrigeration compressor
8.5HP Brand New oil cooling refrigerator compressor
Product Description
We are the manufacturer you are looking for,Our factory is also looking for agents and distributors all over the world to cooperate and develop together.

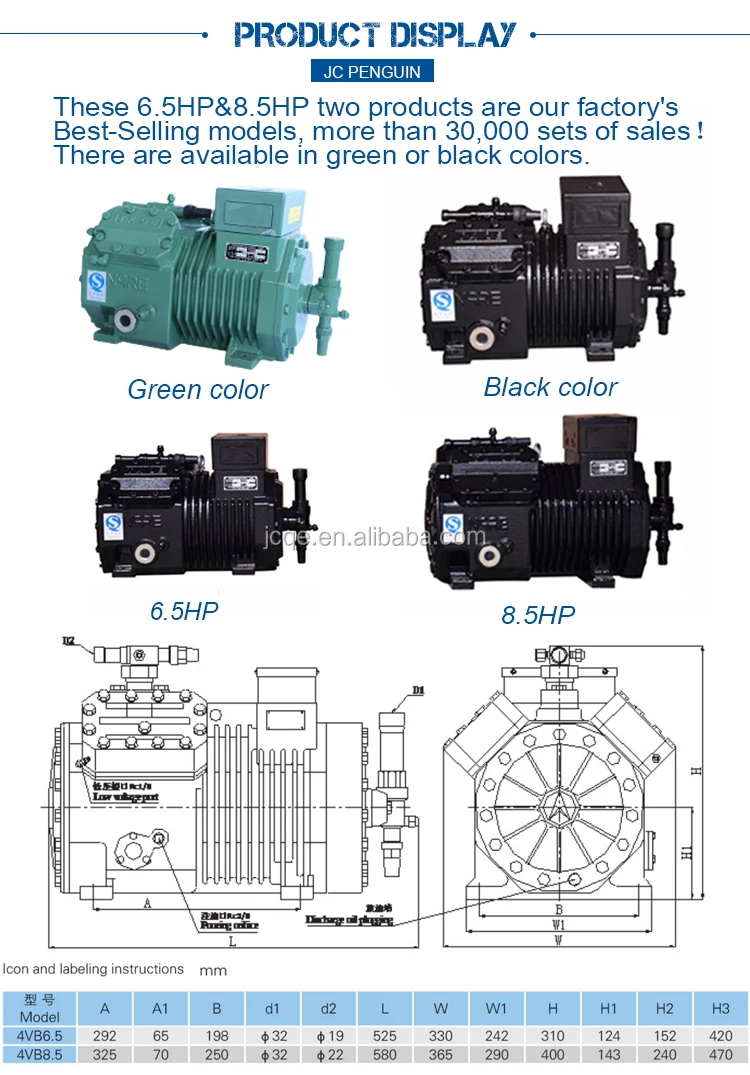

This 8.5HP is our best-selling model!!!
| Product Description: | SEMI-HERMETIC RECIPROCATING COMPRESSORS(PENGUIN series) | ||||
| Product Range: | 6.5HP-60HP | ||||
| Specifications: | 8.5HP/6.3kW | ||||
| Refrigeration Type: | R22 (R12/R502) ,R134a ,R404A ,R407C | ||||
| Evaporating Temperature Range: | R22:-30~+12.5℃, R134a:-30~+12.5℃, R404A :-30~+7.5℃,R407C:-25~-5℃ | ||||
| Primary Application: | Our products have same application like Bezier compressors and other brands refrigeration compressor which can applied cold stroage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food,also can applied to Frozen Foods Equipments/ Potato Chips line /Full Line Frozen Food / Ice Cream Vending Machine /frozen sucker set /frozen stick confection producing line / ice sucker machine / ice candy producing/ ice cream machine / frozen yogurt machine/ Reliable Quick Frozen Machine / Green Soy Bean frozen vegetables and fruit processing line machinery | ||||
| Tech. Data: | |||||
| Model | Motor Nominal Power | Displacement | Max operating current A | Fuel Supply mode | Weight |
| HP/kW | m3/h | A | Kg | ||
| B503-4 | 5HP/3.7kW | 21.9 | 8.9 | Centrifugal lubrication | 92 |
| 4VB6.5 | 6.5HP/4.7kW | 23.7 | 12.0 | Centrifugal lubrication | 105 |
| 4VB8 | 8HP/5.5kW | 27.4 | 13.3 | Centrifugal lubrication | 94 |
| 4VB8.5 | 8.5HP/6.3kW | 32.6 | 16 | Centrifugal lubrication | 135 |
| 4VB10 | 10HP/7.4kW | 37.4 | 18.8 | Centrifugal lubrication | 110 |
| 4VB12 | 12HP/9.3kW | 47.3 | 23.7 | Pressure lubrication | 162 |
| 4VB15 | 15HP/11kW | 70.8 | 28.0 | Pressure lubrication | 200 |
| 4VB20 | 20HP/15kW | 86.0 | 37.0 | Pressure lubrication | 208 |
| 4VB25 | 25HP/18.5kW | 103.0 | 47.0 | Pressure lubrication | 208 |
| 6WB30 | 30HP/22kW | 129.0 | 56.0 | Pressure lubrication | 210 |
| 6WB30DS | 30HP/22kW | 103.0+52.0 | 56.0 | Pressure lubrication | 235 |
| 6WB40 | 40HP/30kW | 154.4 | 76.0 | Pressure lubrication | 210 |
| 8WB50 | 50HP/37kW | 187 | 94 | Pressure lubrication | 310 |
| 8WB60 | 60HP/45kW | 206 | 115 | Pressure lubrication | 320 |
| All models default to medium& low temperature applications,We also accept customization of high temperature application. | |||||
----------------------------------------------------------------------------------------------------------------------------------
Jiangsu Taixing Jingchuang Penguin Refrigeration Equipment Manufactory (JC PENGUIN) was established in 1992, we are an enterprise specializing in the development and production of refrigerating compressors and related condensing units. The main products range from semi hermetic Piston refrigerating compressors to scroll and screw refrigerating compressors and
related condensing units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.
