2D 3D Detector Of Underground Water Detector For Groundwater Detecting Water

Product Overview

Description

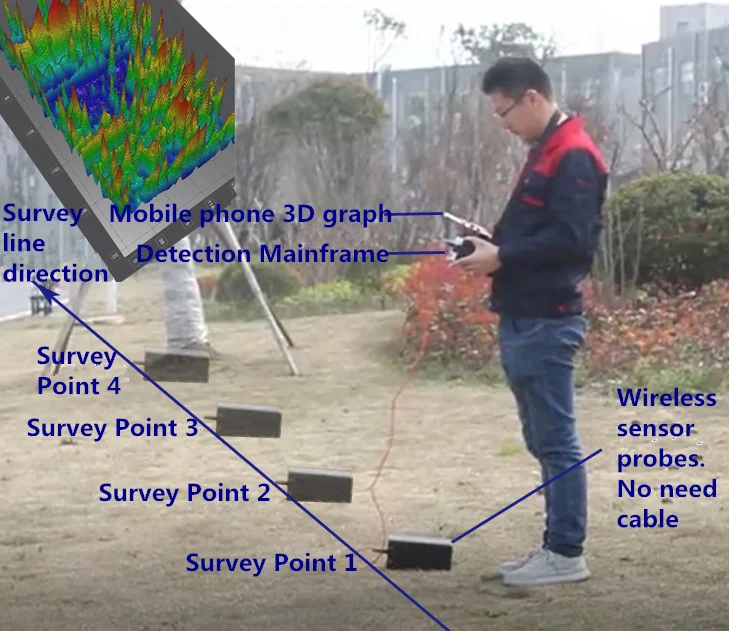

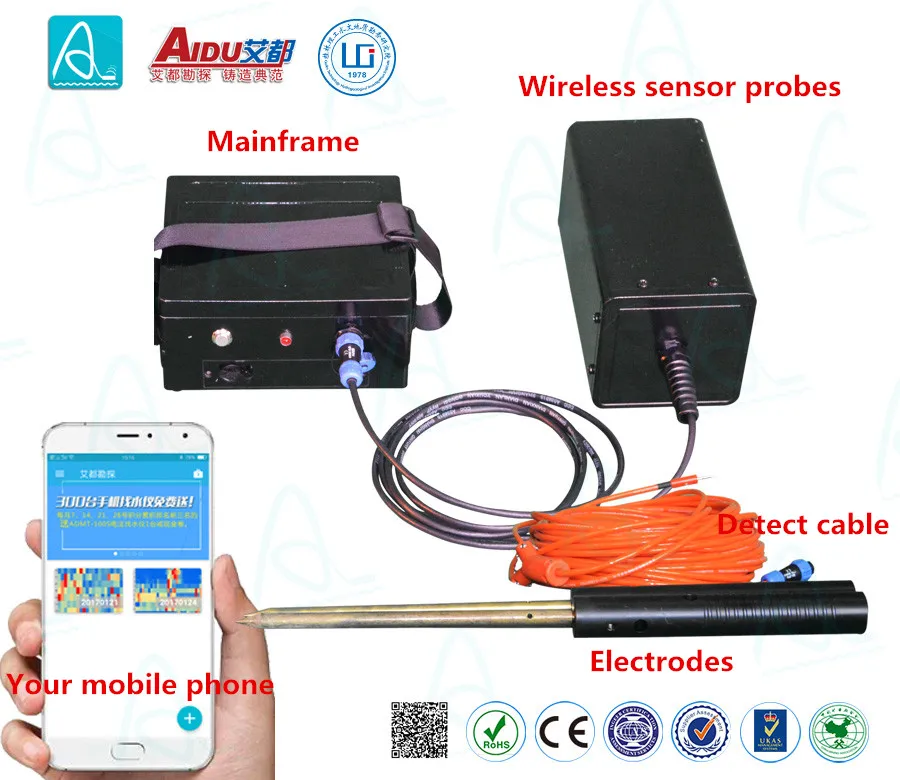

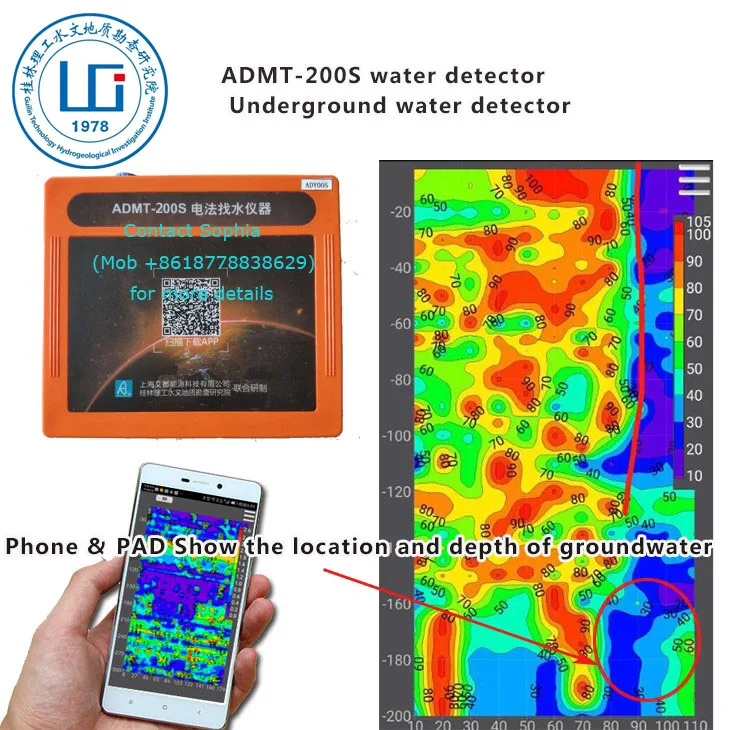

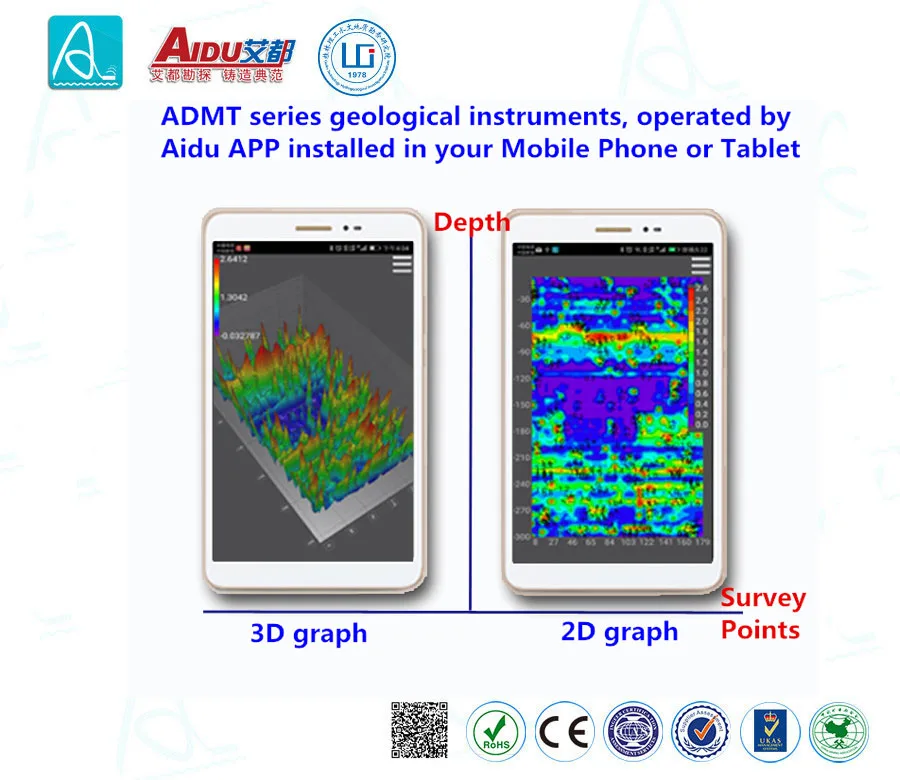

 ADMT-200S mobile phone Water detector is the world’s first Internet of Things instrument, which is developed together with Guilin Technology Hydrogeological Investigation Institute. Based on over 40 years R&D design and exploration, the mobile phone water detector realize the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in the cloud, and you can communicate with experts advisors on line about your graphs. Besides, if use our probes to measure, then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect. And in the “MN input”, you can use traditional MN cable lines or wireless sensor to measure. If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button. Automatcally mapping by mobile phone, communicating with experts advisors online, uploading the data into cloud and store permanently.

Model	ADMT-200S
Measurement Range
Dtect Depth	0-200m
Measuring Mode  (Intelligent Frequencey Select)	40 frequency
Resulotion	1mv
Repetitive Error	±3% ±2 bit
A/D Switch	16 bit 1 Msps
Imput Impedance	≥1 cm Ω
Power frequency suppression	>80 dB
Date Storage	Phone storage space or 20G
Display
Connection Mode	Bluetooth 4.0
Mainframe Power Supply
Mainframe Power Comsumption	230 mA
Operating Temperature	­10℃~+40℃
Mainframe Size	18.6x14.8x8 cm
Mainframe Weight	0.8 KG







ADMT-200S Main features:

 ADMT-200S mobile phone Water detector is measured by natural electromagnetic field strength to response the changes of resistivity, to analyse and judge the location, depth of groundwater and other related information, can be detailed survey and the exploration of groundwater j, solve drinking water, industrial water and agricultural irrigation demand, to great effect to the successful drilling Wells for water, under the general customers the consistent high praise.

ADMT-200S mobile phone Water detector is belong to the category of electrical prospecting’s M/T method prospecting. Thorough solving the problems of different and changeable source intensity of natural electric field. Now the detector is easy and convenient, with stable source measuring now, high intelligent and with direct-viewing of diagram. Obtaining the remarkable achievements in few decades field explorations.
