ELP 1920*1080 MJPEG 50fps SONY IMX291 Full HD 2megapixel USB3.0 Camera Module for Industrial Machine Vision
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60768628328):
Product Overview
Description

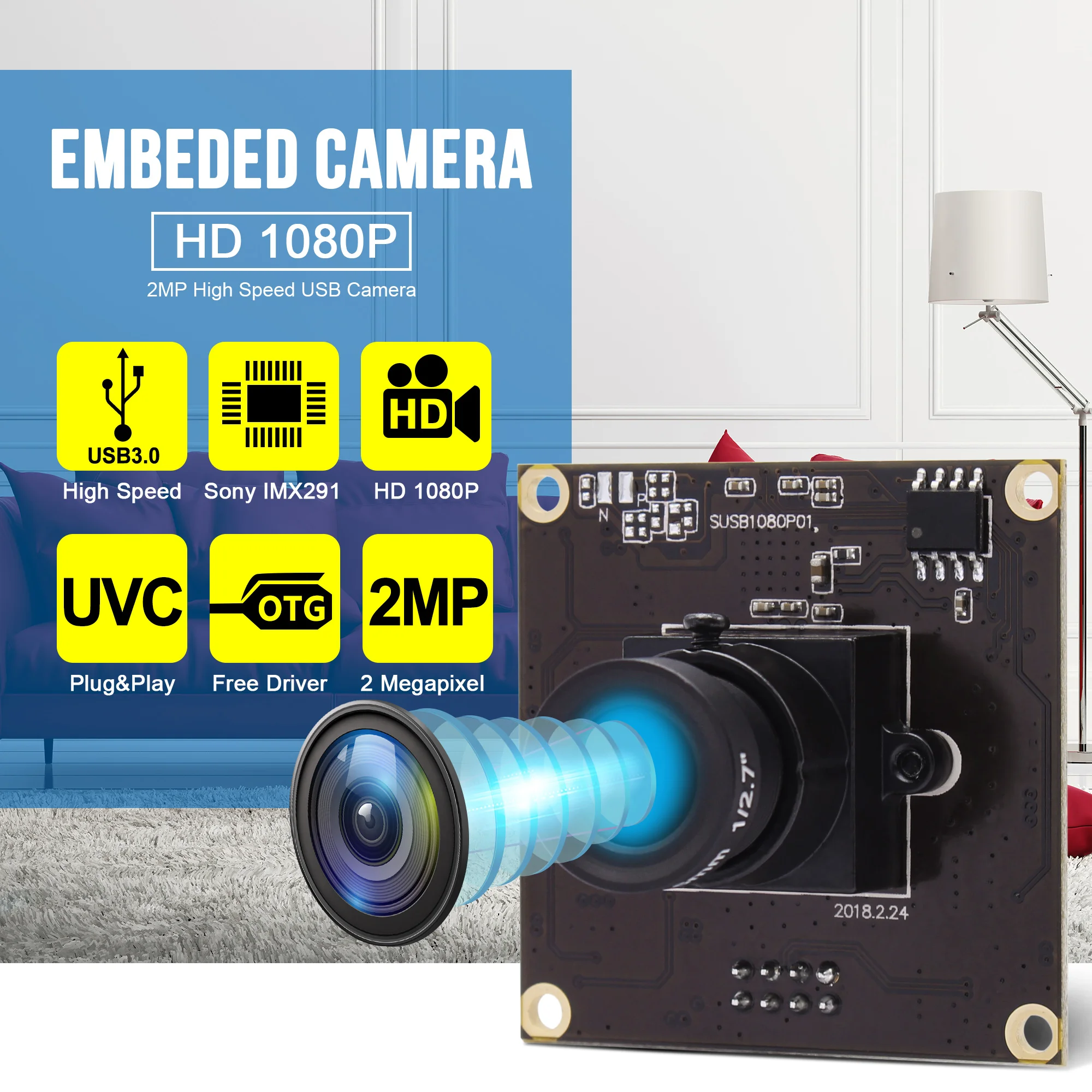

ELP USB3.0 Camera Module 1920*1080 MJPEG 50fps SONY IMX291 full hd 1080p 2megapixel mini Industrial Machine Vision USB Camera
Model: ELP-SUSB1080P01-L29
Fetures
*1080P USB 3.0 Camera Module with 2.9mm lens
*1/2.8 SONY IMX291 Color CMOS Sensor for high quality image
*High speed USB 3.0 interface for high resolution PC camera interface.
*Super small outline 38*38mm and thin profile for embedded applications.
*High frame rate– deliver 50 fps in 1920X1080 resolution.
*UVC compliance for use in OS Windows, Linux, Android
*OTG support
Product Description
| Model | ELP-SUSB1080P01-L29 |
| Sensor | IMX291 |
| Lens Size | 1/2.8 inch |
| Pixel Size | 2.9µm X 2.9µm |
| Max. Resolution | 1920(H)X1080(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame | 1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps |
| 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps | |
| 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps | |
| S/N Ratio | 40dB |
| Dynamic Range | 65dB |
| Sensitivity | 1900mV/lux-sec@550nm |

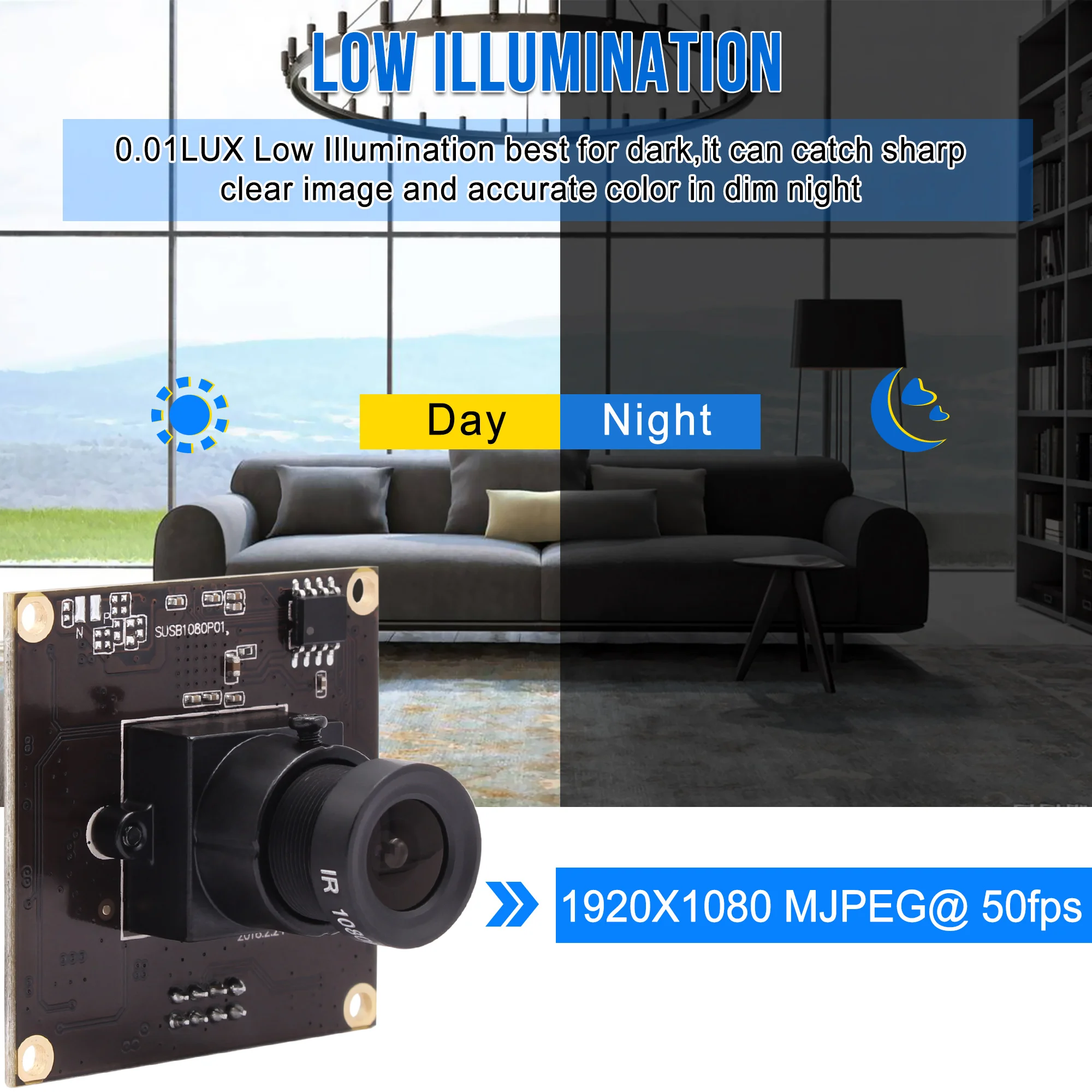

| Mini illumination | 0. 01lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB3.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| Gain, White balance, Backlight Contrast, Exposure | |
| Lens Parameter | Standard 2.9mm lens,optional 2.8/3.6/6/8/12mm lens, FOV 170/180Degree, |
| FOV100 degree no distortion lens | |
| Power supply | USB BUS POWER |
| Operating Voltage | DC5V |
| Working current | 170mA~210mA |
| Working temperature | 0~70℃ |
| Board size /Weight | 38*38mm |

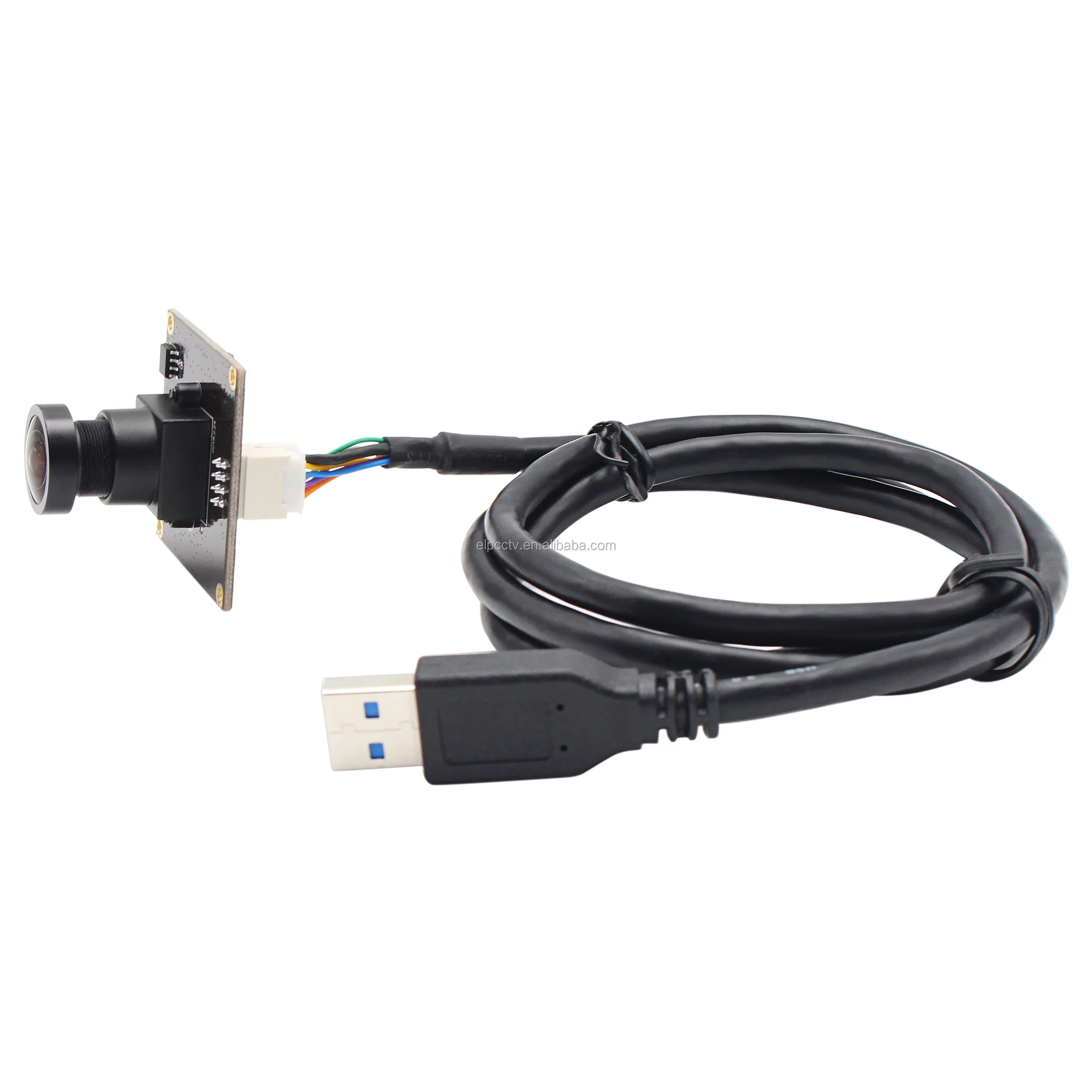

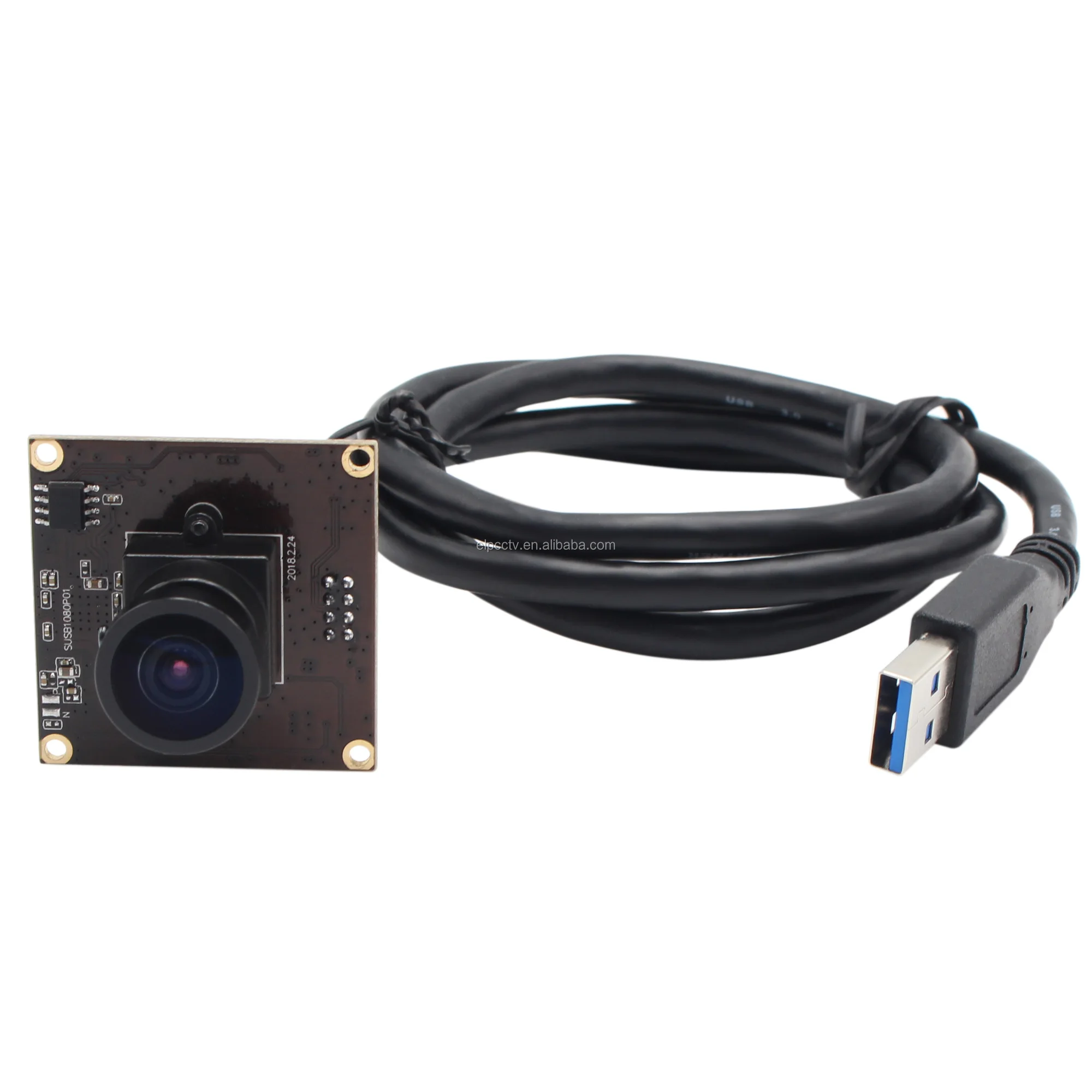

| Cable | Standard 1M |
| Operating system request | Win8 or above |
| Linux with UVC(above linux-2.6.26) | |
| MAC-OS X 10.4.8 or later | |
| Android 4.0 or above with UVC |

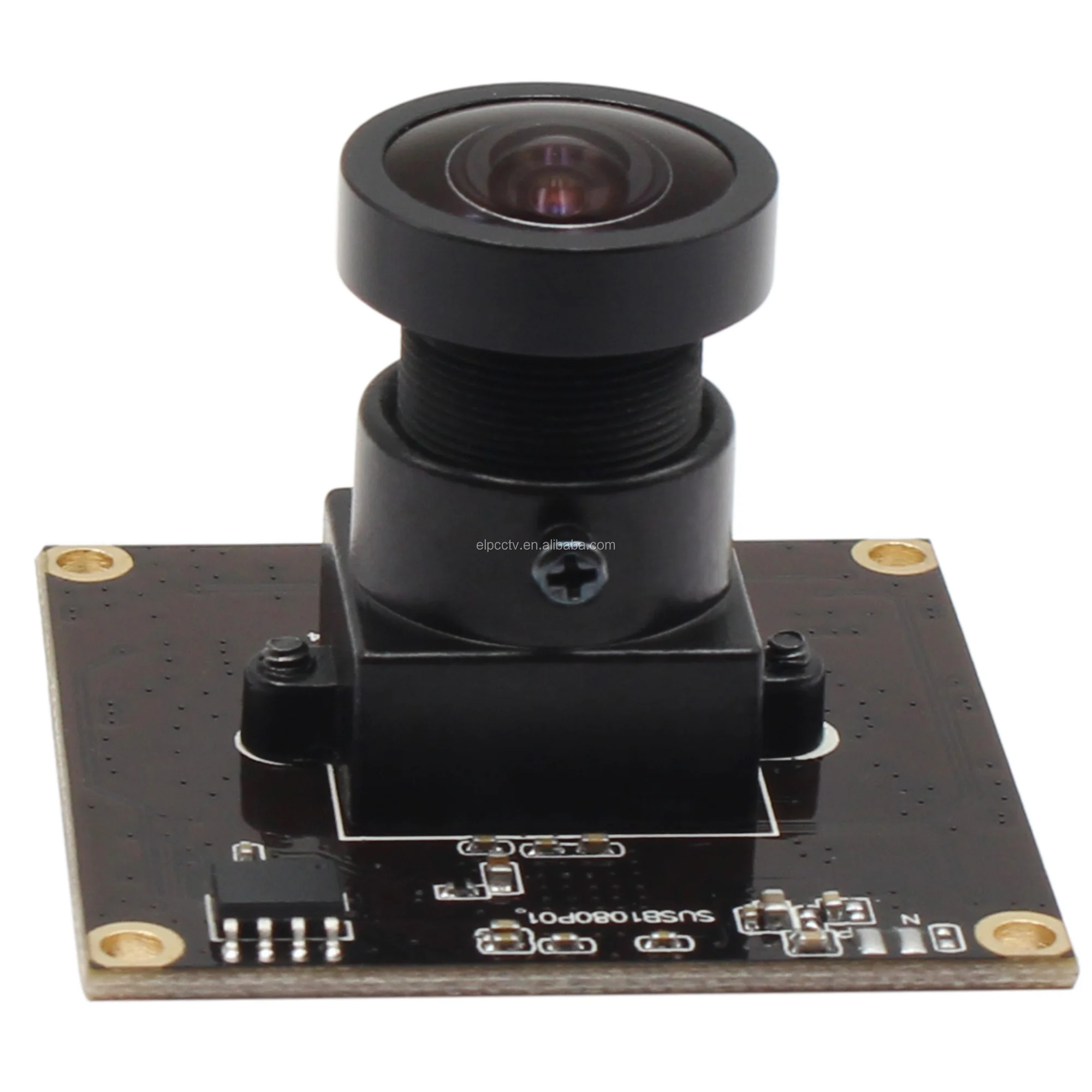

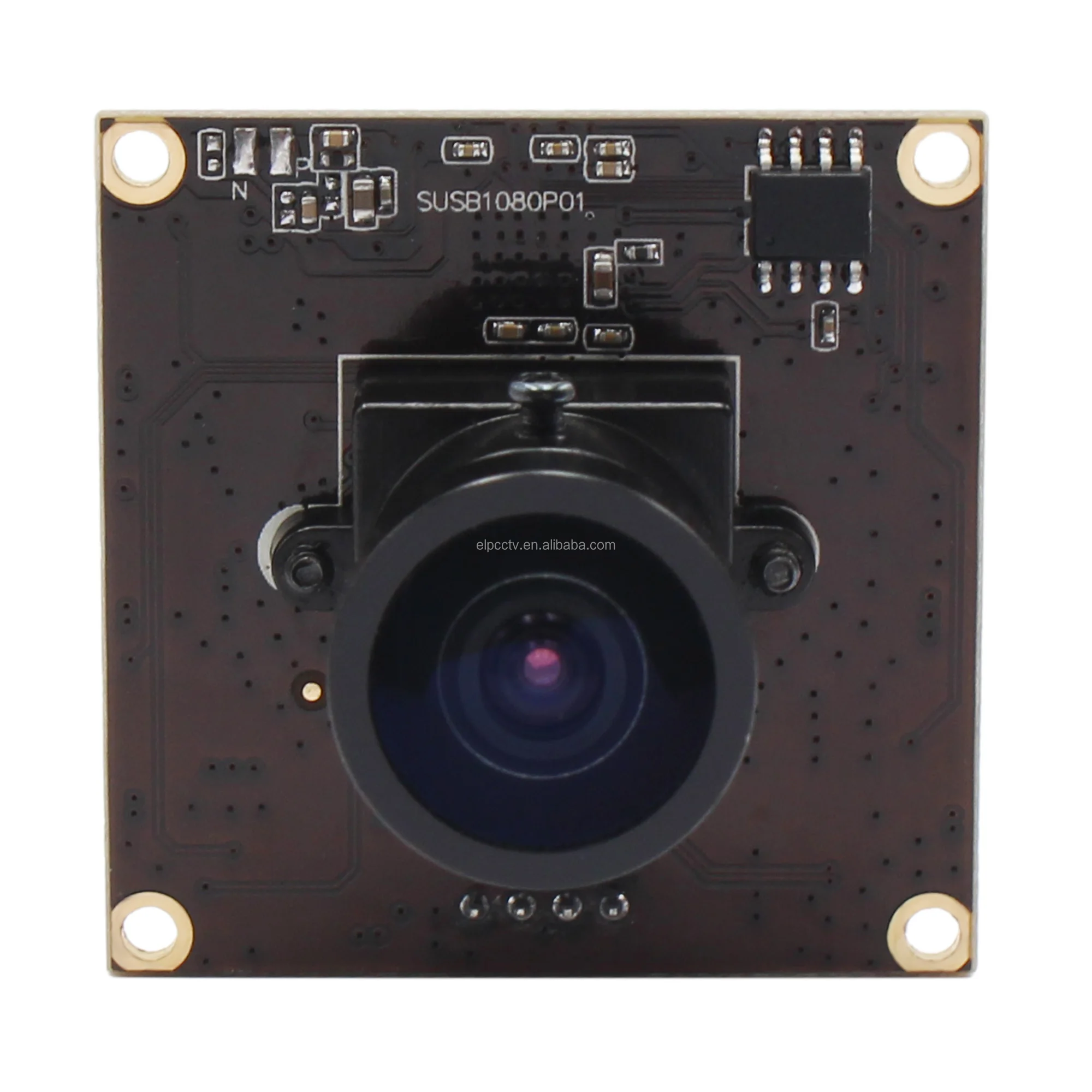

Product Show
Effect picture
Company Information
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
