New patent product 4 WD Mini farm power tiller , cultivator, tiller cultivator

Product Overview

Description

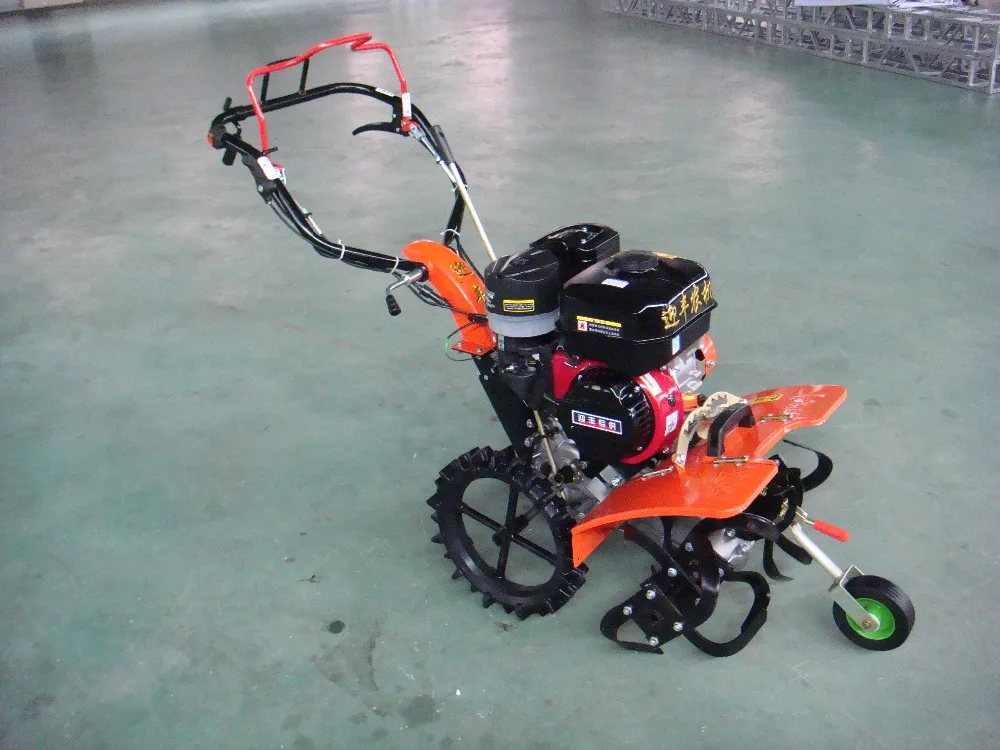

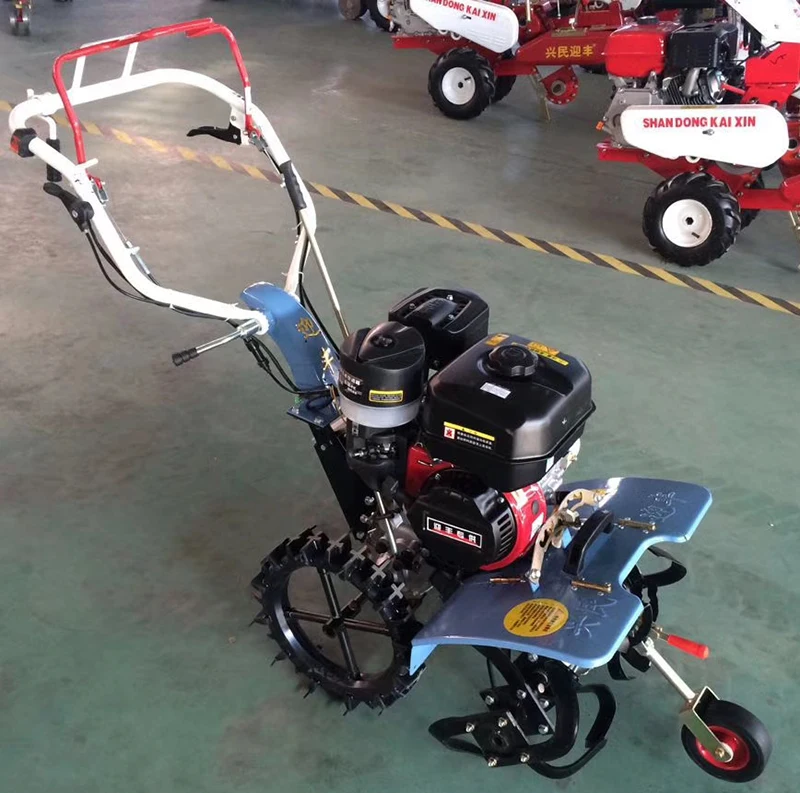

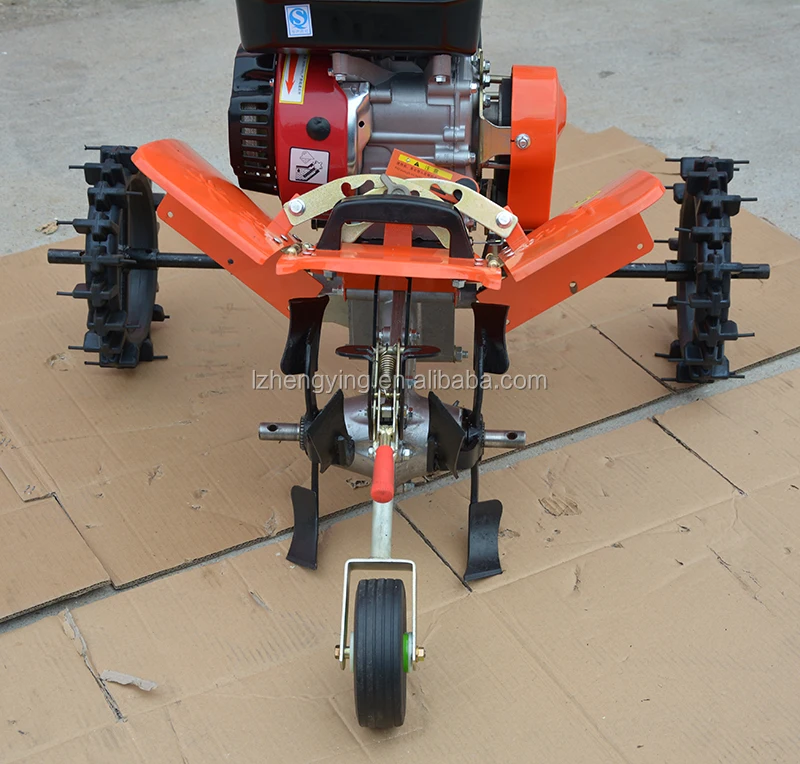

New patent product 4 WD  Mini farm power tiller , cultivator, tiller cultivator



China patent product:  4WD mini garden power tiller

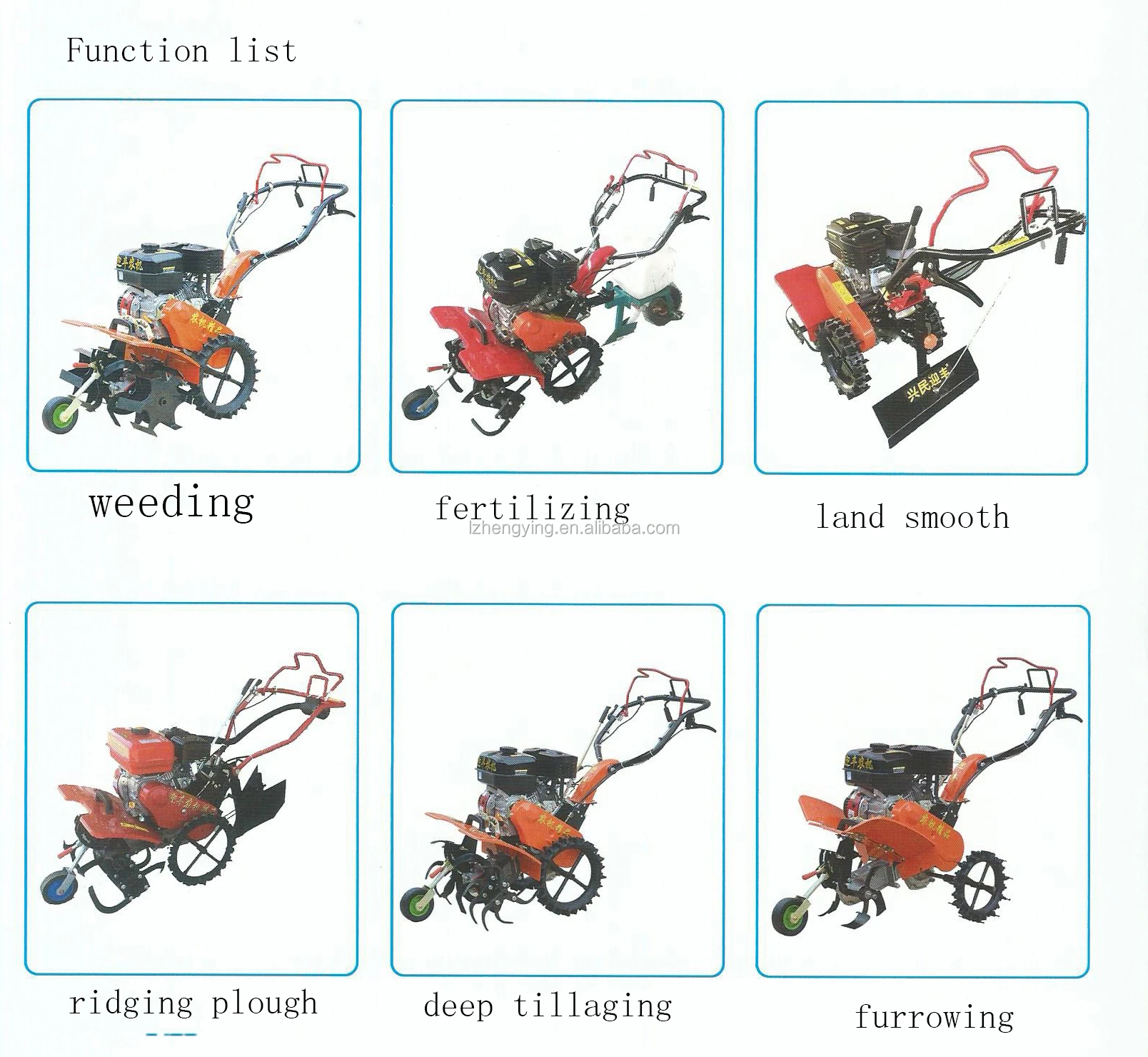

Main functions: rotary tillage , weeding, furrowing pre-planting

Scope of application: garden, greenhouse, sloping field, paddyfield etc

Advantage:  1 170F engine, with more strong power

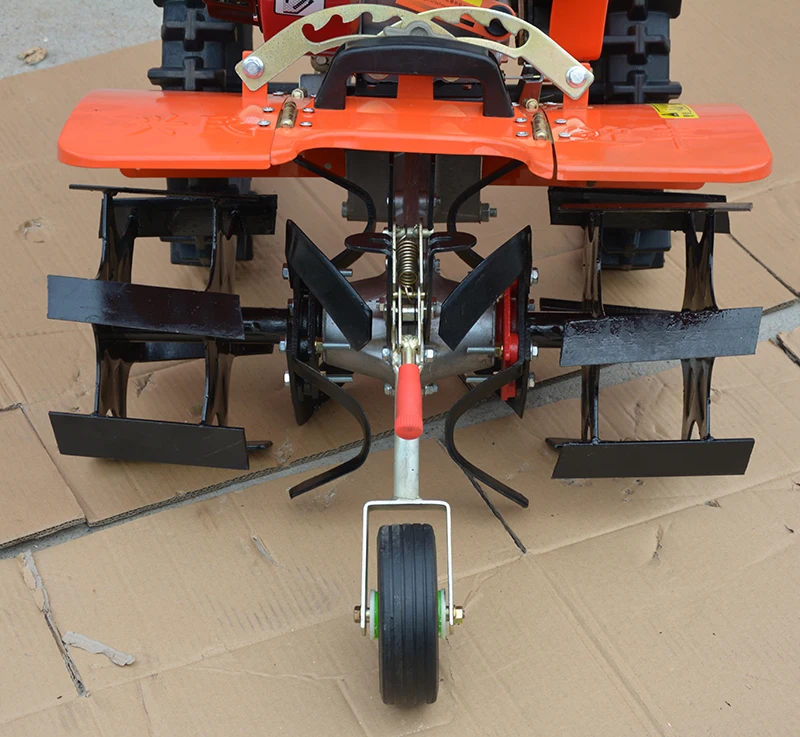

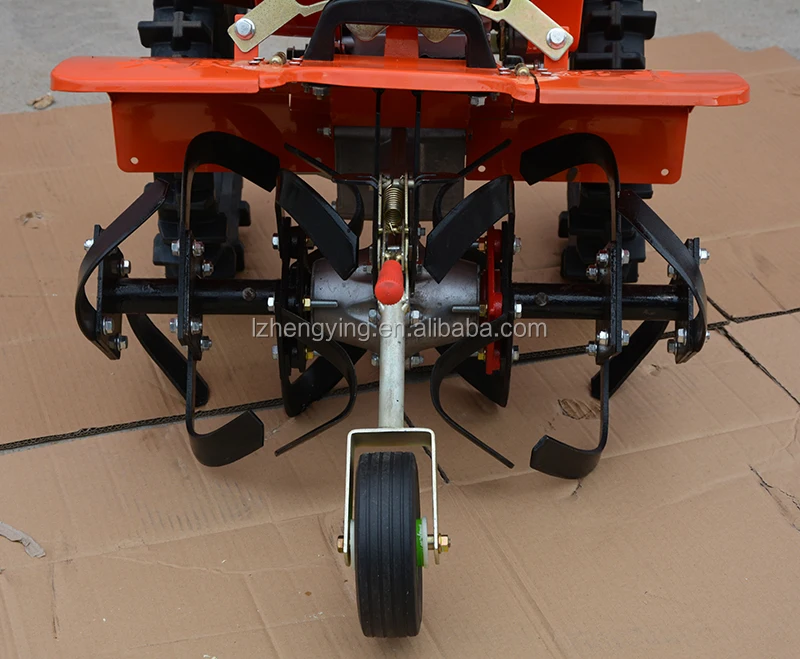

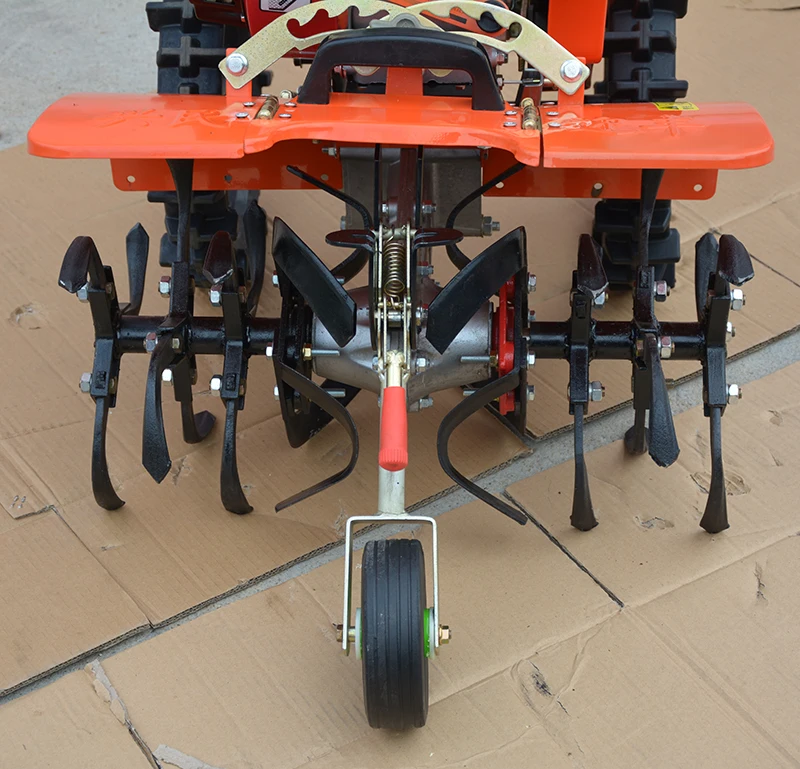

                2 novel tillage method, rotary blades positive inversion on same axis, low handling strength,       more effect of rotary tillage

                3 driving wheel with differential mechanism , it can be easy controlled when turning

                4  new type cluth

                5 setting five gears , such as reverse gear, neutral position, driving, tillage, on site tillage .

                6 new handlebar can be adjustable, convenience use.

Main technical parameters as below:

1		power		gasoline
		rated power	kw	4kw
		rated speed	r/min	3600
2		Dimension	mm	1420x560x1020
3		Weight without engine	kg	53
4		Tillage width	cm	60
5		Tillage deepth	cm	5-20
6		Working speed	m/s	0.12-0.16
7		Production rate	M2/h	680
8		Consumption rate	kg/h	15.8
9		Transmission		chain
10		Clutch method		Tensioning clutch
11	Knife axis	Design speed	r/min	140-190
		Max turning	mm	135
		Total installating knives		16
12		Tillage knife model		Special knife
The tillage machine is improving constantly, sorry not to inform if any parameters changed. Please refer to the operating manual matching the machine .
