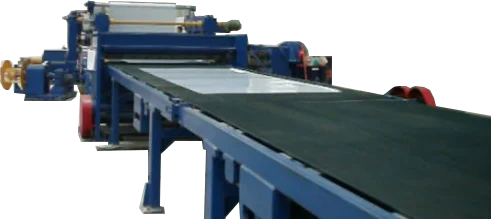

Cut to Length Machinery

Product Overview

Description

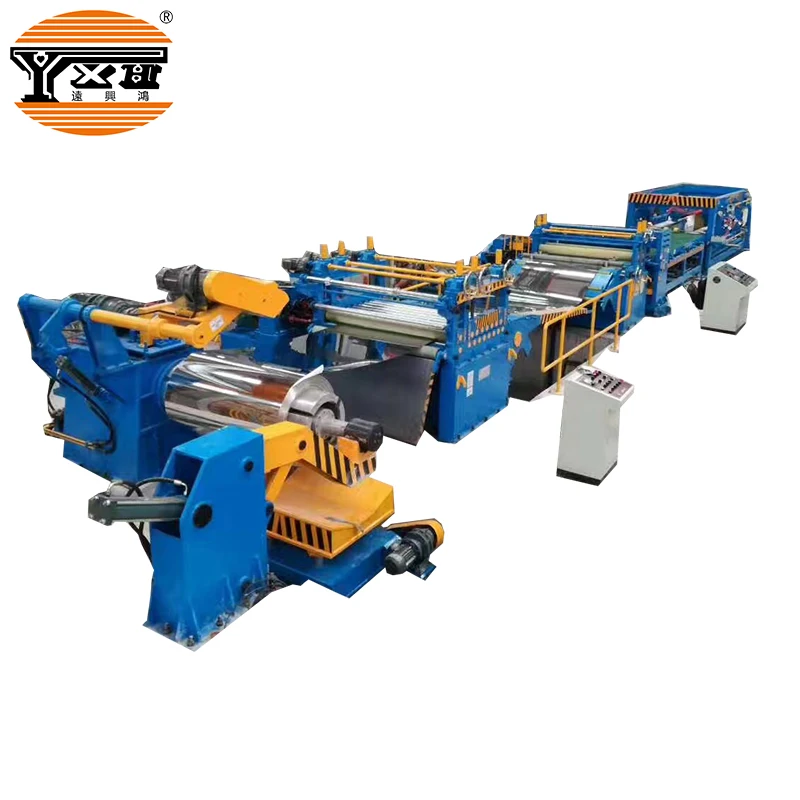

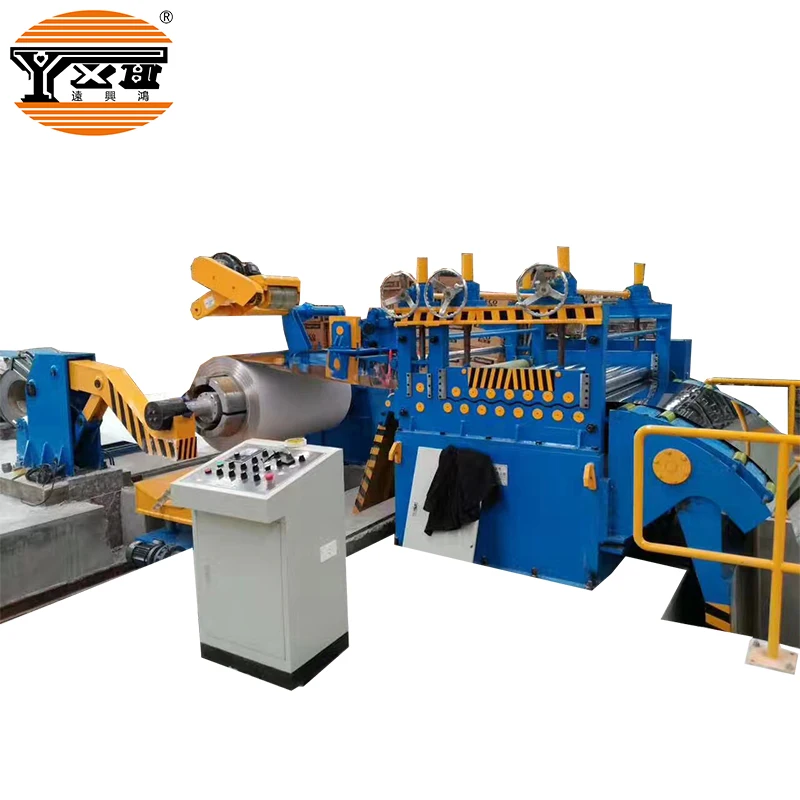

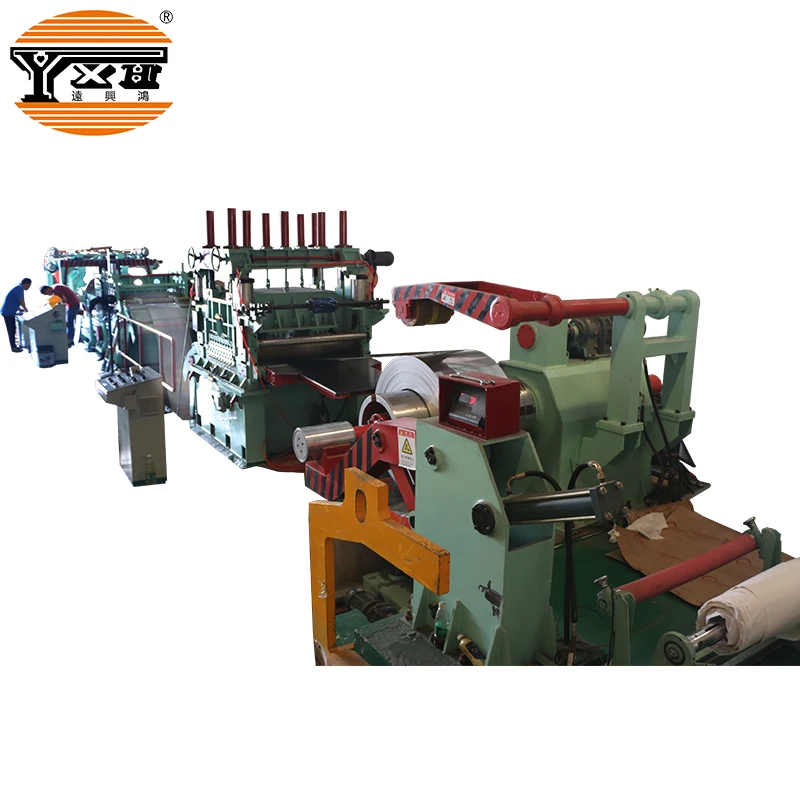

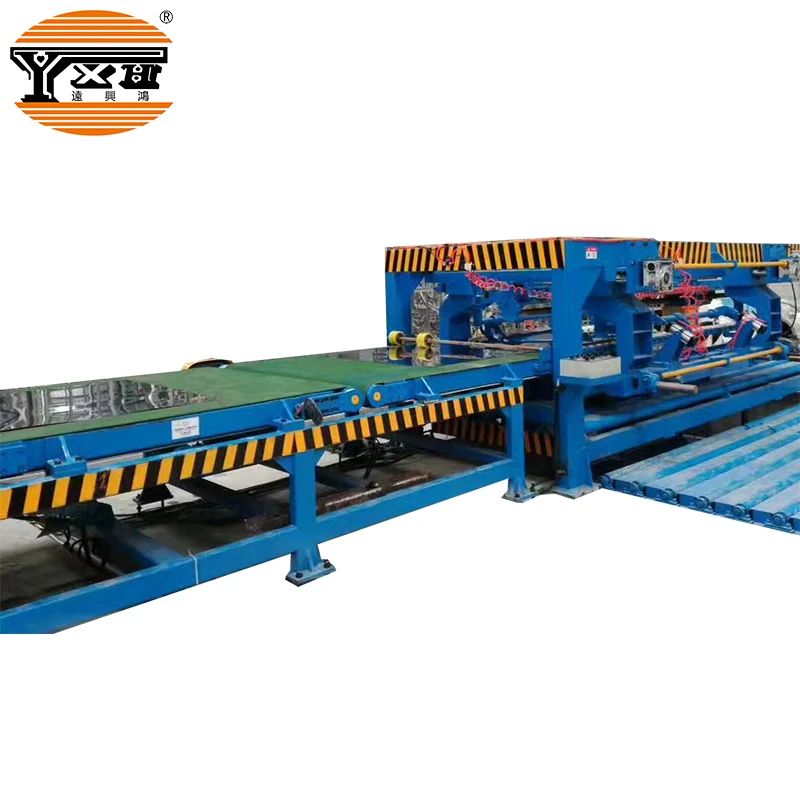

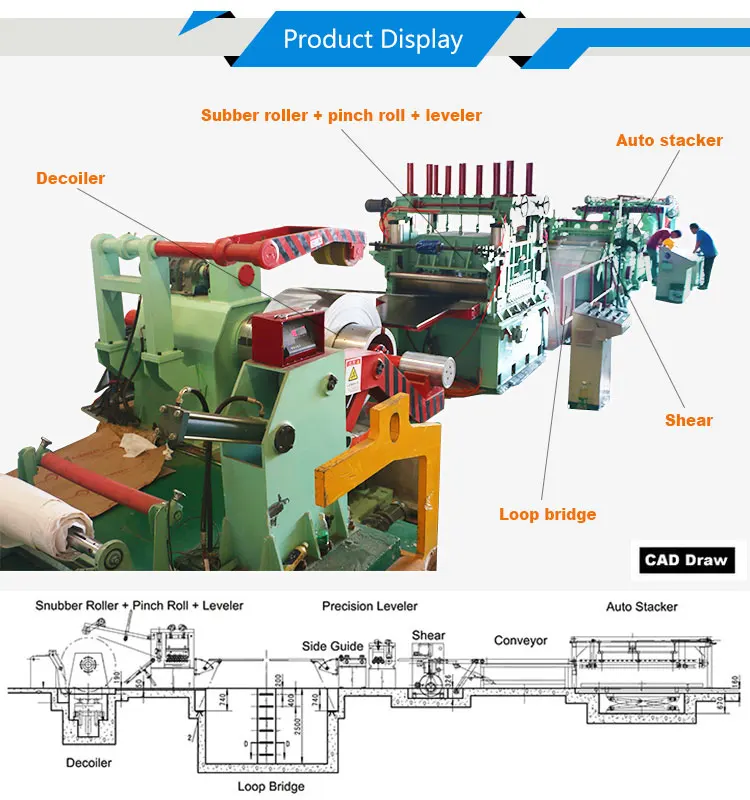

Automatic cut-to-length production line is high-speed and precise with workstations for uncoiling, straightening, measuring, cross-cutting to length and stacking. The machine consists of coil car, assisting support, decoiler, peeler device, leveler, coil guide, encoder scale, shearing machine, conveying table, stacker, output trolley, hydraulic system and so on. The whole line is controlled by PLC with computer display.This line is highly automatic with good straightening effect, précising cutting, efficient production, reliable performance, easy operation and maintenance.

Parameter



Cut to length machine
No.	Commodity	THK(mm)	Width(mm)	ID(mm)	OD(mm)	Weight(T)	Speed(m/min)	Capacity(kw)	Flood sapce(m)
1	2.0*500	0.2-2.0	200-500	φ508	≤φ1200	≤6	300-1500	75	16*4
2	2.0*650	0.2-2.0	200-650	φ508	≤φ1200	≤6	300-1500	75	16*4
3	2.0*1300	0.3-2.0	500-1300	φ508/610	≤φ1500	≤15	500-3500	95	22*7
4	2.0*1600	0.3-2.0	500-1600	φ508/610	≤φ1600	≤15	500-4000	122	22.5*8
5	2.6*1850	0.5-2.6	400-1850	φ508/610	≤φ1500	≤20	400-4000	180	25*9
6	3.0*1600	0.3-3.0	500-1600	φ508	≤φ1500	≤20	500-4000	90	23*8
7	4.0*1600	0.4-4.0	600-1600	φ508/610	≤φ2000	≤20	1000-2000	100	30*8

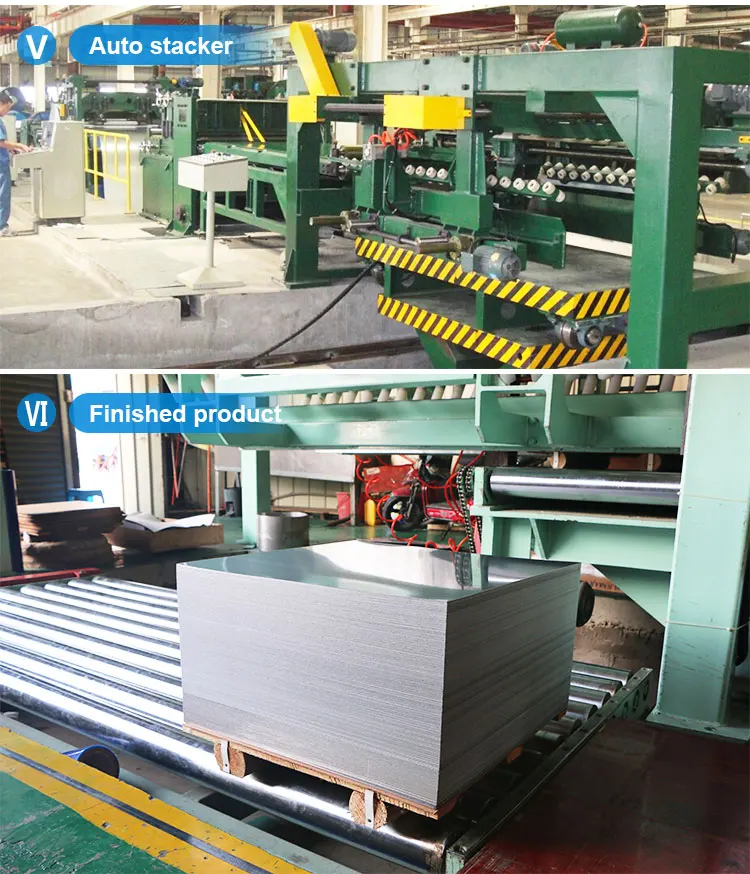

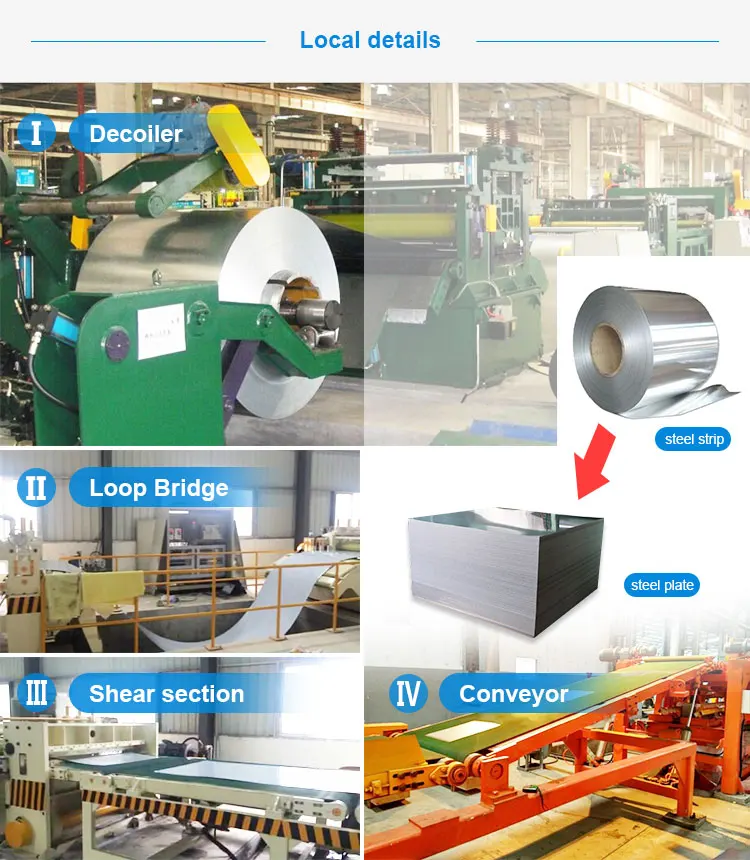

Detailed Images





Advantages
