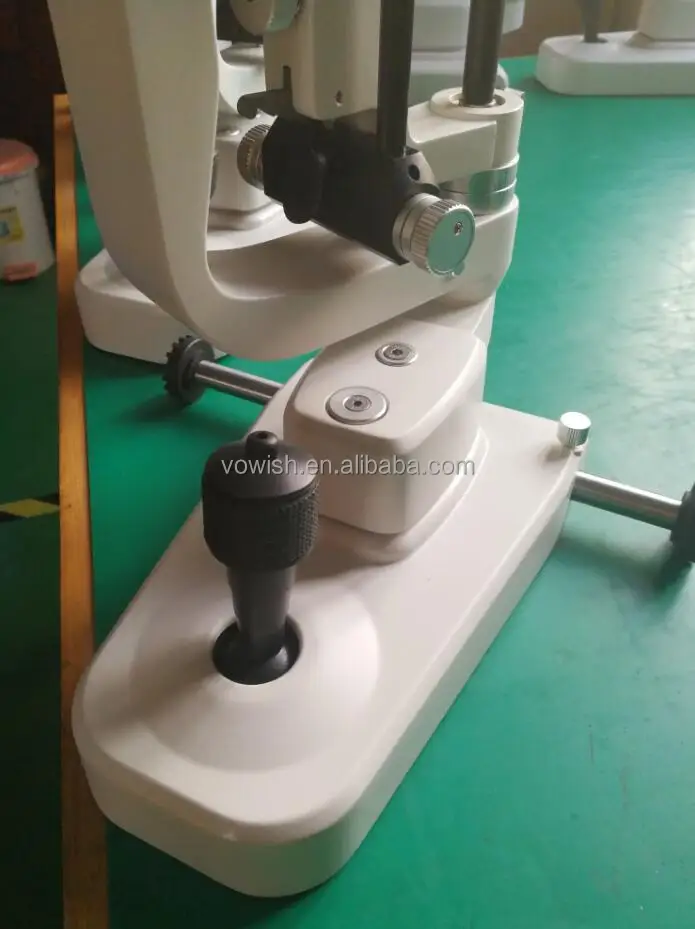

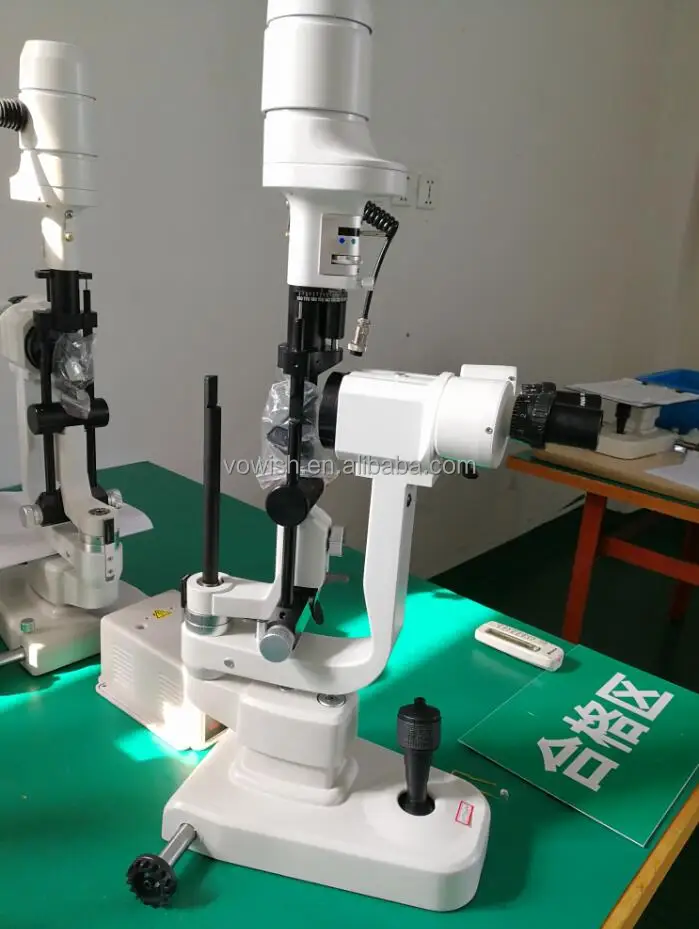

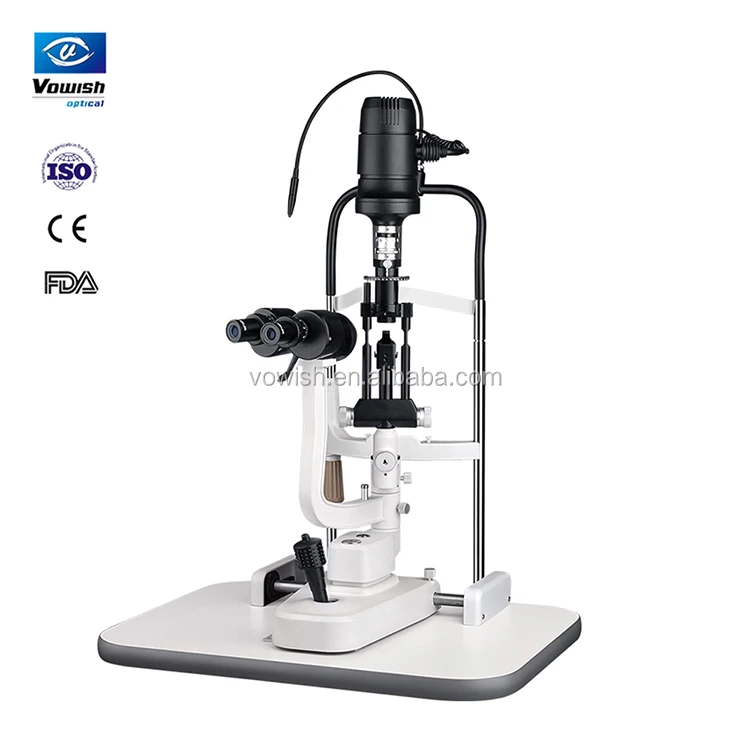

optical equipment high quality eye examination SLM 66B slit lamp microscope

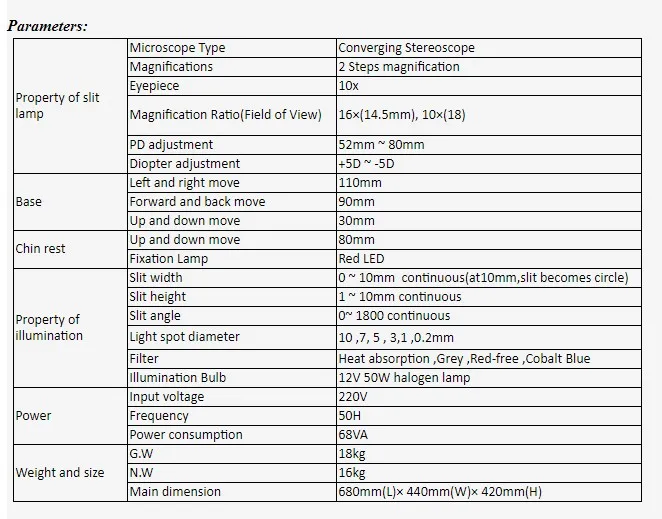

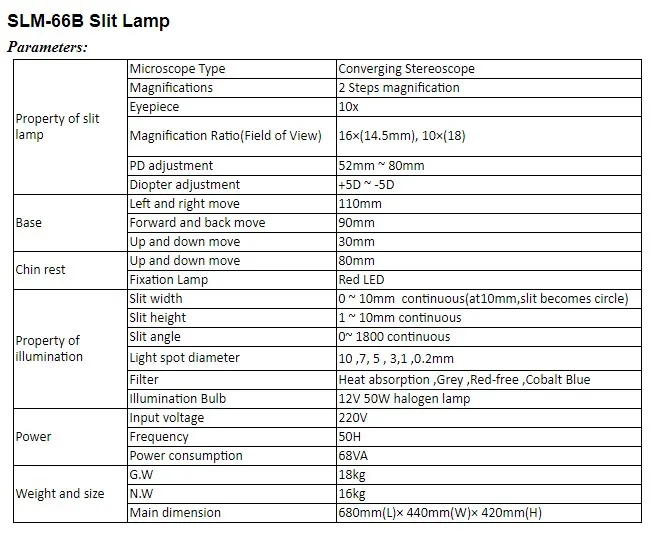

Property of slit lamp

Microscope Type

Converging Stereoscope

Magnifications

2 Steps magnification

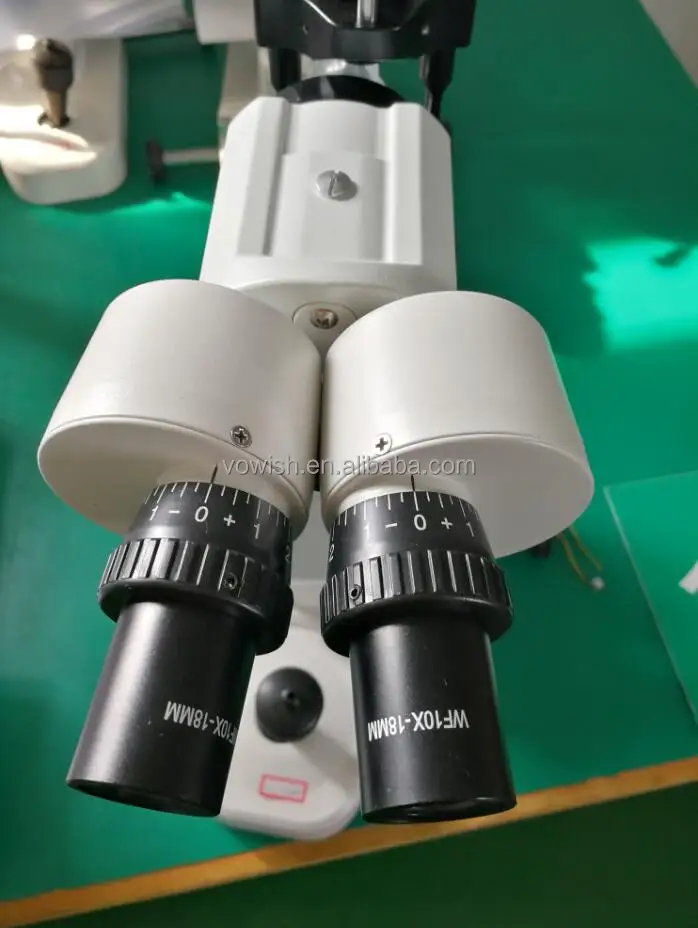

Eyepiece

10x

Magnification Ratio(Field of View)

16×(14.5mm), 10×(18)

PD adjustment

52mm ~ 80mm

Diopter adjustment

+5D ~ -5D

Base

Left and right move

110mm

Forward and back move

90mm

Up and down move

30mm

Chin rest

Up and down move

80mm

Fixation Lamp

Red LED

Property of illumination

Slit width

0 ~ 10mm  continuous(at10mm,slit becomes circle)

Slit height

1 ~ 10mm continuous

Slit angle

0~ 1800 continuous

Light spot diameter

10 ,7, 5 , 3,1 ,0.2mm

Filter

Heat absorption ,Grey ,Red-free ,Cobalt Blue

Illumination Bulb

12V 50W halogen lamp

Power

Input voltage

220V

Frequency

50H

Power consumption

68VA

Weight and size

G.W

18kg

N.W

16kg

Main dimension

680mm(L)× 440mm(W)× 420mm(H)
