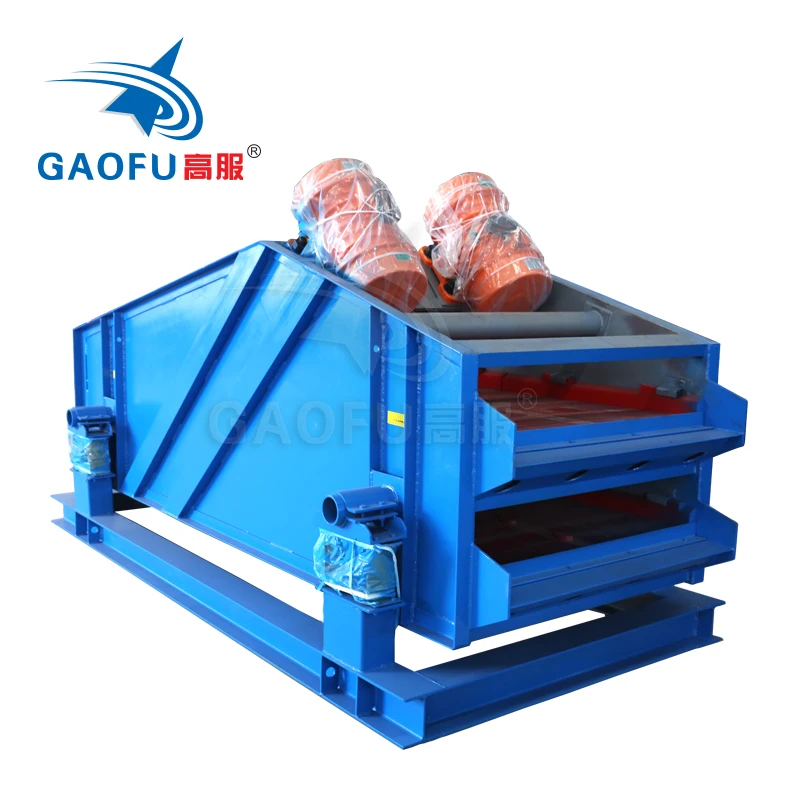

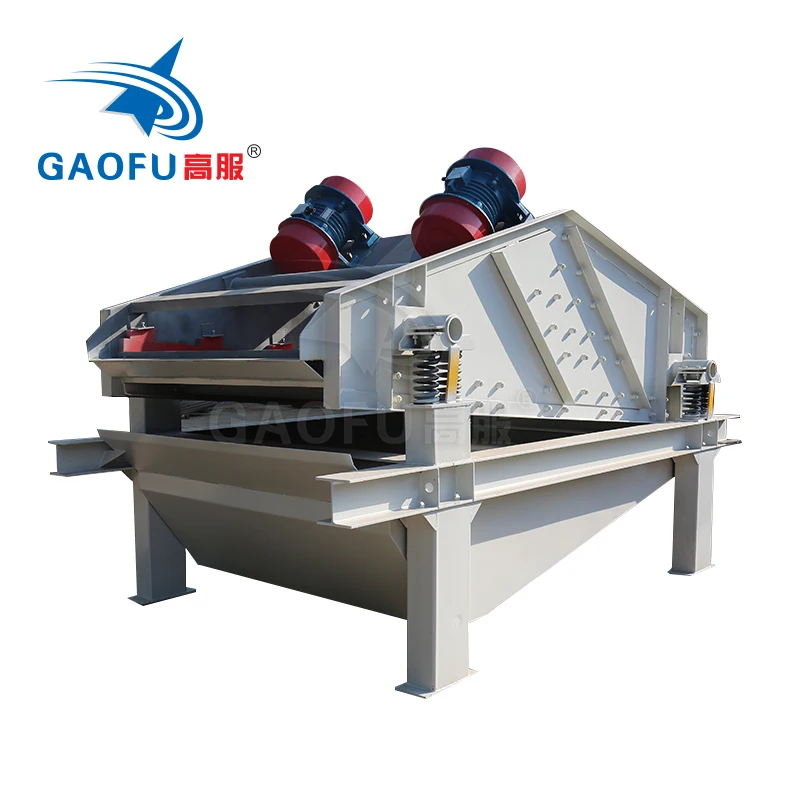

Big capacity industrial sieve shaking wet sand dewatering vibrating screen machine
Product Description

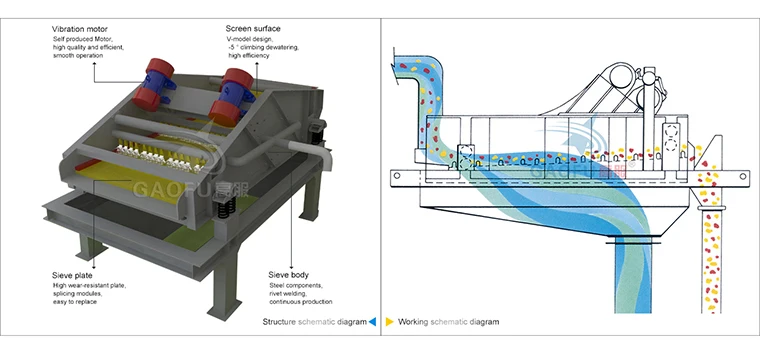

GVFD dewatering vibrating screen adopt dual-electrode self-synchronization technology, universal eccentric block, adjustable amplitude vibrator. The machine is combined mainly by the screen box, exciter, support system and motor. The two mutually independent vibrators are respectively driven by the tape coupling to do synchronous reverse operation. The centrifugal force generated by two eccentric masses is superposed along the vibration direction and reversely counteracted, thereby forming a single vibration force along the vibration direction, making the screen box reciprocating linear motion.

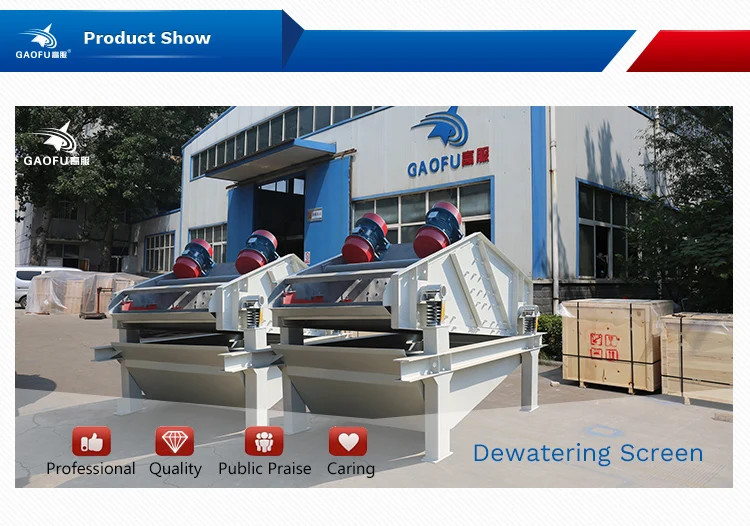

Product details

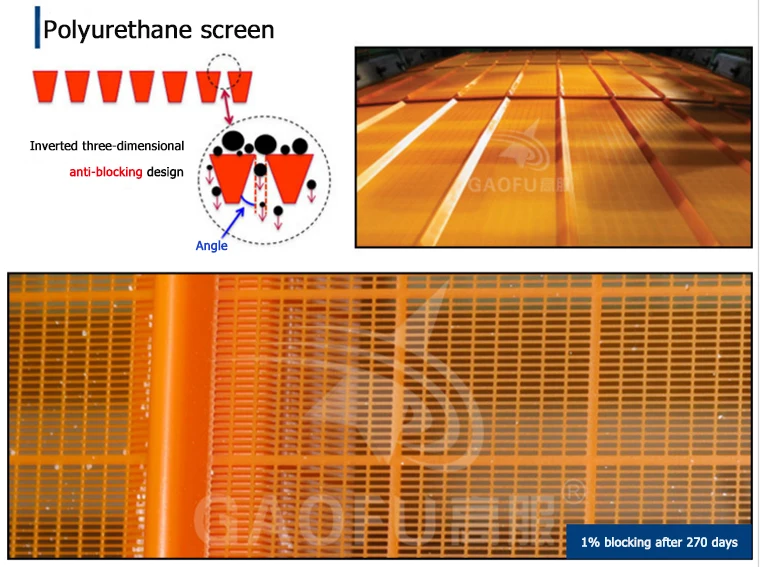

Because of the anti-blocking design, Gaofu screen plate has longer service life, so as to save the cost for customers.
![F]CAUB8DX{X1O6C$W_R$QZ9](http://sc01.alicdn.com/kf/HTB1XZIKsQCWBuNjy0Faq6xUlXXar/202398293/HTB1XZIKsQCWBuNjy0Faq6xUlXXar.jpg)
1. Waterproof proper frequency dedicated motor, double motor-driven self-synchronization technology , to achieve efficient of dewatering.
2. Compared with the traditional process, the Gaofu company new-type dry-line dewatering process has the advantages of small investment, simple process and small area, which is convenient for the system process layout.
3. Professional design of the frequency, amplitude, low-power source for a variety of dewatering needs 24-hour continuous operation.
4. V-screen design, -5 screen surface slope dewatering, dewatering screen with low water, high efficiency, large capacity per unit area.
5. High wear-resistant screen plate long life, modular assembly design, easy replacement, cost savings, screen mesh size can be selected according to requirements.
Application industries
Technical Parameters
Parameters of dewatering vibrating screen
| Model | Material Granularity (mm) | Power(kW) | Motor model | Angle | Amplitude (mm) | Exciter |
| VD-1036 | >0.15 | 2*1.8 | YZO-25-6 | 0-3 | 4-6 | None |
| VD-1236 | >0.15 | 2*2.2 | YZO-30-6 | 0-3 | 4-6 | None |
| VD-1536 | >0.15 | 2*3 | YZD-40-6 | 0-3 | 4-6 | None |
| VD-1836 | >0.15 | 2*3.7 | YZD-50-6 | 0-3 | 4-6 | None |
| VD-1845 | >0.15 | 2*7.5 | YE2 160M-6 | 0-3 | 6-8 | ZQB 50-6 |
| VD-2138 | >0.15 | 2*7.5 | YE2 160L-6 | 0-3 | 6-8 | ZQB 50-6 |
| VD-2438 | >0.15 | 2*11 | YE2 160L-6 | 0-3 | 6-8 | ZQB-64-6 |
| VD-2445 | >0.15 | 2*11 | YE2 160L-6 | 0-3 | 6-8 | ZQB64-6 |
Certifications
The company has passed the ISO9001:2008, CE, BV certification.
Why Choose us ?
Our strength
- more than 350 mployees,
- 20 designers technical team,
- 10 production line ,
- more than 30000 sets per year
- 60,000+m² cover area
Fine Quality
- The machine key part vibration motor is also produced by our factory .
- ISO9001, ,CE,TUV,BV ,SGS certificated.
- Our products have been exported more than 100 countries .
- Fine feedback from customer.
Superior Service
- Free design for your whole production line .
- Technical drawing is offered before production .
- Your material can be tested in our own lab to offer accurate output data for you .
- The testing is free and the testing processing video can be sent to you.
- The inspection videos will be sent before shipment .

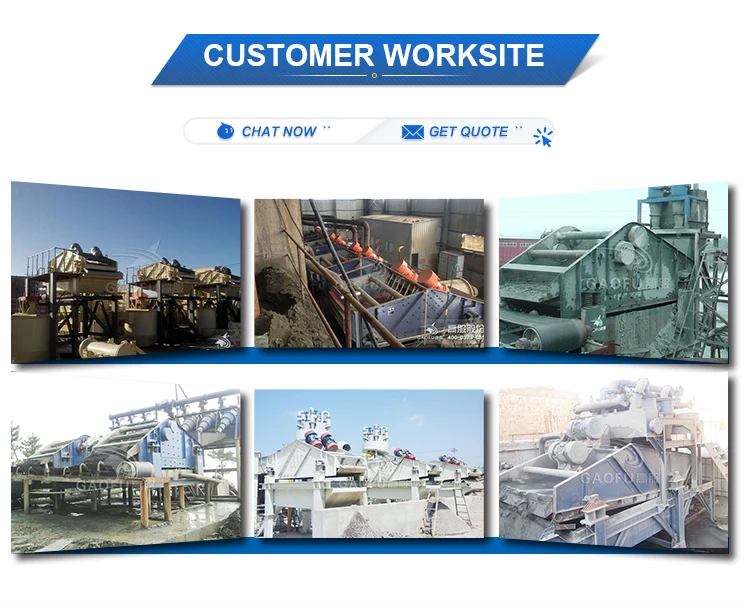

Customer Visit
Our customers from different countries visit usevery year.
Our Team & Service
Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Booking hotel and ticket for customers and Free transportation during visit our factory.
4. Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you requirements.
2.Help high-end customers to develop the local market
3.All packing and shipping can customized as per your requirements.
After-sale services
After customers received the goods,if have any questions or quality problems, Our customer service Dept. will be always available.
