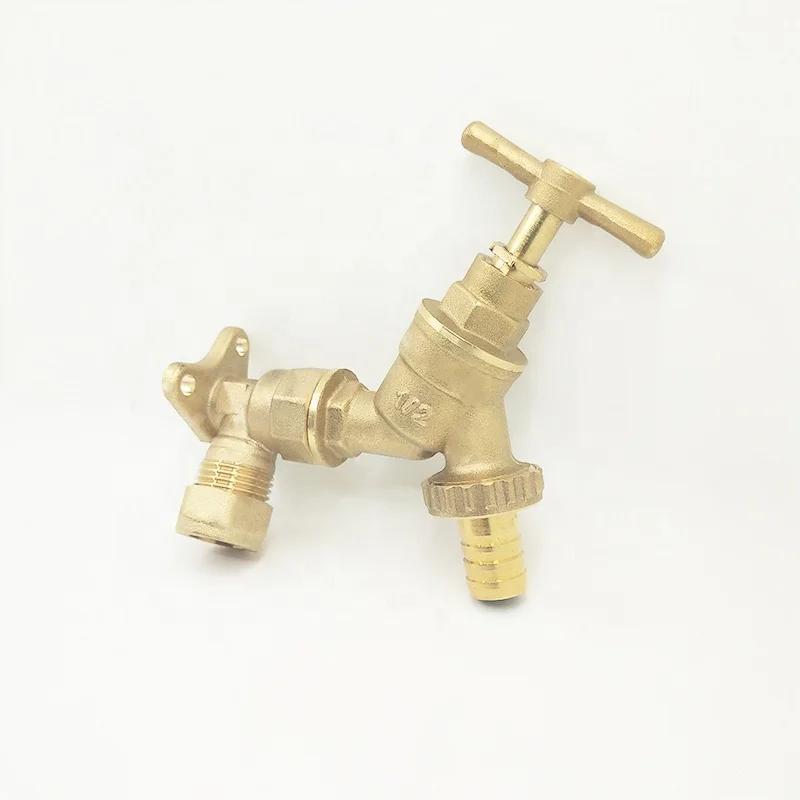

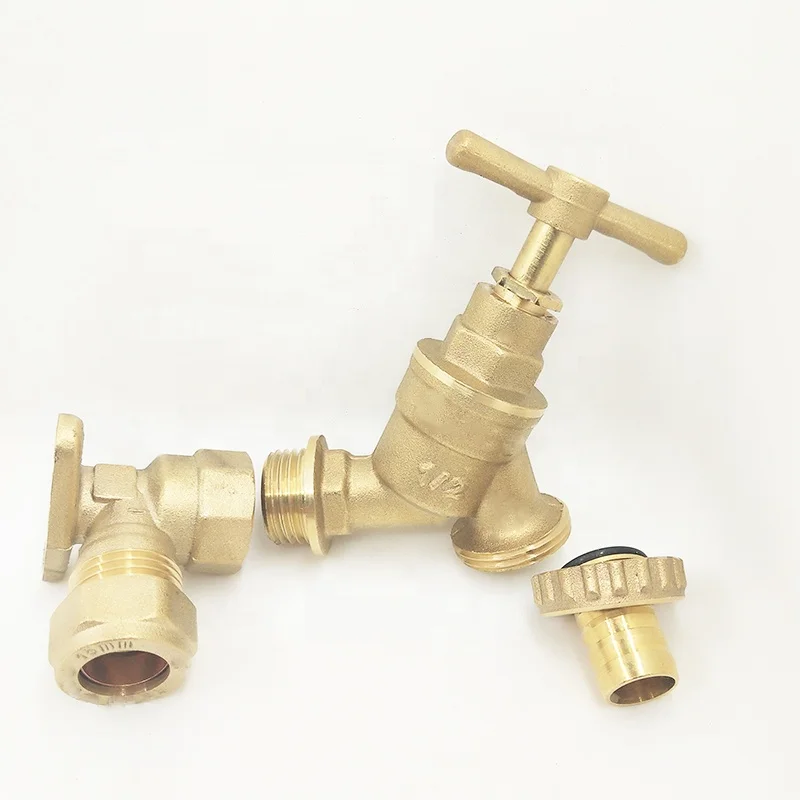

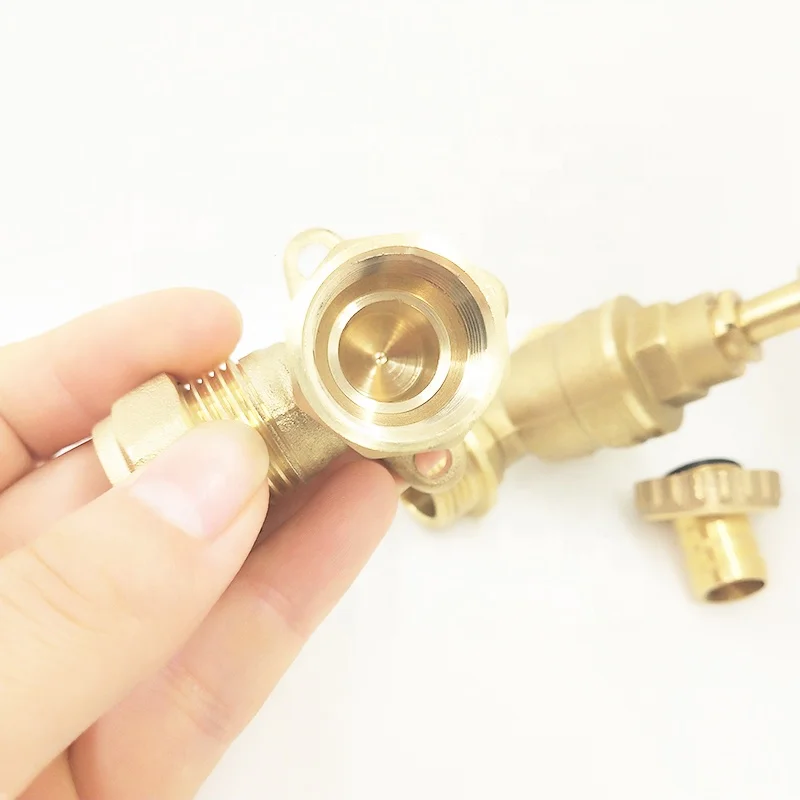

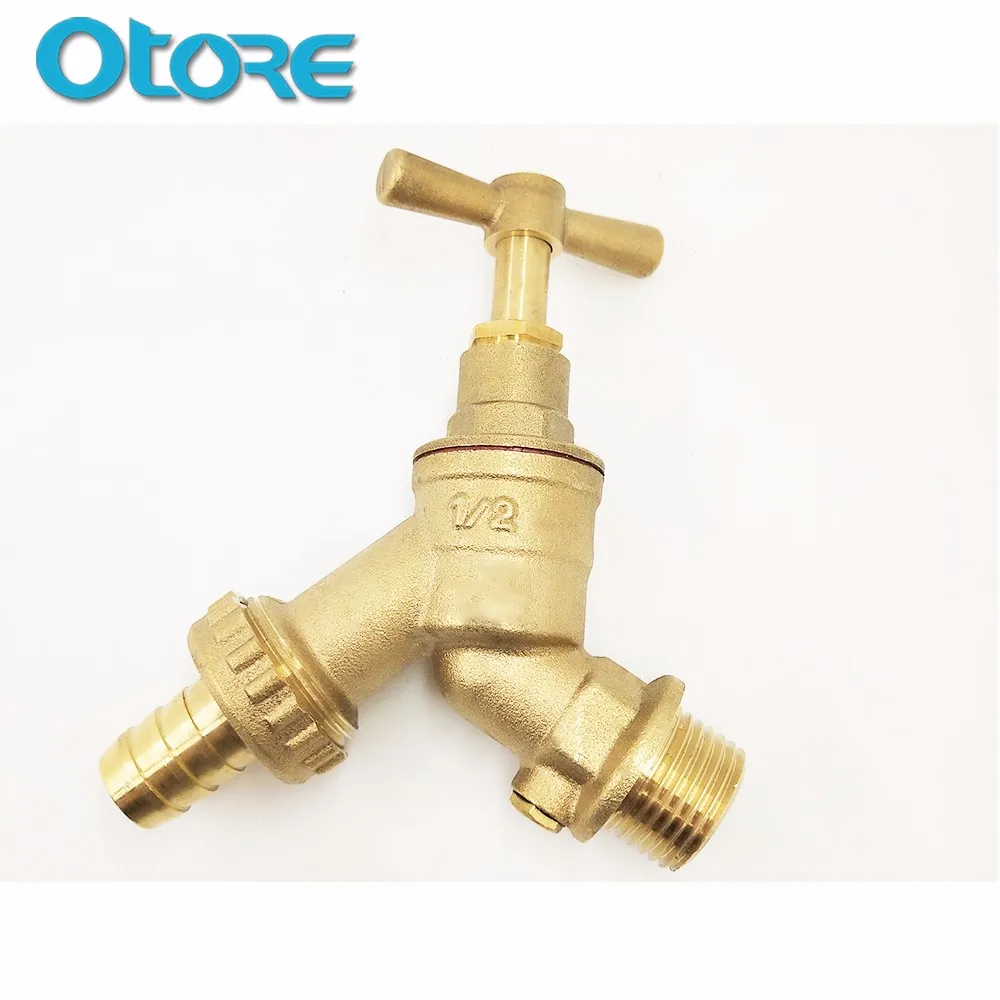

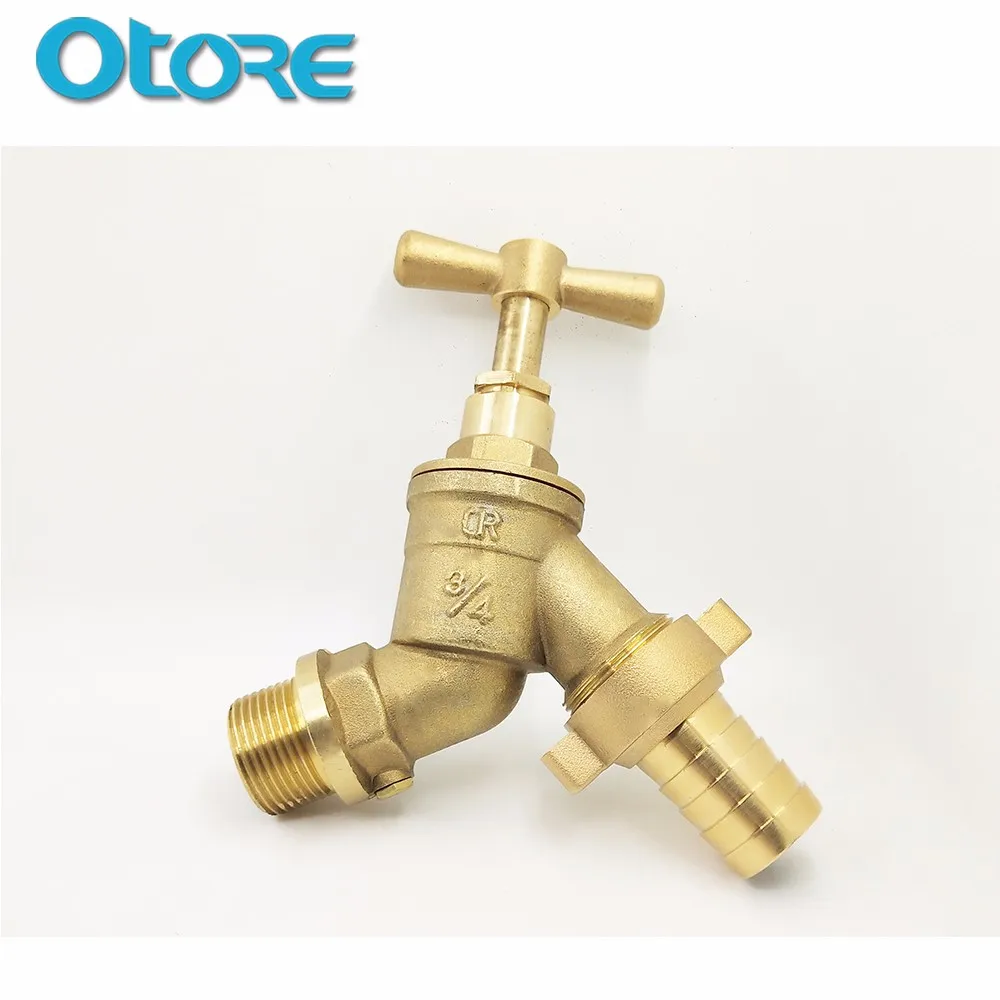

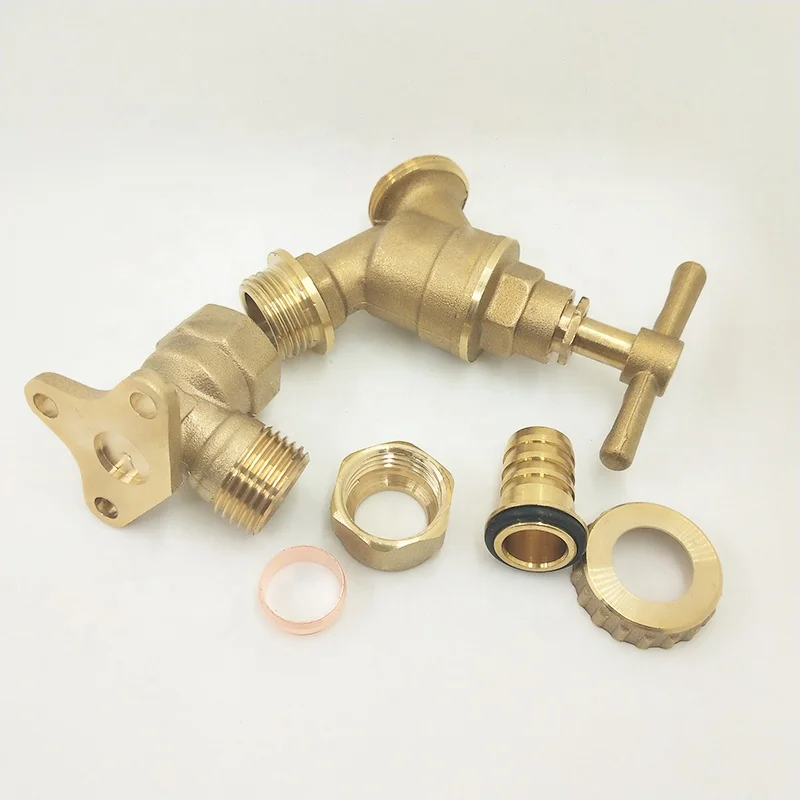

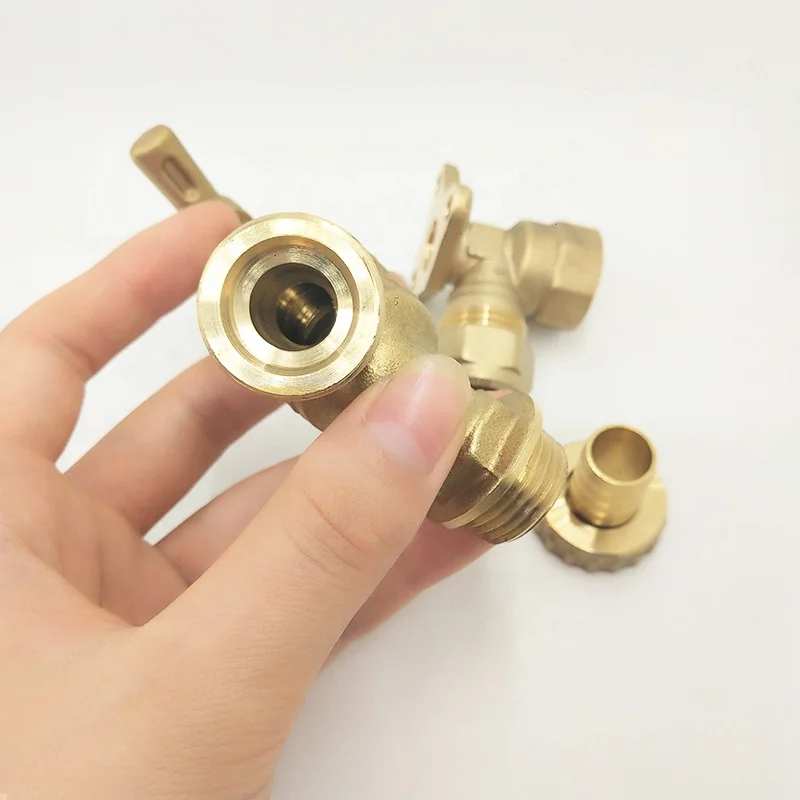

Otore 1/2" BSP Brass Garden Water Tap With Wall Plate Fixture
- Category: Bibcocks >>>
- Supplier: Yuhuan Aolong Valves Co. Ltd.
Share on (60768741422):
Share on (60768741422):
| Product Description | |
| Part Number | BB636 |
| Nominal Diameter | 1/2 inch ; 3/4 inch |
| Brass Alloy Code | CW602N |
| Nominal Pressure | PN≤1.6MPa |
| Working Temperature | T≤150℃ |
| Working Medium | Water |
| Thread Standard | 55° British system G Pipe thread |
1/2" MI (inlet) X 3/4"(outlet)
3/4" MI (inlet) X 1" (outlet)
10° outlet angle
HPb59-2
HPb57-3
C48600
CW617N
Parallel thread Ends manufactured to ISO228/1(DIN259, BS2779, JIS B0202)
G (PF) (BSPP)
Taper thread Ends manufactured to ISO7/1 (DIN2999, BS21, JIS B0203)
R, Rc (PT) (BSPT)
Taper thread to ANSI/ASME B1.20.1
NPT
100% Response Rate
100% Response Rate
100% Response Rate
Corrugated Carton
Common Size:29Lx18Wx22H cm
Plywood Pallet with Stretch Film
CNC WORKSHOP
ASSEMBLY WORKSHOP
OFFICE
SAMPLE ROOM
COMPANY CULTURE WALL
Issued by State of Administration of Work Safety
Issued by Taizhou Municipal Science and Technology Bureau
Issued by Zhejiang Provincial Science and Technology Department
1. Is your company a factory or trading company ?
Factory with over 10 years experience on brass valve and fittings manufacturing
2. What is your products warranty policy ?
There is 5-year products workmanship warranty
3. What is your advantage on OEM/ODM ?
We will assist you in providing free drawings design, free 3D modelling and sharing the mold charge
4. What Is DZR Brass ?
DZR (Dezincification Resistant) Brass is a type of brass resistant to dezincification corrosion
5. How to assure the DZR brass is qualified ?
DZR testing report will be provided to you before proceeding
you can also turn to third-party analytical laboratory and related testing charge will be on us if DZR testing failure
6. What is mold policy ?
Mold charge will be on us until the sample pass qualified or refunding you the mold charge
