FACTORY IN CHINA CE IP67 100W MPPT SOLAR ELECTRIC VEHICLE CHARGER 99% MPPT SOLAR CHARGE CONTROLLER WS M100 13.8

Product Overview

Description

Professional MPPT solar charge controller factory in China

All of the MPPT solar charge controllers have passed CE certification.



MPPT: Maximum Power Point Tracking
The MPPT controller utilizes Solar Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.

PRODUCT NAME		MPPT SOLAR CHARGE CONTROLLER
MANUFACTURER		WANSAN
MODEL		WS-M100-13.8V
CHARGING MODULE	PHOTOVOLTAIC INPUT POWER	100W
	PHOTOVOLTAIC INPUT VOLTAGE	14-25V
	OUTPUT TO BATTERY VOLTAGE	13.8V
	OUTPUT TO BATTERY CURRENT	8A
	PWM CONVERSION EFFCIENCY	97%
	MPPT EFFECTIVENESS	99%
PROTECTION MODULE	BATTERY SHORT CIRCUIT PROTECTION	YES
	TEMPERATURE PROTECTION	YES
	IP CLASS	IP67
LINE LENGTH		10CM

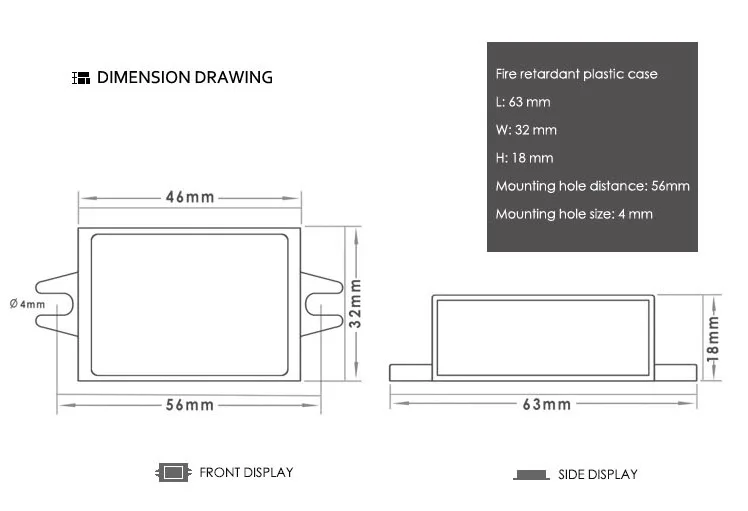

DIMENSIONS		46mm × 32mm × 18mm
N.W.		65g

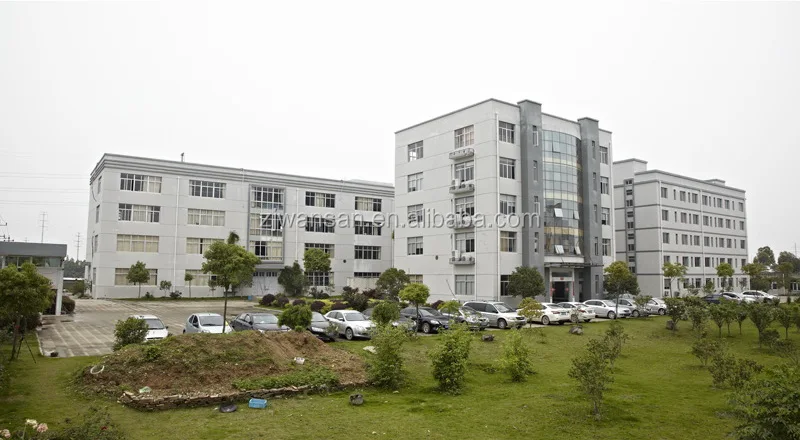

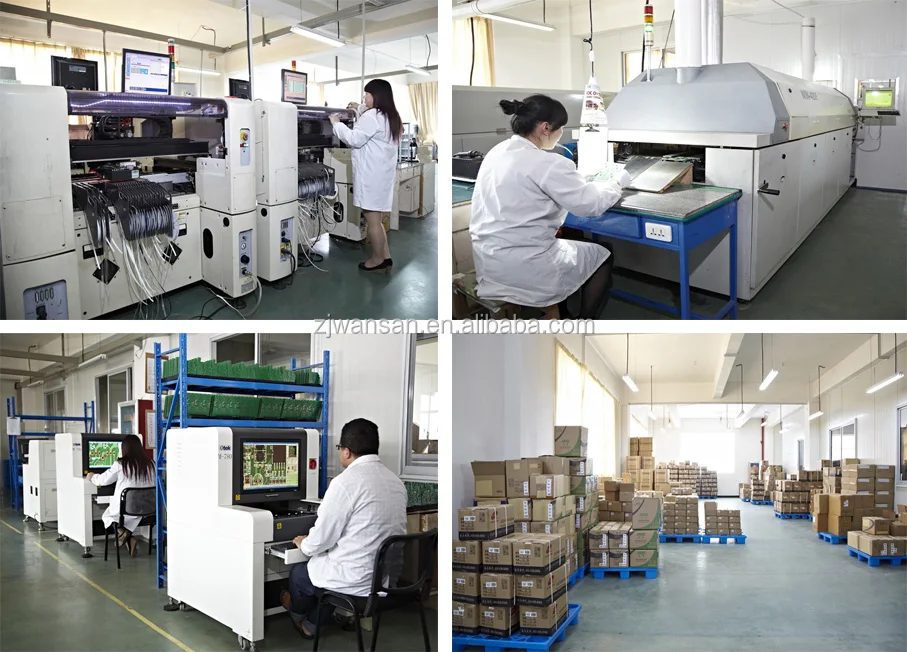

COMPANY INFORMATION:



FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all solar charge controllers.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional solar charge controllers’ designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
