Low MOQ Syringe Pump KL 702 Hospital Standard Portable Double Channel Syringe Pump
- Category: >>>
- Supplier: Beijing Kellymed Co. ltd.
Share on (60768799006):
Product Overview
Description
Products Display
Product Paramenters
Model | Syringe Pump KL-702 |
Syringe Size | 10, 20, 30, 50/60 ml |
Applicable Syringe | Compatible with syringe of any standard |
VTBI | 0.1-10000 ml |
＜100 ml in 0.1 ml increments | |
≥100 ml in 1 ml increments | |
Flow Rate | Syringe 10 ml: 0.1-420 ml/h |
Syringe 20 ml: 0.1-650 ml/h | |
Syringe 30 ml: 0.1-1000 ml/h | |
Syringe 50/60 ml: 0.1-1600 ml/h | |
＜100 ml/h in 0.1 ml/h increments | |
≥100 ml/h in 1 ml/h increments | |
Bolus Rate | Syringe 10 ml: 200-420 ml/h |
Syringe 20 ml: 300-650 ml/h | |
Syringe 30 ml: 500-1000 ml/h | |
Syringe 50/60 ml: 800-1600 ml/h | |
Anti-Bolus | Automatic |
Accuracy | ±2% (mechanical accuracy ≤1%) |
Infusion Mode | Flow rate: ml/min, ml/h |
Time-based | |
Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc. | |
KVO Rate | 0.1-1 ml/h (in 0.1 ml/h increments) |
Alarms | Occlusion, near empty, end program, low battery, end battery, |
AC power off, motor malfunction, system malfunction, standby, | |
pressure sensor error, syringe installation error, syringe drop off | |
Additional Features | Real-time infused volume, automatic power switching, automatic |
syringe identification, mute key, purge, bolus, anti-bolus, system | |
memory, history log, separate channel alarm, power saving mode | |
Drug Library | Available |
Occlusion Sensitivity | High, medium, low |
History Log | 50000 events |
Wireless Management | Optional |
Power Supply, AC | 110/230 V (optional), 50/60 Hz, 20 VA |
Battery | 9.6±1.6 V, rechargeable |
Battery Life | Power saving mode at 5 ml/h, |
10 hours for single channel, 7 hours for double channel | |
Working Temperature | 5-40℃ |
Relative Humidity | 20-90% |
Atmospheric Pressure | 860-1060 hpa |
Size | 330*125*225 mm |
Weight | 4.5 kg |
Safety Classification | Class Ⅱ, type CF |
Product Details

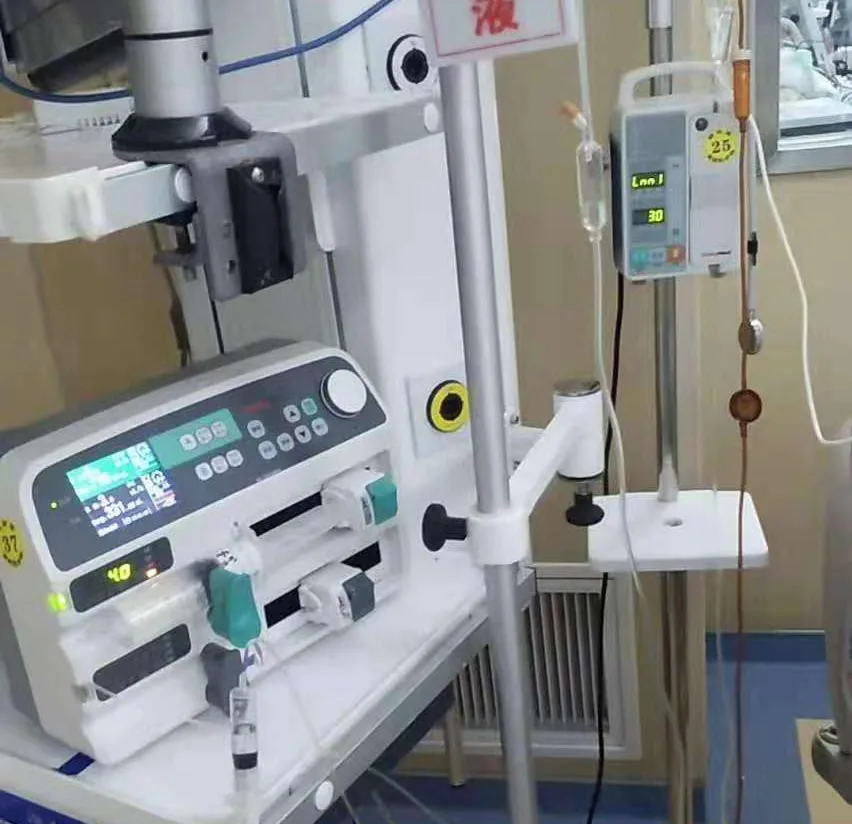

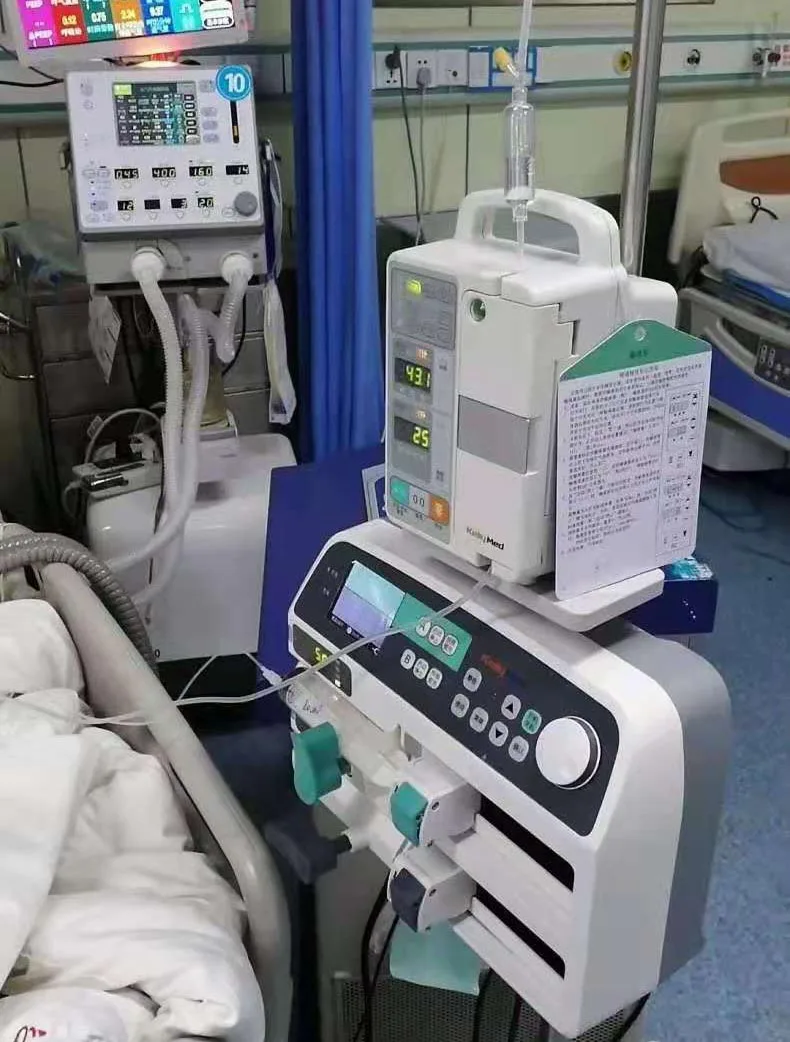

ICU, CCU, NICU, emergency, operation room, paediatrics, obstetrics, cardiology, oncology, hematology
Related Products
Company Profile
Founded in 1994, Beijing KellyMed Co., Ltd. is a high technology corporation engaged in R&D, manufacturing and marketing of infusion systems, supported by Institute of Mechanics, Chinese Academy of Sciences.
Manufacturing Facility, R&D Center, QC Division, Domestic Sales Division, Int’l Sales Division and Customer Support Center were established under KellyMed.
Engineers are major in Physics, Infrared Radiation, Electronics, Ultrasound, Automation, Computer, Sensor and Mechanics.
57 patents were granted by State Intellectual Property Office of China. KellyMed is ISO13485 certified. Most of the products are CE marked.
In 1994, KellyMed developed the original Chinese-made Infusion Pump. Mr. Qian Xinzhong, the former Minister of Health wrote an inscription for our innovation.
The company today produces world-class equipments, which are sold not only in China, but also exported to more than 60 countries across Europe, Oceania, South America and Asia.
As a main player in this field, KellyMed focused on infusion technology for last 30 years.
Product Range of medical equipment:
1. Infusion Pump
2. Syringe Pump
3. Feeding Pump
4. TCI Pump
5. Docking Station
6. Intermittent Pneumatic Compression
Product Range of medical disposables:
1. Feeding Set
2. Nasogastric Tube
3. Dedicated IV Set
Manufacturing Facility, R&D Center, QC Division, Domestic Sales Division, Int’l Sales Division and Customer Support Center were established under KellyMed.
Engineers are major in Physics, Infrared Radiation, Electronics, Ultrasound, Automation, Computer, Sensor and Mechanics.
57 patents were granted by State Intellectual Property Office of China. KellyMed is ISO13485 certified. Most of the products are CE marked.
In 1994, KellyMed developed the original Chinese-made Infusion Pump. Mr. Qian Xinzhong, the former Minister of Health wrote an inscription for our innovation.
The company today produces world-class equipments, which are sold not only in China, but also exported to more than 60 countries across Europe, Oceania, South America and Asia.
As a main player in this field, KellyMed focused on infusion technology for last 30 years.
Product Range of medical equipment:
1. Infusion Pump
2. Syringe Pump
3. Feeding Pump
4. TCI Pump
5. Docking Station
6. Intermittent Pneumatic Compression
Product Range of medical disposables:
1. Feeding Set
2. Nasogastric Tube
3. Dedicated IV Set
