Product Overview

Description

1.Support SMS, dial-up and CSD function
2.Support standard AT command
3.Support APN/VPDN

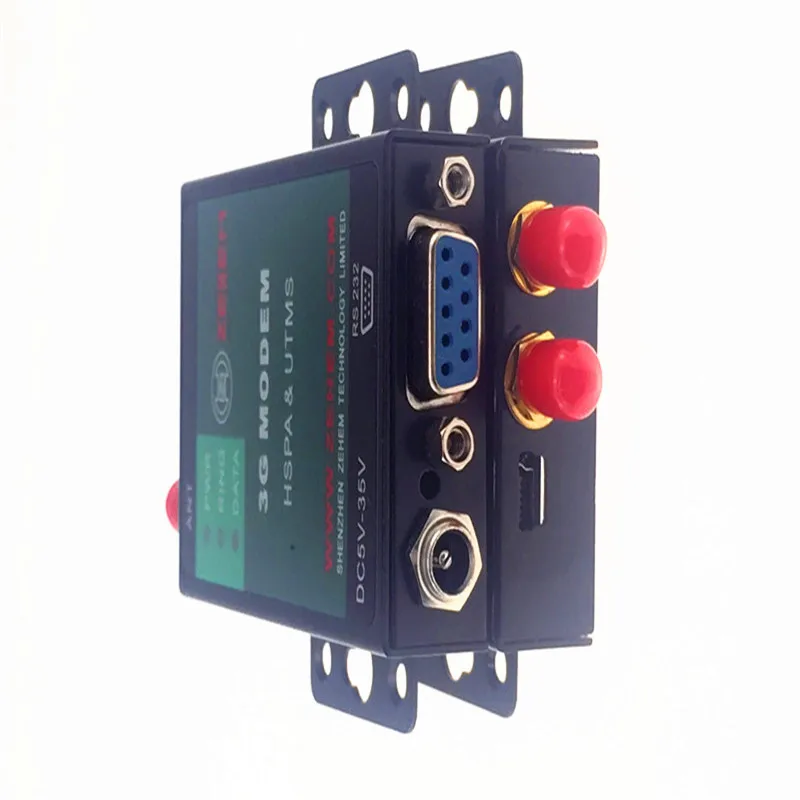

Standard DB9 (RS232 standard 9-pin) Serial communications, external input 6V ~ 36V DC, with a voice interface. Built-in SIMCOM SIM5216E 3G WCDMA industrial communication module, stable quality, suitable for a variety of environmental, industrial remote control is a good helper. ATC-5216E WCDMA 3G MODEM is a based on GSM GPRS EDGE WCDMA HSDPA HSUPA network platform, standard industrial grade standard design, with the Chinese messaging, the English text messaging and 3G HSDPA HSUPA high-speed wireless Internet access. Provides RS232 standard interface to connect directly with the user equipment to achieve messaging capabilities. Used in finance, water conservancy, environmental protection, public security, oil, electricity, postal services, meteorology, telecommunications, transportation, etc. Industries.



Our 3G gsm modem are mainly based on the brand OF Simcom modules,

the model number are as below: Built SIM5320 main features:

• SIM5320A:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  SIM5320(J)E:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  SIM5320J:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- WCDMA 850/1900: 0.25W
- WCDMA 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4~ 4.2V
• Operation temperature: -30℃ to +80℃
• Extended operation temperature: -40℃ to +85℃
• Dimension: 30 * 30 * 2.9 mm
• Weight: 5.6g

Support embedded Script Language
• LUA Script Language
• Embedded AT *

Specifications for GPS/Location
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode

Specifications for Data transfer
• HSDPA
- Max. 3.6Mbps(DL)
• WCDMA
- Max. 384Kbps(DL),Max.384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL),Max.118Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL),Max.42.8Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
• Multi-PDP connect application




 STK / USSD Mobile recharge
Function= Top Up / Mobile Recharge + Check Balances
STK consists of a set of commands programmed into the SIM which define how the SIM should interact directly with the outside world and initiates commands independently of the handset and the network. This enables the SIM to build up an interactive exchange between a network application and the end user and access, or control access to, the network. The SIM also gives commands to the handset such as displaying menus and/or asking for user input.

USSD is commonly used by prepaid GSM cellular phones to query the available balance. The vendor's "check balance" application hides the details of the USSD protocol from the user. On some pay as you go networks, such as Tesco Mobile, once a user performs an action that costs money, the user sees a USSD message with his or her new balance. USSD can also be used to refill the balance on the user's SIM card and to deliver one time passwords or PIN codes.

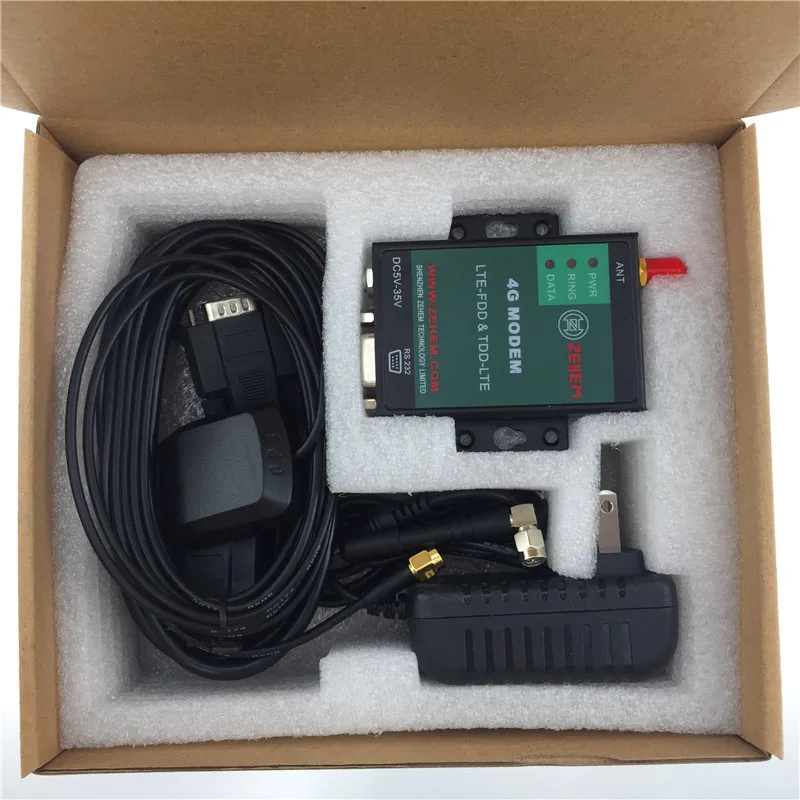

Packing contents

sim5320 modem

Sucker antenna

Power adapter (Chinese, English, American and European regulatory optional)

RS232 data cable

Mini usb cable

CD Driver ( for usb)
