40hp Good lubricity frozen cold compressor for sale

Product Overview

Description

40hp Good lubricity frozen cold compressor for sale

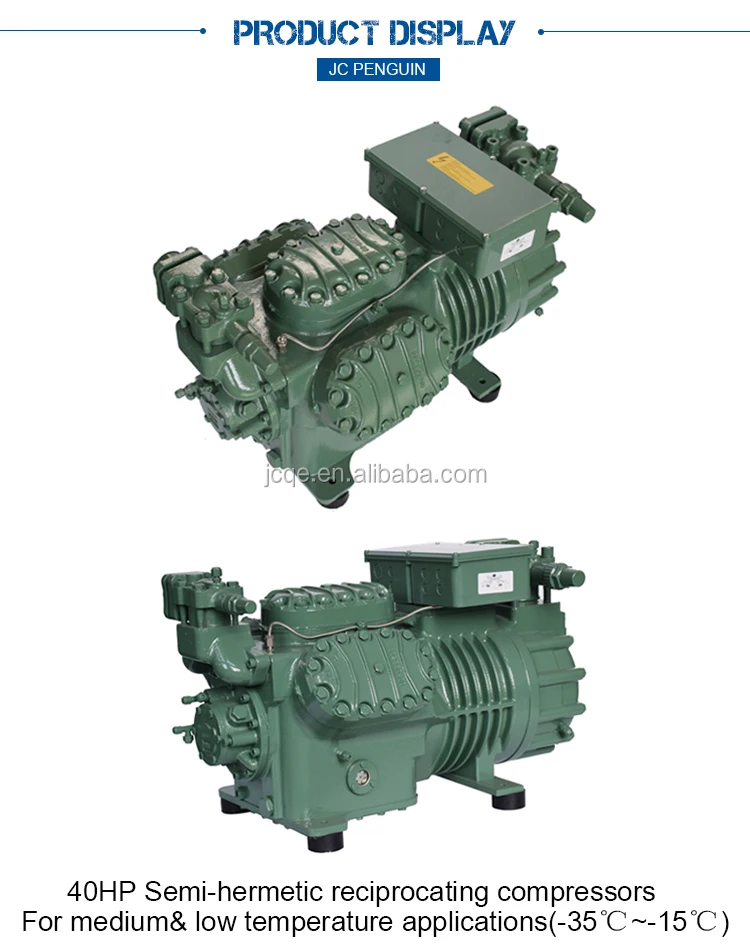

Product Description:	SEMI-HERMETIC RECIPROCATING COMPRESSORS(Yangtze series)
Product Range:	10HP-50HP
Refrigeration Type:	R22(R12/R502),R134a,R404A,R407C
Evaporating Temperature Range:	R22:-30~+12.5℃,  R134a:-30~+12.5℃, R404A:-35~+7.5℃,R407C:-25~12.5℃
Primary Application:	Our products have same application like compressors and other brands refrigeration compressor which can applied cold stroage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food,also can applied to Frozen Foods Equipments/Potato Chips line/Full Line Frozen Food/Ice Cream Vending Machine/frozen sucker set/frozen stick confection producing line /ice sucker machine/ice candy producing/ice cream machine/frozen yogurt machine/Reliable Quick Frozen Machine/Green Soy Bean frozen vegetables and fruit processing line machinery
Tech. Data:
Model	Motor Nominal Power	Displacement	Max operating current A	Fuel Supply mode	Weight
	HP/kW	m3/h	A		Kg
4VB10.2Z	10HP/7.5KW	48.5	21	Centrifugal lubrication	92
4VB12.2Z	12HP/8.8KW	56.25	24	Centrifugal lubrication	110
4VB15.2Z	15HP/10.5KW	73.6	31.0	Pressure lubrication	135
4VB20.2Z	20HP/15KW	84.5	37.0	Pressure lubrication	135
6WB30.2Z	30HP/22KW	126.8	53.0	Pressure lubrication	140
6WB40.2Z	40HP/30KW	151.6	78.0	Pressure lubrication	162
4VB15.2G	15HP/10.5KW	48.5	24	Centrifugal lubrication	98
4VB20.2G	20HP/15KW	56.3	31.0	Centrifugal lubrication	110
4VB25.2G	25HP/18.5KW	73.6	37.0	Pressure lubrication	100
4VB30.2G	30HP/22KW	84.5	53.0	Pressure lubrication	140
6WB40.2G	40HP/30KW	126.8	78.0	Pressure lubrication	150
6WB50.2G	50HP/37KW	151.6	92.0	Pressure lubrication	180
"Z " means medium& low temperature applications(-35℃~-15℃), "G" means high temperature application(-15℃~+12.5℃)

 -------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Jiangsu Taixing Jingchuang Penguin Refrigeration Equipment Manufactory (JC PENGUIN) was established in 1992, we are an enterprise specializing in the development and production of refrigerating compressors and related condensing units. The main products range from semi-hermetic Piston refrigerating compressors to scroll and screw refrigerating compressors and related condensing units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.
