Wireless Security GSM Alarm System Support RFID Function

Product Overview

Description

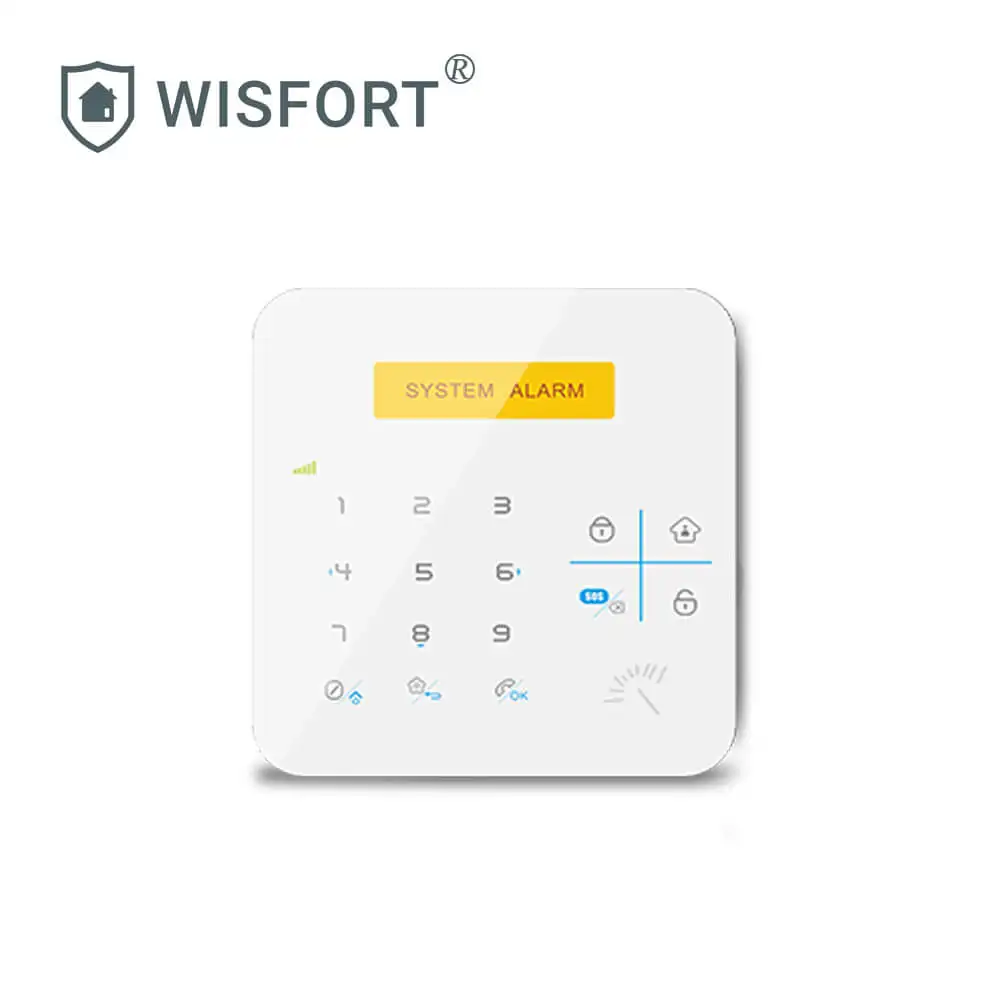

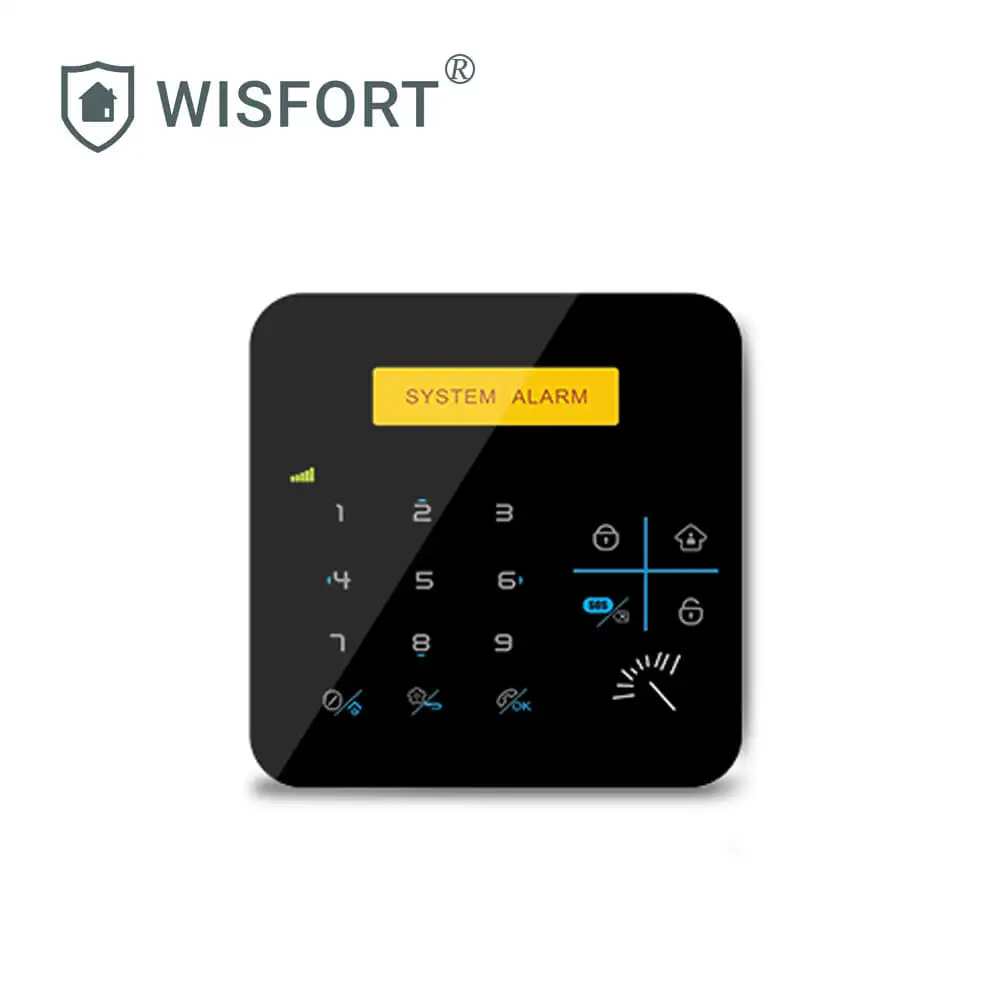

Wireless Security GSM Alarm System Support RFID Function



GS-S6-R is an innovative wireless alarm system has built-in GSM communicator. The alarm system doesn't require telephone line connection, because it transmits alarm through GSM cellular network (compliant with global cellular network). As it uses wireless network, you will not be afraid of telephone line cut.



GS-S6-R is a self-contained alarm system adopts sleek design, it has an illuminated LCD display to make the set-up and operation easy while the touch keypad will allow user to operate and program system without additional devices.



Product Features

• LCD display with touch keypad
• Quad-band GSM communicator, works with SIM card
• Five personal emergency phone numbers
• One Alarm Receiving Centre phone number
• Alarm notification via phone call or SMS
• Built-in speaker and microphone
• Remote two-way audio intercom
• Hand-free phone call function
• Report system's status via SMS
• Alarm memo, entry delay, exit delay
• 2-way supervised wireless connection
• Hybrid alarm, 30 wireless zones, 4 hardwired zones
• Advanced zone attribute, user-friendly zone names
• Support wireless LCD/LED keypad and wireless siren
• Alarm communication via ADEMCO Contact ID (CID) protocol
• RFID function
• Free smartphone App (Android and iOS)



Why GS-S6-R is different?



GS-S6-R has embedded with a user-friend software system, it has advanced zone attributes (including bypass, zone type, sensor type, zone chime, smart sensor etc), you can config each of zones to meet your specific requirement. Moreover, the communication between wireless sensors and alarm panel is two-way supervised. Losing connection or battery running out, user will be notified instantly. Additionally, GS-S6-R supports smart home automation function, it can work with up to 8 wireless remote sockets. Lastly, GS-S6-R supports RFID function, just swipe the RFID tag, you can easily activate/deactivate the system.



Audible alarm system



GS-S6-R is an audible alarm system provides visible deterrent to opportunist thieves, when alarm is triggered, the system will make warning noise to scare off an intruder, while waking you up if you are at home or making your neighbors aware of a break-in. The alarm system has built-in 100dB siren, it also can connect with hardwired siren. For easy installation, the system works with up to 10 wireless indoor/outdoor strobe sirens.





GSM Dialler



GS-S6-R uses GSM dialler to communicate. Users need to buy a SIM card to insert into the alarm panel. The system is able to call and send a text message to 5 phone numbers that you have programmed into it. Once an alarm occurs, the system will automatically dial phone call or send a text message. Users can deactivate the alarm system through entering a code and replying to the text message with a code, or even using smartphone application (App).





Monitored alarm system



GS-S6-R alarm system also can be a monitored alarm system that communicates with an Alarm Receiving Centre (ARC). The system is compliant with ADEMCO Contact ID (CID) protocol for alarm transmission. CID protocol is the universal alarm protocol in alarm monitoring industry, you can easily find a monitoring security company runs the ARC, responding 24/7 to alarm signals. Additionally, we offer digital alarm receiver + free software that allows you to setup an ARC.



How To Install It?



GS-S6-R is a do-it-yourself (DIY) wireless security system that is easy to install and use. Before the installation, you need to insert a valid GSM compliant SIM card which operates frequency 850/900/1800/1900MHz. Choose a place near your primary entry door and close to a power source to install the alarm panel. Typically, you need to drill two holes, then screw two nails into the wall to install the alarm panel.

How To Install wireless door/window sensor?

Protecting doors and windows with our sensors give you your first line of defense for break-ins. Particularly effective on your first flood doors and windows, you can rest easy knowing your vital access points are protected.



• Put the battery into door/window sensor
• Mount the transmitter (with battery inside) on the door frame, the magnet strip on the door
• Make sure that the magnet is always on the right side of the transmitter
• Make sure the gap distance between magnet strip and transmitter will not be more than 1cm
• Attach the transmitter and magnet with double-sided tape or screws
• Avoid placing the detector in area with large metallic structures or electrical installations such as boiler area or counters.



How To Install wireless PIR motion sensor?



When you are away from home, the PIR motion sensors add another layer of protection by letting you know when anything unusual is going on. Our motion sensors are ideal for large, open space or areas with a lot of windows in your home. They also help reduce the number of door/window sensors you'll need, keeping things even simpler.



PIR Motion Sensor Installation



• Indoor environment only
• Put 2x AA 1.5V batteries inside PIR sensor
• Mount the sensor on the wall above 2 meters height
• Adjust sensor angle let lens aim at the entry point of door.
• Mount the sensor on corridor to detect movement
• The detection angle is 110 °and maximum 12 meters



How to Use RFID tags?

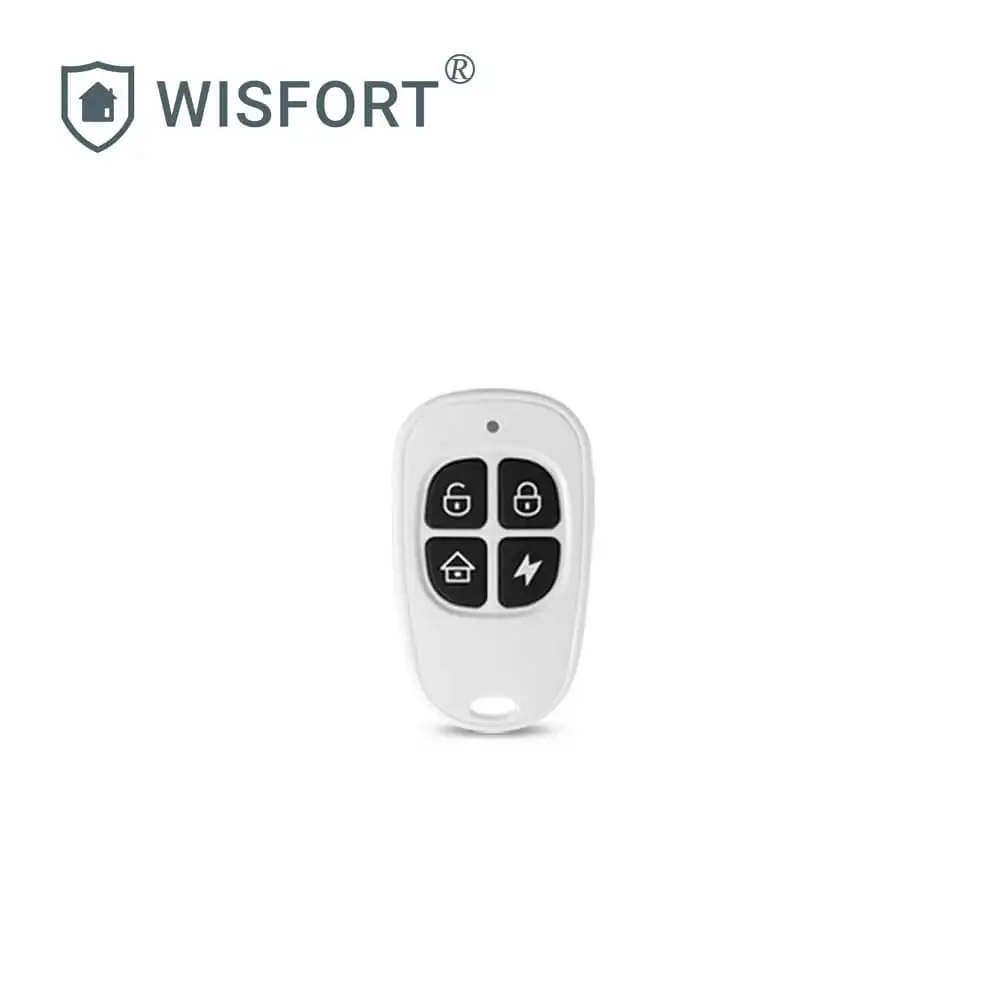

Similar to remote keyfob, the RFID tag can allow user to disarm the system, especially when you lost your keys and don't have remote keyfob or no mobile phone, you can disarm the alarm system using RFID tags.



Technical Information



• Power Supply: AC 100 - 240V 50/60Hz (AC/DC Adapter)
• Working Voltage: DC12V 1000mA
• Static Current: <35mA (When not in charging, not including wired sensor)
• Alarm Current: <120mA
• GSM Transmission Power: 2W
• GSM Frequency: 850/900/1800/1900MHz
• Back-up Battery: NI-HI 800mAH, DC3.7V (Stand-by: >9 hours, Full charging: 12 hours)
• Wireless Frequency: 433MHz/868MHz
• Wireless Transmission Distance: >=100 meters (open space environment)
• Zone Capacity: 30 wireless zone, 4 hardwired zone
• Support RFID tags: 5 RFID tags
• Support RF remote sockets: 8 units
• Working Condition: Temperature -10~50 °C, Humidity < 95% RH (indoor only)

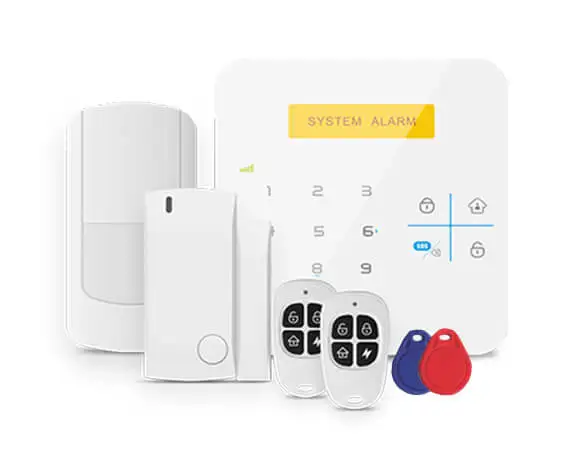

Home Security Kit
