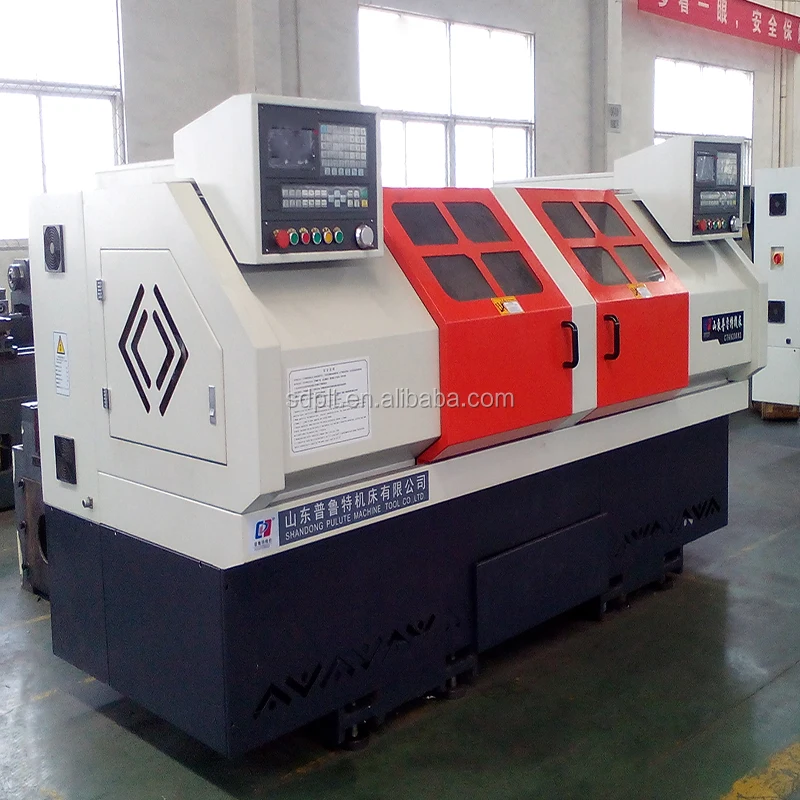

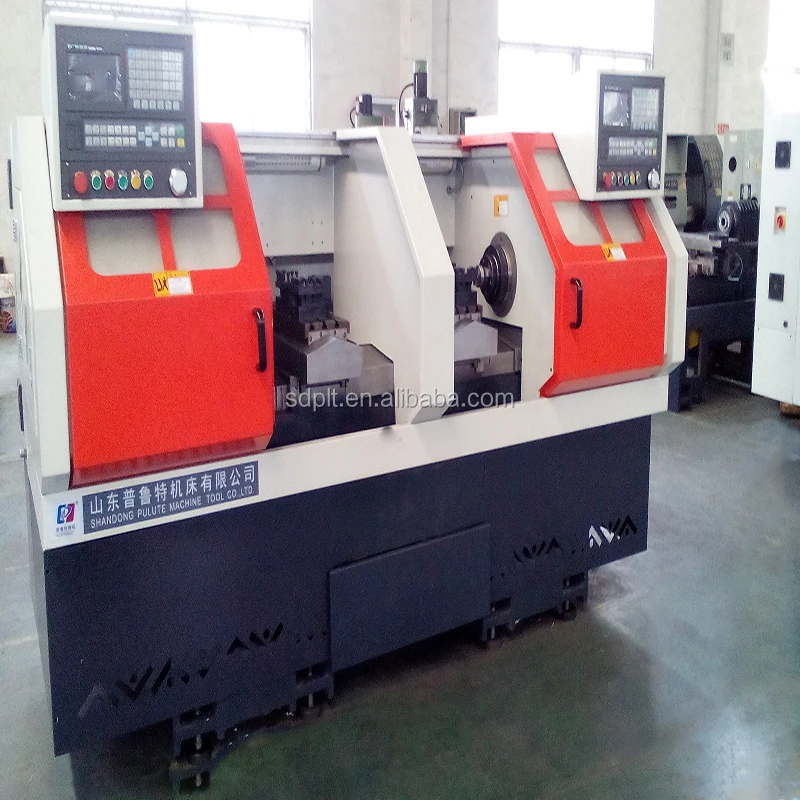

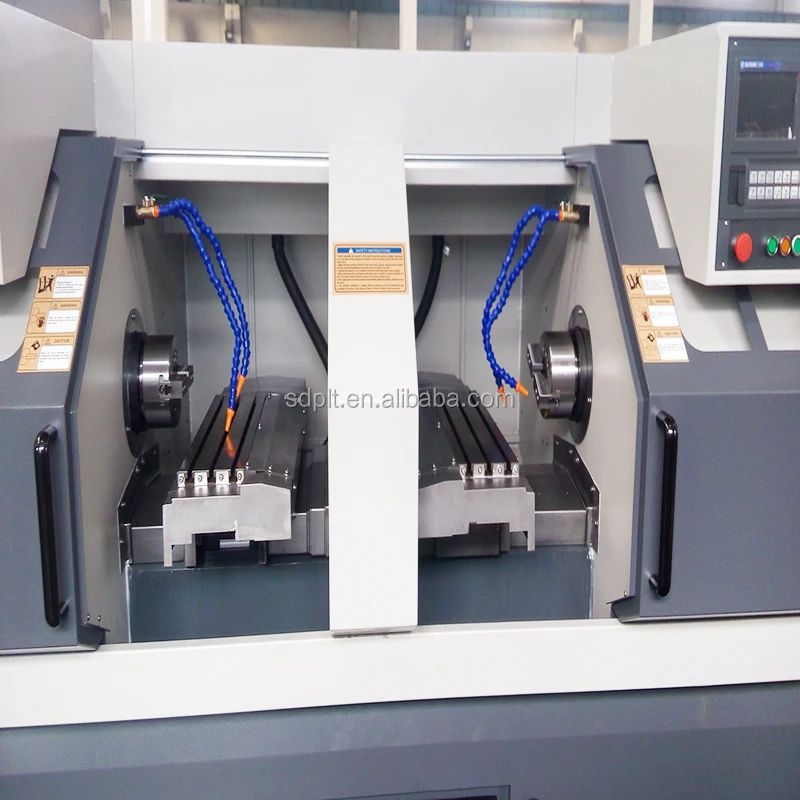

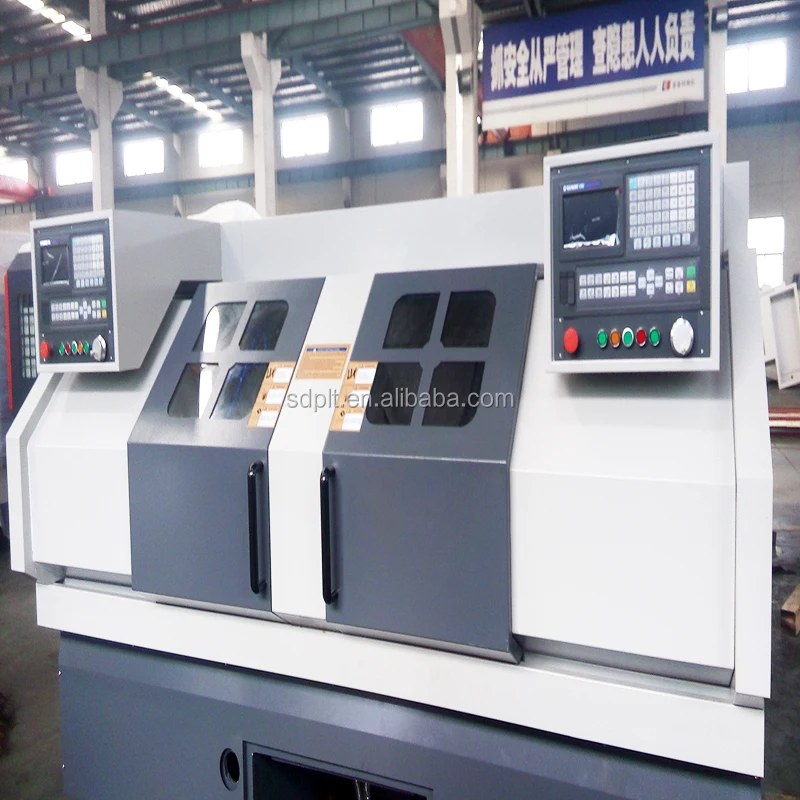

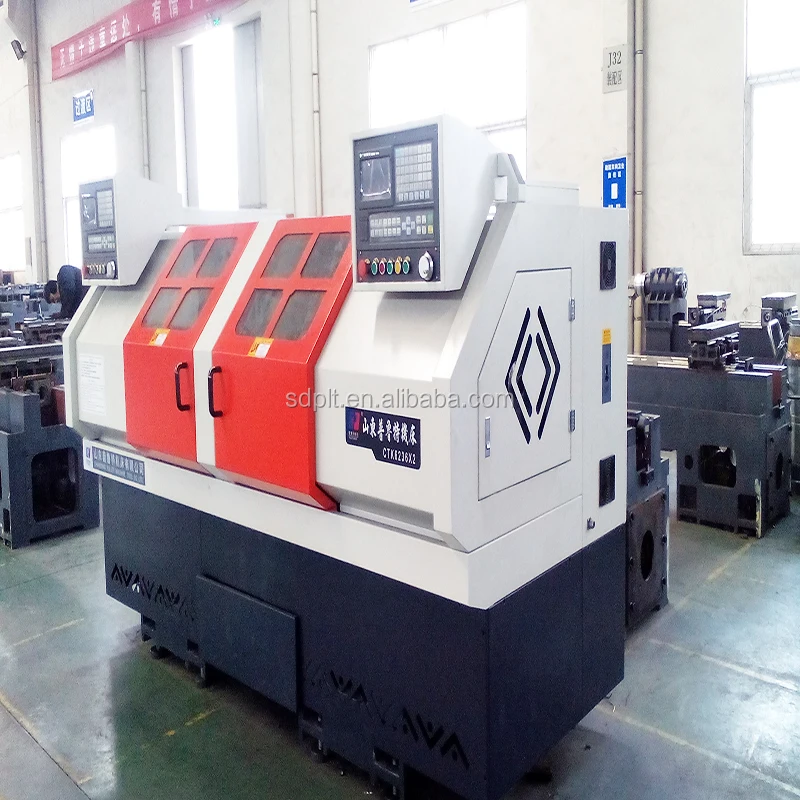

Double Spindle CNC Lathe CTK6236X2

Model

TKD-1811

Specification

CNC control system

GSK CNC 980TDC x 2 control system

YES

Max. swing over bed

Φ350mm

YES

Max. swing over cross slide

Φ110mm

YES

Max. processing length

250mm collect

200

Spindle bore

Φ48mm

YES

Max. diameter of the bar

Φ38mm

YES

Spindle speed

3000-4500rpm

3000-4000r/min

Spindle nose

A2-5

YES

Work piece clamping way

6” hydraulic chuck x 2

YES

Spindle motor power

5.5kW

YES

Voltage / Cycle

440V / 60Hz

YES

X/Z axis repeatability

0.007/0.008mm (or +/-0.003mm )

+/-0.003mm

X/Z axis position accuracy

0.016/0.020mm

YES

X/Z axis motor torque

6.0/6.0 Nm

YES

X/Z axis motor power

1.5/1.5 kW

YES

X/Z axis rapid feeding speed

15/15 m/min.

YES

Tool post type

4-station gang type tool post

YES

Tool bar section

20*20mm

YES

Guideway type

linear guideway

YES
