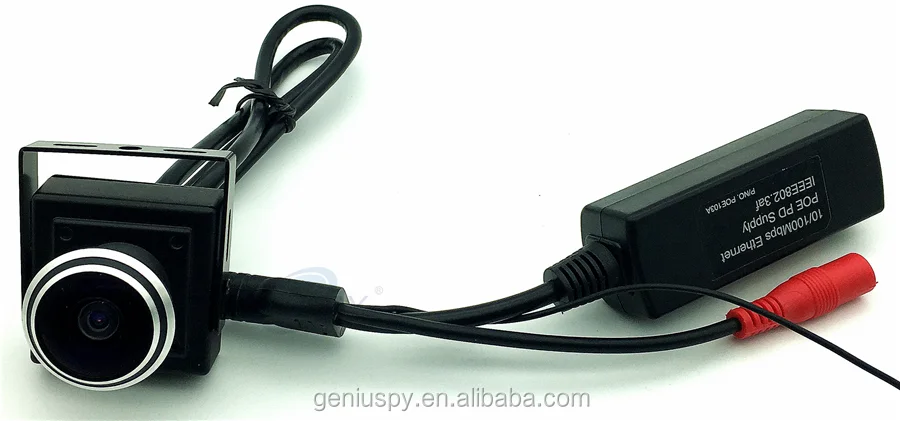

Security Camera System CCTV HD 720P Micro SD Card Slot Mobile Phones View P2P Mini IP Camera POE
- Category: >>>
- Supplier: Shenzhen Geniuspy Intelligent Technology Co. Ltd.
Share on (60768895917):
Product Overview
Description
Product Description
Security Camera System CCTV HD 720P Micro SD Card Slot Mobile Phones View P2P Mini IP Camera POE
40x40mm Mini Ip Camera Sd Card Slot H.264 Plug and Play Pinhole Micro IP Camera SD Card P2P ONVIF 2.0 PC&Phone view&small microphone
Models:GS-TF240CHBA 1.3mp 960P
Models: GS-TF240CBA 1.0mp 720P
Support tf card slot Local Record &NVR Onvif 2.0 compatible
Attenation:

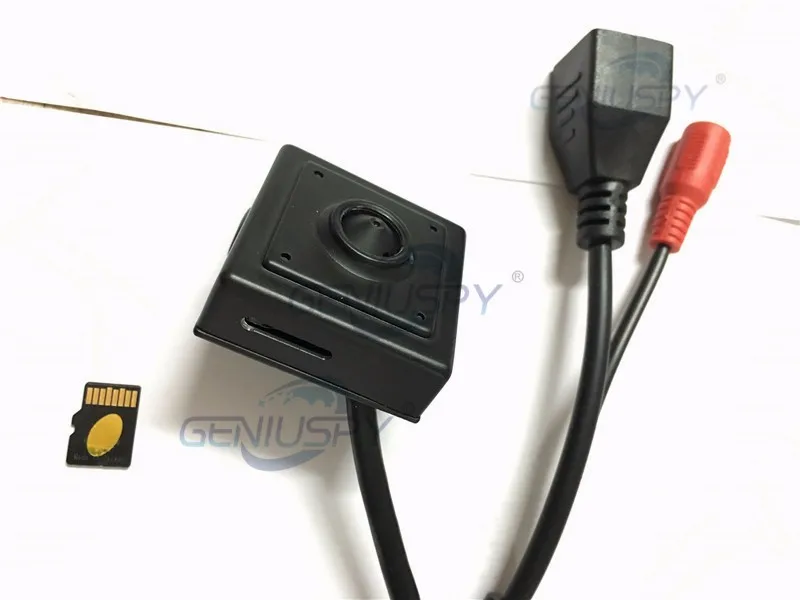

regard TF Card support mini Pinhole ip camera
This models have:1xRJ 45 interface ,1x dc12v power build,1x micro sd card slot ,1X SMALL Microphone!
it support max 32gb tf card storage!
default lens is 3.6mm Board lens !
SD / TF card camera. Its purpose is to store video motion detection alarm.Its general in 15 senconds/video segments.Ordinary video 15 minutes at most/video segments.If you want to record a video all day .
Recommended to choose NVR storage.

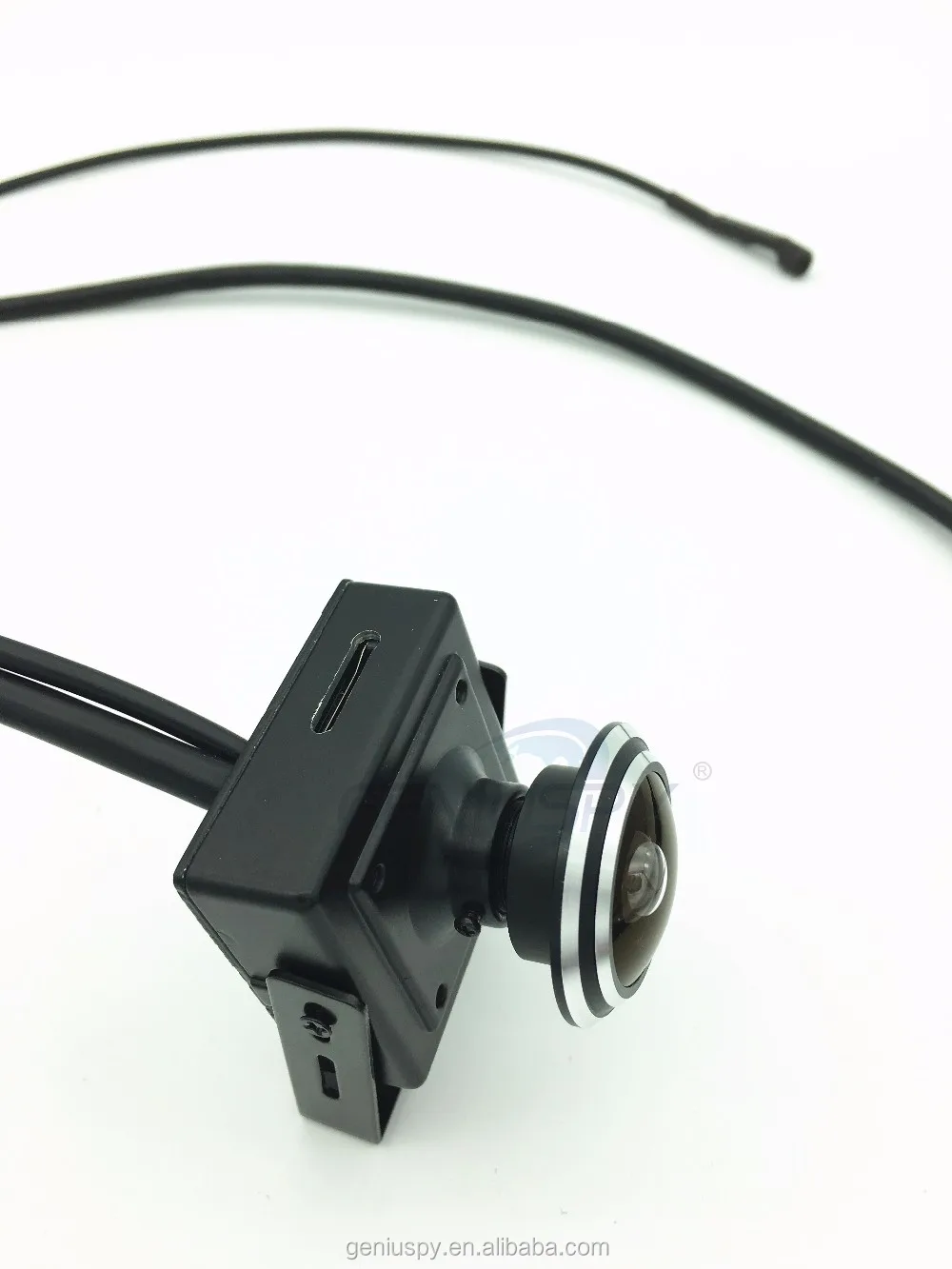

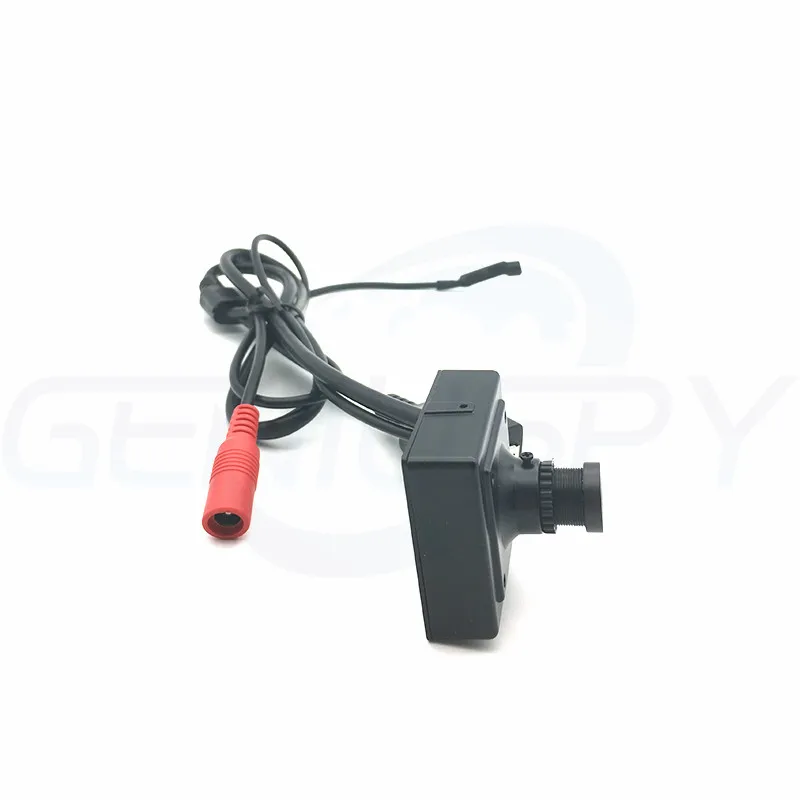

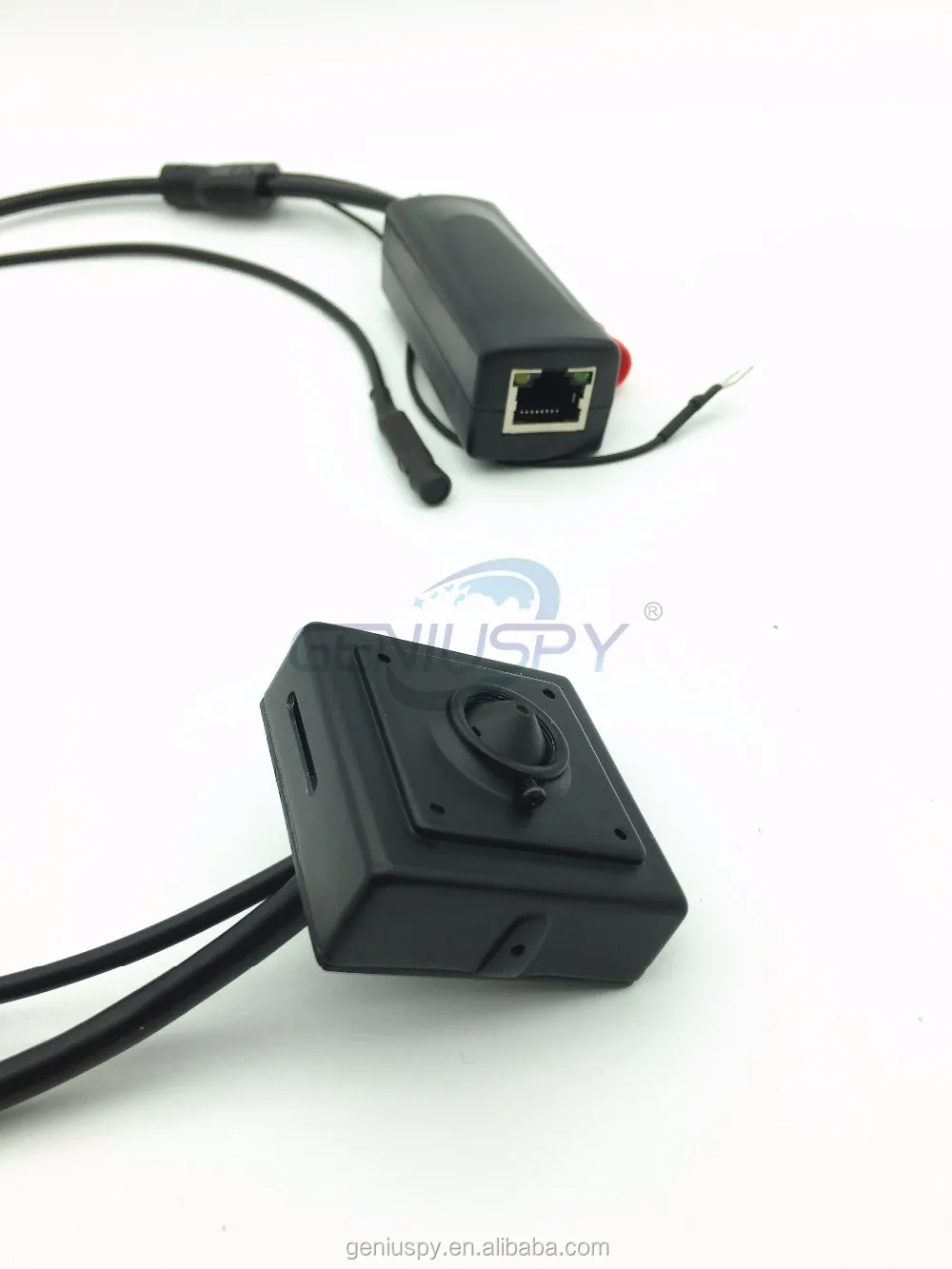

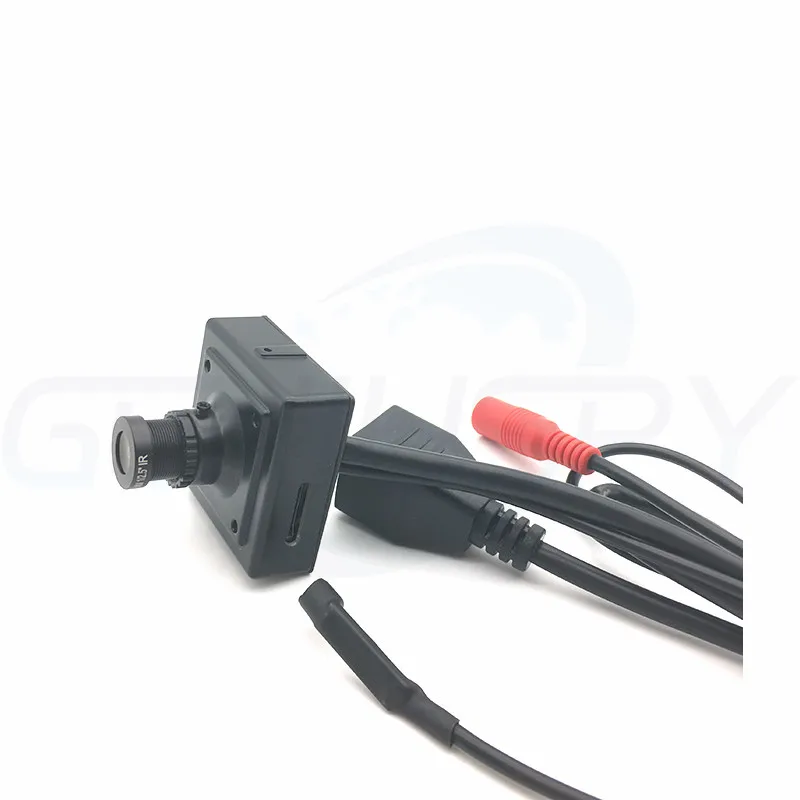

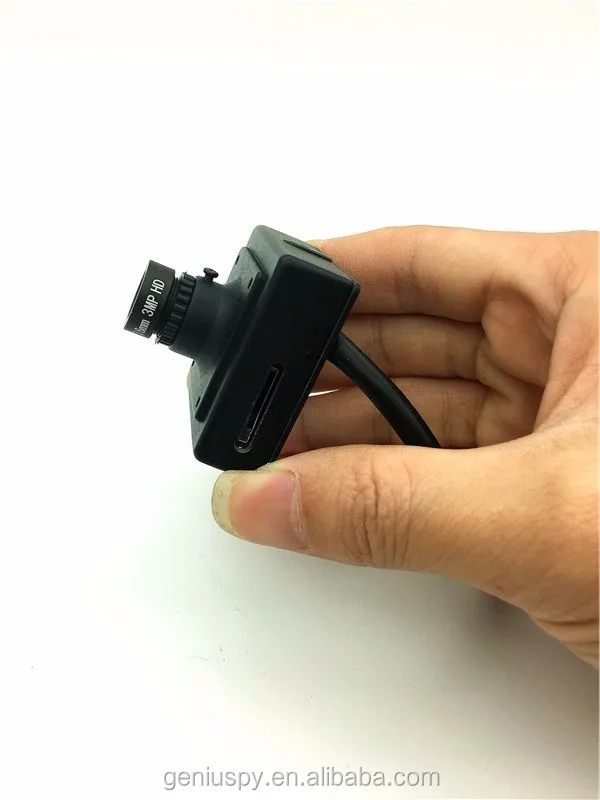

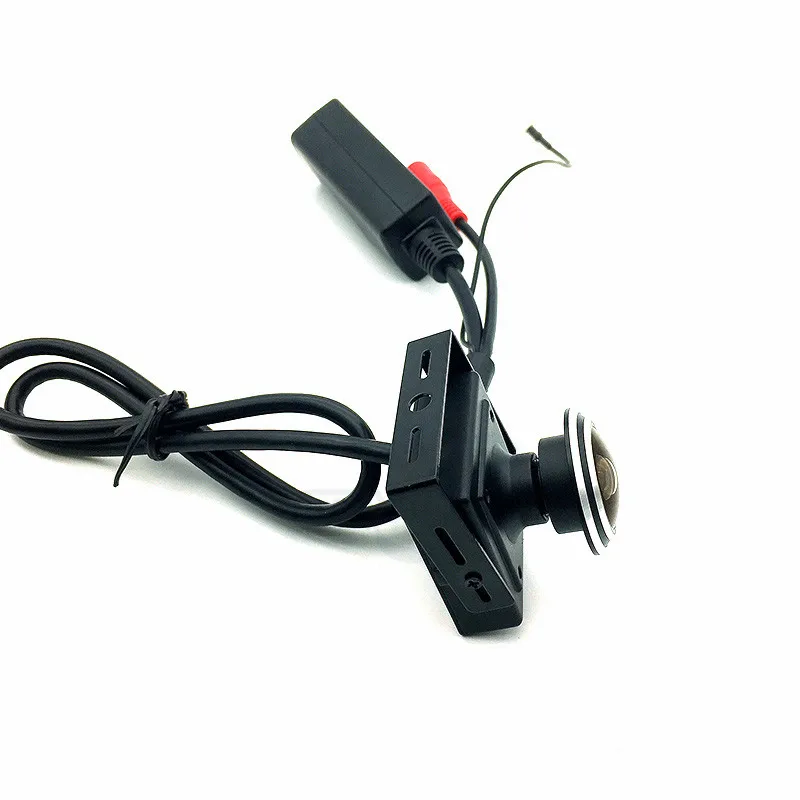

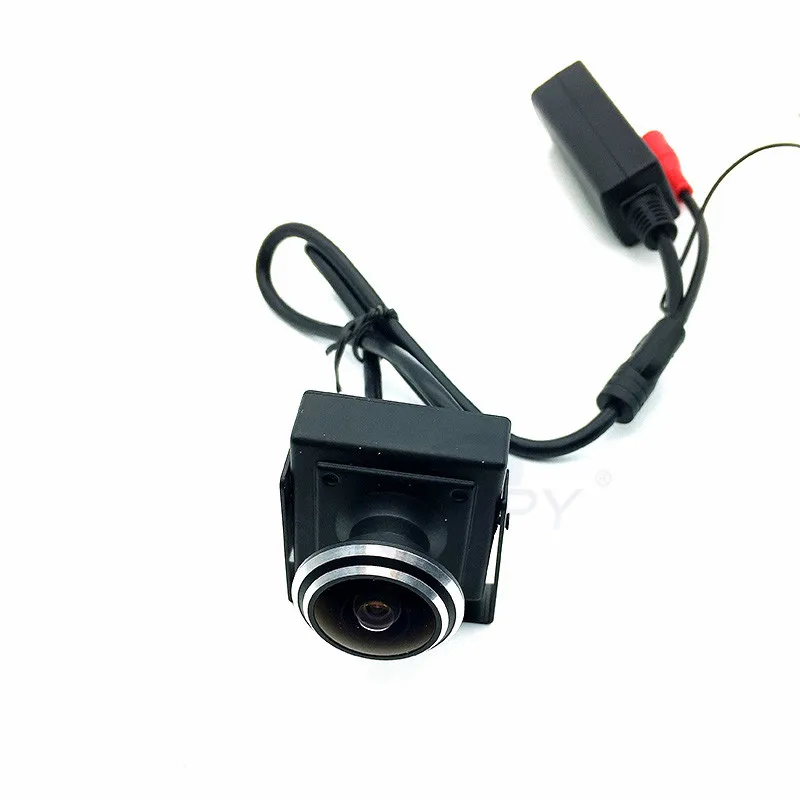

Pic show
Specification
Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ONVIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Specification:
IP Camera | System | Linux | |||
Models: | / | GS-TF240CHBA | GS-TF240CBA | ||
Image sensor size+dsp | 1/2.7" 2.0 MP SONY322 (Low illumination,Better Night Vision) +HI 3516C | 1/2.7" 2.0 MP COMS OV2710 | 1/3" 1.3 MP COMS Aptina AR 0130+HI 3518E | 1/4" 1.0 MP COMS OV9732+HI 3518E | |
Lens | 3.6mm Board lens (By default) other pinhole lens can be optional | ||||
IR Distance | / | ||||
Inter Power consumption | DC 12V2A 3W | ||||
Working temperature | -20 °C~55 °C | ||||
Working Humidity | 10%~95% | ||||
Weight | 0.4KG | ||||
Video | Video Codec | H.264 main profile and baseline | |||
Video Resolution | 1080P | 960P | 720P | ||
First stream | 1920x1080/1280x720 | 1280x960 | 1280x720 | ||
Second stream | 640x352 | 640x480 | 640x352 | ||
Third stream | 320x176 | 320x240 | 320x176 | ||
Frame Rate | PAL:25fps(50HZ),NTSC:30fps(60HZ) | ||||
Video Compression | 32Kbits/s ~ 6Mbits/s | ||||
Min. Lux | 0.1Lux | ||||
Audio (Optional) | Audio input | 1 ch Line/Mic | |||
Audio output | 1 ch Line out | ||||
Audio Codec | G.726/G.711 | ||||
Internet | Interface | RJ45 interface | |||
Network Protocol | TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, TELNETect. | ||||
Access Protocol | ONVIF 2.0 I13 P2 | ||||
Alarm | Motion detection | 4 respective regions at most | |||
Alarm linkage | Alarm picture sent by E-mail, alarm images&video uploaded to FTP server | ||||
Snap | Time snap | Regular support capturing images to the FTP server | |||
Safety | User management | Provides three levels of rights management (admin, user, guest). Supports modify login user name and password | |||
Contact information
Sunny Huang/Sales Manager
Phone number &WhatsAPP& Wechat:+13719580472
Email Add:sunny(@)geniuspy.cn
For more details and inquiry ,Welcome to contact me anytime,I will get back to you once I get it ,Thanks.
Packaging & Shipping
Packaging & Shipping
In Color Box or Netural Packaging , Do As Customer 's Requirement
1.EXPRESS: around 3-7 working days to arrive
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive according different country
3.BY air &BY sea
Payment
we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 8 years!
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦ Do you accept small order?
A: Yes, Sample order is available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
A: Yes, Sample order is available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
