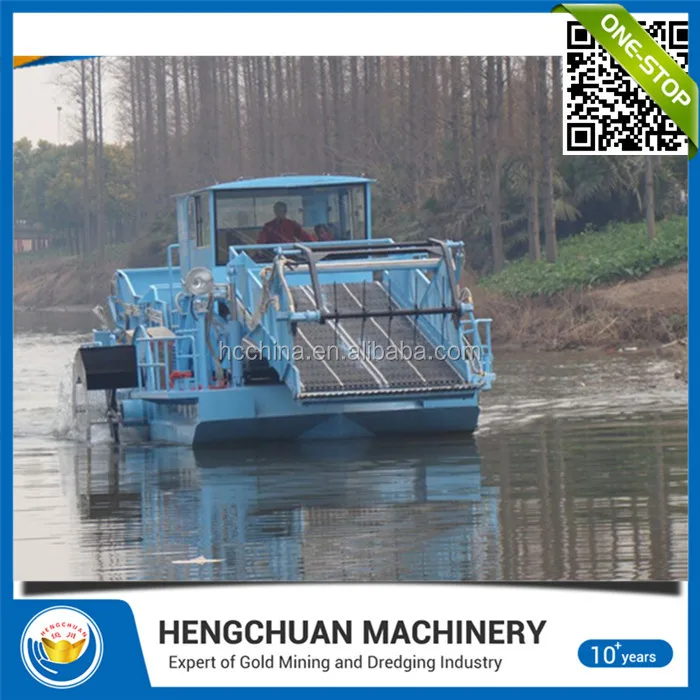

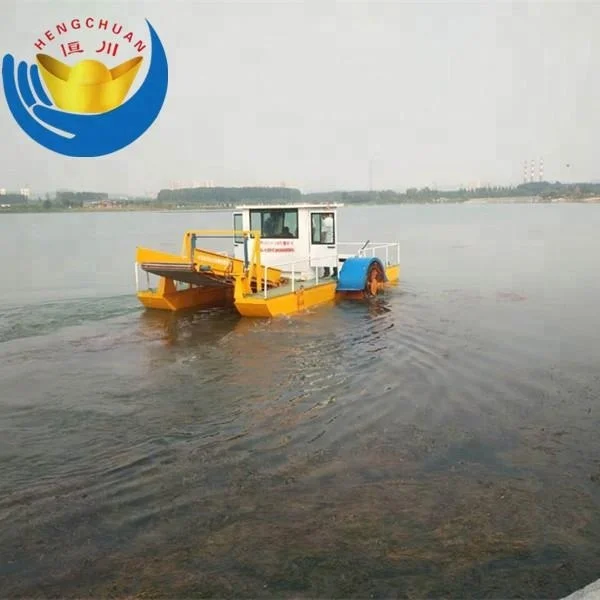

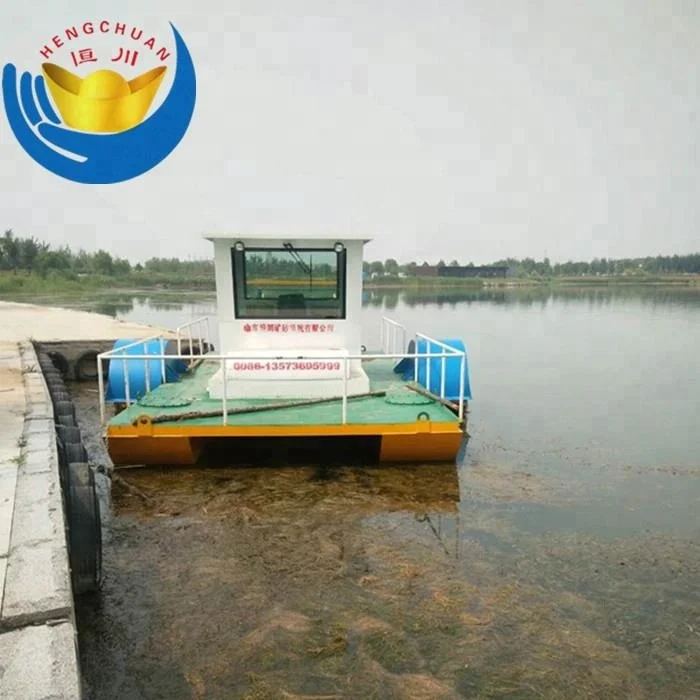

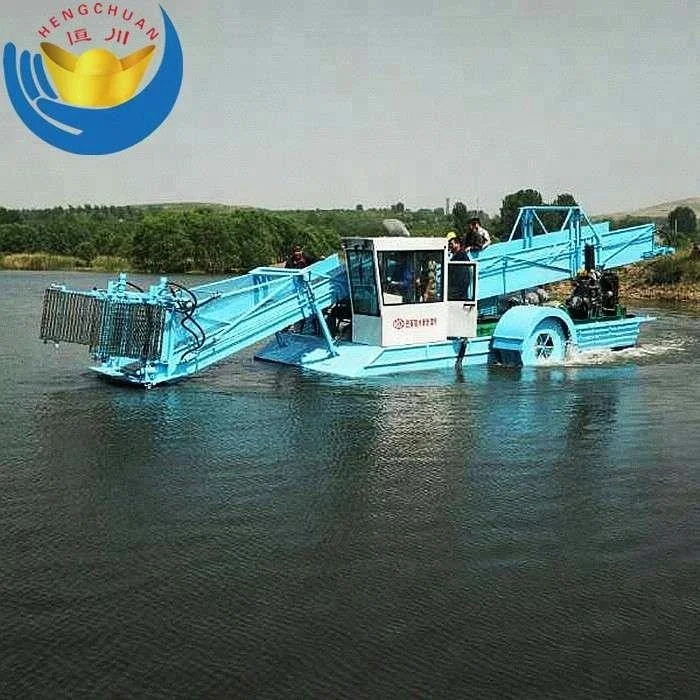

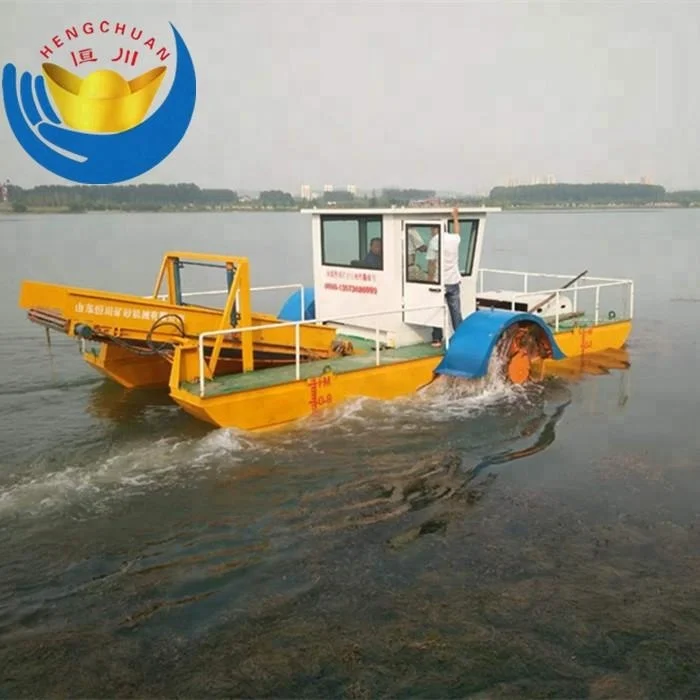

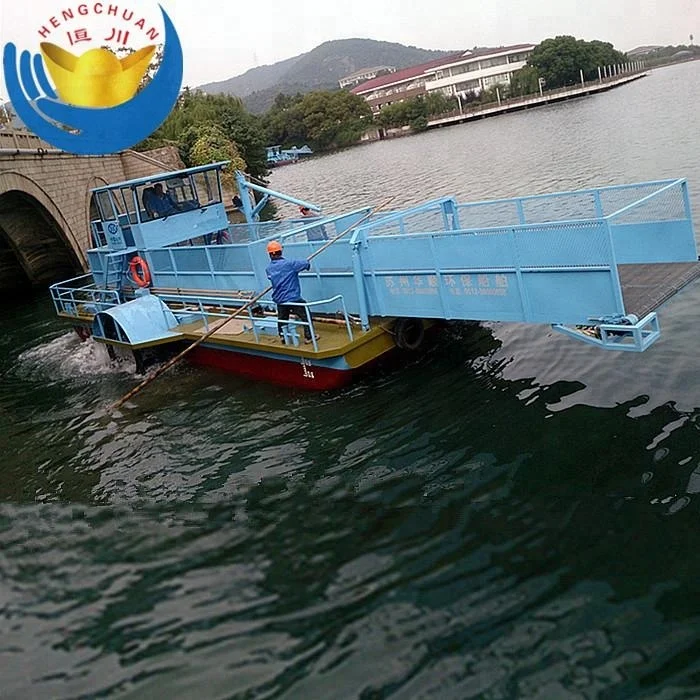

River Trash Clean Machine, Floating Garbage Collection Boat

1)Aquatic Weed Harvester & water weed harvester ,which is used to clean up the water and grass in the river and lake ,collecting the the floating waste in the water surface.

2)Aquatic Weed Harvester & water weed harvester ,which is used by paddle wheel or paddle.Collecting trash with the propeller, collection of aquatic plants with the paddle.Customized based on Customers; different requirements.

3)Aquatic Weed Harvester & water weed harvester ,The Front collection, Middle collection and Back collection are all conveyed by stainless steel collection belt, all driven by hydraulic motors.

4)Aquatic Weed Harvester & water weed harvester , A lateral scissors device is installed at the bottom of the front of the Front Collection, and the swing collection arm is installed on both sides of the collection cabin .

5),Aquatic Weed Harvester & water weed harvester ,The Cabin which is separate sealed and centralized controlled, the ship navigation is manipulated, the water and grass are harvested, the floating garbage and the unloading work.

Product Description

Aquatic Weed Harvester is used to gather weeds and surface floats in rivers with high efficiency. It is all hydraulic driven, paddle wheel, header, cutting knife . The system is fully hydraulic controlled. The circuit is manually controlled through a multi-way valve. The right and left paddle-propeller are separately controlled by each steering valve and oil motor. which enable both paddles move forward or backward at the same time, or individual forward, or individual inverse, to make the body of the ship move forward and make a turn. the main engine is a single host, which is above the deck.

With feature of shallow draft, low height ,small size ,large power and all hydraulic control ,which is suitable for river cleaning ,mowing the fast-growing aquatic plants in rivers (water hyacinth, water peanuts ,duckweed ,etc.) and gathering surface floating debris.

Certifications

Detailed Images

Machine Parts

Name: Engine

Brand: Weichai

Original: China

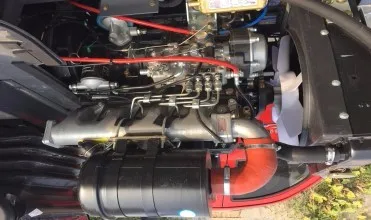

Aquatic Weed Harvester & water weed harvester ,The engine uses high performance marine diesel engine to achieve Euro II standard. It meets the requirements of environmental protection,which can not occur secondary pollution.

Main Features

Name: Front collection
Brand: HENGCHUAN
Original: China
Aquatic Weed Harvester & water weed harvester ,The Front collection includes the Rotary arm, the Cutting and collecting scissors, the Side collection Chains,the Front collection belt and so on. The Front collection can automatically adjust the depth by using hydraulic cylinders. When sailing, it can extend the water surface to reduce drag and increase navigation speed. When fishing, it can also adjust the collection depth according to the thickness of water grass.

Machine Parts

Name:Collecting Chains
Brand: Hengchuan
Original: china

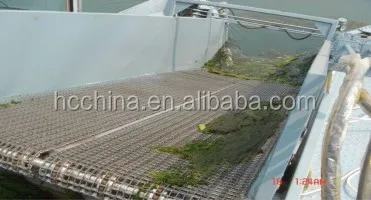

Aquatic Weed Harvester & water weed harvester ,The stainless steel Collecting Chains can save by the salvage garbage in time, and it is not easy to rust,which is durable and long service life.

Main Features

Name: Cabin
Brand: HENGCHUAN
Original: China

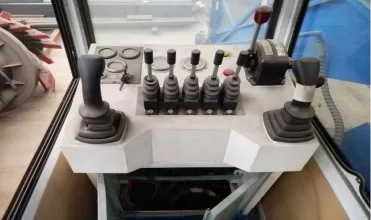

Aquatic Weed Harvester & water weed harvester ,The cab is installed in the front position of the hull, the  operating environment is comfortable. There are stainless steel safety guardrails on both sides of the cab, which is convenient and safe. The ship also installed a night lighting system to fully respond to the salvage work of River waste and water grass at any time.

The ship adopts advanced pilot control system, light operation, reduce labor intensity and increase work efficiency.

Our Service

Pre-Sales Service

* Make Proposal based on differenct customers' requirements.

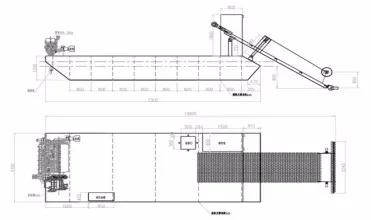

* Make Drawings for free.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers install equipments overseas

* Engineers available to service machinery overseas.

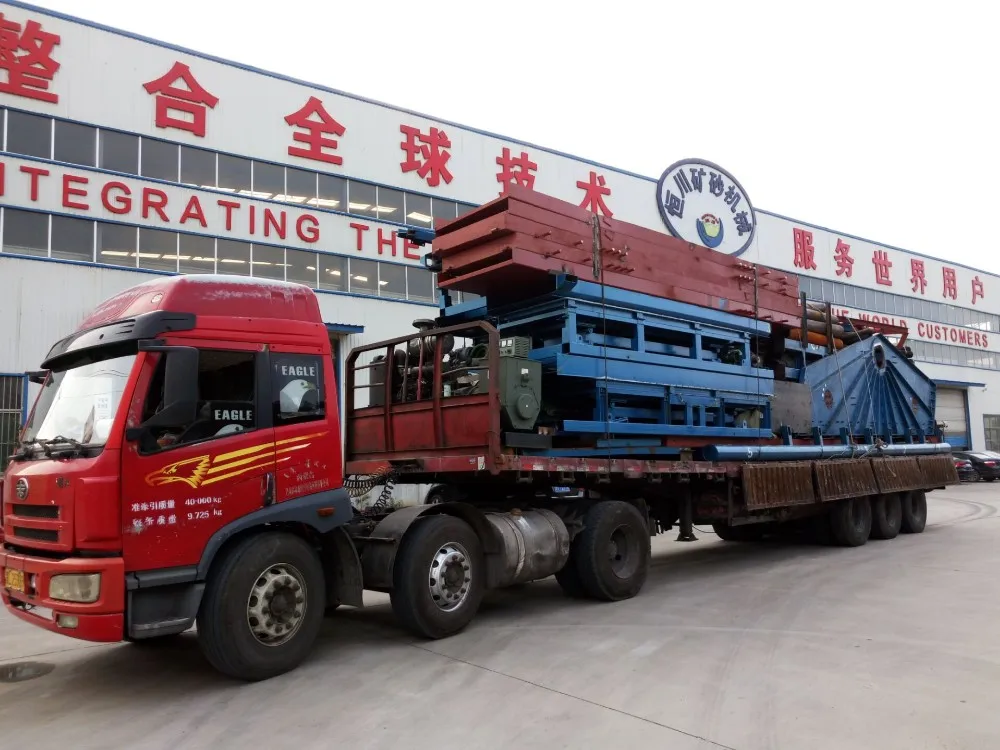

Packing & Delivery

Packaging
Size	13 (L) * 3.1 (W) * 2.8 (H)
Weight	15TON
Packaging Details	The Domestic package is by truck(Size: L*W*H). If export to abroad,the machine will be disassembled.If it is is too wider.

Packaging
Size	13 (L) * 3.1 (W) * 2.8 (H)
Weight	15 T
Packaging Details	The Domestic package is by truck(Size: L*W*H). If export to abroad,the machine will be disassembled.If it is is too wider

How to contact

Related Products

Aquatic Weed Harvester/ Weed Cutting Ship/Water Cleaning Vessel For Sale

91.8% Response Rate

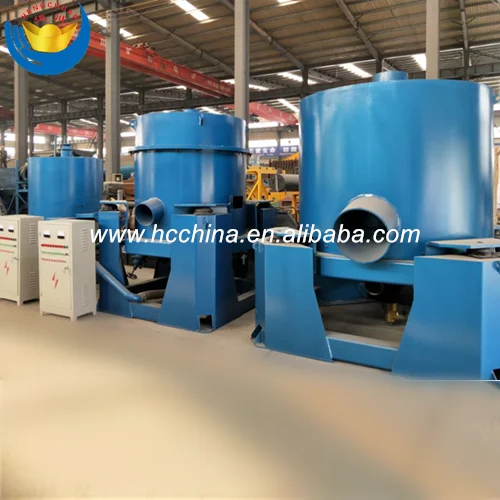

Mining Machinery Gold Centrifugal Concentrator In Mineral Separator

91.8% Response Rate

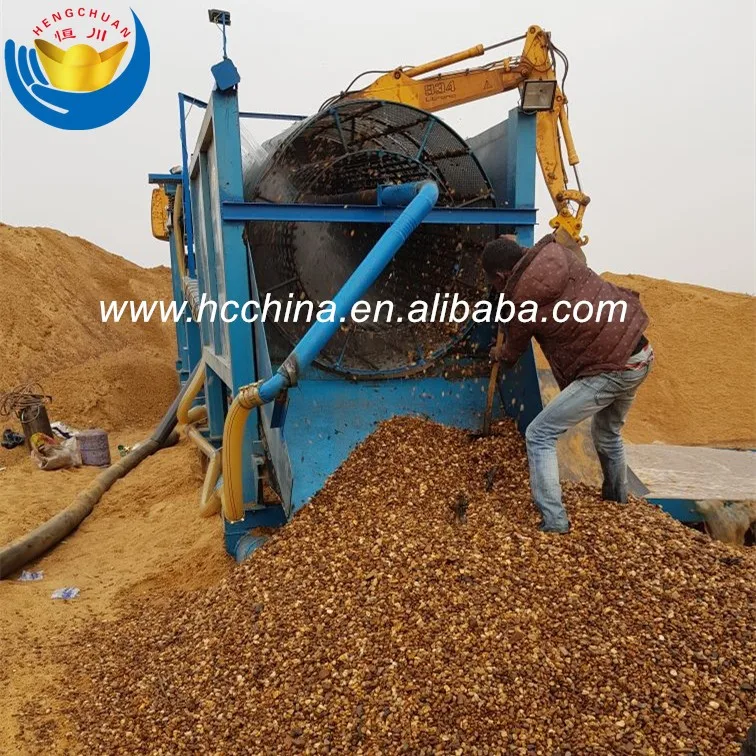

Mining Machinery Alluvial Gold Mining Equipment Of Trommel Screen
