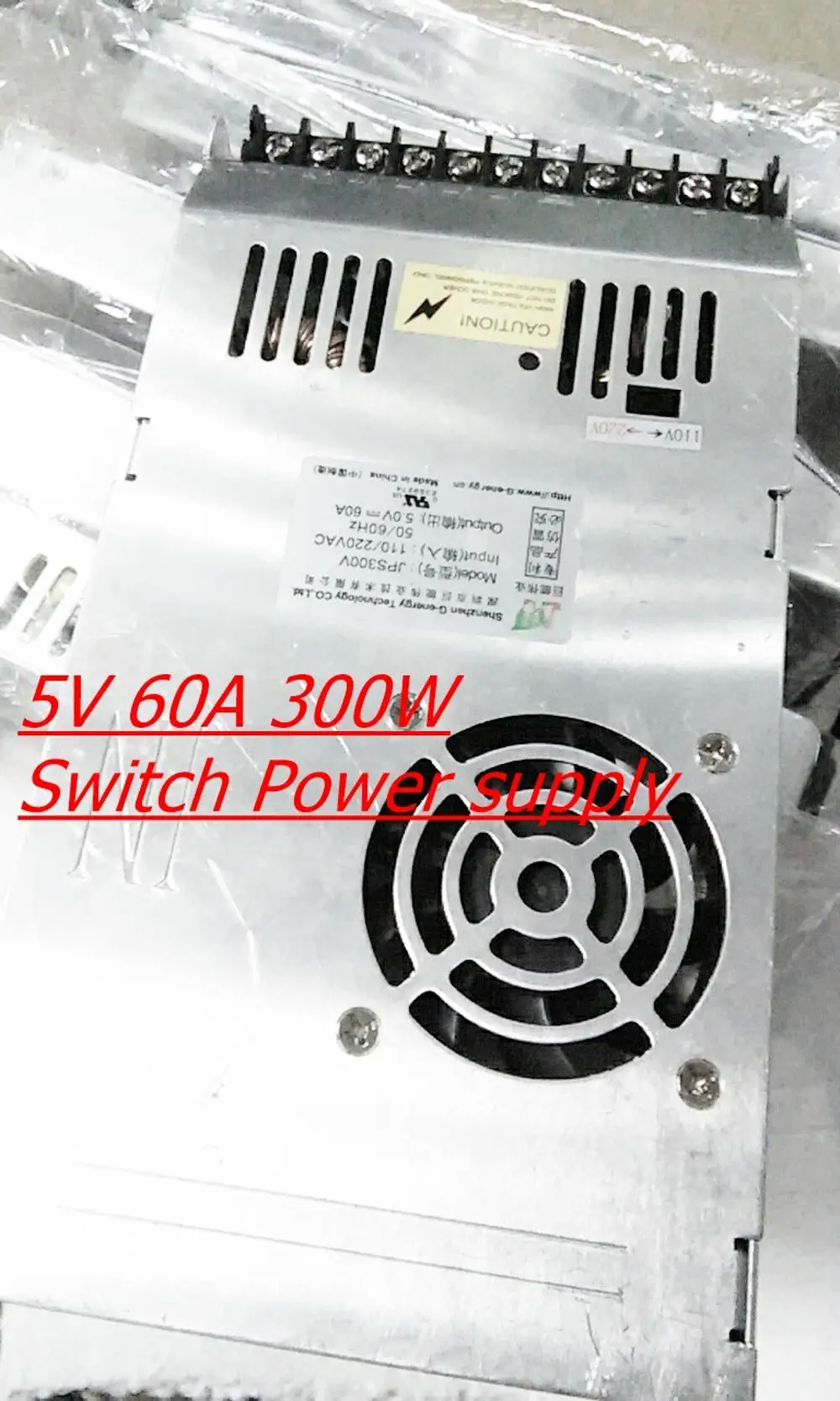

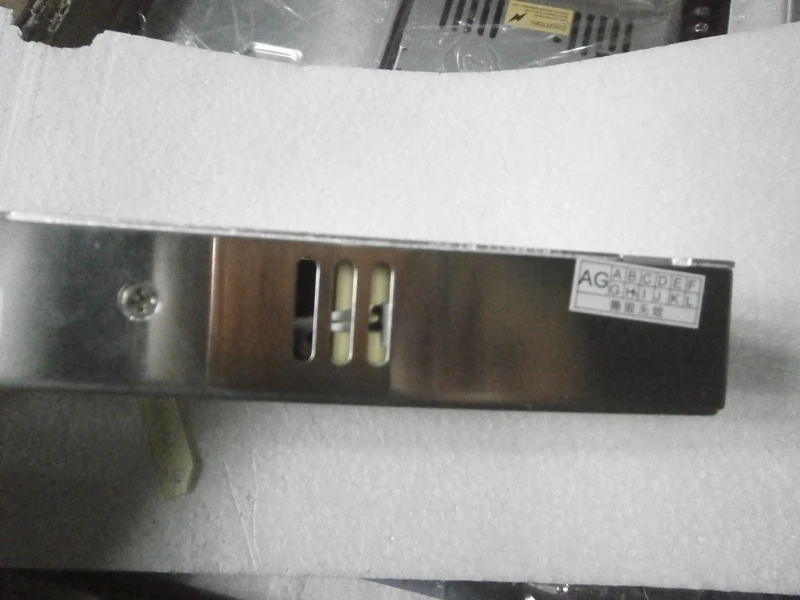

High power supply 300W 5v 60 A constant voltage Specialized for led display with CE approval

Product Overview

Description

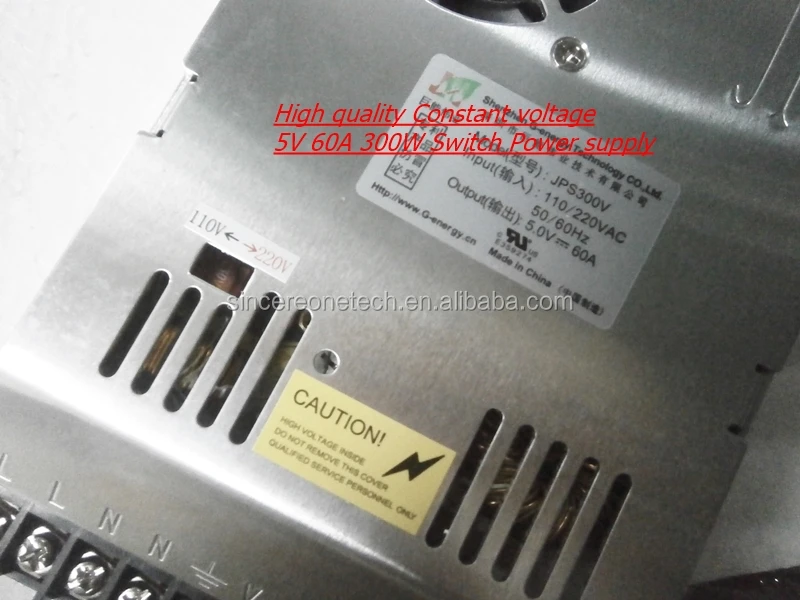

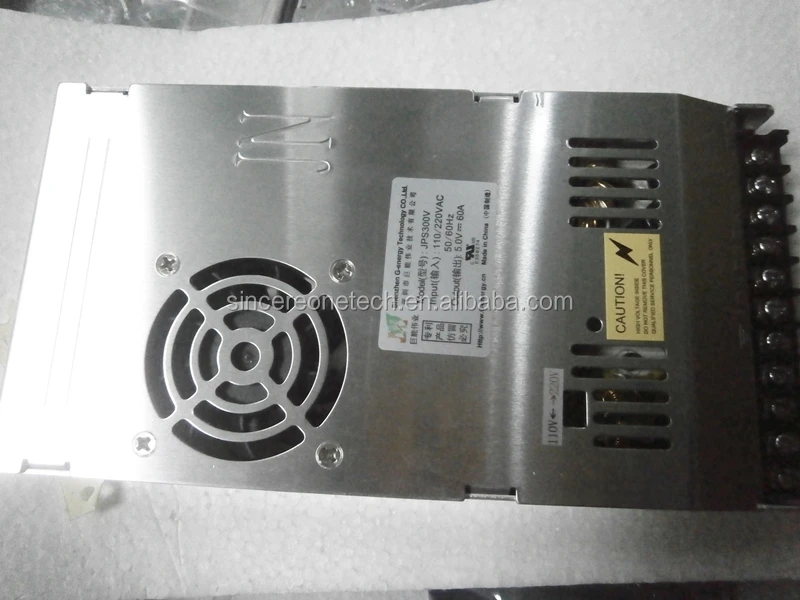

High quality 300W switch power supply 5v 60A for display

Constant voltage



5V  60A  Technical Specification
Model No.	A-300W-5
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 5V
	Current	60A
	Power	300W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 5V-5.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1 year
Feature	Dimension(L*W*H)	100*54*32mm
	Weight	1kg
	Quantity per box	1pcs
	Inner box weight	18g
	PCS/CTN	20
	CTN size	375*228*320mm
	GW/CTN	19kg
Safety & EMC	Safety Standards	CE EN55015/EN61000-3-2/EN61000-3-3

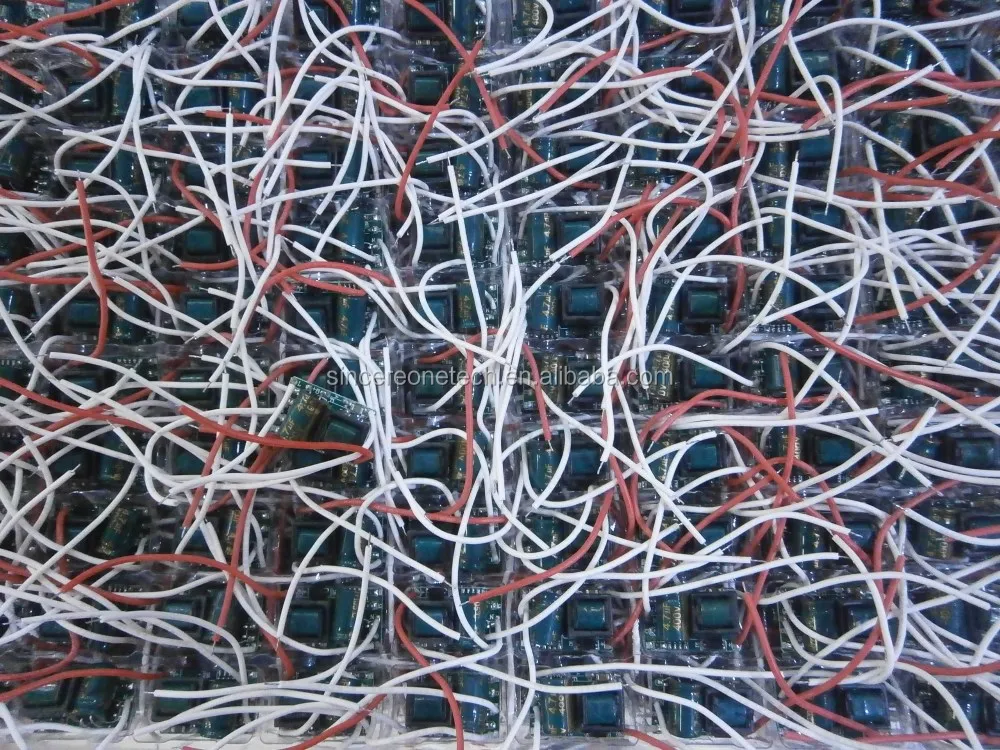

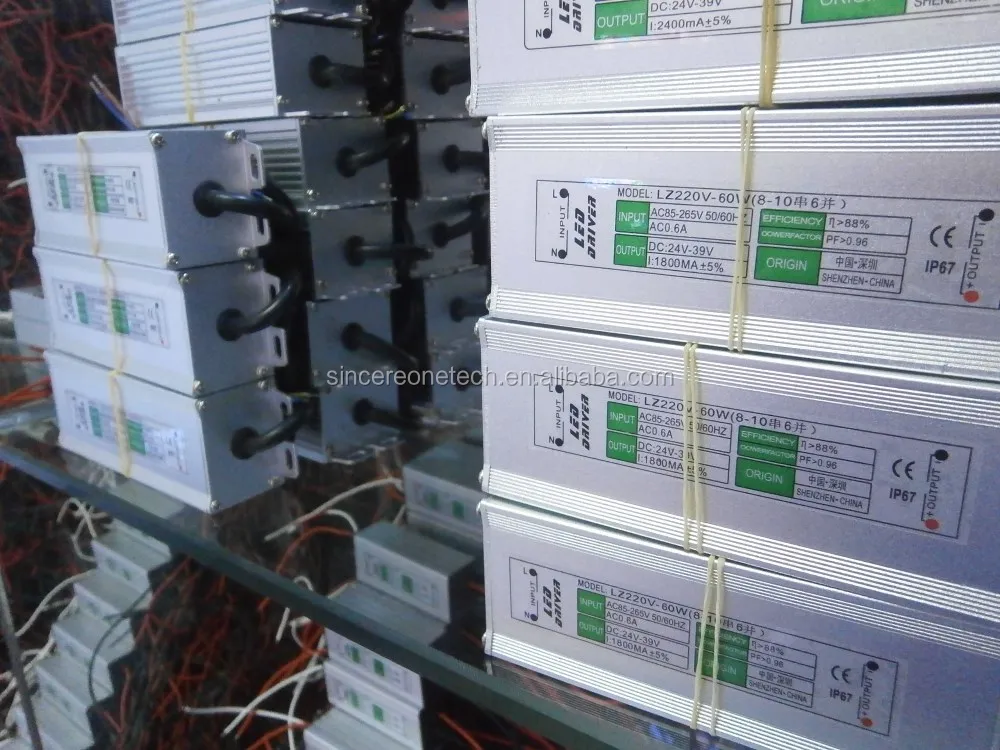

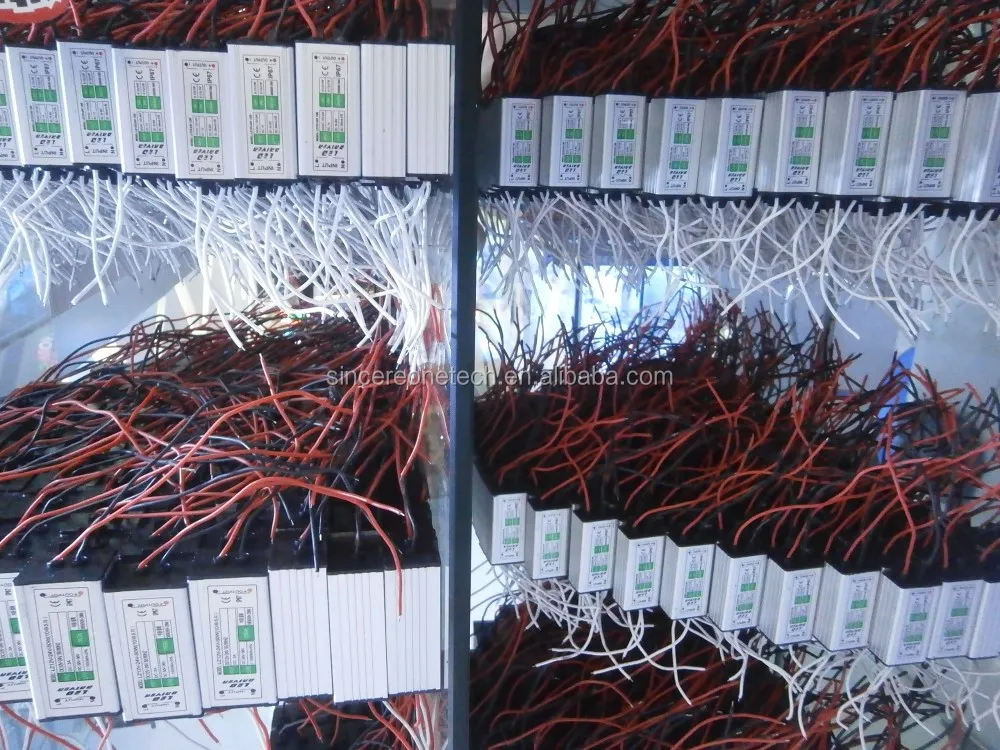

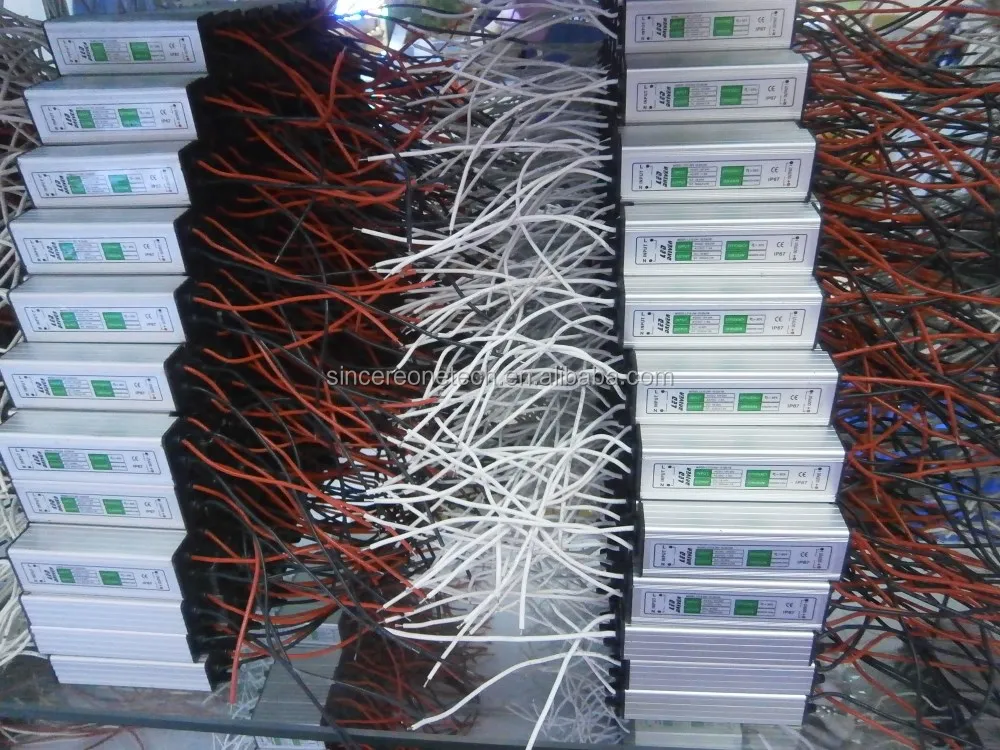

Waterproof constant current led driver 4-6x3W 600mA IP65 wholesale for led street light





Features of led LZ driver

1, Professional waterproof Constant Current LED Driver from SOT, accept oem orders

2, International full-range input voltage and widely used

3, Protection: shortcircuit/overload/overvoltage/overheat

4, Natural air cooled, 100% full load aged

5, Idle power < 1.1W

6, High quality components choosed and tested, all capacitors are 105°C long-life electrolytic

7, Capacity of surge of 300VAC: 5 seconds, working temperature up to 70°C

8, Passes 5G vibration test, high efficiency, long life & high reliability

9,  With CE certificate, complied RoHS standard

10, Over-heat, short-circuit & over-load protection with self-setting

11,  Rigorous ripple and low noise

12, 2-5-year warranty for 12-18w led driver 600mA constant current output

Model	Input voltage	Output voltage	Output current	efficiency	PF	Size ( L*W*H)	Certificate
10W(10S1P)	AC85-265V	30-40V	300mA±3%	0.88	≥0.95	79*29*21mm	CE, SAA, ROHS
20W(10S2P)	AC85-265V	30-40V	600mA±3%	0.88	≥0.95	105*35 *23mm	CE, SAA, ROHS
30W(10S3P)	AC85-265V	30-40V	900mA±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
40W(10S4P)	AC85-265V	30-38V	1.2A±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
50W(10S5P)	AC85-265V	30-38V	1.5A±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
60W(10S6P)	AC85-265V	30-38V	1.8A±3%	0.88	≥0.95	155*62*38MM	CE, SAA, ROHS
70W(10S7P)	AC85-265V	30-38V	2.1A±3%	0.88	≥0.93	155*62*38MM	CE, SAA, ROHS
80W(10S8P)	AC85-265V	30-38V	2.4A±3%	0.88	≥0.93	155*62*38MM	CE, SAA, ROHS
90W(10S9P)	AC85-265V	30-38V	2.7A±3%	0.88	≥0.93	140*62*40mm	CE, SAA, ROHS
100W(10S10P)	AC85-265V	30-38V	2.8-3A±3%	0.88	≥0.93	140*62*40mm	CE, SAA, ROHS
120W(10S12P)	AC 85-265V	30-36V	3600mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
150W(10S15P)	AC 85-265V	30-36V	4500mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
160W(10S16P)	AC 85-265V	30-36V	4800mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
180W(10S18P)	AC 85-265V	30-36V	5400mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
200W(10S20P)	AC 85-265V	30-36V	6000mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
