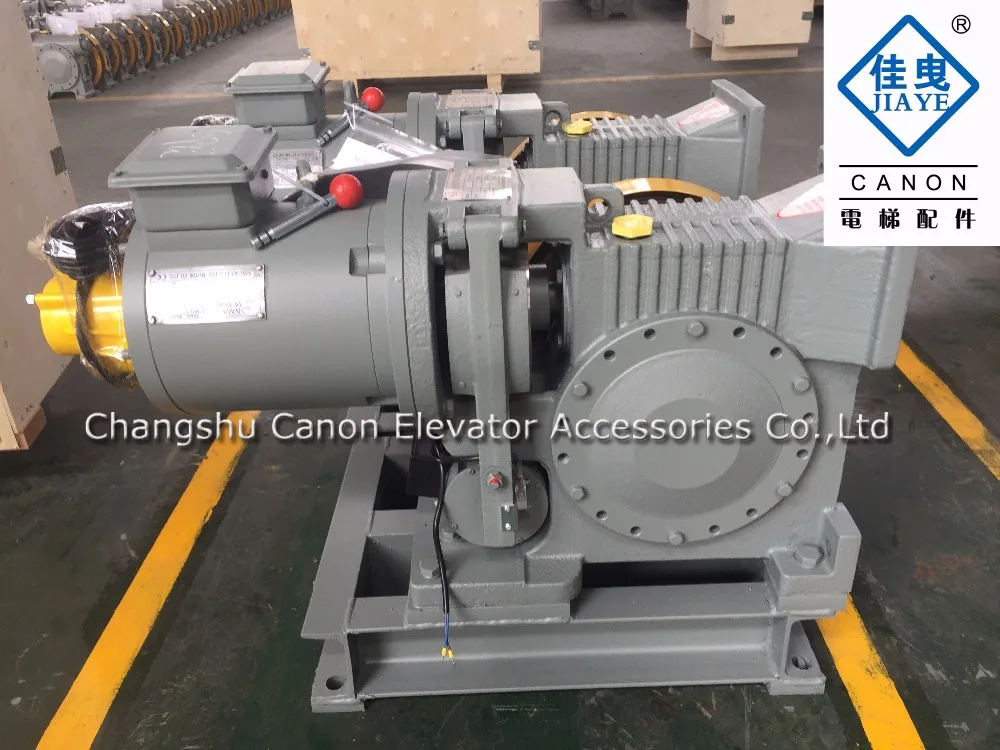

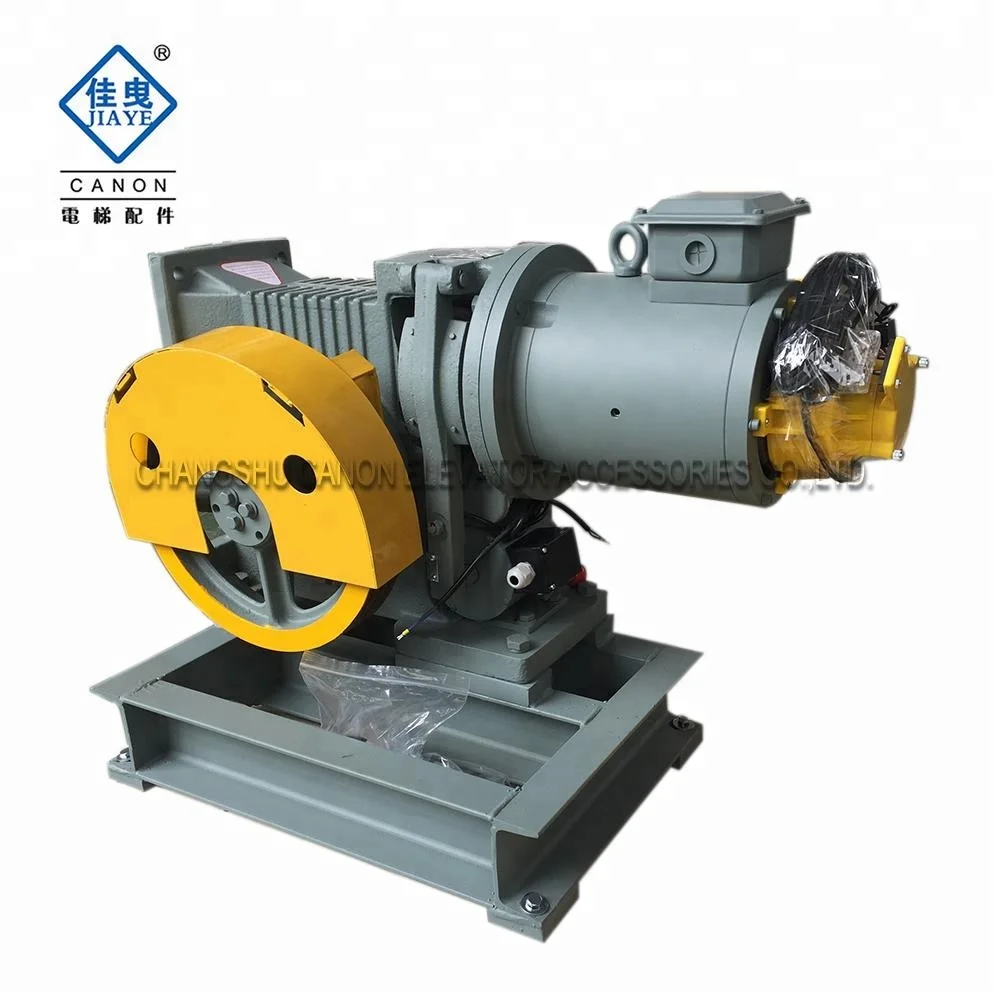

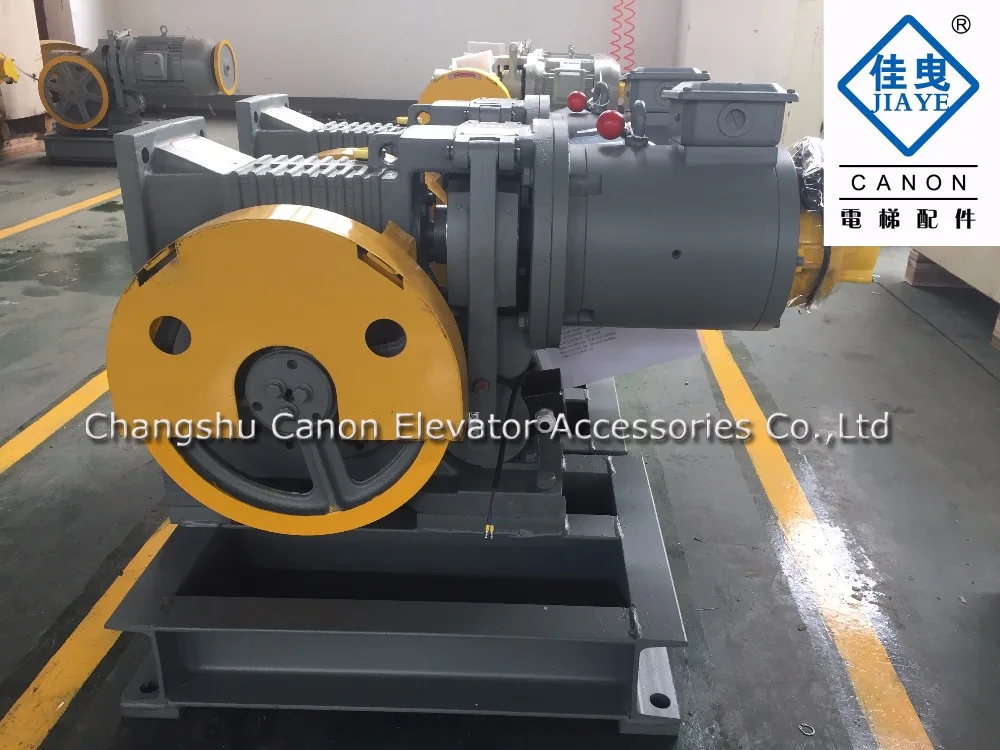

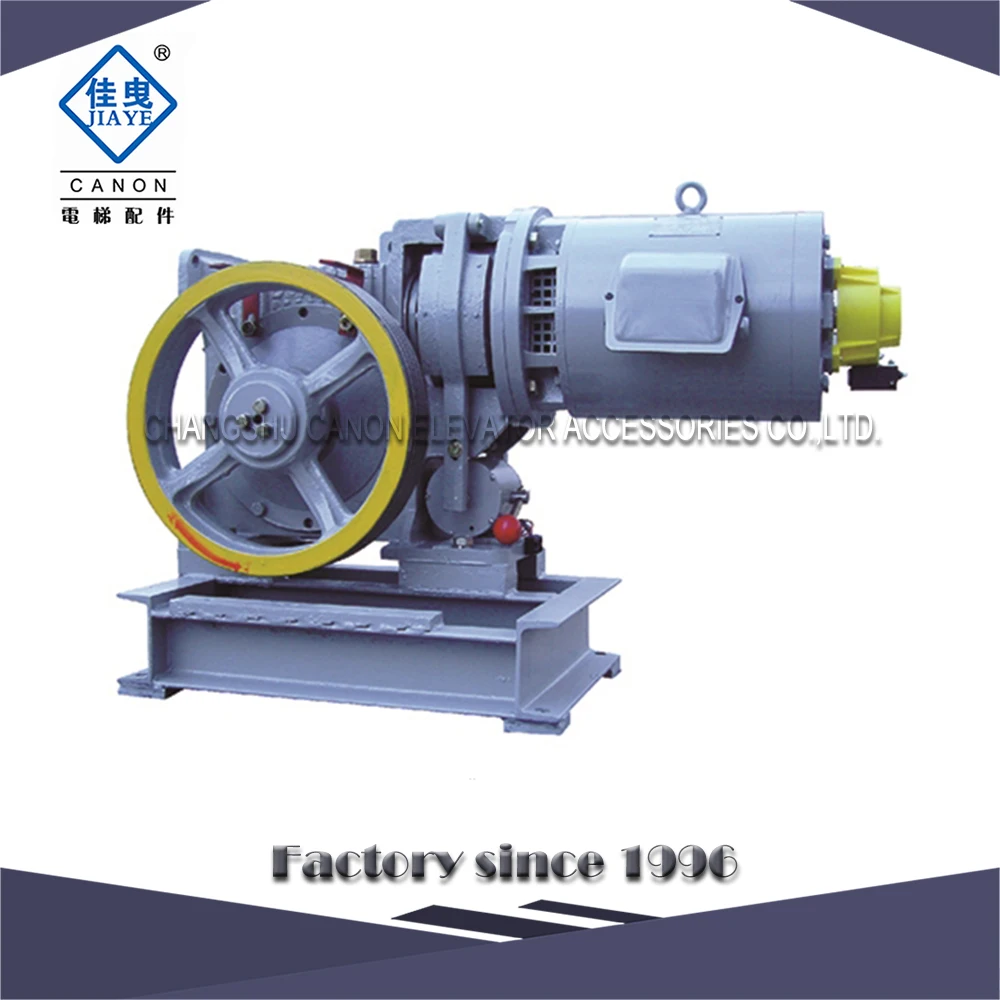

YJF120WL VVVF 320 500KG Home Elevator motor
- Category: Elevators >>>
- Supplier: Changshu Canon Elevator Accessories Co. Ltd. [Jiangsu China]Changshu
Share on (60768935596):
Share on (60768935596):
Changshu Canon Elevator Accessories Co., Ltd. is a professional factory which produces elevator traction machines. We are the member unit of China Elevator Association. Since the year of 1996 when we were founded, our professional technicians have developed series of traction machines with compact construction, modern design, high quality and stability. Our traction machines are famous for the working stability, lower noise, high loading capacity & high transmission efficiency.
We have been exporting to more than 20 countries all over the world like Thailand,Indonesia,Pakistan,Brazil,America,Ecuador,Egypt etc.Welcome to cooperate with us.
Worm shaft granding machine
Horizontal & vertical CNC
Digital control gear process machine
Vibration & noise testing center
Worm shaft and gear testing center
3-D machine body testing center

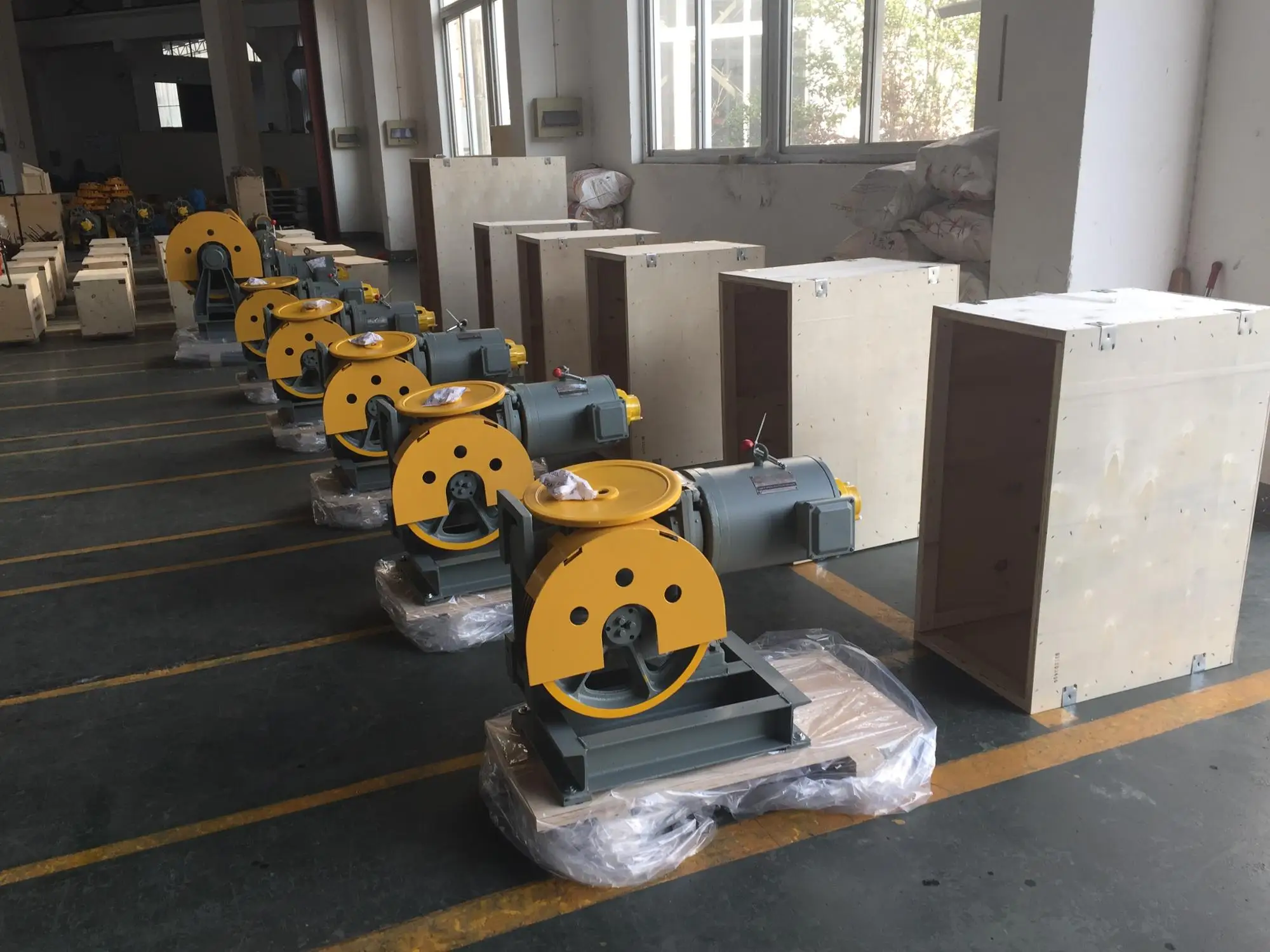

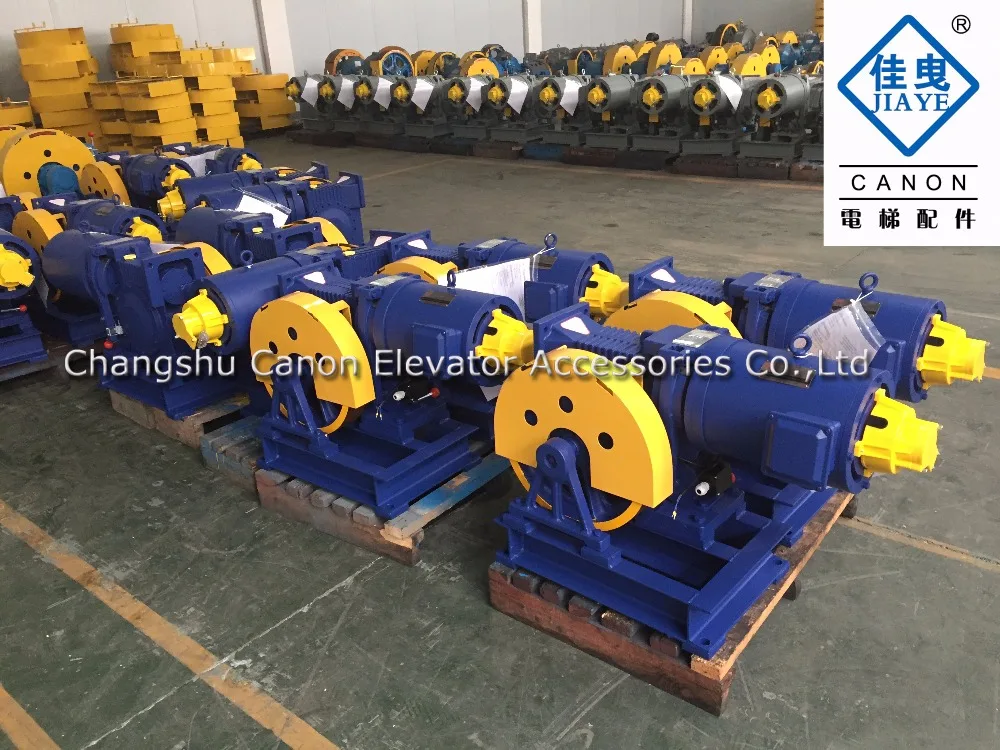

Producing more than 10,000 units of traction machine for dumbwaiter,home lift,passenger lift,cargo lift etc. every year.
Certificate

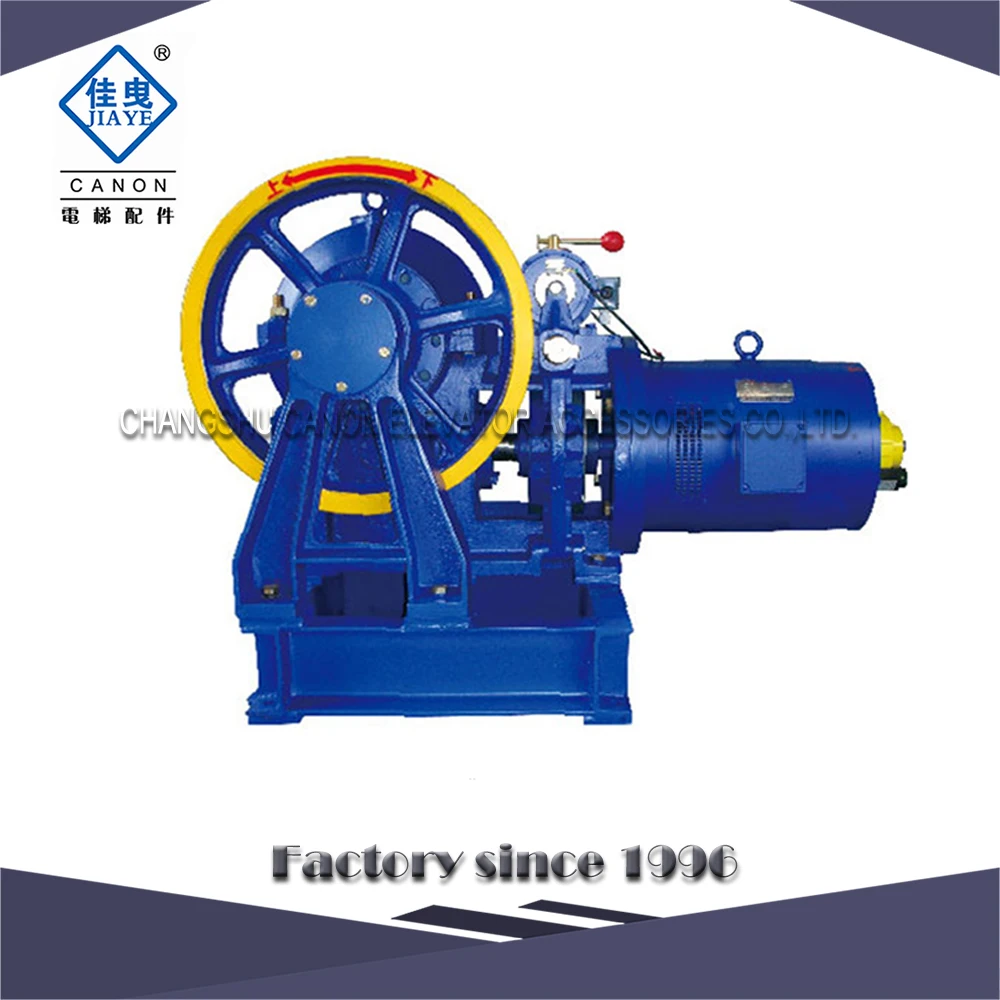

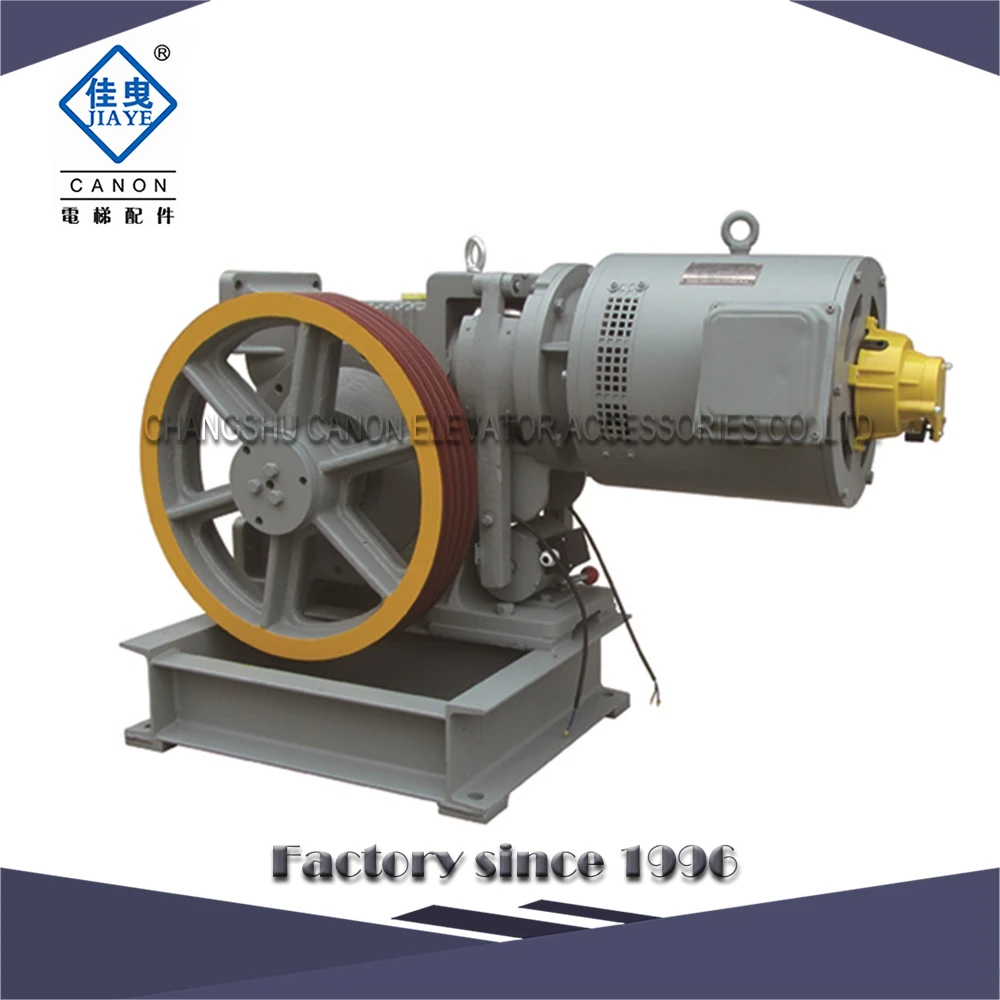

Professional at producing gear machine for dumbwaiter,home lift,passenger lift,cargo lift etc.
Capacity:100kg-8000kg
No.1 in China the gearless anti-explosion type was made in Canon.
Our gearless machine has a lower noise and smooth running .capacity:350kg-1600kg
Roller traction machine will save you cost of counterweight and have bigger space in Cabin.Its a good choice for home lift. We have gearless and gear both types of drum motor.
Voltage:380v/220v 50hz (standard) ,60hz(optional)
Brake voltage: Open DC110V, Keep DC80V
Max.shaft load :2500kg

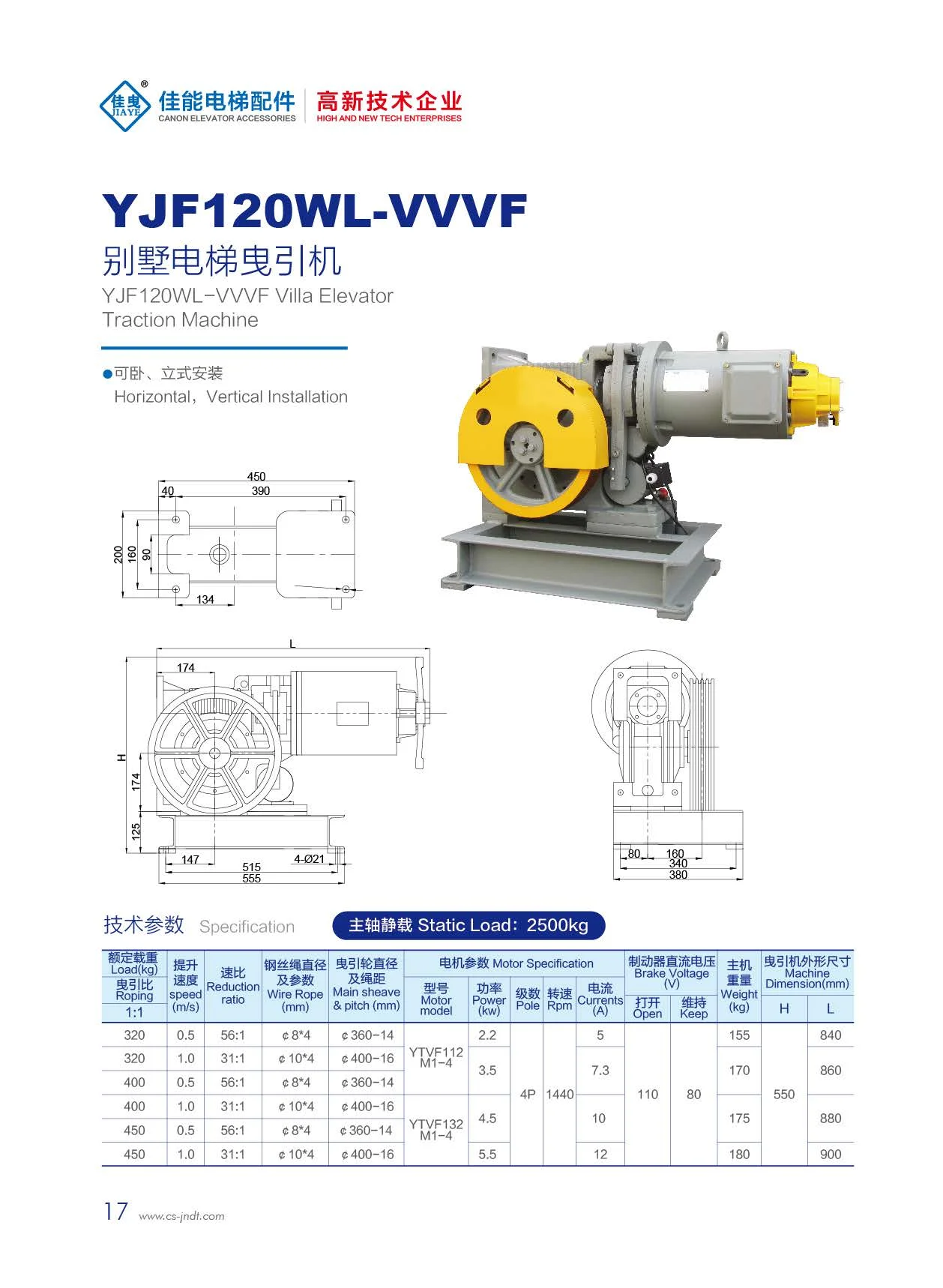

| Model | Roping | Load (kg) | Speed (m/s) | Wire rope (mm) | Main sheave& pitch (mm) | Power (kw) |
| YJF120WL | 1:1 | 320 | 0.5 | ￠8*4 | ￠360-14 | 2.2 |
| 1:1 | 320 | 1.0 | ￠10*4 | ￠400-16 | 3.5 | |
| 1:1 | 400 | 0.5 | ￠8*4 | ￠360-14 | 3.5 | |
| 1:1 | 400 | 1.0 | ￠10*4 | ￠400-16 | 4.5 | |
| 1:1 | 450 | 0.5 | ￠8*4 | ￠360-14 | 4.5 | |
| 1:1 | 450 | 1.0 | ￠10*4 | ￠400-16 | 5.5 |
