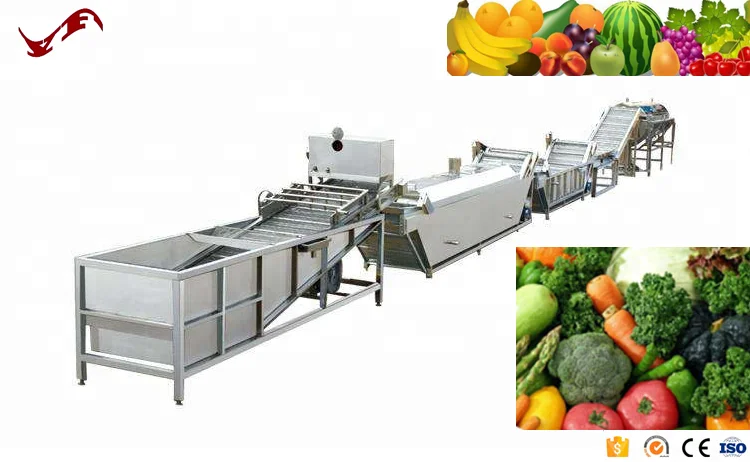

Floor lift+bubble ozone cleaning +strong air drying complete production line. Other fruit and vegetable processing equipment can be customized according to customer requirements
1. Floor hoist
The whole machine is made of 304 stainless steel, the transfer part is carried out by special grade rubber belt for food, and the raw material is hoisted.
2. Bubble washing machine
Material: stainless steel
voltage: 380 V
power rate: 2kw
dimension: 2 500 × 950 × 1300mm
processing capacity: 1000 kg / h

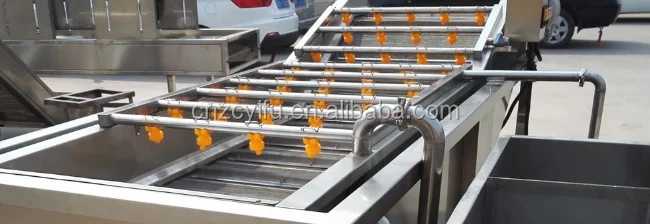

Bubble cleaning machine, this machine uses high pressure gas to produce bubbling, circulating water pump surfs, ozone antivirus and lifting high pressure spray water to keep clean vegetables. Cleaning process spray and high pressure nozzle continuous water supply, water supply adjustable, convenient for customers according to the amount of vegetable handling and cleaning degree of flexible adjustment. At the same time, in this process, customers can add appropriate amount of agents according to their own conditions, re-disinfection or preservation. Refrigeration equipment can also be installed to reduce the material temperature and increase the preservation time.
3. Air dryer
Material: stainless steel
source: 380V motor power: 7.1kw
Fan power: 0.55kW
Treatment: 1000 kg / h
This machine is used to remove the excess water in the material after cleaning and disinfection, and to facilitate the packaging and distribution of the material. This machine is mainly combined with cutting and washing equipment to form a continuous clean vegetable processing line, saving a lot of manpower, simple operation, production safety and hygiene, greatly improving production efficiency, stainless steel conveying speed can be infinitely adjusted speed, fan height can be adjusted. (the product can be customized according to the specific needs of the user, and the fan air volume can be customized to adjust speed).

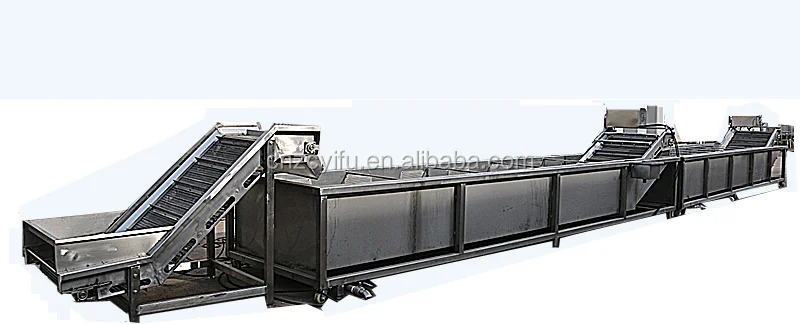

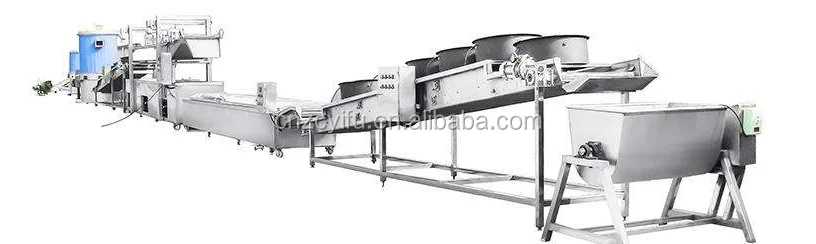

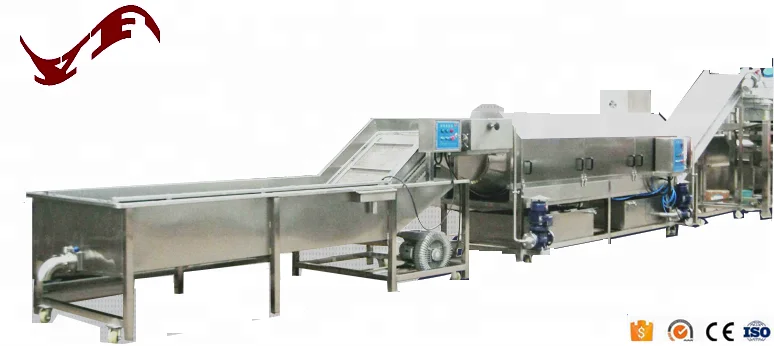

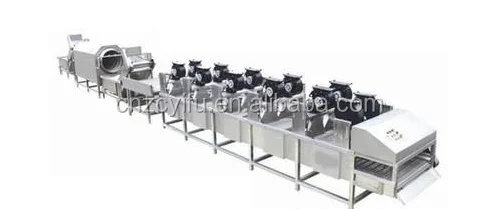

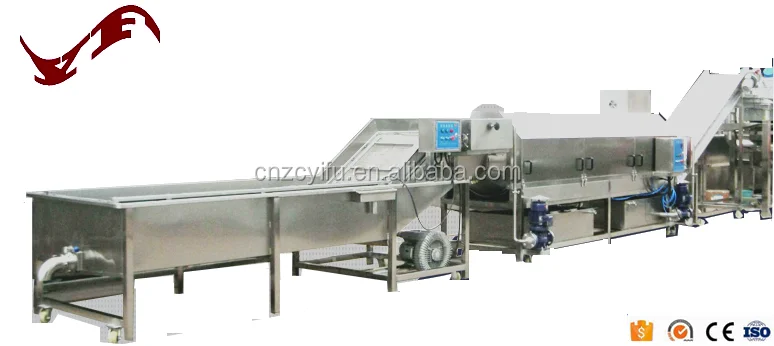

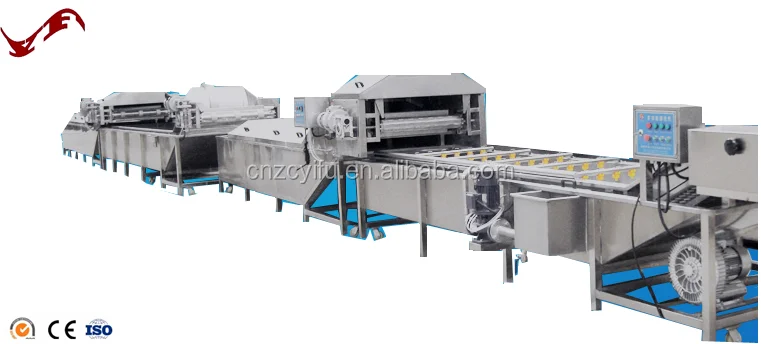

Picture of washing line:

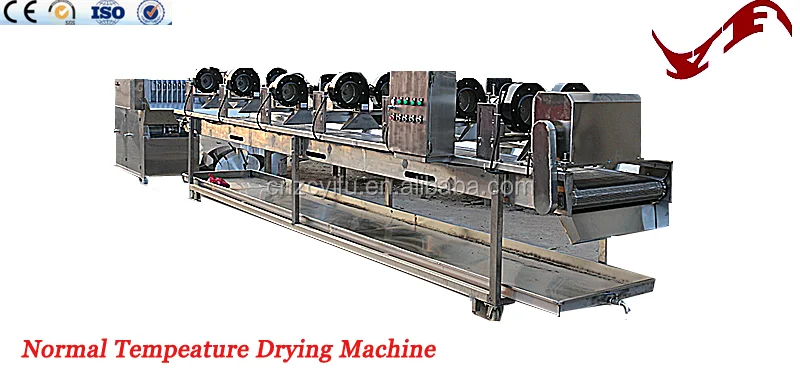

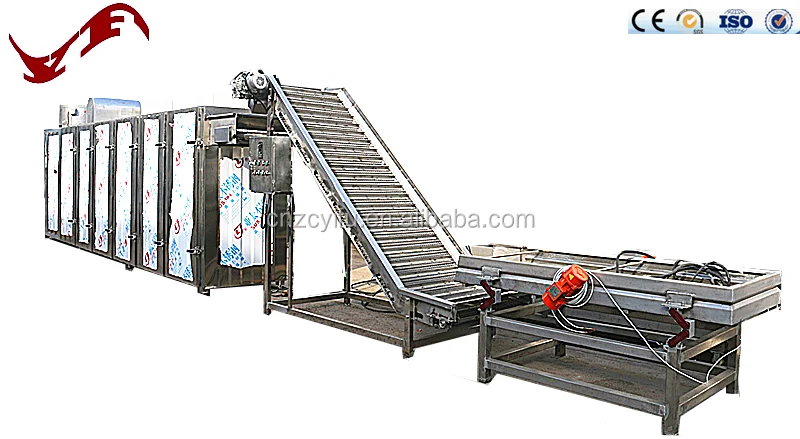

Drying Machine :

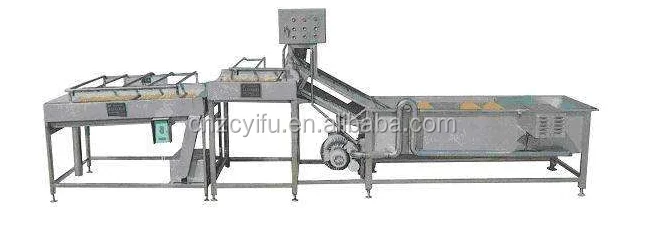

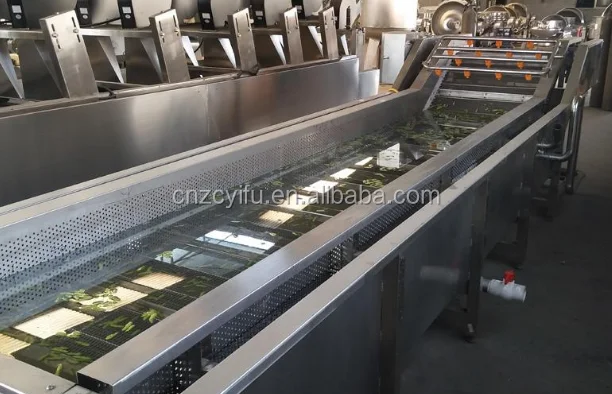

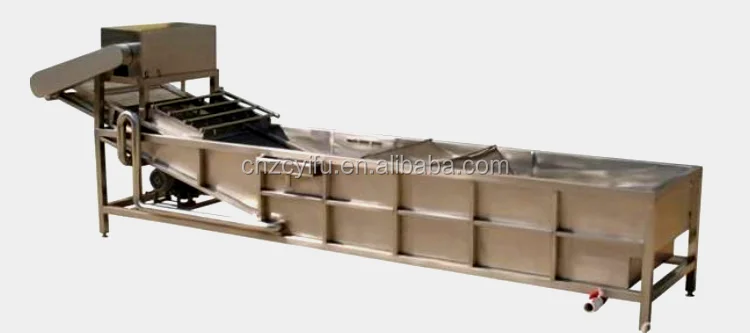

Washing Machine:
Our Services
1. The company guarantees that all the machines sold will be tested before they leave the factory, and will not be shipped to the customers until they have passed the inspection, so as to ensure that the machines can be used normally and quickly after the customers receive the machines, so as to completely avoid the production losses of the customers.
2.Provide a full set of installation, commissioning, maintenance, technical advice and other pre-sale after-sales service, sold products within a year of free maintenance.
3.Service objective: provide perfect aftermarket for all customers and make the machine run without trouble.
4.Service principle: the warranty period of the product is 12 months. During the warranty period, the supplier will repair and replace the parts damage caused by the quality reasons free of charge, and the damage of spare parts outside the warranty period will only be subject to the cost of providing spare parts. Equipment damage caused by factors considered by the buyer, supplier maintenance or the provision of accessories are priced at cost.

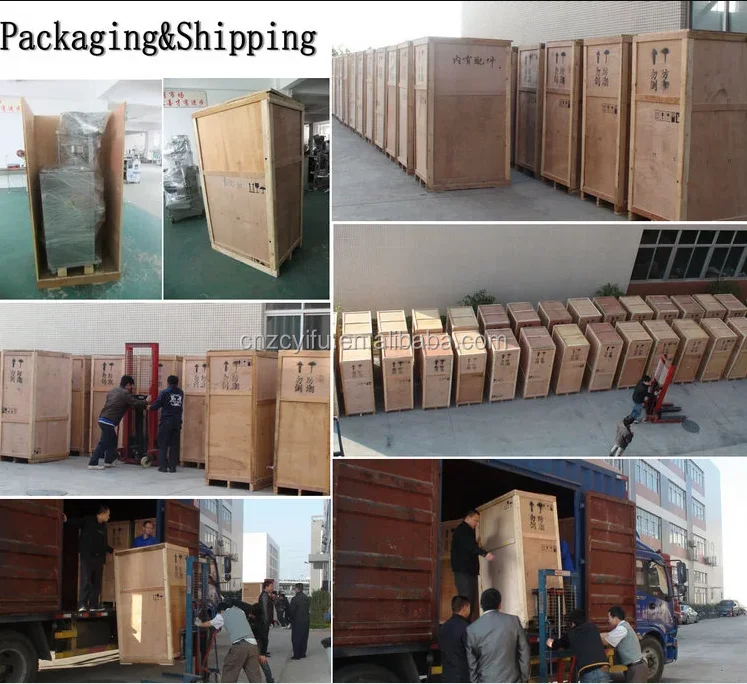

Packaging & Shipping
1.Packing: covered wtin film and put into the export standard wooden case, using the cystosepiment to prevent breaking . The wooden case fix inside the container tightly by the rope.Export standard wooden case with pallet for unloading. 2.Shipping Direct ly for sending the machines to customers within shortest voyage as we can. And all main BL for ensuring the safety of the machines. We update the shipping information to customer in time.
