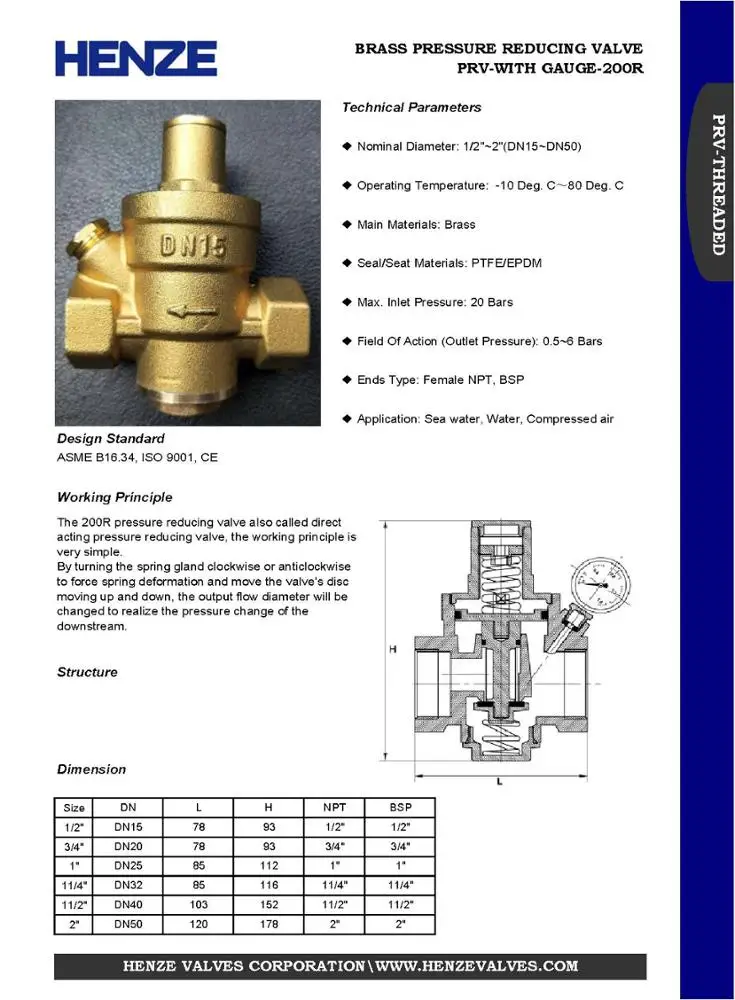

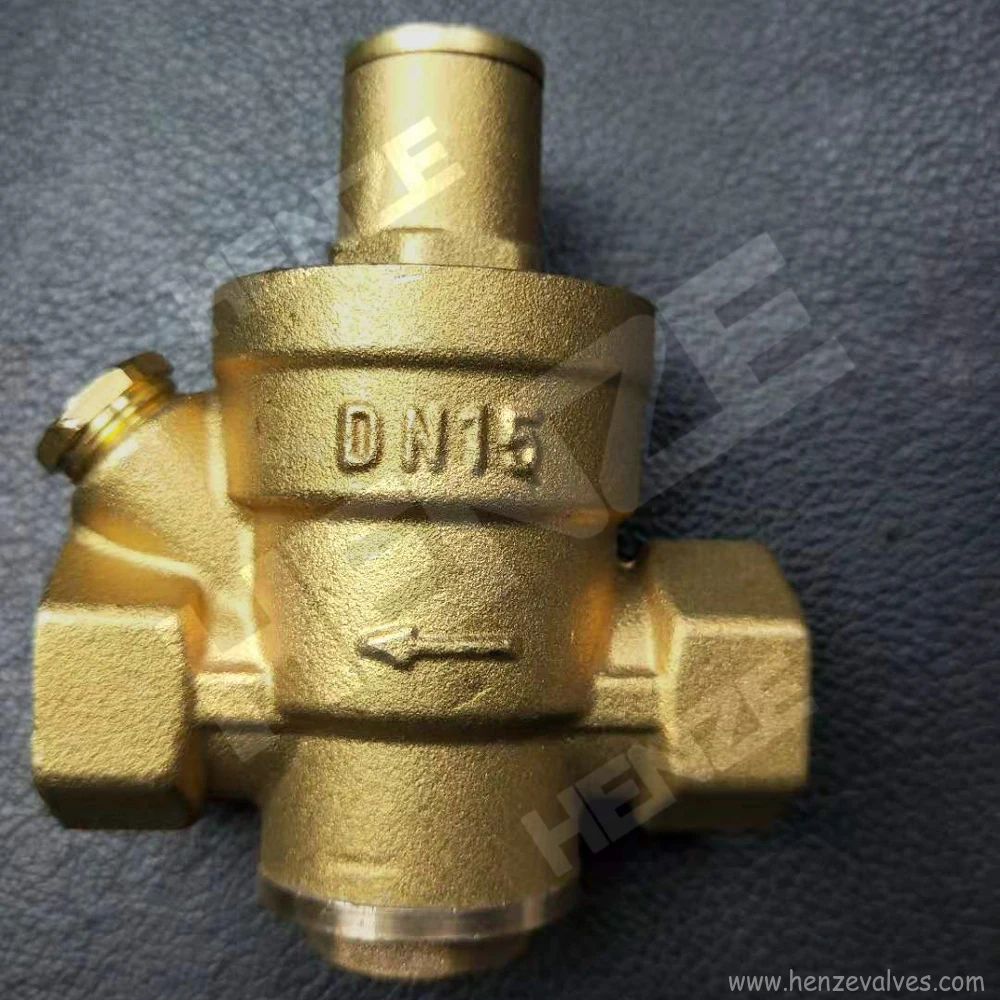

Brass Pressure Reducing Valve With Gauge
- Category: >>>
- Supplier: Henze Valves Corporation
Share on (60768983795):
Product Overview
Description
Technical Parameters
| Product Description | Brass Pressure Reducing Valve With Gauge |
| Nominal Diameter | 1/2"~4"(DN15~DN100) |
| Operating Temperature | -20 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN10, PN16, 200WOG, 400WOG, 600WOG |
| Main Materials | Brass |
| Max. Inlet Pressure | 20 Bar |
| Outlet Pressure | 1.5~5 Bar |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | Male NPT, Female NPT, Male BSP, Femal BSP |
| Ends Standard | ASME B1.20.1, ISO STD |
| Test standard | ISO5208 |
| Application | Cold/hot Water, Oil, Gas |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | With Pressure Gauge Connenting |
| Other Features 3 | Stock is available |
| Other Features 4 | Union Bonnet |
