High Security Lift Elevator Controllers Door Access Control with RFID Card Reader

Product Overview

Description

High Security Lift Elevator Controllers Door Access Control with RFID Card Reader

rfid card reader for hotel elevator, door access control etc

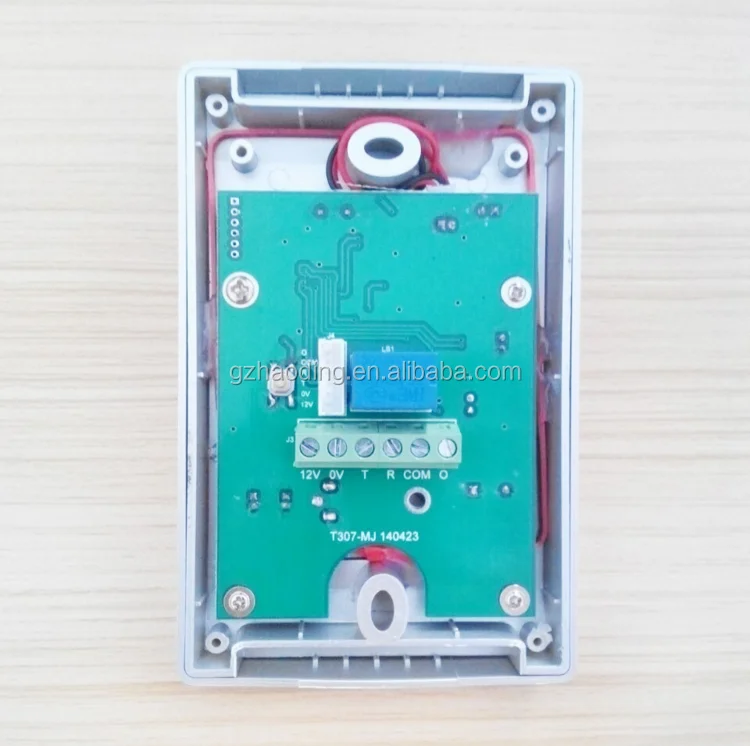

Control board













From left to right are 1~6 pin, defined as follows:

1:12V, positive 12V power supply

2:0V, connect to power ground

3: No wiring

4: No wiring

5:COM, output common

6:O, output control



This product can be used for:

A. Hotel elevator access control,

B. Community door access control,

C. Only control the single-key elevator controller.



Swiping valid card, the 5th and 6th pin is connected for 5 seconds, 2 pins can be connected regardless of the direction, please advise the corresponding system while ordering, such as temic 5577,  M1 etc...



Before using, you must first install the information. Configuration method: Using one of the room cards to install information.





Please click Chat now or send us an inquiry to get more details and the latest offer about portable hotel lock. Thank you:)
