Product Description
----------------------------------Description------------------------------
8CH CVI/TVI/AHD HD Video Converter over Fiber transmitter and Receiver. 720P and 1080P
HD CVI/TVI/AHD optical transceiver is designed by Beyond for long-distance fiber transmission of HDCVI HD compound video, adopt the compressed digital photoelectric conversion technology by their research and development, use fiber to transfer Millions of pixel HD video by dot to dot, and realize video transmission without delay and with high reliability. Single fiber can transfer 1-4 CH HDCVI HD compound video at the same time.
HD CVI/TVI/AHDHD optical transceiver supports two HD video format 1280H and 1920H, supports two resolution ratio 1280×720 and 1920×1080,four frame rate 25,30,50,60, six HD format 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f.
----------------------------------Features---------------------------------
- Support 1280H and 1920H two HD video format
- All interface adopts three-level anti-static, lightning protection
- Ultra-wide optical dynamic range and advanced adaptive technology , and transmission distance is up to 100 km
- Surface Mount Optical Device, and ensure small volume of products, high stability, high reliability
- Very low electromagnetic interference (EMI),adio-frequency interference (RFI) and a total of ground loop interference
- Rich LED lights, diagnostics indicator
- Plug and play, support hot plug
- The advantage of small dimension,small power,strong anti-interference ability, high fidelity
- Industrial-grade ultra wide temperature range (-40℃~+85℃), adapt to the more environment
- Support user customization and OEM
----------------------------------Specification------------------------------
Technical parameter list |
Product Name |
8HDCVI Fiber Optical Transceiver |
Product Model |
3C-CVI-T/R8V |
Connector Type |
1310nm&1550nm |
Network Media |
-8~ -3dBm / -3~+2dBm |
Bandwidth |
50/125um Multimode, 62.5/125um Multimode, 9/125um Single-Mode |
MAC Address Table |
-22dBm |
MTBF |
FC, ST , SC (Optional) |
Network Latency |
0~500M(Multimode) / 0~40KM(Single-Mode) |
Forwarding Mode |
>500mVp-p |
Video Interface |
1Vp-p |
Video Bandwidth |
75 |
Video Bit Wide |
<0.8ns |
Differential Gain |
<0.2 UI |
Differential Phase |
BNC Interface |
Video SNR |
1~8 |
Data Interface |
Light Chain, Power Supply, Data and Video Source Lights |
Data Bit Rate |
DC5V 2A |
Audio Interface |
≤5W |
Audio Bandwidth |
100V~240V AC Adaptive |
Audio SNR |
Working temperature: -40℃~ +85℃; Storage temperature:-40℃~ +85℃; Working humidity: 0~95% No Condensation; |
Protocol |
≥100,000 Hours |

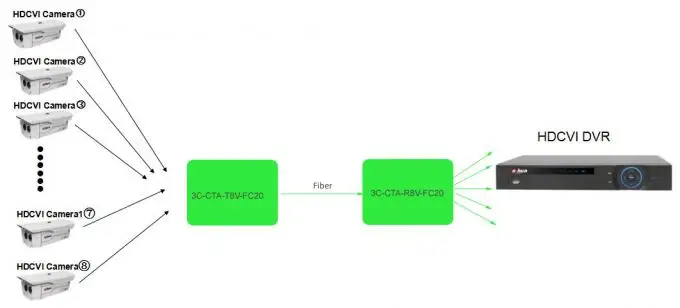

--------------------------------Application--------------------------------
1.City traffic monitoring system
2.Public security and safe city monitoring system
3.Security and charging system on the highway
4.Building, campus monitoring network
5.Industrial monitoring (airport, chemical, steel, petroleum, railway, water conservancy, mining, etc.)
6.Military monitoring (warehouse, frontier defense, the guards, national defense, etc.)
7.Television transmission system
8.Gymnasium (live video and audio transmission)
-----------------------------Order information------------------------
Modle |
Description |
3C-CTA-T8V-FC20: |
CVI/TVI/AHD Fiber Transmitter, Default interface FC, 20km.SM, 8Ch |
3C-CTA-R8V-FC20: |
CVI/TVI/AHD Fiber Receiver, Default interface FC, 20km.SM, 8Ch |
