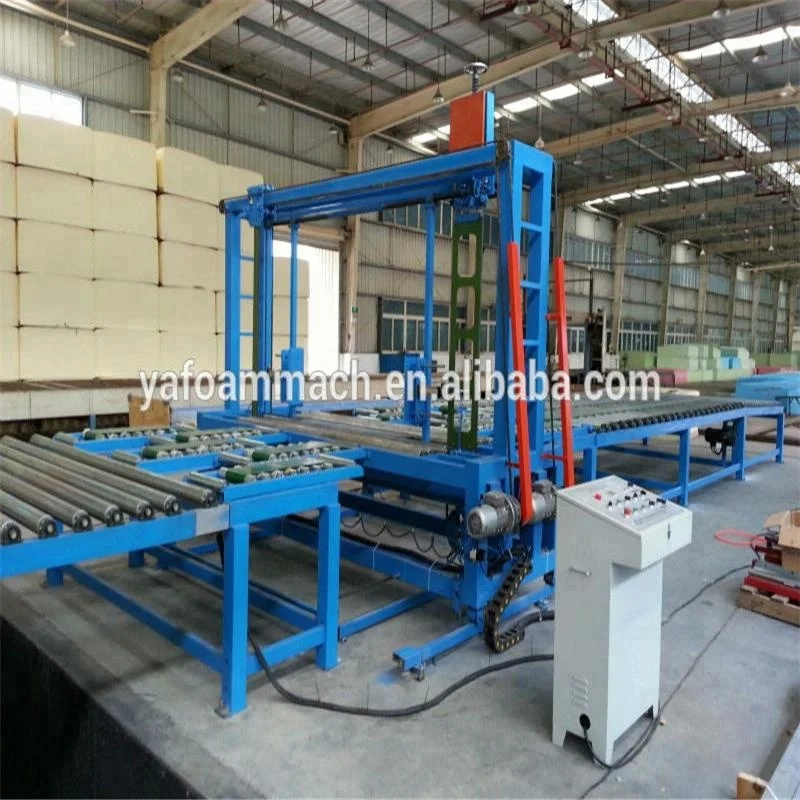

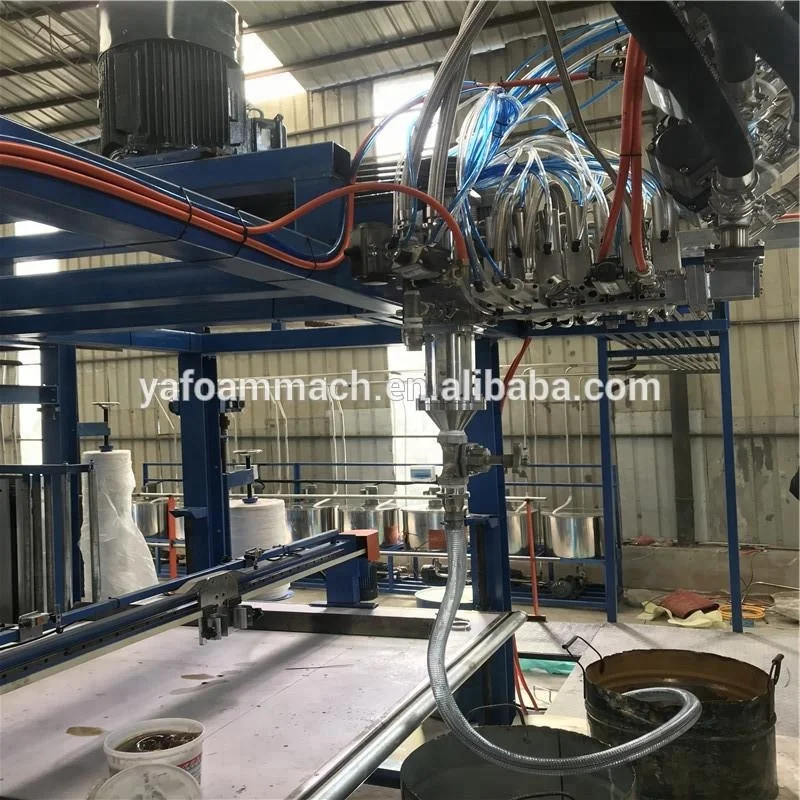

Automatic Horizontal Continuous Mattress Foam Making Machine
- Category: >>>
- Supplier: Dongguan Yangao Machinery Co. Ltd.
Share on (60769108246):
Product Overview
Description
Product Description
Automatic Horizontal Continuous Polyurethane Mattress Foam Making Machine
This is the automatic horizontal continuously foam making machine for make the foam in mattress sofa shoes and also car or other industiral use. It was automatic control by the PLC with the touch screen. It can save the formular automaticly and make different density and color without the stop of the machine.
Main specifications
Max.Output Capacity: | 200~350kg/min(Continuous Type) |
Mixer Total Power: | 37kw |
Max.Mixing Speed: | 2500~6000r/min |
Foaming Type: | Trough & Sprayer |
Standard Material Q.T.Y.: | 13 Groups. |
Foaming Size: | W2300mm*H1300mm(Width Adjustable) |

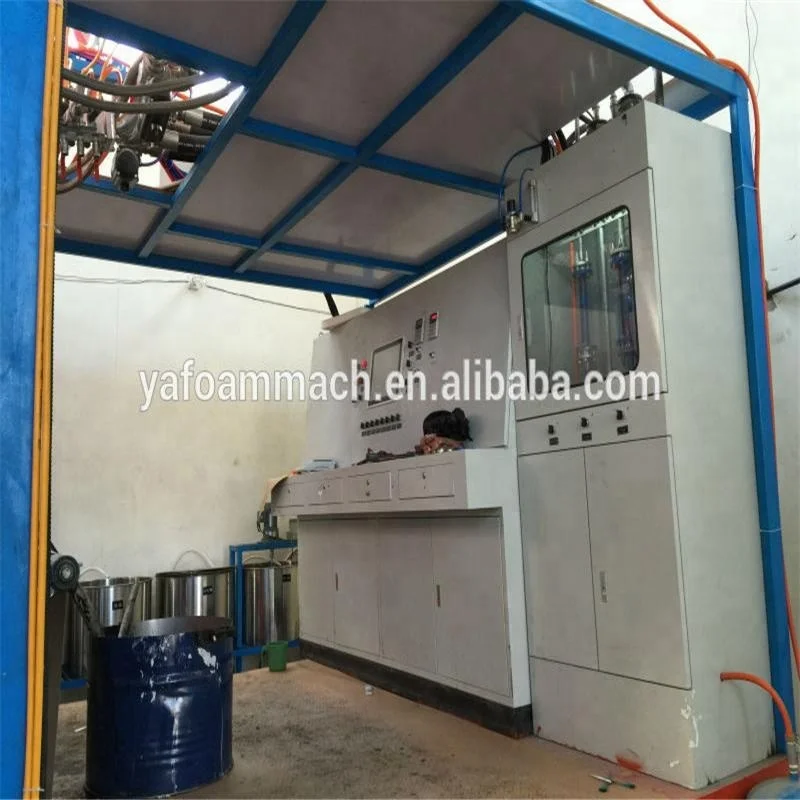

Control System: | PLC Digital Touch Screen |

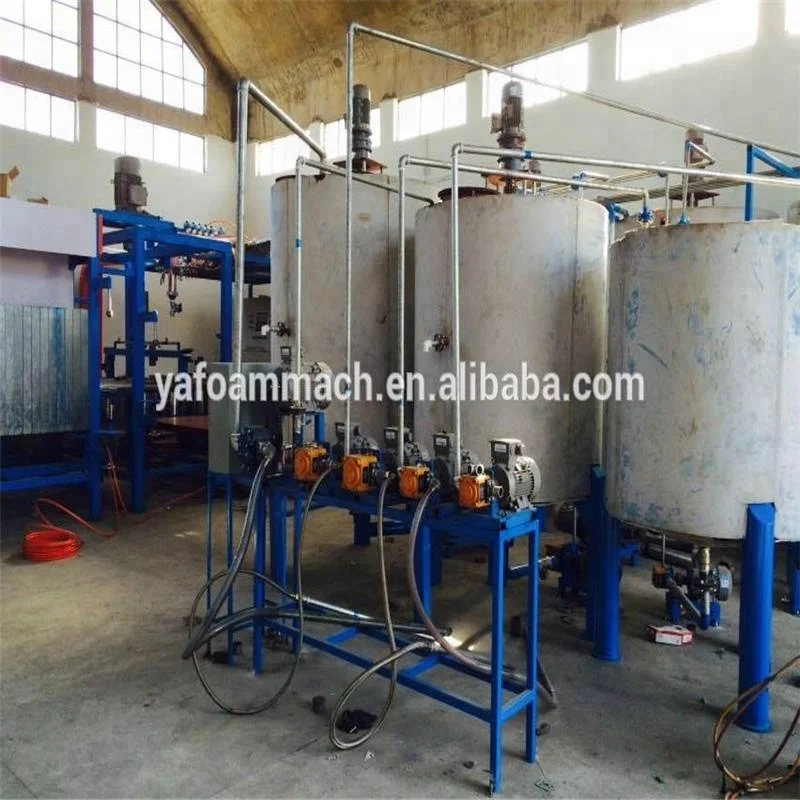

PPG Tank: | 5Ton*1Set. |
POP Tank: | 5Ton*1Set. |
TDI Tank: | 5Ton*1Set. |
MC Tank: | 2Ton*1Set. |
Caco3 Tanks | 5Ton*1Set |
T-9/Amine/Color 1ABCD/ Silicone /Water Tanks | 180L*8Sets |

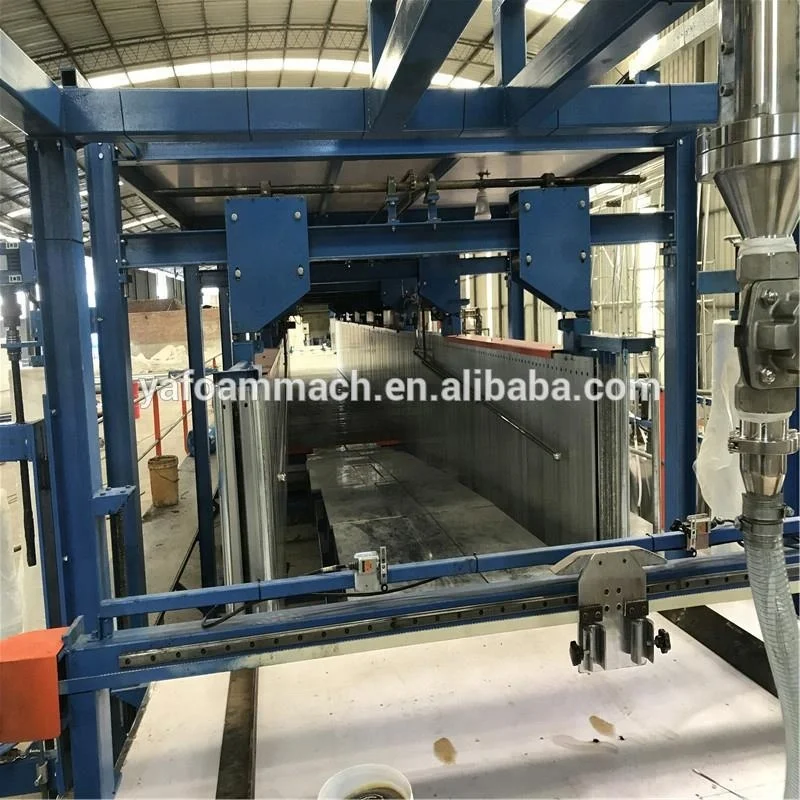

Side Wall Size: | L16m*H1200mm |
Fallplate: | L8.5m*W0.98~2.4m(Adjustable) |
Foaming Platform: | L2000mm*W3000mm*H700mm |
Conveyor Line: | L16.9m |
Side/Bottom Paper Feed & Rewind System: | 2Sets. |
Walkway: | W500mm*L15m |
Air Valves | U.S. Standard |
Chiller(Both Cooling & Heating System): | 1Set*1.5HP |
R.S.Pulling System: | 1Set. |
Foaming Density Range: | 8~150kg/Cubicmeter. |
Match With Block Cutter: | 1Set. |
Total Motor Power: | Approx 125kw. |
Machine N.W.: | Approx 30 Ton |
Floor Space Required: | L45m*W5m*H4.5m. |
Our Services
1.We will send 2-4 technicians to the buyer for the installing, and need the buyer send several employees for help and cooperation, and provide the water, electricity facilities and place for installing.
2.We should provide the operation manual and the routine maintenance guidance to the buyer’s engineer.
After the warranty period the seller should provide the life long paid service.
3. We will help the customer to teach the engineer how to make the foam and offer all the foaming formular.
4.We will help to check for the best raw material for foaming.
Packaging & Shipping
Packing:
1. the big machine parts will be packing in paper and film or foam sheet.
2. the small machine parts will be put in the wooden case or inside the material tank to save the freight cost.
Shipping
1.ship by sea
2. one 13groups machine need 2*40HQ and 1*20GP containers.
Our customers
FAQ
Q: We are fresh man in this kind of business we just know we need the machine to make the foam for mattress how can we do?
A: Just tell us which country you are going to open the factory and what kind of products you want to do then we can help to choose the best machine. Cause we specilized in the foaming machine more than 10 years we have customers all over the world can give you good advice for that.
Q: If we buy your machine can you send engineer to install and also teach our technicians about the operations and formular?
A: We need to send engineer to your factory install and testing the machine the we must teach your engineer how to operate and maintance the machines. Regarding to the formular we can send you all at any time if you required. Or you can also send some one to China and learn.
Q:How long about the production of the machine and install of the machine?
A: We need 45days to make the machine and 35days to install.
Q: How is the ouput of the machine i want to make the foam for more than one hour can we?
A: The standard tank we make is 5ton and the max one we can make and load into the container is 10ton.
Our machine can make the foam continuously you must have enough material then we can make.
Welcome any time to come and join us for any question of the machine just click send now!
Foam making machine Foam mattress making machine Continuous polyurethane foam making machine
