Replace 12V FG Wilson PCB 650091 650 091

Product Overview

Description

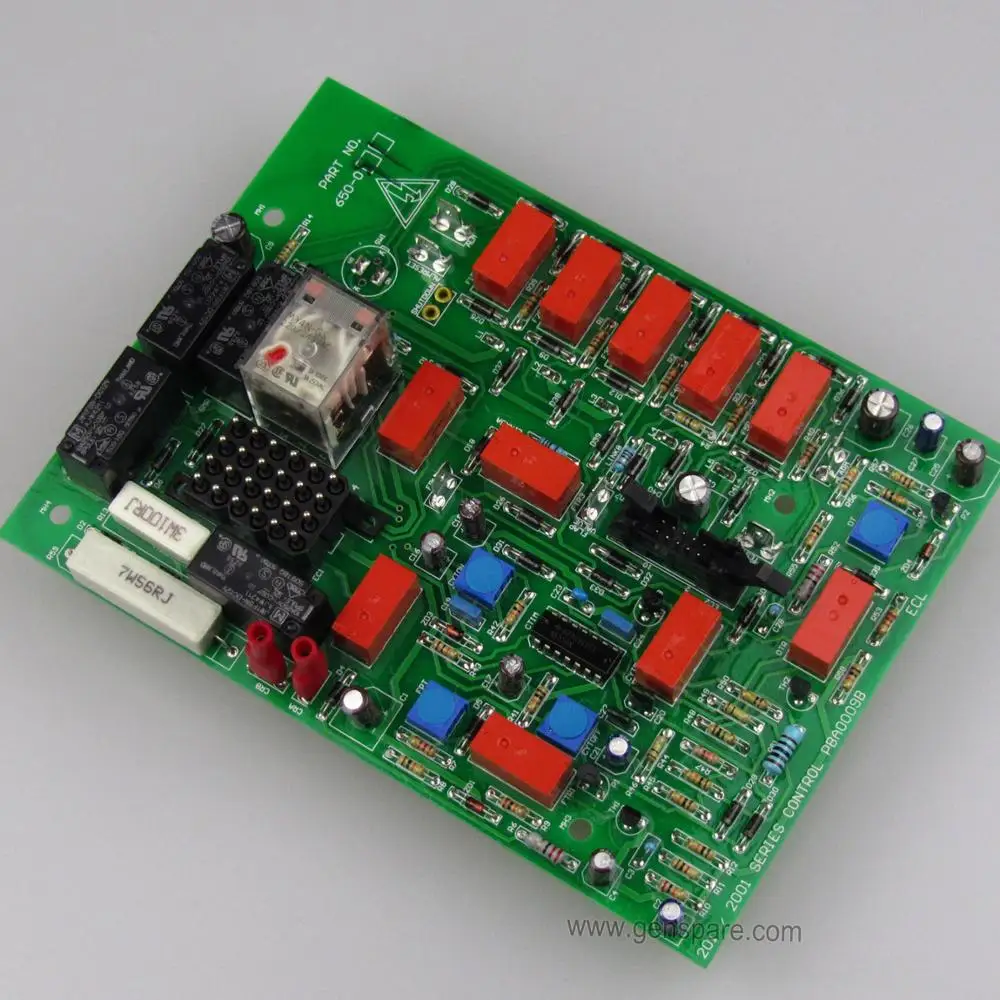

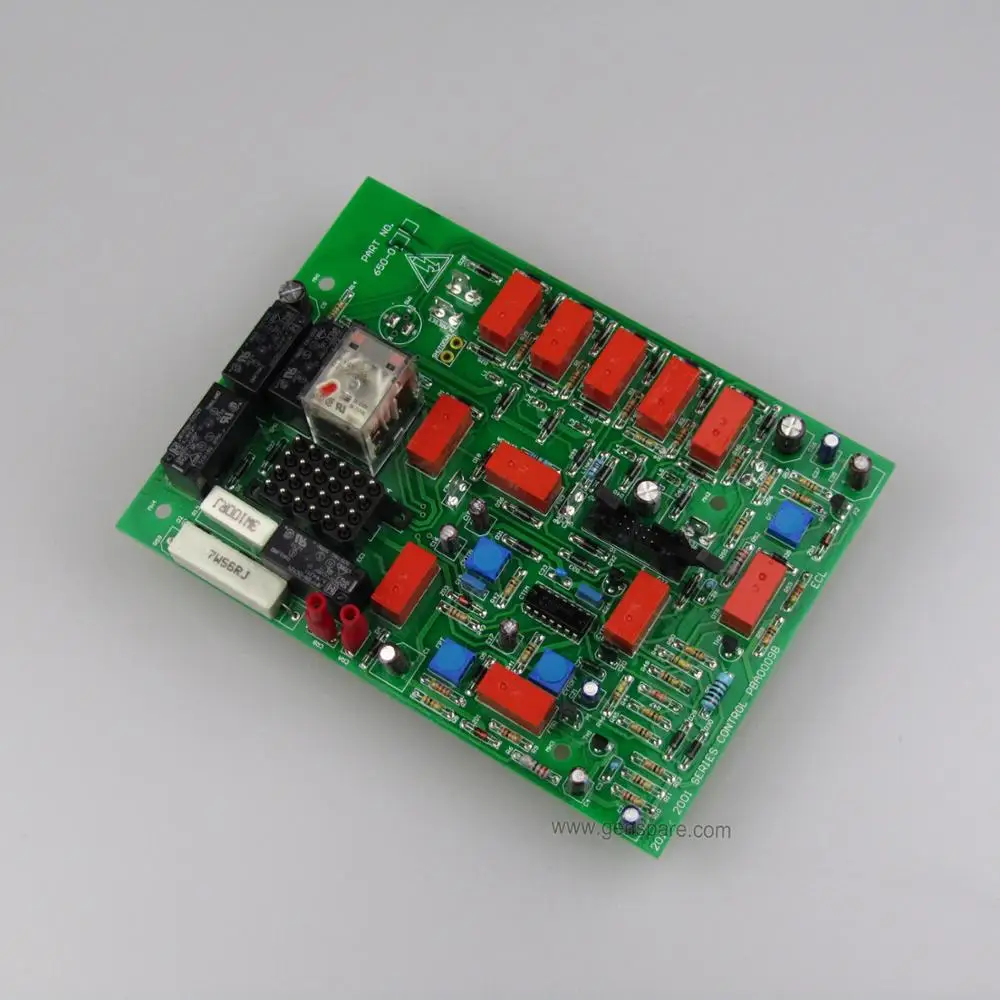

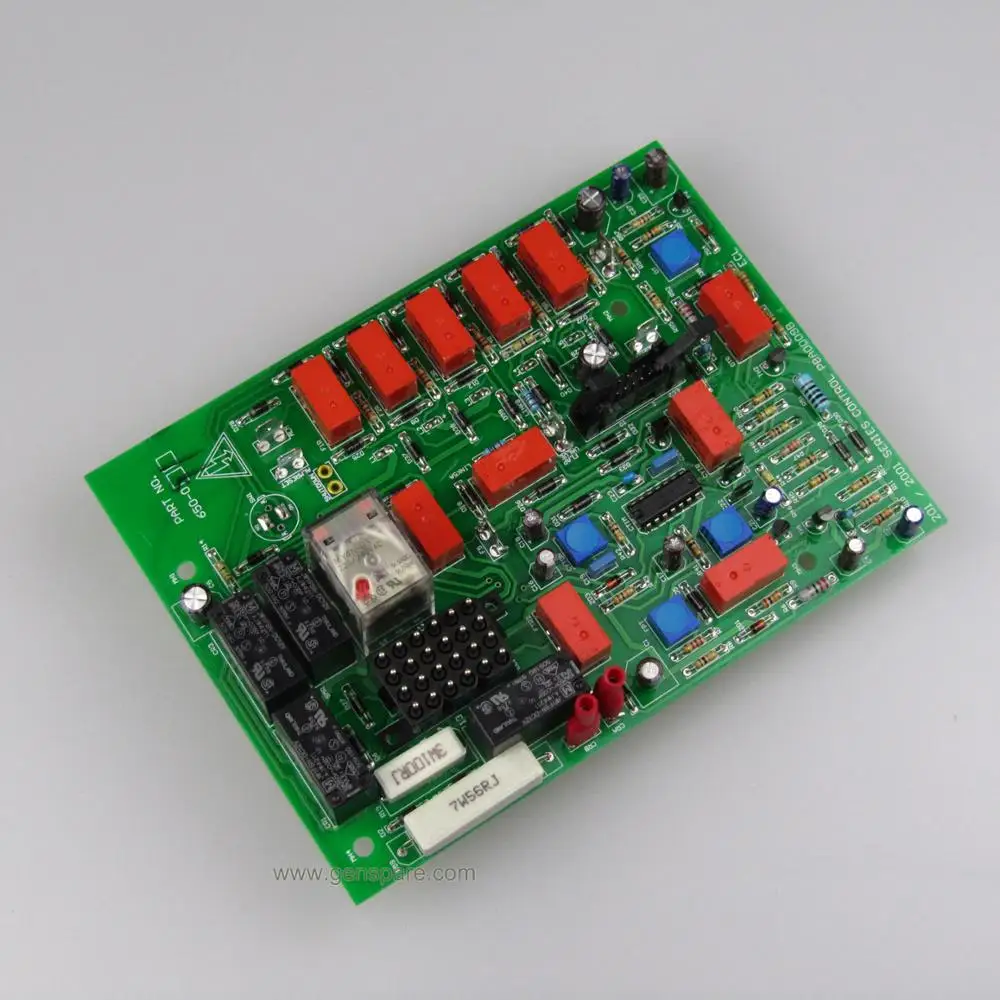

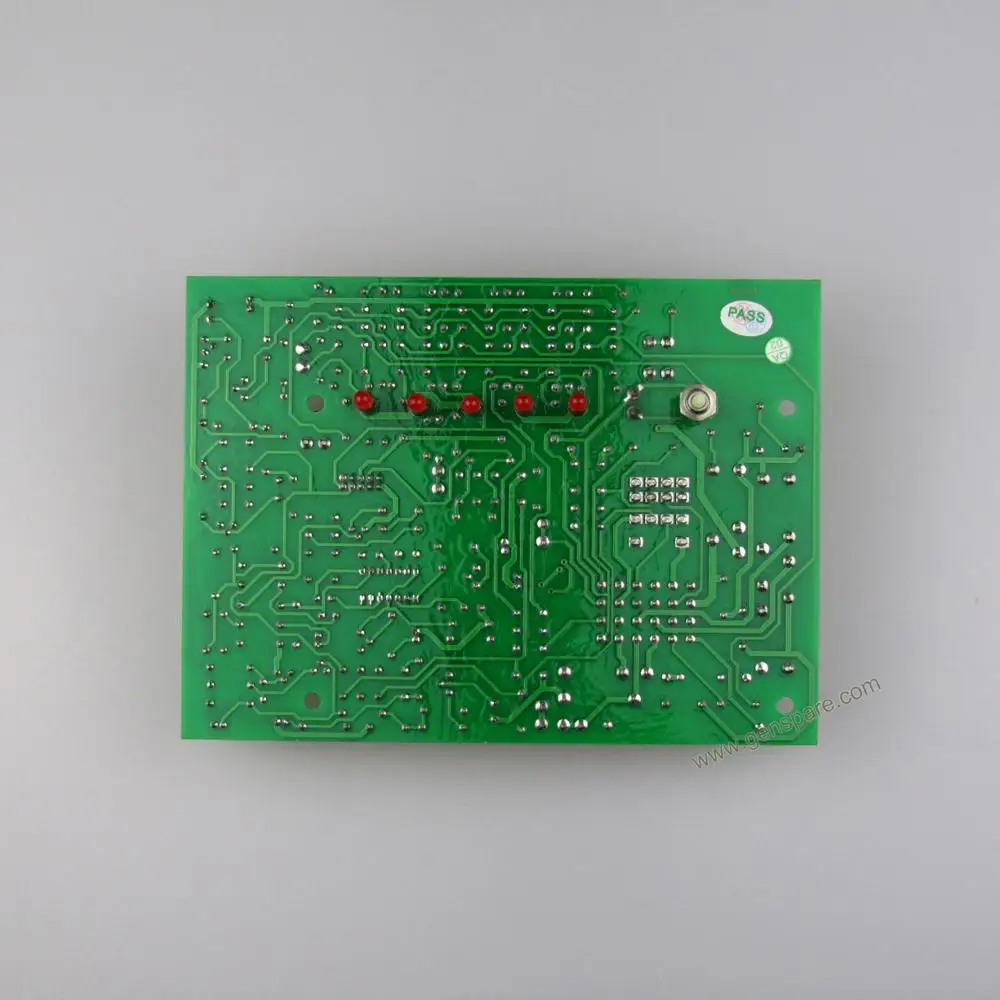

Replace 12V FG Wilson PCB 650091 650-091



We have Replacement FG Wilson PCB 650-091 in our regular stock!

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.



12V FG Wilson Engine Interface Module :

630-088 EIM

630-465 EIM

917-423 EIM


24V FG Wilson Engine Interface Module :

630-089 EIM

630-466 EIM

917-422 EIM

917-530 EIM



12V FG Wilson PCB :

650-091 PCB Printed Circuit Board, 12V for or F.G. Wilson 12 volt engine control.  Replaces PC Board 650-091.



24V FG Wilson PCB :
650-092 PCB Printed Circuit Board, 24V for or F.G. Wilson 24 volt engine control.  Replaces PC Board 650-092.



Specifications of FG Wilson 650-091 PCB



The FG Wilson Engine Interface Module is a sealed engine mounted module that provideds switching relays for the starter motor solenoid, glow plug and fuel solenoid.

Each of these circuits is protected with individual automative fuses mounted in the module. Individual LED’s illuminate when each circuit is energized in addition these LED’s greatly aid when fualt finding.



This module is mounted on the engine with anti-vibration mounts and is easily connected to the engine via loom plugs. Use of the FG WILSON EIM 630-465 means that heavy currents such as fuel solenoid power are isolated from the control panel thus enabling individual protection of each of the circuits.
