Машина для переработки пластиковых отходов пп пэ пленки

PP PE Film Washing Line Plastic Waste Recycling Machine

Application Areas:
Industrial Film Printing Packaging Plastic Film Recycling Crushing Washing Line of Wanrooetech is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films,PE waste film,PP waste film,PVC waste film,industrial film,printed film and etc.

Description :
Our plastic film washing line can used to recycle waste plastic such as plastic bags, agriculture film, woven bags, plastic package products etc. The whole production line is surely of standard and high quality with CE certification and ISO 9001. It is researched, design and manufactured by our company, integration of Europe technology, it has features as high efficiency, working stable, low humidity content(less than 5%). We use good quality on our machine(SUS-304, more than 3mm thickness) ensures whole washing line with long service life time.

Advantage:
Our price is competitive and we take responsibility to any quality uncertainty.
Our pursuit of first-rate quality, reasonable prices and comprehensive after sales services offers both potential and long-standing clientele confidence in our company.
High automation level producton line to reduce cost on labor and increase production.
Innovative design of hot washer and washing tank.
PLC control, Choose motor brand according to customer’s requirements.
We use 304 stainless steel to produce machines which contacting water.
Professional design team to design every project according to cutomer's need

Details:
1.Debaler:
As PP/PE films often arrive at washing facilities in baled form, films such as LDPE / LLDPE are compacted in large bundles tied together, bales must first be opened before it can enter the washing equipment. This can be done either manually or via the debaler.

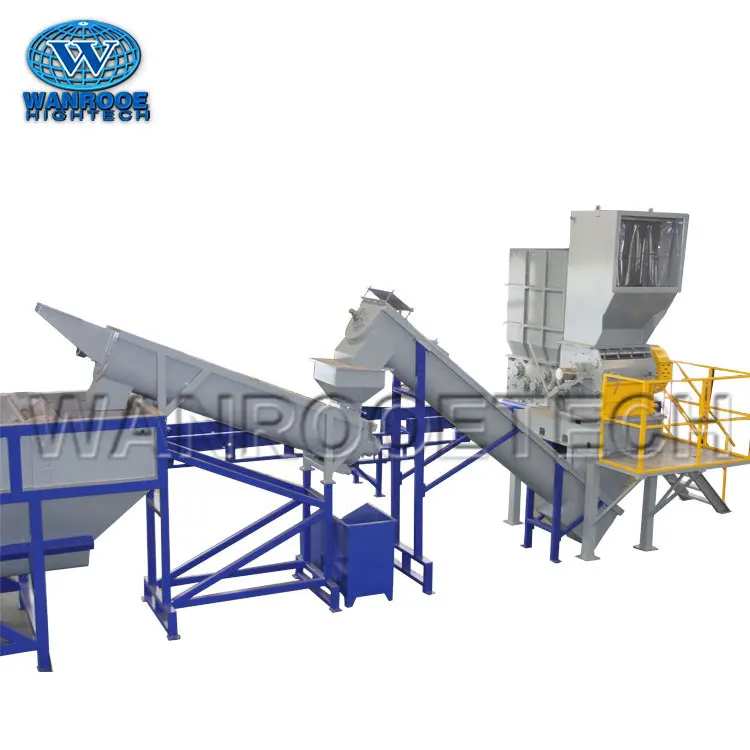

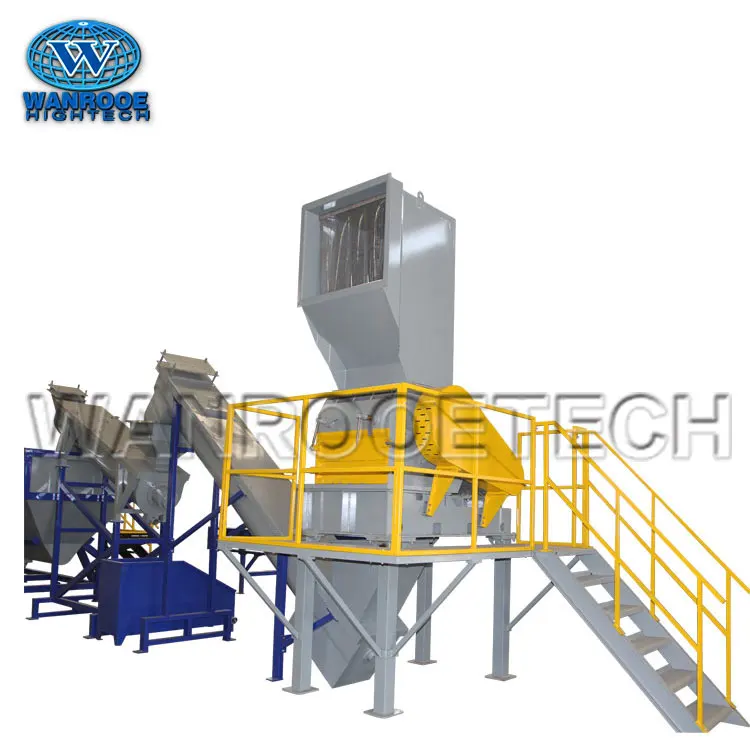

2.Plastic crusher:
The plastic granulator cuts PP / PE films into small pieces. The size reduction process is essential in our PE film washing line as long pieces of plastic film can easily tangle in conveyor and rotary-based equipment such as those used in the washing line. To prevent this from happening, the plastic granulator cuts the PP / PE film into pieces that are approximately 10-20mm in size. To further improve this process, we’ve implemented the use of a wet granulator where water is continuously sprayed into the cutting chamber. This not only partially cleans the PE film, the water acts as a lubricant reducing heat and friction buildup.
3.Single-Shaft / Double-Shaft Shredder/ Crusher:
Our industrial single-shaft and double-shaft shredders are designed for use in larger capacity PE film washing plants or recyclers processing PE films that have higher levels of contamination.
4.High Friction Washer:
Originally designed in Germany and improved upon throughout the years, this high-power washing machine has the unique ability to thoroughly was PP / PE film scrubbing off dirt, debris, and even breaks apart paper and cardboard into fibers. Learn more about our high friction washer.
5.float / Sink Separation Tank:
An essential part of the PE film washing line, the separation tank is the major line of defence against contaminants. Using water as a medium, PP / PE film that float are separated from contaminants that sink such as sand, rocks, glass, metals, and other plastics such as PET, PA, PS, etc.

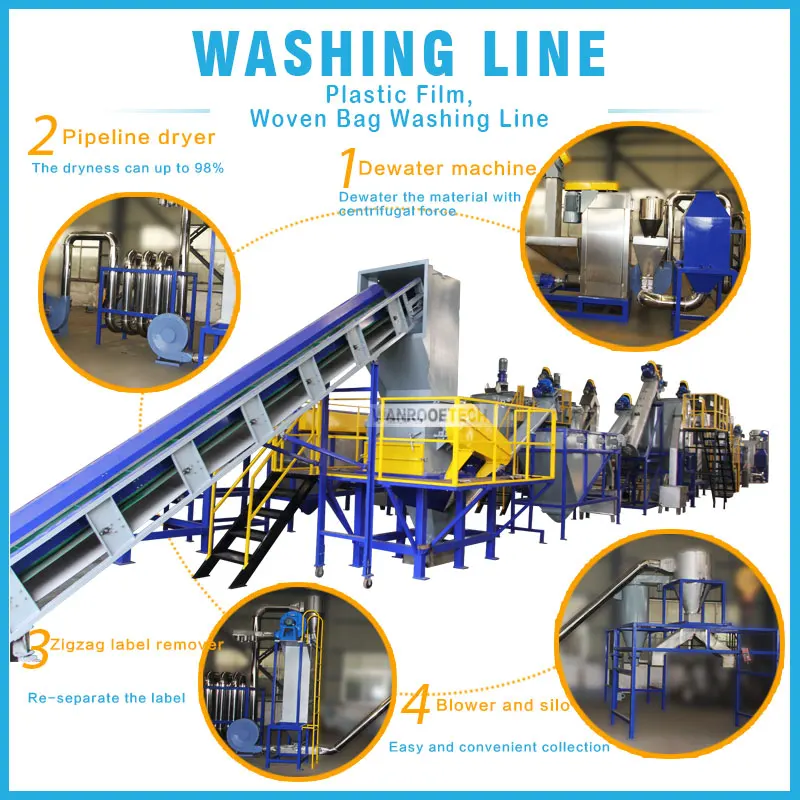

6.Dewatering Machine:
The first stage in the drying process, the dewatering machine uses centrifugal foce to remove a large portion of water content from PP/PE film coming directly from the washers.
7.Dewatering Screw Press:
A different type of dewatering machine, the screw press uses pressure to squeeze water from the PP/PE film coming directly from the washers. It’s up to you to decide which dewatering machine is more suitable for your needs.
8.Thermal Drying System:
The PP/PE film is vacuumed out of the dewatering process and dehydrated through a series of stainless steel tubes. Our effection drying system can reduce moisture content to under 3%.
9.Product Silo: A storage tank for the clean, dry pieces of PP or PE film.
