High Precision Torno Universal Lathe Conventional Lathe Machine CA6180
- Category: >>>
- Supplier: Taian Taizhuo Machinery Manufacturing Co. Ltd.
Share on (60769195039):
Product Overview
Description
Product Description
High Precision Torno Universal Lathe Conventional Lathe Manual Lathe Machine CA6180
Main Feature
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Item | Unit | CA6180 | ||
1 | Max. swing over bed | mm | 800 | |
2 | Max. swing over carriage | mm | 540 | |
3 | Max. length of work piece | mm | 1000 | |
4 | Width of bed | mm | 400 | |
5 | Section of turning tool | mm | 25x25 | |
6 | Spindle speed | rpm | 16-1400 (24 steps) | |
7 | Hole through spindle | mm | 52 | |
8 | Spindle head form | ISO(GB)C6 | ||
9 | Spindle taper | MT6 | ||
10 | NO. of feed | 64 kinds | ||
11 | Range of metric threads | (1-192mm)44 kinds | ||
12 | Range of inch threads | (1-24tpi)21 kinds | ||
13 | Range of module threads | 0.25-48(module 39 kinds) | ||
14 | Range of diametral pitc threads | 1-96DP(37 kinds) | ||
15 | Max. tailstock spindle travel | mm | 150 | |
16 | Tailstock spindle diameter | mm | 75 | |
17 | Taper of tailstock spindle center hole | MT5 | ||
18 | Main motor power | kw | 7.5 | |
19 | Machine size | mm | 2650x1140x1750 | |
20 | Weight | kg | 2560 | |

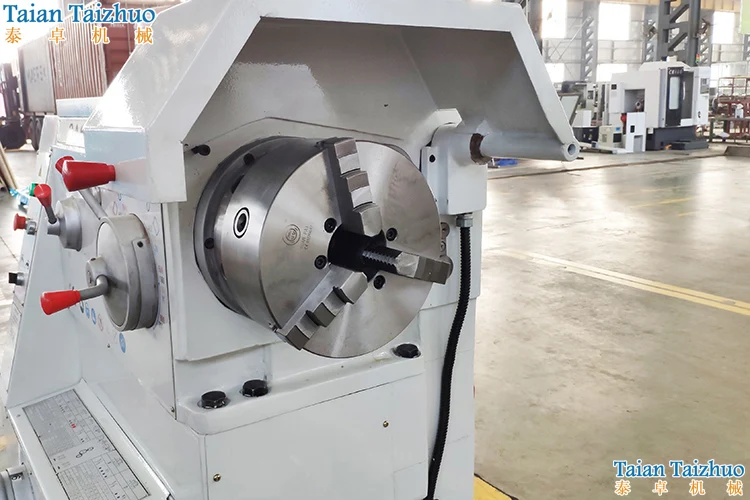

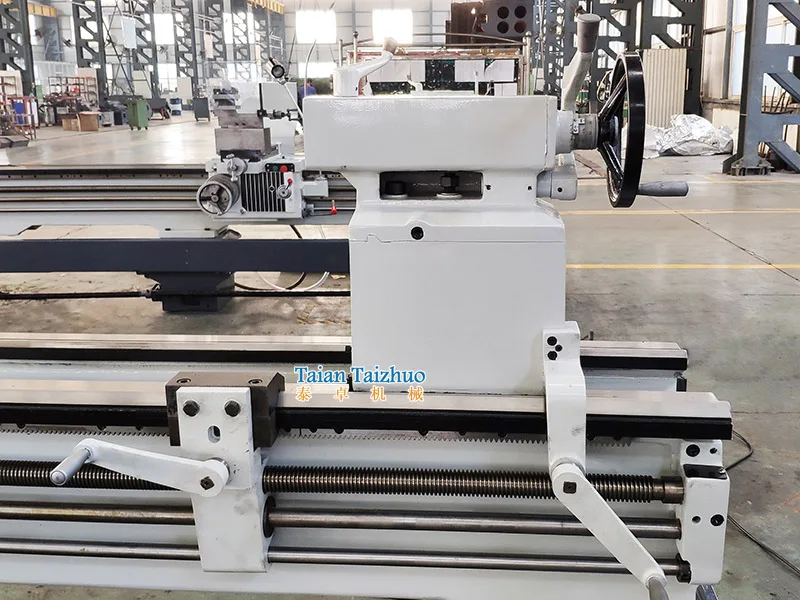

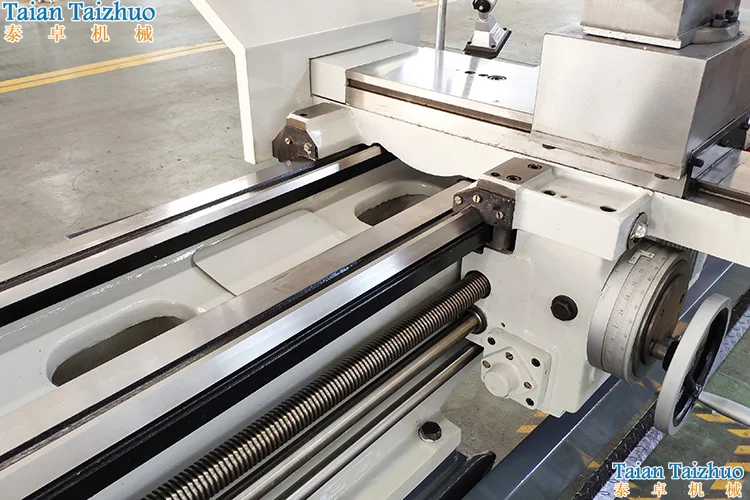

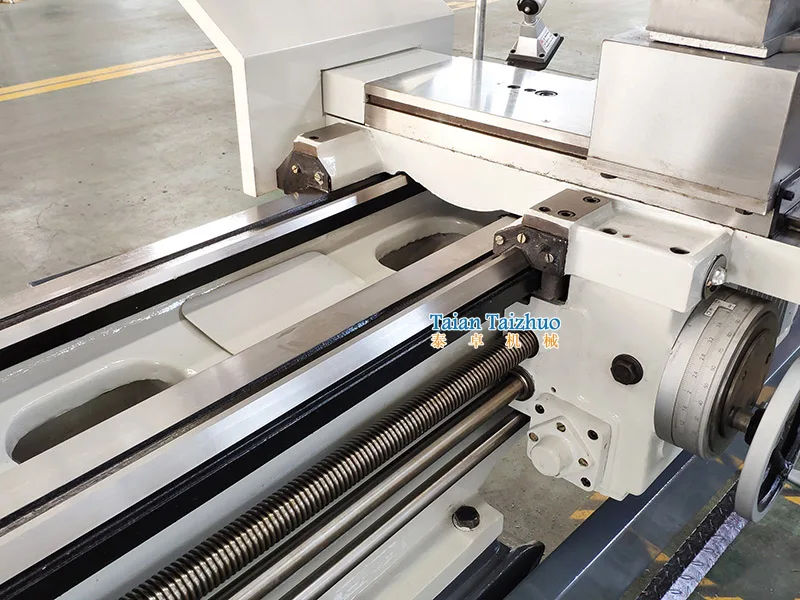

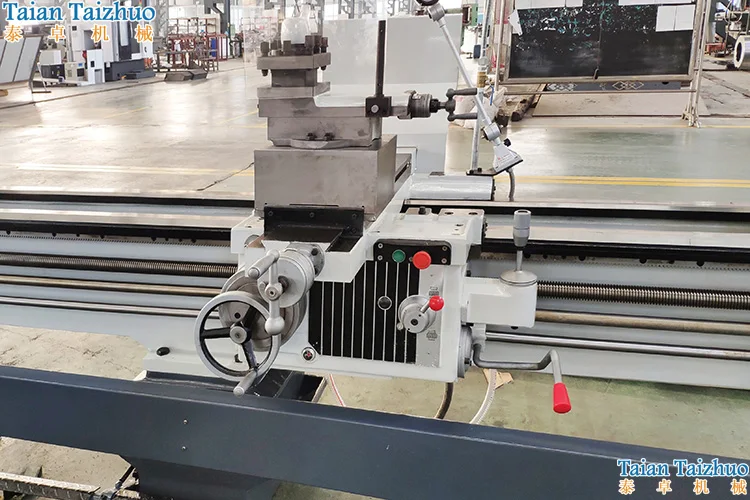

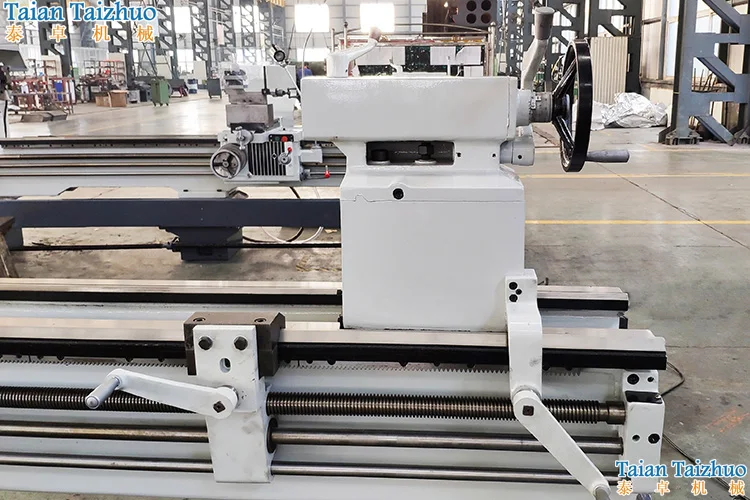

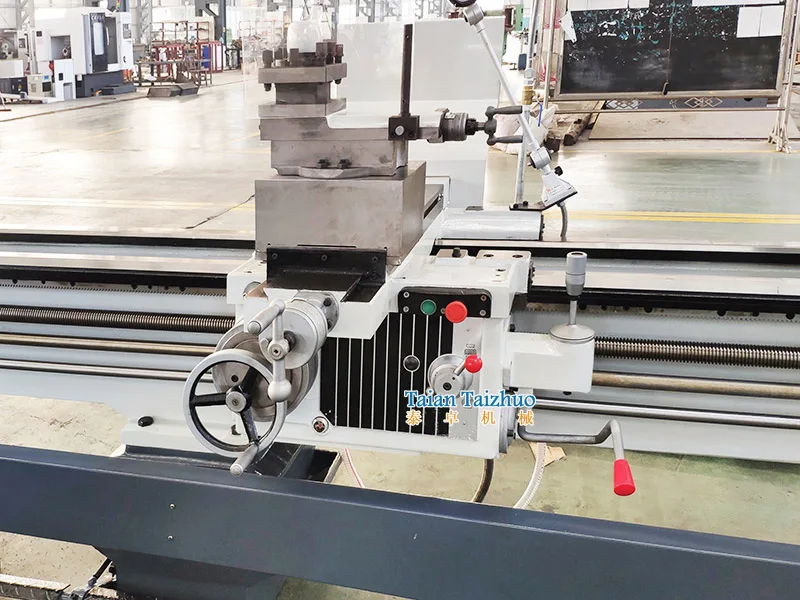

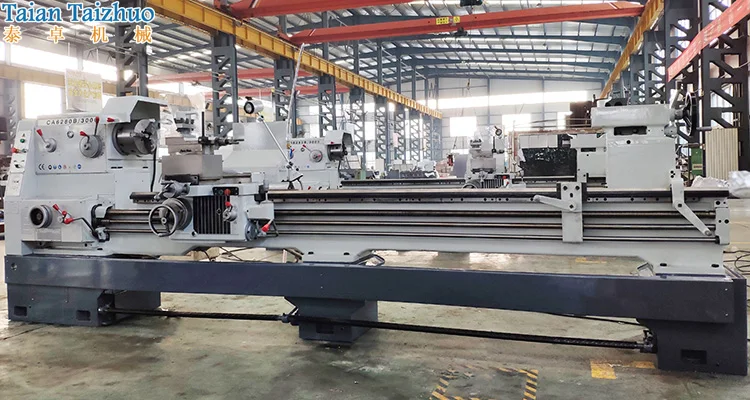

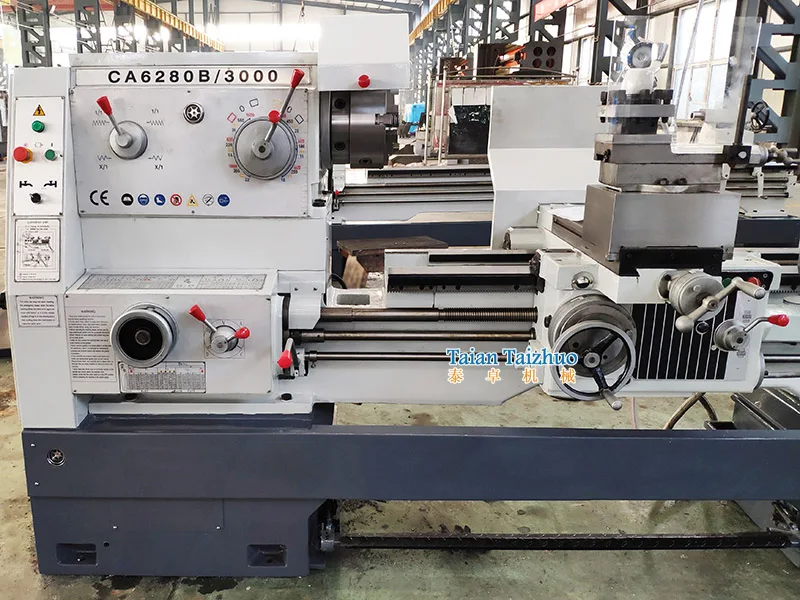

Detailed Images

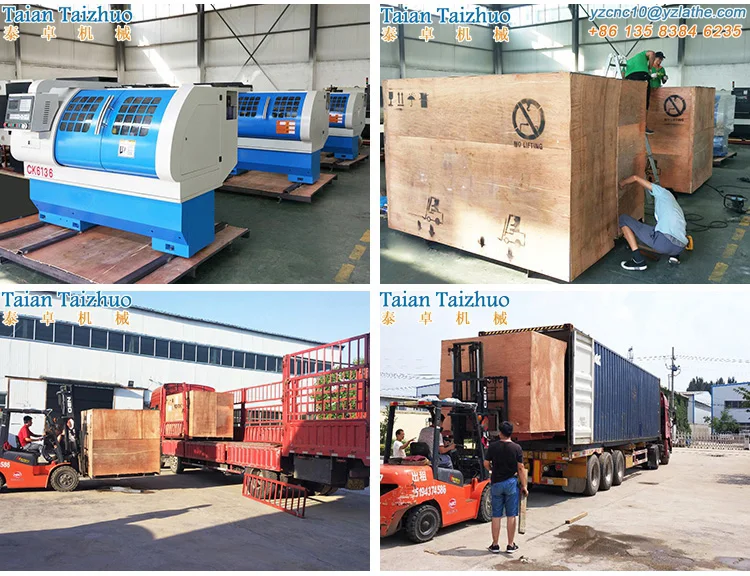

Packing & Delivery
Packaging Details: Standard export package, custom suffocating free.
Using iron base has good bearing capacity.
Using iron base has good bearing capacity.
Our Company
Taian Taizhuo Machinery Manufacturing Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.

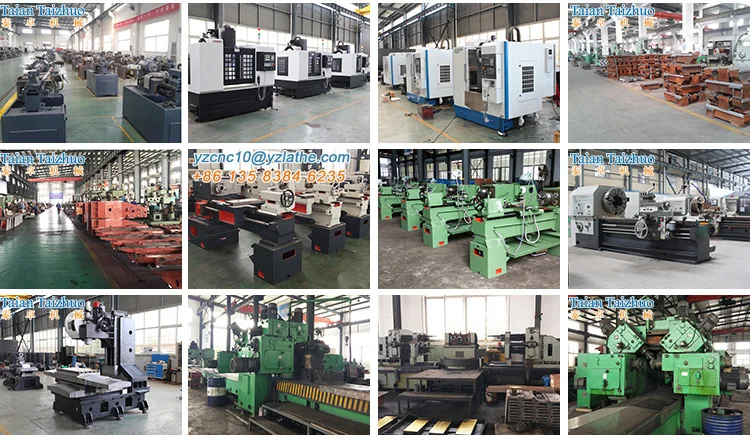

Customers Visiting
Certifications
CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.
Our Service
Pre-Sales Service
1. According to the workpiece drawing or size, Recommend machine model and configuration.
2. Sample processing support.
3. View our Factory.
4. Design new machines support.
5. OEM support.
2. Sample processing support.
3. View our Factory.
4. Design new machines support.
5. OEM support.
After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers are available to service machinery overseas.
3. Provide tools and accessories.
4. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
Note: GSK, Servo driven, motor and transformer, warranty is 3 years.
