International standard thermal conductivity measurement
- Category: >>>
- Supplier: Shanghai Boqu Instrument Co. Ltd.
Share on (60769256198):
Product Overview
Description
International standard thermal conductivity measurement
BOQU Conductivity Meter is equipped with a microprocessor and complete English menu. It has display and menu operation pattern; it is characterized by its intelligent operation, multi-function and high measuring performance and its strong environmental adaptability. It can be widely used for continuous monitoring of the conductivities of solutions used in the following fields: thermal power plant, chemical fertilizer, chemical industry, metallurgy, environmental protection, pharmacy manufacturing, biochemistry, foodstuff and running water.
Product Description
Main Features of Online Conductivity meter
It has a complete English display and friendly interface. Various parameters can be displayed at the same time: conductivity, output current, temperature, time and status. Bitmap type liquid crystal display module with high resolution is adopted. All the data, status and operation prompts are displayed in English. There is no symbol or code that is defined by the manufacturer.
Controller of Conductivity Meter
| Model | DDG-3080 | DDG-3080B | DDG-2090 |
| Range | 0.01-20us/cm(k=0.01) 0.1-200us/cm(k=0.1) 1.0-2000us/cm(k=1.0) 10-20000us/cm(k=10.0) 30-600.0ms/cm(k=30.0) | 0.01-200us/cm(K=0.01) 0.1-2000us/cm(k=0.1) 1.0-20ms/cm(k=1.0) 10~200ms/cm(k=10.0) | 0.01-20us/cm(k=0.01) 0.1-200us/cm(k=0.1) 1.0-2000us/cm(k=1.0) 10-20000us/cm(k=10.0) |
| Temp compensation | 0~150C | 0~99C | |
| Resolution | 0.01us/cm,0.01MΩ | ||
| Accuracy | +/-2%FS | ||
| Communication | RS485(optional) | ||
| Output | 0-10mA;4-20mA (two current output for option) | 0-10mA; 4-20mA | 4-20mA (two current output for option) |
| Alarm | 2 relay for alarm | ||
| Power | 220VAC or 24VDC | 220VAC | 220VAC |
| Protection | IP65 | IP54 | |
| Dimension | 146*146*150mm | 220*190*130mm | 96*96*135mm |
| Hole size | 138*138mm | / | 92*92mm |
| Working condtion | ambient temp:0~60C, relative humidity<85% | ambient temp:5~45C; relative humidity<85% | |
Electrode of Conductivity Meter
| Pressure | Range | Connection | Material | Application | |
| K=0.01 | 0.6Mpa | 0~20us/cm | pipe/hose/flange etc dia:6,8,14mm etc | SS316L Titanium alloy | Power plant |
| k=0.1 | 0.6Mpa | 0~200us/cm | pipe/hose/flange etc dia:6,8,14mm etc | SS316L Titanium alloy | Power plant |
| k=1.0 | 0.6Mpa | 0~2000us/cm | 1/2,3/4 thread | SS316L Titanium alloy Platinum | Water treatment |
| k=10.0 | 0.2Mpa | 0~20000us/cm | 1/2,3/4 thread | Polysulfone Platinum | Water treatment |
| k=30.0 | 0.2Mpa | 30~600ms/cm | 3/4 thread | Polysulfone | Acid cleaning |

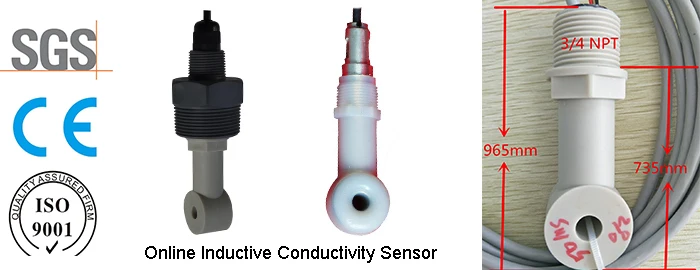

Electrode of Conductivity Meter
| Measuring range | 0-2ms/cm,0-20ms/cm,0-200ms/cm,0-2000ms/cm 0-10%HCL/NaOH,0-10%NHO3; 0-10%H2SO4(92-99%H2SO4, 25-40%NaOH) |
| Accuracy | +/- 0.5% |
| Sensor material | PP,PFA(Optional) |
| Max pressure | 1.6Mpa |
| Connection | 1 1/2 or 3/4NPT |
| Installation | Flow cell,pipe line ,submerged |
Installation
Applicaiton of thermal conductivity measurement
Power Plant water treatment; water plant and sewage treatment plant ;wastewater treatment; paper making production process, paper slurry, chemical refining; metallurgy and mining;Food and beverage;pharmaceutical industry biological reaction and fermentation;Semiconductor production process;high purity water production.Conductivity meter
Why to choose BOQU?
1.National High-tech Enterprises Certificates
2.Instruments has been exported to over 70 countries.
3.BOQU has more 50+ Softwares property
4.100% QC inspection Before Shippment.
5. ISO,CE,SGS standard and factory price.
6.All instruments has been 100% recognized by Bureau of National Metrology
Factory Show
BOQU Instrument was found since 2007, now BOQU has more 70 staff and engineers and has core technology of electrodes and develope more 50+ software for various controllers by self.
Certifications
BOQU was found since 2007, now has more 70 staff and engineers, instruments has be exported to over 75 countires.,Now BOQU has been named as High-Tech Enterprice by goverment,ISO,CE, SGS is our common certicates. the core technology of electrode ,controller and 50+ software property is our based. all instruments has been recognized by National Metrology Bureau.there is many small factories in China, you should be carefully if they provide you very low price. this is tips for you in free.
Exhibitions
BOQU has a strong Develope Department and can develope many new instruments or technology, so we will hold 5~8 exhibitions in China or Foreign to show our results.
