Hoston Semi-automatic Gear Hobbing Machine Y3150/3180
US $5600-$6000
Универсальный металлический зубчатый станок Y3150E
- Category: Gear Cutting Machines >>>
- Supplier: Henan Wadley CNC Machinery Co. Ltd.
Share on (60769269192):
Product Overview
Description
Product Description

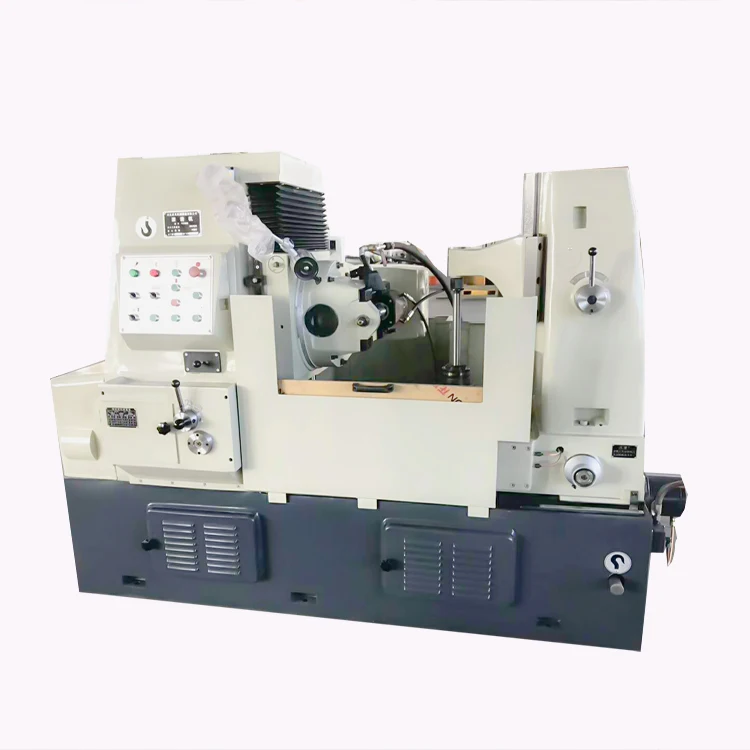

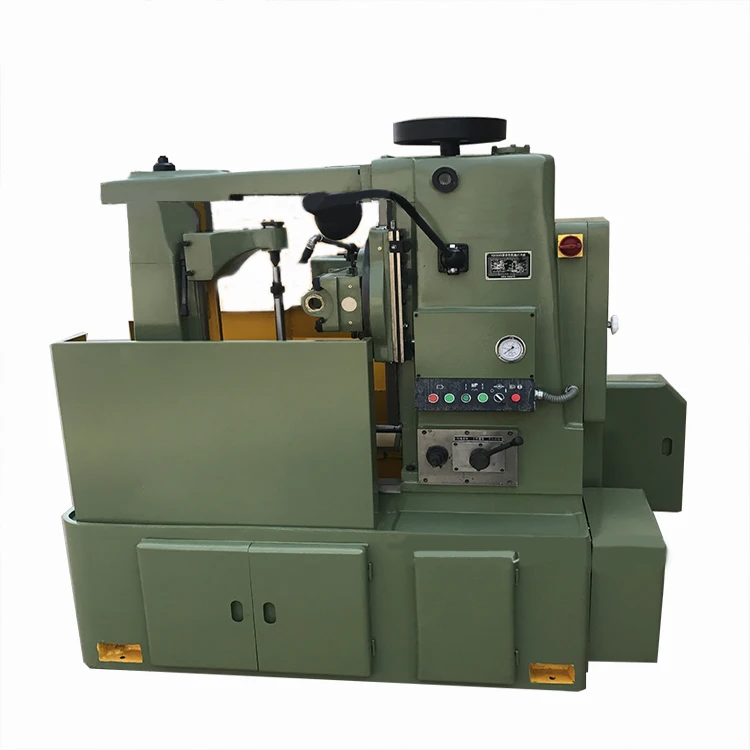

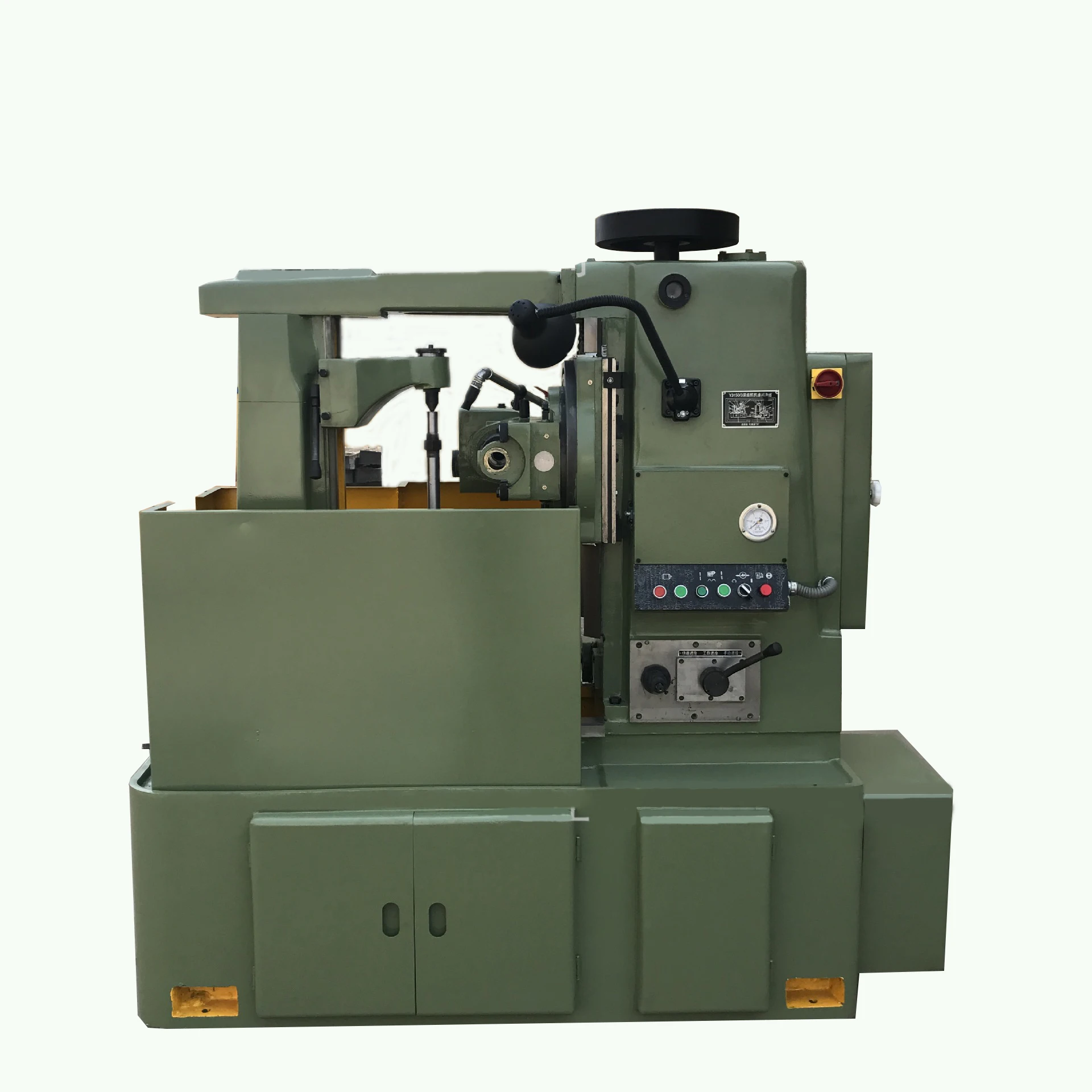

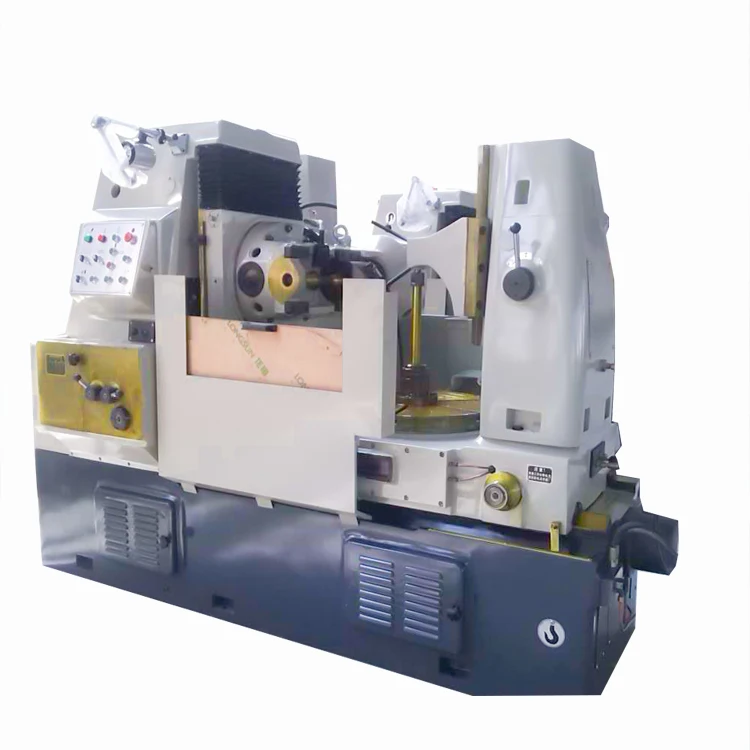

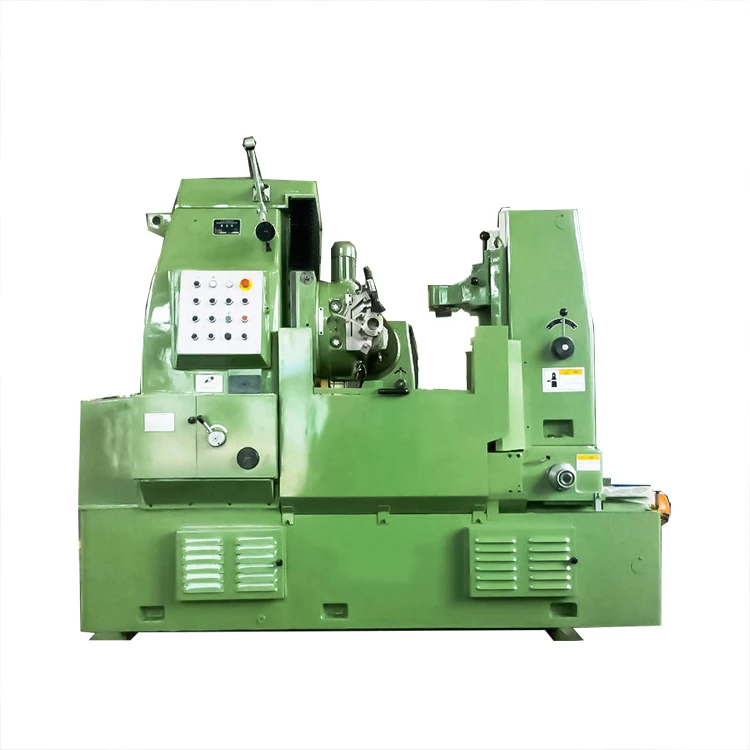

Universal metal gear hobbing machine Y3150E
Detailed Images
FEATURES:
Gear Hobbing Machine (Y3150E, YB3180E, YM3180H)
1. Machining for spur gear, helical gear and short spline shaft, with high and stable accuracy;
2. With both Clockwise and Counter-clockwise Axial feed;
3. Adopt integrated control for hydraulic and electrical system, also, with PLC for electrical control;
4. Equipped with safety system and automatic system, with auto-stop function;
5. Easy for adjustment, and suitable for large scale production.
6. Gear hobbing machines are intended for hobbing spur and helical gears as well as worm wheels.
7. The machines permit cutting by climbing hobbing method, in addition to conventional hobbing method, to raise the productivity
of the machines.
8. A rapid traverse device of hob slide and an automatic shop mechanism are provided on the machines allowing several machines to
be handled by one operator.
9. The machines are easy in operation and convenient to be maintained.
Gear Hobbing Machine (Y3150E, YB3180E, YM3180H)
1. Machining for spur gear, helical gear and short spline shaft, with high and stable accuracy;
2. With both Clockwise and Counter-clockwise Axial feed;
3. Adopt integrated control for hydraulic and electrical system, also, with PLC for electrical control;
4. Equipped with safety system and automatic system, with auto-stop function;
5. Easy for adjustment, and suitable for large scale production.
6. Gear hobbing machines are intended for hobbing spur and helical gears as well as worm wheels.
7. The machines permit cutting by climbing hobbing method, in addition to conventional hobbing method, to raise the productivity
of the machines.
8. A rapid traverse device of hob slide and an automatic shop mechanism are provided on the machines allowing several machines to
be handled by one operator.
9. The machines are easy in operation and convenient to be maintained.
Size Information
Model | Y3150E | YM3150E | YB3150E | Y3150E/1 | Y3180H | YM3180H | YB3180H | ||||||
Max.workpiece dia.(mm) | 500 | 500 | 500 | 500 | 550/800 | 550/800 | 550/800 | ||||||
Max.module(mm) | 8 | 6 | 8 | 8 | 10 | 8 | 10 | ||||||
Max.worktable speed(rpm) | 7.8 | 5.2 | 7.8 | 7.8 | 5.3 | 3.5 | 5.3 | ||||||
Spindle speed(steps)(rpm) | 40-250(9) | 40-200(8) | |||||||||||
Distance between hob axis and worktable surface(mm) | 235-535 | ||||||||||||
Min.center distance between tool and worktable(mm) | 30 | 30 | 30 | 30 | 50 | 50 | 50 | ||||||
Distance from tailstock end face to table surface(mm) | 380-630 | 400-600 | 400-600 | 400-600 | |||||||||
Max.hob dia.Xlength(mm) | 160*160 | 160*160 | 160*160 | 160*160 | 180*180 | 180*180 | 180*180 | ||||||
Max.hob head swiveling angle | ±240° | ±240° | ±240° | ±240° | ±240° | ±240° | ±240° | ||||||
Total power(kw) | 6.45 | 6.45 | 7.44 | 6.45 | 8.5 | 8.5 | 9.4 | ||||||
Overall dimension(cm) | 244x136x180 | 244x142x180 | 275x149x187 | ||||||||||
N.W./G.W.(kg) | 4500/5500 | 5500/6500 | |||||||||||
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
