siemens electrical motor centrifugal exhaust fan

Product Overview

Description

Model	Blade daimeter(mm)	Blade speed(r/min)	Moter spped(r/min)	Capacity(M 3/h )	Power(w)	Noise(db)	Voltage(v)	Size(mm)
HX-900	900	600	1400	35000	750	<=70	380	1000*1000*450
HX-1250	1250	439	1400	43000	1100	<=70	380	1380*1380*450
HX-1400	1400	439	1400	55800	1500	<=70	380	1530*1530*450

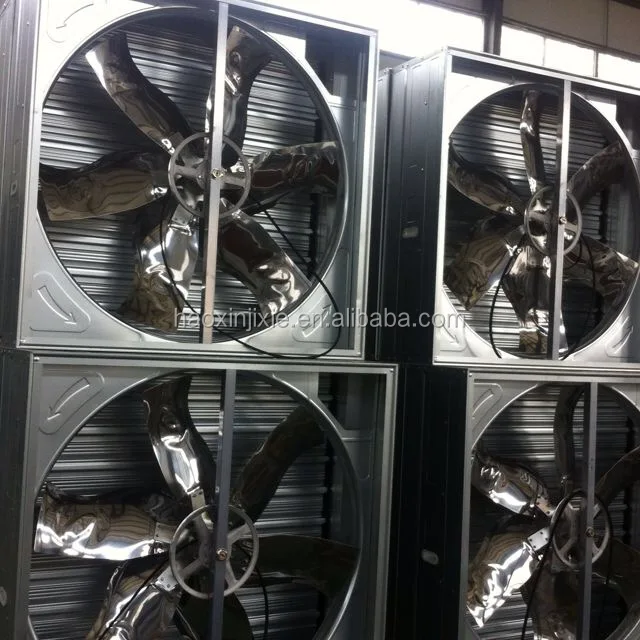

fan ventilation with stainless steel impeller axial fan

introduction

1) optimized design & construction

2) great air volume

3) steady long-lasting circulation

4) low noise .

5).Use CAD, louver-type window. stainless steel blade.

6).High efficient and energy-saving moter

7).Automatic tensioner belt

8).Centrifugal shutter system

9).exhaust fan,high effciency











Advantage

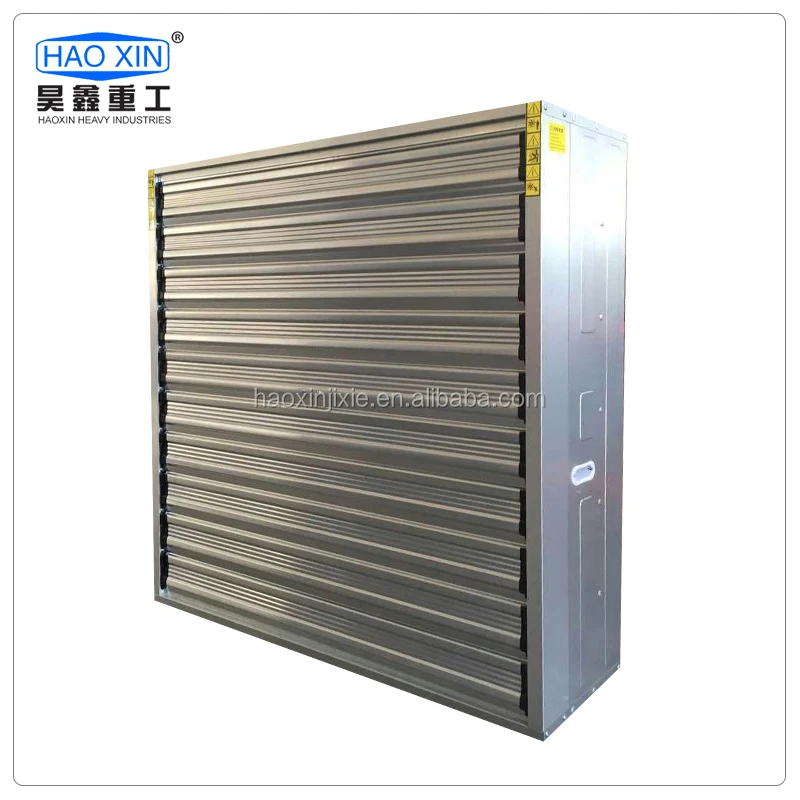

·     Shutter:With a centrifugal system which can ensure the shutter open and close automatically, and makes it dustproof, waterproof.

·     Motor: The high efficient and energy-saving moter with protection grade: Ip55, insulation class:F

·     Belt: Automatic tensioner to prevent the belt loosing and droping off.

·     Component:Centrifugal shutter system was made of 100% nylon, high intensity and long life.

Main components

·     Belt tensioner is made of aluminum magnesium alloy. It extend service life and avoid distortion.

·     Nylon orented poles are fixed on the flange which could avoid distorion of nylon and guarantee total concentrictiy of front and back bearings.

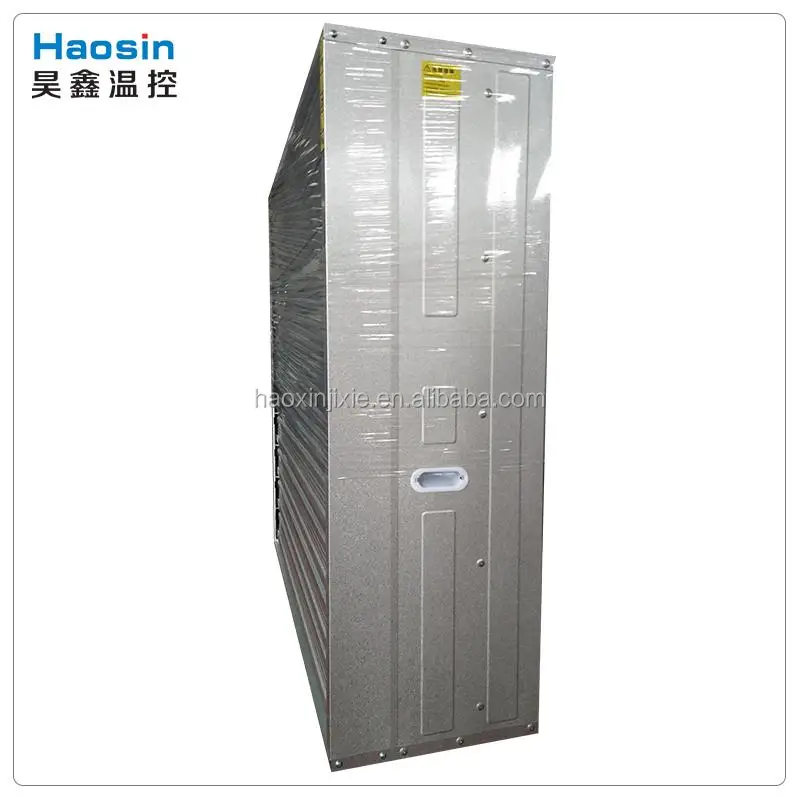

Handles are designed as recessed type,=. It is easy to carry, transport and have no effect on installation and outlook
